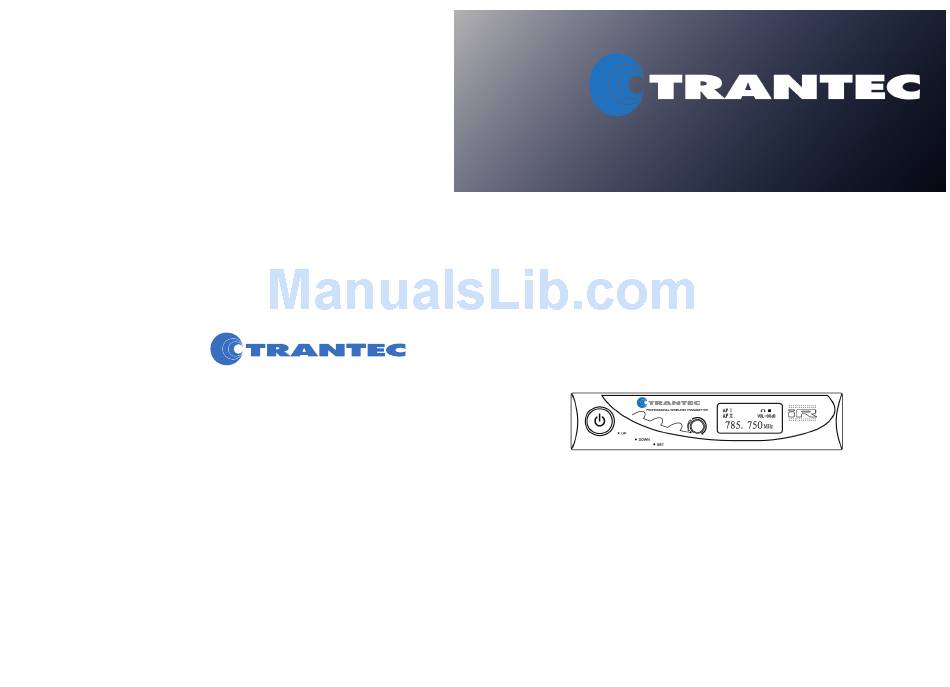

The world's finest wireless systems

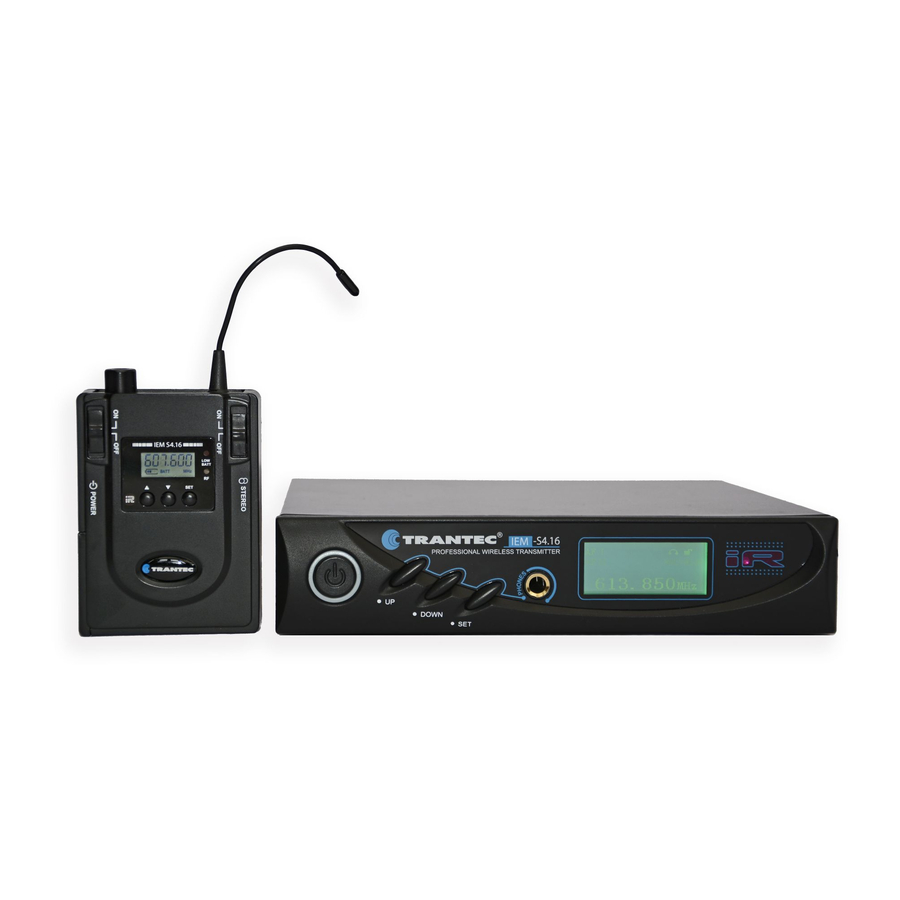

IEM S4.16
Professional in-ear Wireless Monitoring System
TOA Corporation (UK) Limited
HQ3 Unit 2, Hook Rise South,
Surbiton, Surrey, KT6 7LD, England
Telephone: +44 (0) 870 774 0987
Fax: +44 (0) 870 777 0839
Email: sales@trantec.co.uk
www.trantec.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IEM S4.16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trantec IEM S4.16

Summary of Contents for Trantec IEM S4.16

  • Page 1 The world’s finest wireless systems IEM S4.16 Professional in-ear Wireless Monitoring System TOA Corporation (UK) Limited HQ3 Unit 2, Hook Rise South, Surbiton, Surrey, KT6 7LD, England Telephone: +44 (0) 870 774 0987 Fax: +44 (0) 870 777 0839 Email: sales@trantec.co.uk...
  • Page 2 2. Product Introduction The Trantec IEM S4.16-TX is a stereo UHF transmitter and in every 24 MHz there are 16 preset frequencies. The main features are as follows: a) LCD Panel...

  • Page 3: Main Features

    Power indicator and RF signal Compression and expander circuitry with S/N over 90dB AA batteries x 2 Flexible antenna 3. System Components IEM S4.16-TX transmitter x 1 Power supply x 1 Antenna x 1 1.5 AA batteries x 2 IEM S4.16-1RX receiver x 1...

  • Page 4: Battery Installation

    3. Battery Installation 2. IEM S4.16-RX (1) Put the power switch to OFF and press the open side of the battery cover 1/4 wave antenna and slide to open cover 3.5 stereo monitoring headphone output Left and right hand channel balanced adjusting button allowing the (2) Place two pieces of AA batteries (1.5V) with the correct polarity...

  • Page 5: Installation

    NOTE: The input level control and the input pad do not affect the level of the LOOP signals. Stereo for multiple Systems IEM S4.16-RX Use the LOOP OUT connectors to send one stereo signal from the mixing console to multiple IEM 4.16-RX wireless transmitters. This frees up outputs on the mixing IEM S4.16-TX...
  • Page 6 (4) Audio Signal Input Optional stereo and mono channel input, mono channel input from AF II IN of the right side, you can choose XLR-3 balanced input or 6.3 unbalanced input connector. (5) Configuring Suitable Audio Input Standard The strength of the audio input signal will be display on the LCD panel, you can set the strength to show 8 bars and when the strength is over the 8 bars the input signal will be limited even when the signal is stronger.
  • Page 7 (9) Configuration of Input Sensitivity (11) Name Configuration a. Press SET to scroll through the options until the unit displays SENSITIVE a. Press SET to scroll through the options until the unit displays RENAME, then press SET to confirm b. Press SET and HIGH will be displayed to show that the sensitivity is high b.
  • Page 8 (13) Receiver LCD (17) Setting the Lock Function a. Press SET and press to show b. Press SET to confirm and LCD will display meaning the lock function has been relieved to release c. Press to show and press SET, the setting function has been locked 1) All the menus will be displayed here 2) Display of the battery power is divided into 4 bars and when there is only one bar left, it means the battery power is running low and you should change the batteries...
  • Page 9 6. Notice 7. Specification IEM S4.16-RX (1) When this system is being used together with a wireless Frequency range (606.250 - 613.850) (863 - 864.870) microphone system, please avoid the same frequency range to prevent distortion Band width 24MHz Oscillation...
