Icom IC-R20 Service Manual page 45

SECTION 7 SECTION 7
[CHASSIS PARTS]
REF. NO. ORDER NO.
J1 6510024470 Connector BNC-R168
W1 8900009640 Cable OPC-963
MP1 8210020700 2699 front panel assembly
MP2 8210020710 2699 rear panel assembly
MP3 8110008140 2699 battery cover
MP4 8310061220 2699 lock plate
MP5 8930062400 2699 jack cap
MP6 8930062410 2699 USB cap
MP7 8610011940 Knob N320
MP8 8930062440 2699 detection button
MP9 8930062450 2699 button
MP11 8930062470 2699 TOP PLATE
MP12 8930062500 2699 A-terminal Y713
MP13 8930062510 2699 B-terminal Y714
MP14 8930062520 2699 C-terminal Y715
MP15 8930051630 2304 sheet
MP16 8930050560 2304 C1-terminal
MP17 8930050570 2304 C2-terminal
MP18 8930051390 2304 shaft
MP19 8830000570 knut (A) FX643
8810005700 Screw PH No.0 M2 × 4 black
MP20
8810009220 Screw PH B0 M2 × 8 ZK (BT)
MP21
8810008750 Screw PH BT M2 × 15 ZK
MP22
MP23 8930051851 891 terminal rubber (B)-1
MP24 8610007510 Knob spring No.7800 [SEA], [EXP], [CAN] only
8810008640 Screw FH BT No.0 M2 × 4 NI-ZU
MP26
8810008640 Screw FH BT No.0 M2 × 4 NI-ZU
MP27
8810008640 Screw FH BT No.0 M2 × 4 NI-ZU
MP28
MP29 8310061230 2699 window plate
MP30 8930062390 2699 window sheet
MP31 8930062420 2699 lens
MP32 8930062430 2699 keyboard
8810008640 Screw FH BT No.0 M2 × 4 NI-ZU
MP34
8810005700 Screw FH No.0 M2 × 4 black
MP35
MP36 8930063290 Insulation sheet (HW)
SP 1 2510000960 speaker K036NA500-26
[RF UNIT]
REF. NO. ORDER NO.
EP 2 3310003010 Antenna KY-058-006-2 <KAI>
MP1 8930063280 Double side tape (AP)
[1STAVCO BOARD]
REF. NO. ORDER NO.
MP1 8510016210 2699 A-VCO case Y723
[1STBVCO BOARD]
REF. NO. ORDER NO.
MP1 8510016220 2699 B-VCO case Y724
[2NDCVCO BOARD]
REF. NO. ORDER NO.
MP1 8510016230 2699 C-VCO case
MECHANICAL PARTS AND DISASSEMBLY MECHANICAL PARTS AND DISASSEMBLY
QTY.
DESCRIPTION
QTY.
DESCRIPTION
QTY.
DESCRIPTION
QTY.
DESCRIPTION
QTY.
DESCRIPTION
[2NDDVCO BOARD]
REF. NO. ORDER NO.
1
MP1 8510016230 2699 C-VCO case
1
[DOWNCONV BOARD]
1
REF. NO. ORDER NO.
1
1
MP1 8510016240 2699 conv case
1
MP2 8930062490 2699 conv plate
1
1
2 [LOGIC UNIT]
1
1
REF. NO. ORDER NO.
1
S24 2250000200 Encoder TP90N00E20-16F-1517
1
S25 2250000200 Encoder TP90N00E20-16F-1517
1
3
DS12 5030002690 LCD M3-0243TIY
1
1
MP2 8930062480 2699 LCD holder
1
MP3 8930062530 2699 battery spring
1
MP4 8930062540 Sponge (HO)
2
MP5 8510016370 2699 LOGIC shield plate Y725
1
2
4
[REC UNIT]
3
2
REF. NO. ORDER NO.
3
MP1 8510016250 2699 A-REC case
4
MP2 8510016260 2699 B-REC case
2
1
Screw abbreviations
1
1
1
1
1
3

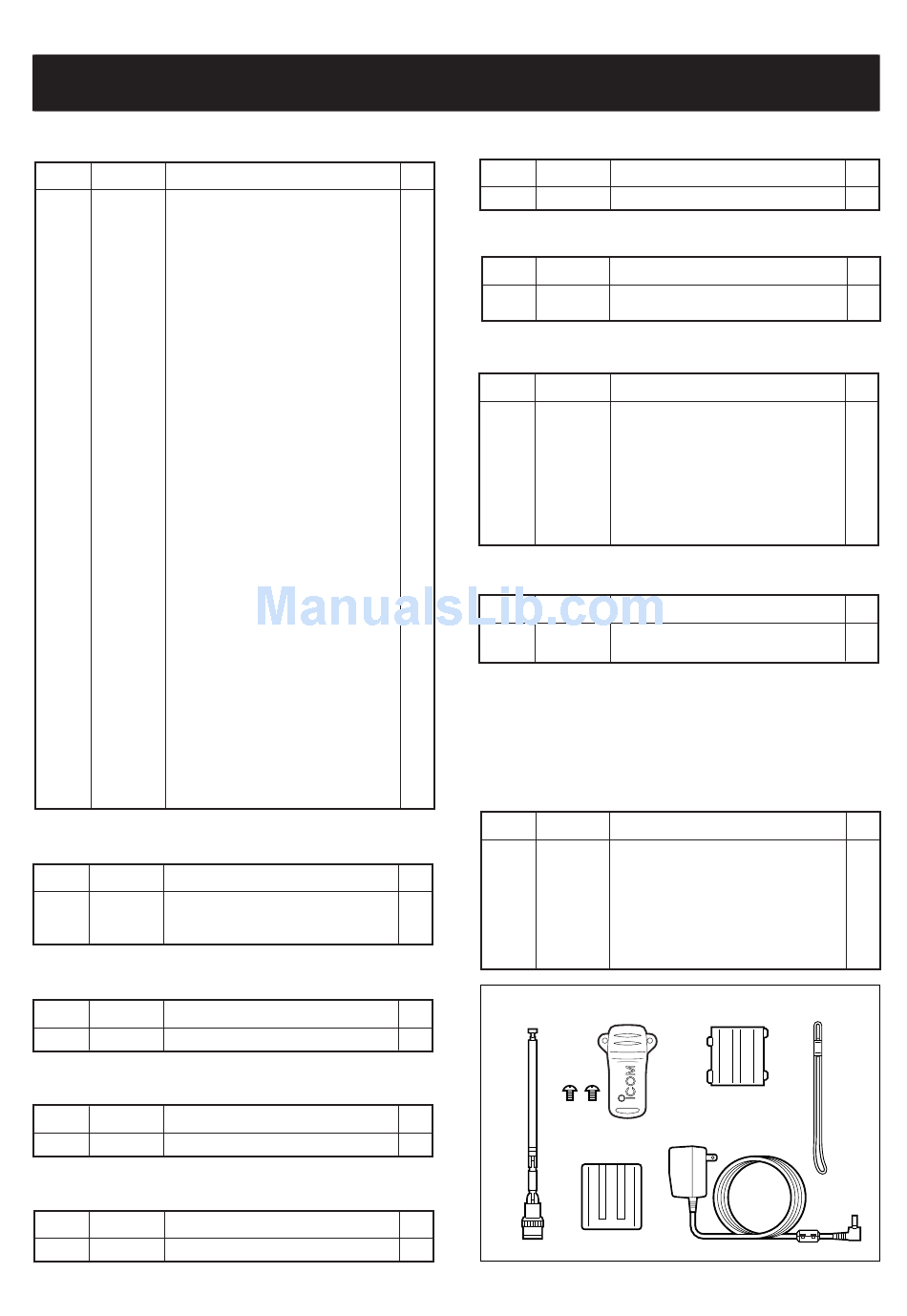

1 [ACCESSORIES]
REF. NO. ORDER NO.
EP1 3310002670 Antenna FA-B04RE
EP2 0800005460 Battery BP-206 ACC
EP3 0800006350 AC adapter BC-149A [USA], [EXP-01], [CAN] only
0800006360 AC adapter BC-149D [EUR], [FRA], [EXP-02] only
1
MP1 8930061480 Clip MB-98 ACC (2742 clip assembly)
1
MP2 8930050410 2304 spacer
MP3 8010018080 Strap belt HK-009
EP1
1
MP4
1
1
7 - 1
DESCRIPTION
DESCRIPTION
DESCRIPTION
DESCRIPTION
