Uniden LRD750 User Manual

UNIDEN LONG RANGE RADAR/
LASER DETECTOR
LRD750
DISCLAIMER: Radar detectors are illegal in some states.
Some states prohibit mounting any object on your
windshield. Check applicable law in your state and
any state in which you use the product l to verify
that using and mounting a radar detector is legal.
Uniden radar detectors are not manufactured
and/or sold with the intent to be used for illegal
purposes. Drive safely and exercise caution while
using this product. Do not change settings of the
product while driving. Uniden expects consumer's
use of these products to be in compliance with all
local, state, and federal law. Uniden expressly
disclaims any liability arising out of or related to
your use of this product.
FEATURES
• X, K, and Ka band alarms
• X, K, and Ka band on/off
• POP and Laser alert alarms
• Highway/City modes
• Invisible to VG-2 and Spector I and IV radar detectors
• Mute alarm audio
• Voice alert notification
• Battery voltage display
• Dot Matrix character display
• Memory feature saves user's last settings (except MUTE)
when the unit is powered down/disconnected from
power.
WHAT'S IN THE BOX
• LRD750 radar detector
• Straight 12V DC Power Cord
• Windshield Mounting Bracket
• Hook and loop fastener tape
• Spare fuse for DC Power Cord

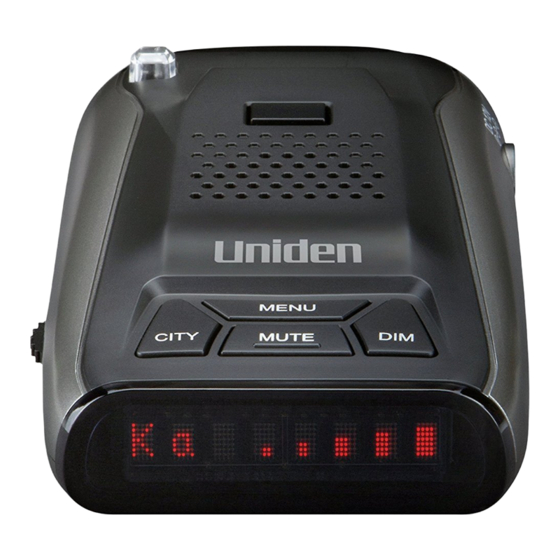

LRD750

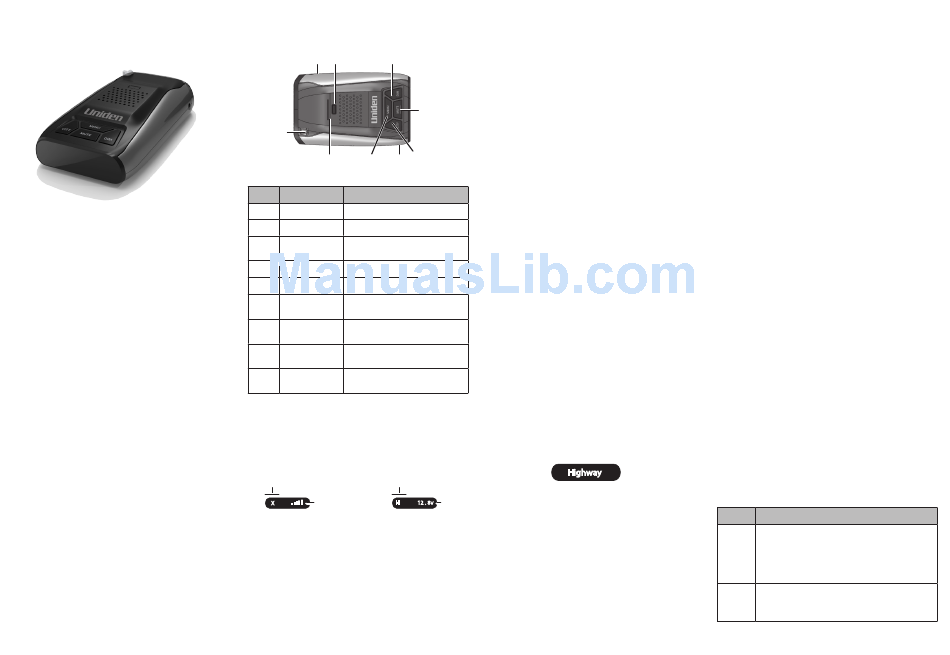

HARDWARE
2 3 4
5
1
6
9 8 7
NO. NAME WHAT IT DOES
1 Eagle Eye 360° Laser detection
2 Power Jack Plugs into power source.
3 Eject Releases LRD750 from
mounting hardware.
4 DIM Dims the display brightness.
5 MUTE Turns off the sound.
6 CITY Sets the unit to CITY or
HIGHWAY mode.
7 Power/ Turns unit on and adjusts
Volume Dial volume.
8 MENU Turns bands and other features
on and off.
9 Mounting The mounting bracket fits into
Bracket Slot this slot.
DOT MATRIX DISPLAY
The LRD750 contains a dot matrix display. When a signal is
detected, the display shows the band type and signal
strength in an increasing bar format. If the LRD750 detects
a laser, the display shows LASER.
Band Type
CITY / HIGHWAY
Laser CITY / HIGHWAY
Signal Strength (1 - 5)
H 12 . 8v
X
Various Alerts
Voltage Meter OFF Voltage Meter ON
INSTALLATION AND TURN UP
Install the LRD750 on the front windshield or on the
dashboard. For best performance, position the detector as
low as possible in the center of the front windshield. Be
sure the unit's view of the road, either to the front or the
back, is clear.
INSTALLATION
WINDSHIELD
1. Clean the windshield and the rubber cups of the
mounting bracket. Attach the rubber cups to the
bracket.
2. Push the bracket firmly onto the windshield.
3. Slide the unit onto the bracket.
4. Gently adjust the bracket angle if needed.
Do not use the detector to adjust the bracket angle.
5. Plug the power cord into the detector.
6. Plug the cigarette lighter adapter into the vehicle's
cigarette lighter.
You can remove the detector by pressing the
Dashboard
1. Place the unit on the dashboard so that it has a clear,
level view of the road.
The unit cannot be readjusted after final installation.
2. Remove the backing from one side of the hook and loop
fastener tape.
3. Place that fastener tape on the dashboard where you
want the unit.
4. Attach the other piece of the fastener tape to the
bottom of the unit and attach the unit to the dashboard
fastener tape.
You can remove the unit as needed.
5. Plug the power cord into the detector.
6. Plug the cigarette lighter adapter into the vehicle's
cigarette lighter.
TURN UP
Once the detector is installed and the car is turned on, turn
the Power/Volume dial away from you until it clicks. The
unit is now turned on.
The unit cycles through the display in this order: X - K - Ka -
Laser, then signal strength except for Laser (L). Voice
announces each band.
Once the cycle is complete, the detector turns to standby
mode.
Highway
Standby Mode
Battery
Voltage
DETECTION
The LRD750 detects emissions from radar guns and sounds
an audio alert for the driver. The detector determines
which band range the signal is from and displays that
frequency type on the display (X, K, Ka, or Laser). The
frequency strength (1 thorough 5) also displays in an
increasing bar format.
False signals can come from other devices such as the
automatic doors at a supermarket or even another
car's cruise control; these devices operate in the
same frequency ranges as radar guns.
BANDS
The LRD750 recognizes:
• X Band: This band was the first frequency band assigned
to police radar. It operated on a lower frequency
(10.525GHz) with a higher power output.
• K Band: This band is the most common frequency used
in radar detectors (24.150). Its relatively small
wavelength gives it a clocking distance of about 1/4 mile
although, depending on the environment, it can detect
up to 2 miles. Turn on the K band filter through the
menus to filter out weaker K band frequencies and
reduce false readings.
• Ka Band: Over the years, the Ka band incorporated the
Ka-Band, the Ka Wide-Band, and the Ka Super Wide-
Band. Most photo radars (also known as stop light
Eject
key.
cameras) use this band.
POP™ is a single-pulse Doppler radar feature on some
K and Ka band radar guns. This type of radar gun is
a very sensitive receiver; limit POP detect mode to
highway and rural driving.
• Laser: Police use the laser's narrower light pulses for
speed detection as it is more accurate and faster. Laser
beams are more detectable after they have bounced off
their target and begin to disperse on the return trip.
MODES
The LRD750 operates in two modes:
• Highway. Provides audio and visual alerts any time all
bands and laser are detected. Recommended for
highway or rural driving. (X, K, Ka, Laser)
• City. Provides audio and visual alerts any time all bands
and laser are detected. Provides a stronger signal so it
can pick up weaker transmissions. (K, Ka, Laser)
VOICE ANNOUNCE
The LRD750 has a voice feature that tells you the unit
status as it changes. For example, if the unit picks up K
band transmissions, it announces "K band." Turn this
feature on and off through the menus.
OPERATION
After installing your radar detector, you can set it to your
own specifications through the keys and the menu.
KEYS
KEY PRESS TO...
MUTE • Turn alert audio off (voice - Mute On)
during alert audio. Mute cancelled 10
seconds after alert ends.
• In Menus, return to the previous menu
option.
DIM • Change brightness from BRIGHT to DIM to
DARK. Voice announces all changes.
• In Menus, toggle the displayed setting.
