Summary of Contents for Uniden LRD 766

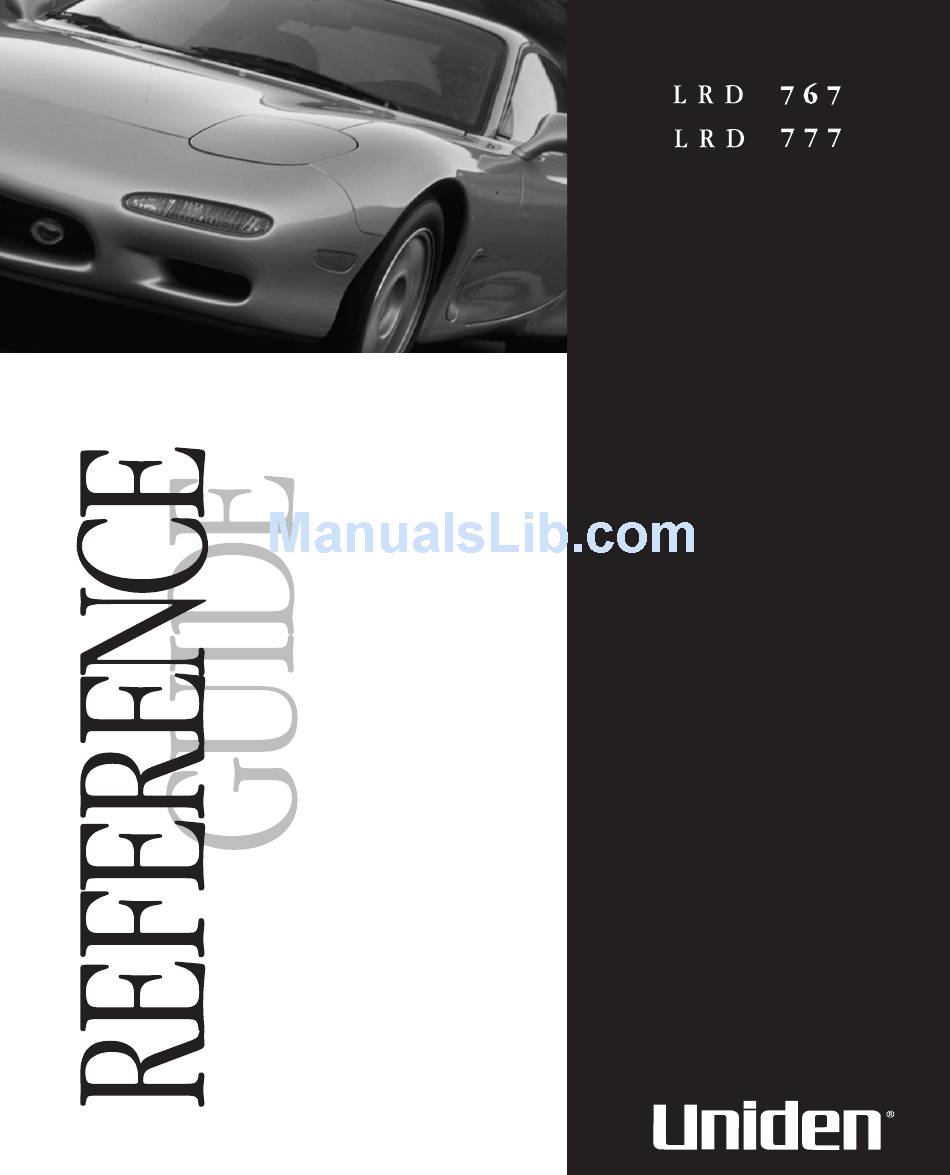

  • Page 1 The industry’s most advanced fully integrated laser / radar detectors with a digital compass...
  • Page 2: Table Of Contents

    CONTENTS ntroduction ........2 Feature Highlights .
  • Page 3: Introduction

    INTRODUCTION Welcome to the world of sophisticated, early warning laser/radar detection. You have purchased one of the most advanced laser/radar detectors available. The LRD 767 / LRD 777 is a completely integrated laser/radar detector. It responds to the X, K, and Ka-SuperWideband radar guns in use today and also provides 360 detection of the latest speed monitoring system —...
  • Page 4: Included With Your Radar Detector

    INCLUDED WITH YOUR RADAR DETECTOR To get the most from your laser/radar detector, please read this Reference Guide thoroughly. WARNING If any of these items are missing or damaged, contact your dealer immediately. Be sure to complete and mail the product registration card.
  • Page 5: Speed Detection

    SPEED DETECTION SYSTEMS A speed detection device (often called a radar gun) sends out either a microwave signal or beam of light. When this signal reaches its target, part of the signal is reflected or bounced back toward the emitting gun. The time required for the signal to leave the gun, bounce off an object, and return is used to determine a vehicle’s distance and speed.
  • Page 6: Laser

    The Laser Speed Detection System, also called LIDAR (for Li Detection a nd R pulses just outside the spectrum of visible light. Each reflected pulse measures the speed of the object coming toward or going away from the laser gun. Unlike radar, the laser gun emits a very narrow beam of light, so it can pinpoint a speeding car within traffic.
  • Page 7: Controls

    CONTROLS AND FUNCTIONS Clip Release — Press the clip release button to remove the LRD 767/LRD 777 from the windshield mounting clip. Rear and Side Laser Detector Lense — For rear and side detection of laser signals. Press the city button to help reduce X-band false alarms while driving in the city.
  • Page 8: Display Panel

    DISPLAY PANEL The display panel indicates the driving direction and each mode of the operational conditions when no signal is engaged. At city mode : At highway mode : Every time you turn on the LRD 767/LRD 777, a self test is At audio-only mode : performed for all visual (dim &...
  • Page 9: Installation

    INSTALLATION The LRD 767/LRD777 uses a highly sensitive horn-type antenna and IR laser sensor to receive laser/radar signals. Its sensitivity and range depend on the method of installation and the direction of the antenna/sensor in relation to the signal source. The inherent nature of radar waves makes them reflect off metallic surfaces.
  • Page 10: Helpful Tips

    HELPFUL TIPS The antenna and the forward looking sensor are located behind the rear panel of the unit, (and the rear- and side-looking sensors are located on top of the unit), directly behind the mode selection keys. The antenna and sensors should not be obstructed by metal or metallic surfaces and should be pointed at the horizon for accurate long-range detection.
  • Page 11: Adjusting The Windshield Mounting Clip

    ADJUSTING THE WINDSHIELD MOUNTING CLIP The metal portion of the bracket locks into the plastic portion at two different positions. These positions can be used for vehicles with two different vertical angles of their windshields. The back position can be used for vehicles with windshields that are slanted back.
  • Page 12: Connecting The Power

    The power cord provided with the unit has a cigarette lighter socket plug at one end and a small connector at the other. Use only a Uniden supplied power cord or its replacement. When installing the power cord, make sure that: Insert the small connector into the jack on the side of the unit.
  • Page 13: Replacing The Fuse

    REPLACING THE FUSE The cigarette lighter plug contains a 1-ampere fuse to protect it from power surges. To replace the fuse, unscrew the top of the plug. Remove the fuse and replace it with the same type. To replace the top, push in the two metal contacts and twist into place.
  • Page 14: Operation

    OPERATION You are now ready to enjoy the convenience and security of your LRD 767/LRD 777. Please read this section of the Reference Guide carefully to familiarize yourself with the basic operation of this unit. POWER ON DEMONSTRATION VOLUME CONTROL Adjust the volume control to a comfortable alarm tone level for your vehicle.
  • Page 15: Memory Retention Feature

    MEMORY RETENTION FEATURE The Memory Retention Feature retains the LRD 767/LRD 777’s operational settings in memory for at least 2 days without power. When you turn on the LRD 767/LRD 777, it will be in the same mode as when you turned it off. FULL WARNING When the LRD 767/LRD 777 detects a radar, laser, VG-2 or safety warning signal, it emits a distinct warning tone and the...
  • Page 16: Visual Alert Operation

    VISUAL ALERT ONLY OPERATION You can operate the LRD767/LRD777in Visual Alert Only by setting the volume control at the minimum position in Full WARNING Alert Mode. At this setting you can barely hear the audio alert in a quiet environment. To operate with visual alert only, set the volume control to...
  • Page 17: City Operation

    In highly populated areas, you may encounter many devices that use the same frequencies as radar signals, such as motion detectors, automatic doors, and intrusion alarms. These devices may trigger an alert called “falsing.” To filter most of the weaker signals and get the most accurate radar signal recognition, press city to turn on the City Mode.
  • Page 18: Signal Strength Meter

    SIGNAL STRENGTH METER The signal strength meter shown in the display panel gives you instant information about the strength of the signal being detected. A weak signal causes the first bar to light, but as signal strength increases, more bars light. All six bars for radar and three bars for laser light when full signal strength is received.
  • Page 19: Voice Alert(Lrd777 Only)

    VOICE ALERT (LRD 777 ONLY) When each function is activated by pressing a control button, the LRD 777 gives the following voice messages: – By the city button : City Mode, Highway Mode – By the audio button : Display Dim, Display Dimmer, Audio Only, Display On –...
  • Page 20: Sws Warring Messages

    SWS WARNING MESSAGES Highway Construction – Work zone ahead – Road closed ahead / Follow detour – Bridge closed ahead / Follow detour – Highway work crews ahead – Utility work crews ahead – All traffic follow detour ahead – All trucks follow detour ahead –...
  • Page 21 SWS WARNING MESSAGES Weather Related Hazard – High wind ahead – Severe weather ahead – Heavy fog ahead – High water / Flooding ahead – ICE on bridge ahead – ICD on road ahead – Blowing dust ahead – Blowing sand ahead –...
  • Page 22: Compass Calibration

    COMPASS CALIBRATION To have the LRD 767/LRD 777 correctly display the direction which it is facing you need to follow the calibration instructions stated below. • Mount your LRD 767/LRD 777 on the windshield firmly. • Press the audio button for three seconds until it scrolls COMPASS CALIBRATION on the display panel.
  • Page 23: Troubleshooting

    If your LRD 767/LRD 777 does not perform up to expectations, try the suggestions listed below. If you cannot get satisfactory results, call the Uniden Customer Service Center at (800) 297-1023, 7:00 a.m. to 7:00 p.m. Central Time, Monday through Friday.
  • Page 24: Specifications

    General Dimensions: 4.6in(L) x 2.8in(W) x 1.1in(H) (LRD767) 4.6in(L) x 2.8in(W) x 1.2in(H) (LRD777) Weight: 4.0 oz Power Requirements: 12~16V DC, 310mA Temperature Range: Operating: -5 F to 160 F (-20 C to 70 C) Storage: -40 F to 185 F (-40 C to 85 C) 360 Laser Detector Receiver Type:...
  • Page 25: Warranty

    WARRANTOR: UNIDEN AMERICA CORPORATION (“Uniden”) ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original retail owner, this Uniden Product to be free from defects in materials and craftsmanship with only the limitations or exclusions set out below.
  • Page 27 Printed in Korea...
