Table of Contents

Vessel Installation
and Operating Manual
Important Safety Information
Please read this manual prior to installation.
2
Nature
Express is designed to sanitize inground and aboveground swimming
®
pools of up to 25,000 gallons. If your pool is larger than 25,000 gallons do not
install this unit but ask your pool professional about a Nature 2 "G" or "A" model
vessel system.
!
ATTENTION
ELECTRICAL HAZARD
• Severe shock or injury will likely occur as a result of a drill or drill cord coming in
contact with water. Never allow electric drill or drill cord to come in contact with water.
Only plug drill into a Class A (5 Milliampere Trip) protected Ground Fault Circuit
Interrupter (GFCI) in accordance with the National Electrical Code Section 680.
Please see your drill owner's manual for further safety precautions.
EQUIPMENT UNDER PRESSURE
• Always turn pump off prior to installing or changing Nature
filter system is operated under pressure and the pressure must be released before
you begin work. Please see your pump/filter owner's manual for further instructions.
PREVENT CHILD DROWNING
• Do not let anyone, especially small children, sit, step, lean or climb on any equipment
installed as part of your pool's operational system. Locate the components of your
operational system at least 3 feet from the pool so children cannot use the equipment
to access the pool and be injured or drown.
IMPORTANT: Pool Owner, save this manual.
Builders, leave this manual with pool owner.
For Inground and Aboveground Pools
Failure to heed the following warnings can result in
permanent injury, electrocution or drowning.
2
cartridge. Your pump/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nature2 Express and is the answer not in the manual?

Questions and answers

Related Manuals for Zodiac Pool Systems Nature2 Express

Summary of Contents for Zodiac Pool Systems Nature2 Express

  • Page 1 For Inground and Aboveground Pools Vessel Installation and Operating Manual Important Safety Information Please read this manual prior to installation. Nature Express is designed to sanitize inground and aboveground swimming ® pools of up to 25,000 gallons. If your pool is larger than 25,000 gallons do not install this unit but ask your pool professional about a Nature 2 “G”...

  • Page 2: Installation

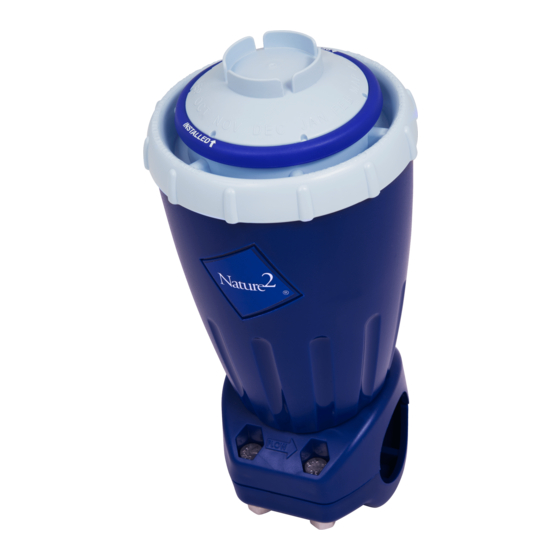

    Thank you for purchasing a Nature Express pool sanitizer. Please read through the ® entire manual before installing your new unit. Installation Nature Express easily installs on your pool’s return line. You will need to use a cordless or electric drill to install the vessel. Nature Express components: (1) winterizing cap, (2) outer housing, (3) 2” clamp assembly w/gasket (I/G only), (4) 1-1/2” clamp assembly w/gasket, (5) flow diverter, (6) Express cartridge, (7) hole saw, (8) nuts and bolts, (9) silicone tube, (10) rigid PVC adapter (A/G only). 1. Decide where to install the Nature vessel. It must be installed: • After the filter on the main return to the pool. • Before or after the heater (downstream of solar heating systems). • Before any chemical dispenser or the discharge of any off-line chemical dispenser. IMPORTANT: Install a check valve before chlorinators to isolate the Nature vessel from possible backflow of highly chlorinated water.
  • Page 3 The pressure must be released before you begin work. Please see your pump/ filter owner’s manual for further instructions. 4. Close any valves. If your pool filtration equipment is below the water level of the pool, you will either need to close the return valve or use winterizing plugs at the skimmer and return fittings to prevent excessive water loss. Contact your Nature dealer or Zodiac Customer Service at 800-822-7933 for more information. For Aboveground Pools Aboveground pools are often plumbed with flexible or corrugated pipe. These systems require use of the rigid PVC adapter included with Nature Express for aboveground pools. The adapter fits most filtration systems.
  • Page 4 7. Install your Nature Express on schedule 40 PVC pipe only. Failure to heed ® this warning can result in equipment failure. Position the clamp assembly on the pipe, with the arrow pointing in the direction of the flow of water and hand tighten the nuts and bolts. Tighten nuts an additional 1/4 turn using a wrench or socket. Do not over-tighten. Note: The 2 halves of the 1-1/2” clamp assembly will not touch when properly assembled. A gap of roughly 1/16” is normal. 8. Insert the hole saw into a drill. Using the hole in the top half of the clamp assembly as a guide, cut a hole in the pipe.
  • Page 5 9. Insert the flow diverter into the clamp assembly and snap it into place. Snap the outer housing onto the clamp assembly. 10. Spread silicone around the o-ring just above cartridge threads. 11. Thread the Nature Express cartridge into the clamp assembly. Set the date ® reminder. 12. Open any valves that you closed and turn on your pool pump to verify that there are no leaks. The small pellets inside the cartridge dome provide evidence of water flow through your Nature Express. If a leak is present: turn off pump, close valves, and remove Nature Express and assembly. Remove any PVC burrs, replace clamp assembly without over- tightening, and re-install cartridge. 13. Refer to your Nature Cartridge Owner’s Manual for cartridge start up procedures.

  • Page 6: Operation And Maintenance

    Operation and Maintenance Filtration and Circulation Follow the manufacturer’s directions for keeping the circulating pump in good working order and operate it at least six (6) hours a day. Consult your Nature dealer for ® optimum run times. Check pool filter periodically and clean as recommended by the manufacturer. Replacing The Cartridge Use the month indicator ring on the top of the unit to identify the date on which the cartridge should be replaced. A Nature Express cartridge lasts for six (6) months. To replace the cartridge: 1. Shut off your pool’s pump and filter. Close any valves between the filter and pool to prevent draining the pool. 3. Unscrew and remove the old cartridge. 4. Screw the new cartridge into housing and clamp assembly. 5. Rotate the install/replace ring located on the top of the cartridge to the appropriate month.

  • Page 7: Troubleshooting

    Troubleshooting Use the guide below to correct common pool issues. For further assistance, consult your Nature dealer or call us at 1-800-822-7933. ® Problem What to look for: Treatment No flow to Nature Express. Dirty filter (one indication: Clean or backwash filter pressure is 8-10 psi higher so operating pressure than normal). is always within 7 psi of a new filter. Leaking around vessel. Dripping from clamp area. 1. Re-lube gasket and cartridge o-ring. 2. Make sure nuts & bolts are tightened evenly and not over-tightened.

  • Page 8: Limited Warranty

    This warranty specifically excludes all incidental or consequential damages, except where state law requires them to be paid. This warranty gives you specific rights. You may have other rights that vary from state to state. TO SUBMIT A CLAIM Report claims to Zodiac Pool Systems, Inc. by calling 1-800-822-7933. Only the original purchaser may submit a claim under this limited warranty. All claims must be accompanied by an original purchase receipt. ZODIAC POOL SYSTEMS, INC. 2620 Commerce Way Vista, CA 92081 Tel: 800-822-7933 Fax: 877-327-1403 ©2010 Zodiac Pool Systems, Inc.
