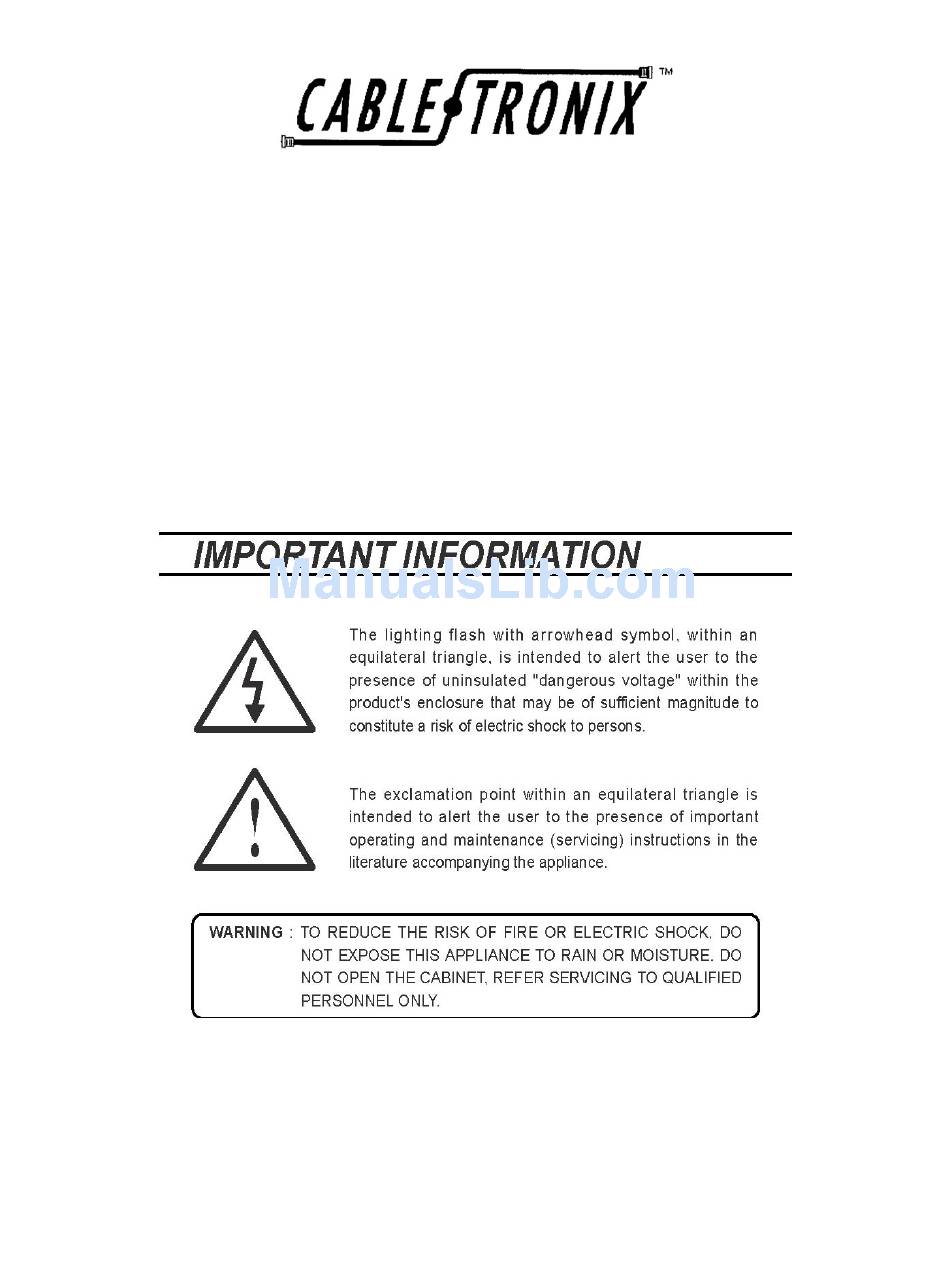

- Page 1 INSTALLATION MANUAL CT-SAW860 Audio/Video Modulator...
-
Page 2: Product Description
One CT-SAW860 Installation Manual PRODUCT DESCRIPTION The CT-SAW860 is an all solid-state audio/video modulator that provides a modulated video and aural RF carrier output on a fixed channel from 54MHz to 860MHz. The modulator accepts standard polarity video at a 0.7-2.5 Vp-p level from video sources such as a satellite receiver, demodulator, TV camera, DVD player or video tape recorder. -
Page 3: Specifications
SPECIFICATIONS CT-SAW860 SAW-Filtered Audio/Video Modulator Specifications (Typical) 1.Output Channels TV VHF: 2-13, UHF: 14-69, CATV: 2-127 2.Output Level +55 dBmV (minimum) .Output Level Range 13 dB 4.A/V Carrier Ratio -7dB to -22dB 5.Spurious Output -60 dB below video carrier (@A/V carrier ration -15 dB) 6.Frequency Accuracy/Stability... - Page 4 1. UNPACKING and HANDLING Each unit is shipped with all equipment assembled, and factory tested. Ensure that all accessories are removed from the container before discarding packing material 2. MECHANICAL INSPECTION Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is clean, and no connectors are broken, damaged, or loose.
- Page 5 SAW860 and other equipment are being powered by it. 5. CHANNEL SELECTION The CT-SAW860 is a fixed frequency modulator and units are pre-programmed for a single given channel at the factory. No channel selection is available from the unit. 6. ADJUSTMENT a.
- Page 6 Ensure the F-connector’s center conductor is making solid contact with the C- SAW860’s Video Input, Audio Input, and RF Output ports. c. If the CT-SAW860 is receiving power but no signal, check to be sure the video and/or audio input cables are securely connected with their respective Video Output and Audio Output ports on the video source and the Video Input and Audio Input ports on the CT-SAW860.
