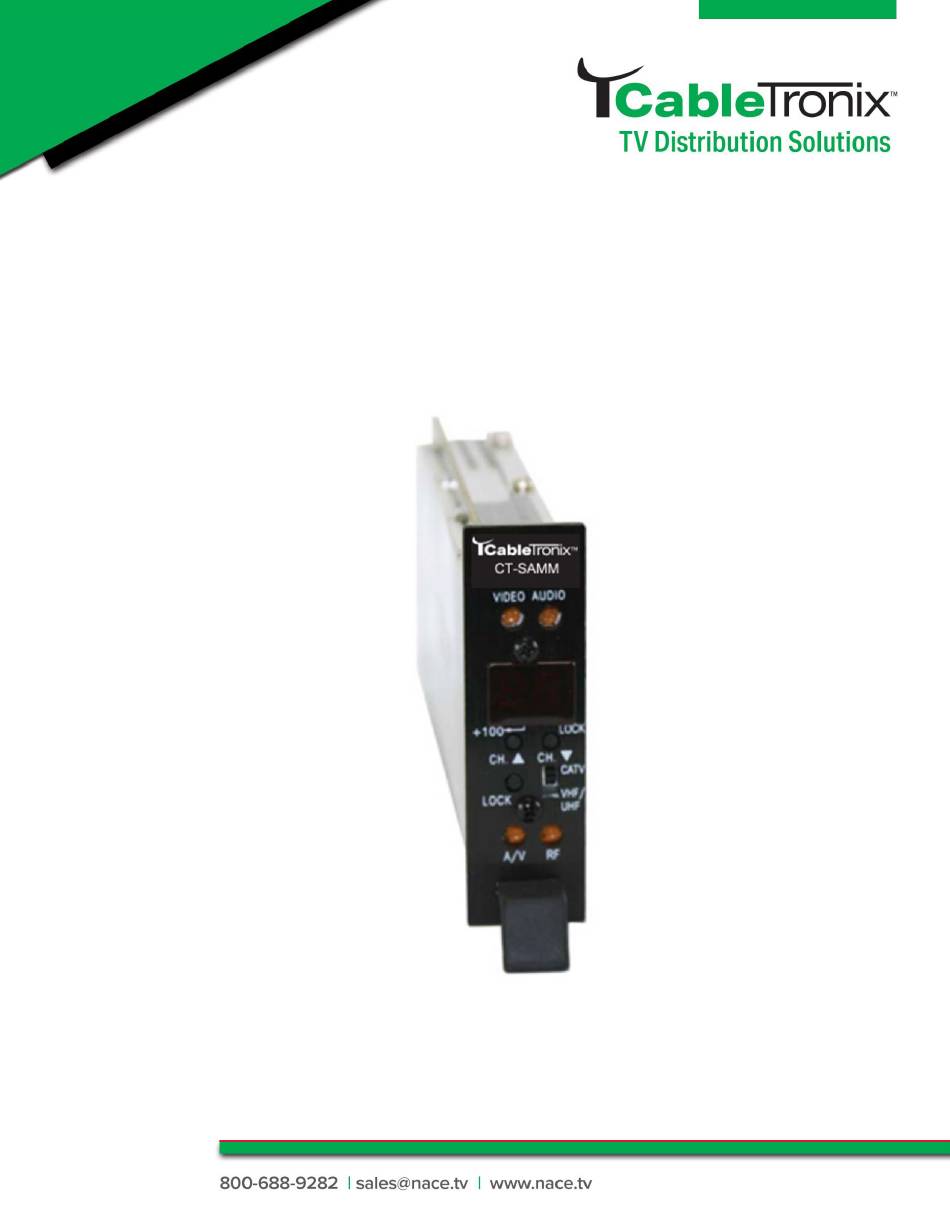

- Page 1 Manual CT-SAMM User Manual...
- Page 2 Manual Specifications Video Output Channels CATV 2 -135, UHF 14 – 78 Min Input Level 0.8Vp-p (87.5% Modulation) Output Level 45dBmV (min.) Video C/N 60dB Level Control Range 12 dBmV (Adjustable) Frequency Response ±1.5dB (30Hz to 4.2 MHz) A/V Ratio Control -11 dB to -18 dB (Adjustable) Differential Gain <...
- Page 3 Manual Installation Instruction: Step 1 Install the CT-SAMM modulator into its corresponding rack chassis. Be sure to align the module using the rack chassis guides to ensure the CT-SAMM is properly seated for grounding. Step 2 Connect the 3-pin power plug from the power supply harness to the power jack in the rear of the CT-SAMM modulator.
- Page 4 Tune the TV or set top box to the modulator’s RF output channel to view on screen. Note the output of the CT-SAMM is a CATV band analog signal, and not a digital signal. Ensure the tuning device is properly configured for analog CATV signals.
- Page 5 Manual CABLETRONIX 1-Year Limited Warranty CABLETRONIX. (the "Company") warrants to the Original Purchaser that the item purchased is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser.
- Page 6 Manual The Company shall not be liable to you for loss of data, loss of profits, lost savings, special, incidental, consequential, indirect, or other similar damages arising from breach of warranty, breach of contract, negligence, or other legal action even if the Company or its agent has been advised of the possibility of such damages, or for any claim brought against your by another party.
