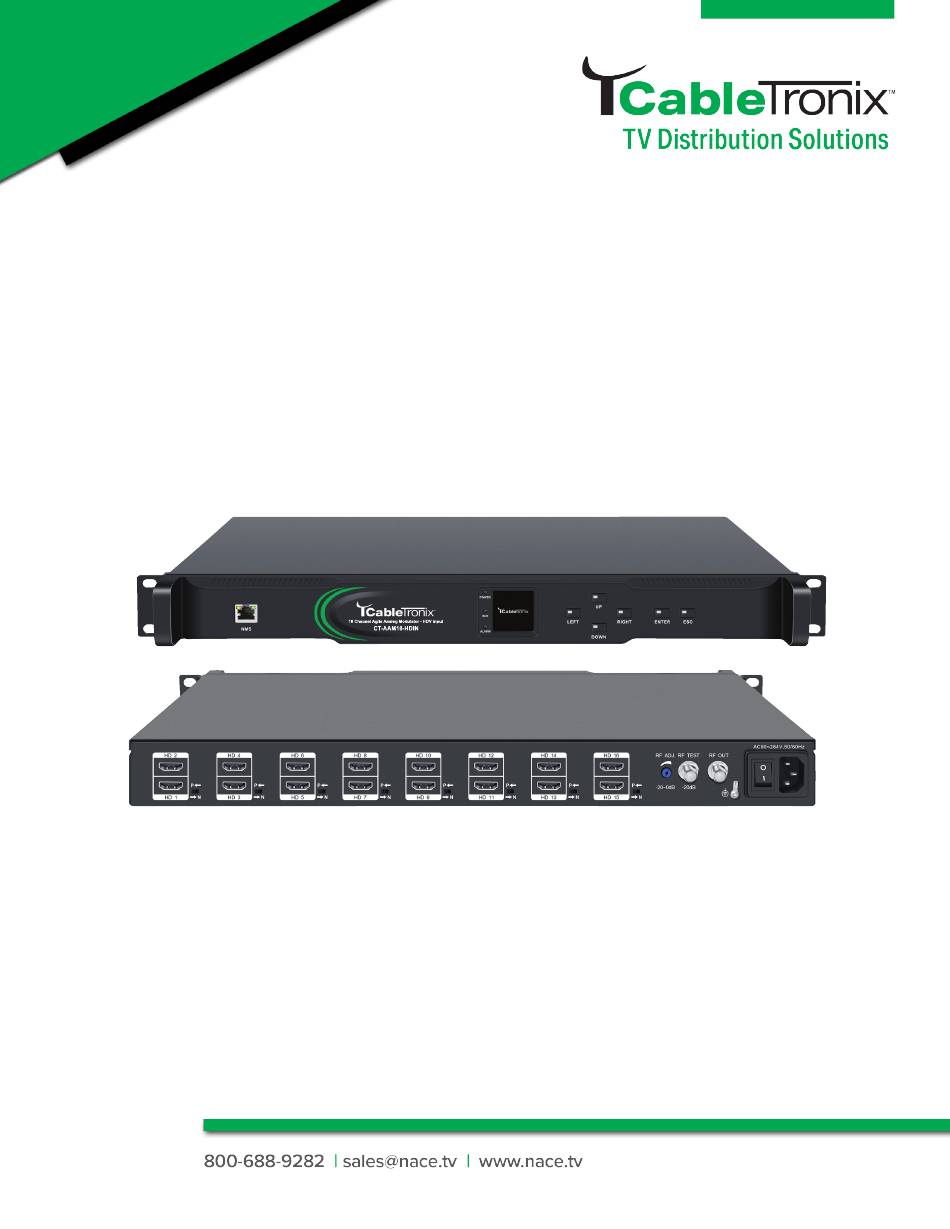

- Page 1 Manual CT-AAM16-HDIN User Manual NMS IP: 192.168.1.30 User Name: user Password: user...
-
Page 2: Table Of Contents
Disclaimer No part of this document may be reproduced in any form without the written permission of CableTronix. The contents of this document are subject to revision without notice due to continued advances in methodology, design and manufacturing. CableTronix shall have no liability for any errors or damage of any kind resulting from the use of this document. -
Page 3: Introduction
1. Introduction In a landscape where NTSC video remains supported by numerous legacy TVs, the demand for cost-effective analog modulation solutions persists. The CT-AAM16-HDIN addresses this need by providing users with effort- less installation and configuration of 16 independent channels. -
Page 4: System Map
CT-AAM16-HDIN Manual 4. System Map TV Camera CT-AAM16-HDMIN Launch Satellite Receiver RF Out to Network Agile MOD. Amplifier VCR or DVD Player WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO NOT REMOVE COVER FROM THIS UNIT. - Page 5 CableTronix. Unauthorized substitutions may damage the modulator or cause electrical shock or fire and will void the warranty. 5.1 Unpacking and Handling A full CT-AAM16-HDIN agile analog modulator is shipped with all equipment assembled, wired, factory tested, and then packaged in an appropriate shipping container. 5.2 Mechanical Inspection Inspect the front and rear of the equipment for shipping damage.
-
Page 6: Installation
CT-AAM16-HDIN Manual 6. Installation Please follow the instructions below to install the CT-AAM16-HDIN 1. Connect the power plug to the power jack 2. Connect the video source to the CT-AAM16-HDIN 3. Connect the CT-AAM16-HDIN to the TV 4. Power up the modulator and wait for 2 minutes to set it up... -
Page 7: Front Panel View
10. GND: For the modulator grounding. 11. POWER CORD SOCKET AND CORD: 110V~220V power source and the switch WARNING: For the protection of your equipment and its proper function it is necessary to connect the CT-AAM16-HDIN to a ground connection. -
Page 8: Fine Tunning
CT-AAM16-HDIN Manual 9. Fine Tuning All CableTronix modulators are heat cycled at the factory and final adjustments are made with the units hot. Please allow a 5 minute warmup before attempting any adjustments. You will need a signal level meter and a TV set. - Page 9 CT-AAM16-HDIN Manual System Settings 1. Language: Press ENTER to edit, and press LEFT and RIGHT to switch the language. 2. Restore: Restore to the factory setting--the IP address. 3. Reboot: Reboot the modulator Network Settings You can activate the DHCP and set up the IP here...
-
Page 10: Web Management
CT-AAM16-HDIN Manual 11. Web Management 11.1 Login The CT-AAM16-HDIN has a user friendly interface for programming and monitoring purposes. The user can get access to the built-in web UI by using Google Chrome, Firefox or Microsoft Edge accounts. (recommended browsers) - Page 11 CT-AAM16-HDIN Manual 11.3 Basic Parameters 11.4 Output Parameters In this page, you can set up the output frequencies.
- Page 12 CT-AAM16-HDIN Manual There are two input modes for setting up the output frequency: Setting from list and Manual Input. We recommend using the Setting from list option to save time. Setting from list: Select the channels from the drop box In the Setting from list option, you can select the frequency in the drop box list.
- Page 13 CT-AAM16-HDIN Manual In the Manual input mode Batch Edit: Quickly edit the attenuation, audio and video for all the channels. NOTICE: The Bulk Edit will set all the channels with the same settings. Please process with caution with the Audio and Video settings.
- Page 14 IP address from the router. To find out this IP address, please log into your router and check ‘attached de- vices’. Our unit will be listed as CT-AAM16-HDIN. 2. IP Address: The default IP is 192.168.1.30. And it is editable.
-
Page 15: Quick Ip Ethernet Connection Guide
CT-AAM16-HDIN Manual 11.7 Account To verify the user name and the password, please input your current user name and password. Please notice that they are both case-sensitive. If you forget your new user name or new password, you can use the reset button in the front panel to restore to factory settings. - Page 16 CT-AAM16-HDIN Manual 12.5 Go to “Change adapter options” 12.6 Double click on the Ethernet Source or Right Click and select “Properties” 12.7 Open Properties...
- Page 17 CT-AAM16-HDIN Manual 12.8 Go to “Internet Protocol Version 4 (TCP/IPv4) 12.9 Go to “Properties” 12.10 Go to “Use the following IP address”...
- Page 18 CT-AAM16-HDIN Manual 12.11 Set IP address Set IP address: 192.168.1.10 Set Subnet mask: 255.255.255.0 Set Default gateway: 192.168.1.1 12.12 Save all the settings.
-
Page 19: Troubleshooting
CT-AAM16-HDIN Manual 13. Troublshooting Symptom Recommended Action LED is not lit Check the power cord connection Can’t login to the NMS Check Pages 10-15 The WEB UI is not in order and can’t Clear your browsing data save the settings... -
Page 20: Warranty
CT-AAM16-HDIN Manual CABLETRONIX - 2-Year Limited Warranty CABLETRONIX. (the “Company”) warrants to the Original Purchaser that the item purchased is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser. - Page 21 CT-AAM16-HDIN Manual the possibility of such damages, or for any claim brought against your by another party. Jurisdic- tions vary with regard to the enforceability of provisions excluding or limiting liability for incidental or consequential damages. You should check the laws of your local jurisdiction to find out whether the above exclusion applies to you.
