AERO
AIR TIRE PEDAL CAR
Assembly Instructions
Model
# 9981-700
USA
Tools Required:
(phillips head screwdriver)
(pliers)
(adj. wrench)
Recommended for children up to 200 lbs, ages 5-9
AERO by Kettler®
1355 London Bridge Road · Virginia Beach, Virginia 23453 · USA
www.kettlerusa.com
parts@kettlerusa.com
Advertisement
Related Manuals for Kettler AERO 9981-700
Summary of Contents for Kettler AERO 9981-700
-
Page 1: Assembly Instructions

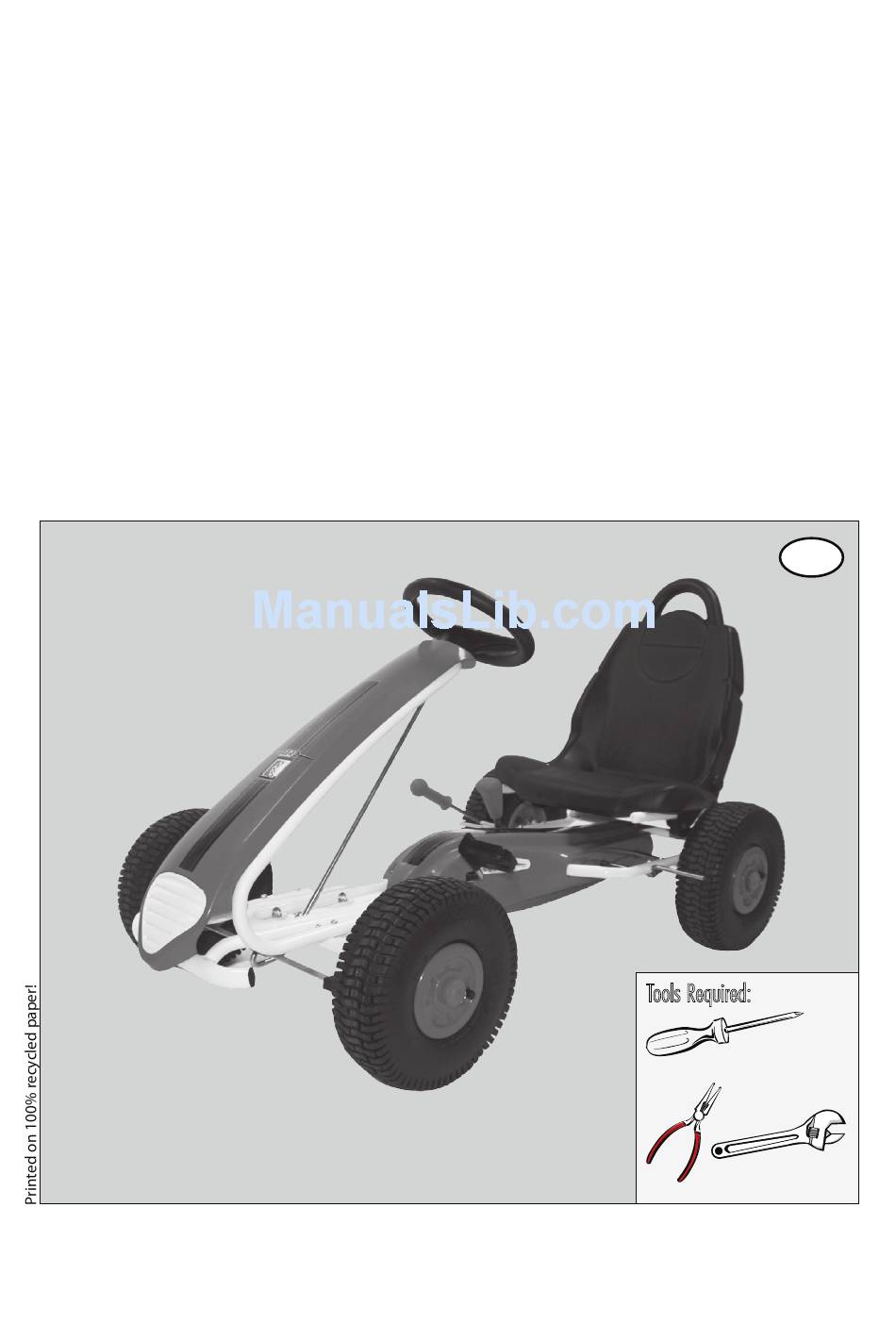

AIR TIRE PEDAL CAR Assembly Instructions Model # 9981-700 Tools Required: (phillips head screwdriver) (pliers) (adj. wrench) Recommended for children up to 200 lbs, ages 5-9 AERO by Kettler® 1355 London Bridge Road · Virginia Beach, Virginia 23453 · USA www.kettlerusa.com parts@kettlerusa.com... - Page 2 Operating Instructions important information for your safety and for the correct use and maintenance of this AERO by Kettler® product. Keep the instructions in a safe place for information or for ordering spare parts. This KETTLER product has been designed in accordance with the latest standards of safety and subject to constant quality monitoring.
- Page 3 For models with air tires, check air pressure periodically (see tire for recommended psi) Due to the nature of materials used in air tires on AERO by Kettler® toys, it is not recommended that the product to be left in any one place for too long where solvents or other chemicals, i. e. petrol, may lie. This may result in a...
- Page 4 AGAINST DEFECTS IN MATERIAL SET OUT BELOW: This AERO by Kettler® Limited Warranty applies to products sold through the AERO by Kettler® Authori- zed Dealer Network to the original retail purchaser and authenticated by proof of purchase from a retailer located in the United States.
- Page 6 Checklist 3, 9 X 16mm Ø 8/20 Ø 8/16 M 5 X 53 M 5 X 45 M 5 X 30...
- Page 7 M5x45 M5x45 M5x45...
- Page 8 M5x53 M5x45 M5x45 M5x45 Ø 8/20...
- Page 9 3, 9x16mm...
- Page 11 M5x30...
- Page 12 Seat Adjustment...
- Page 13 Detaching for Repairs and Chain Tightening Remove seat Unscrew upper chain cover in location B Remove upper cover Unscrew lower cover in location A and remove...
- Page 14 Chain Tightening and Re-Attachment Loosen 4 screws and nuts at location A Slide pedal sprocket forward (B) and tighten screws (A) simultaneously to tighten chain If chain is off, slide pedal sprocket back (C) and place chain on sprockets, then tighten chain.
- Page 15 Spare parts drawing AERO Pedal Car Model# 9981-700...
- Page 16 © 2011 AERO by Kettler. All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, such as electronic,mechanical, photocopying or otherwise, without prior written permission from KETTLER®...
