Component Identification; Setup - Graco GH 733 HYDRA–SPRAY Instructions-Parts List Manual

HYDRAULIC RETURN LINE TO MOTOR
MOTOR RESET BUTTON
HYDRAULIC MOTOR
PRESSURE
DRAIN VALVE
CHECK
VALVE
SUCTION TUBE
DISPLACEMENT PUMP
SUCTION HOSE
RAC IV DripLess TIP GUARD

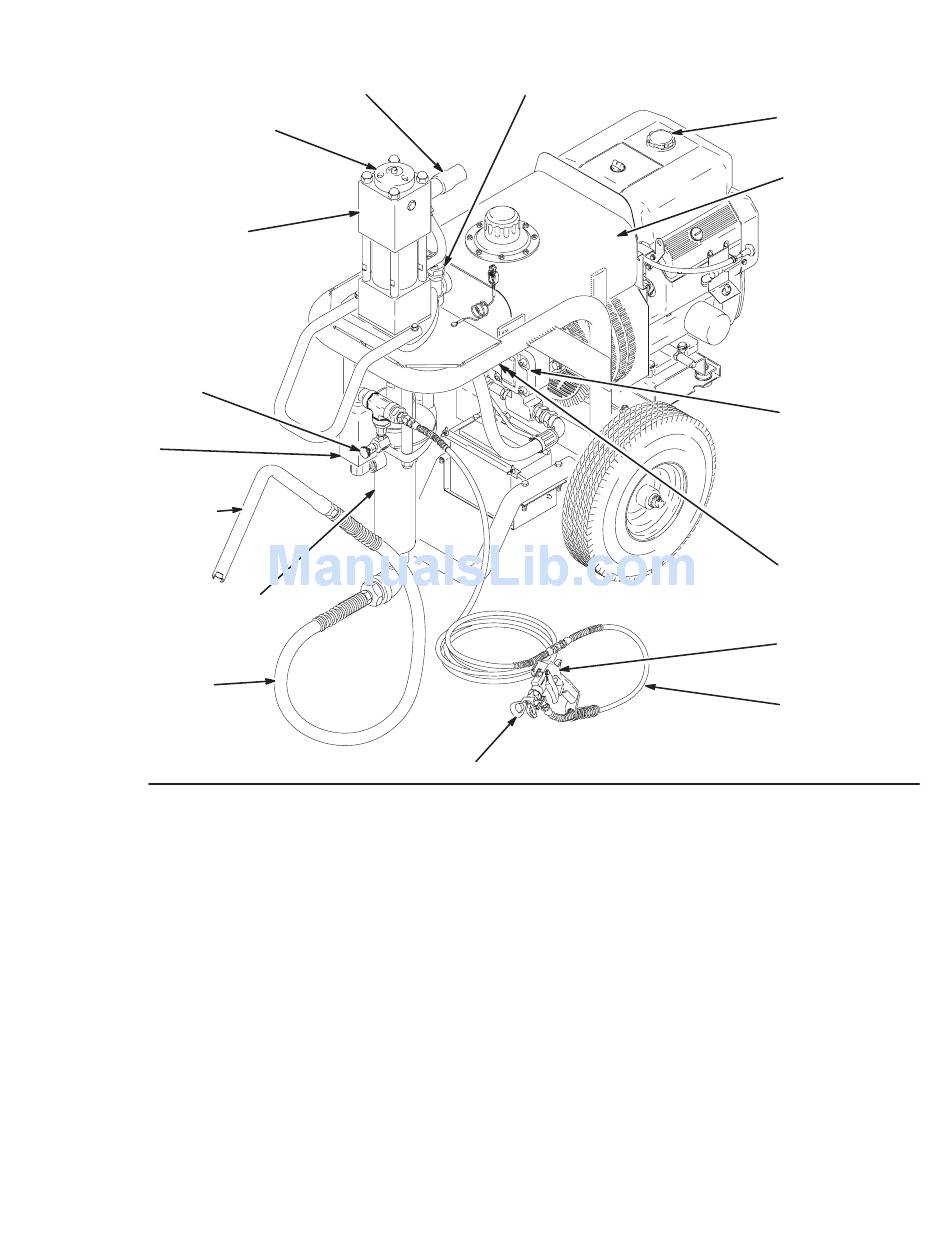

Fig 1
1. Connect the Hose and Gun
a. Remove the plastic cap plug from the outlet
tee and screw an accessory, conductive or
grounded spray hose onto the 1/4 npsm(f) out-
let nipple. See Fig 1.
b. Connect a small diameter, 3 ft (0.9 m) whip
hose between the main hose and a spray gun,
if desired, for more flexible gun movement.
See Fig 1.

Component Identification

HYDRAULIC SUPPLY LINE TO MOTOR

Setup

c. Don't use thread sealant on the swiveling nut
of the hose couplings, and don't install the
spray tip yet.
NOTE: Use thread sealant on all male threads except at
swivel unions. Swivel unions are made to self–
seal, and using thread sealant prevents the
swivel from turning freely.
2. Fill the Packing Nut/Wet Cup 1/3 full with Graco
Throat Seal Liquid (TSL), supplied. See Fig. 2.
GASOLINE
FILL CAP
HYDRAULIC
RESERVOIR
HYDRAULIC
PUMP
PRESSURE
CONTROL KNOB
SILVER GUN
SPRAY HOSE
5
307616
