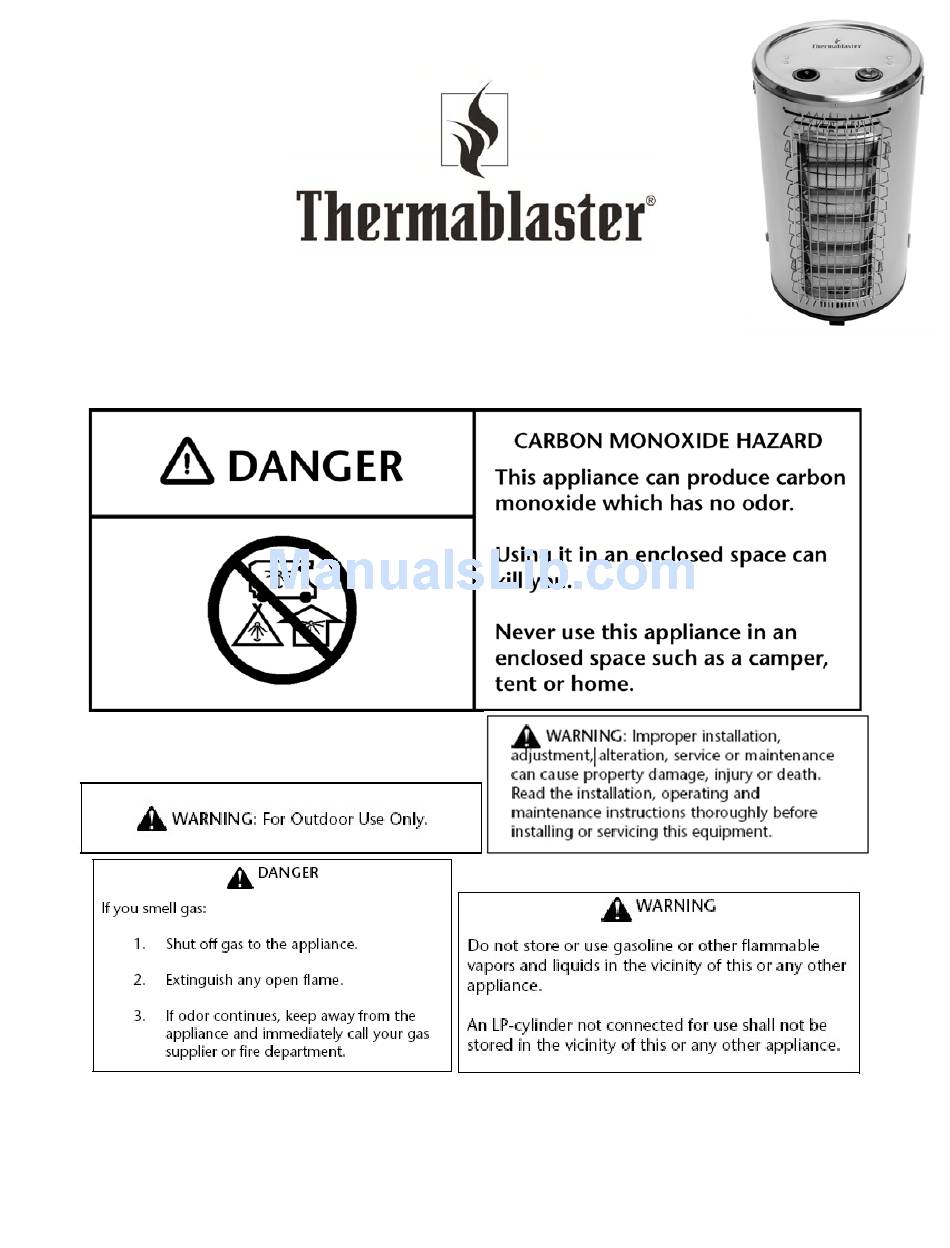

Infrared Cabinet Heater
Product Manual
MODEL: RC9200IT
CAUTION - FOR YOUR SAFETY
Reecon North America, L.L.C.
1090 Freeport Road
nd
2
Floor
Pittsburgh, PA 15238
The installer should leave the instructions with the consumer
The consumer should retain the instructions for future reference
Conforms to ANS: Z83.26a-(2008) Conforms to CSA: 2.37a-(2008), Gas-Fired Outdoor Infrared Patio Heater (except wind)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC9200IT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thermablaster RC9200IT

Summary of Contents for Thermablaster RC9200IT

  • Page 1 Infrared Cabinet Heater Product Manual MODEL: RC9200IT CAUTION - FOR YOUR SAFETY Reecon North America, L.L.C. 1090 Freeport Road Floor Pittsburgh, PA 15238 The installer should leave the instructions with the consumer The consumer should retain the instructions for future reference...

  • Page 2: Product Specifications

    PRODUCT SPECIFICATIONS Model RC9200IT 32,000 BTU（available） BTU(9.2Kw) Gas type Pressure regulator 11 WC setting Maximum Inlet Gas 11 WC Supply Pressure Ignition Electric Piezo Heat Setting 2 stage (Hi/Low) 1. IMPORTANT SAFETY INFORMATION IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater.

  • Page 3: Qualified Installing Agency

    WARNING: Certain materials or items, when stored under the heater, will be subjected to radiant heat and could be seriously damaged. WARNING: Heater becomes very hot when running. Keep children and adults away from hot surfaces to avoid burns or clothing ignition. Heater will remain hot for a time after shutoff. Allow surfaces to cool before touching.

  • Page 4: Product Features

    2. PRODUCT FEATURES SAFETY PILOT This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS pilot shuts off the heater if there is not enough fresh air. TIP OVER SWITCH This heater is equipped with a safety tip over switch in the event the heater is knocked over. PIEZO IGNITION SYSTEM This heater is equipped with an electronic piezo control system.

  • Page 5: Installation

    4. INSTALLATION WARNING: A qualified service person must install heater. Follow all local codes. Check Gas Type Be sure your gas supply is right for your heater. Otherwise, call dealer where you bought the heater for proper type heater. Connect Hose & Regulator to Cylinder 1) You must provide propane gas and propane cylinder.

  • Page 6: Checking Gas Connections

    12) Screw regulator onto gas hose. Dot not cross-thread. (see figure 3) 13) Tighten securely. 14) Attach regulator to cylinder. (see figure 4) figure 4 15) Complete attachment. 16) Install the cylinder and latch closed. (see figure 5) 17) Close the rear cover. 18) Attach the primary AND secondary protective grills using the screws provided with the heater.

  • Page 7: Air For Combustion And Ventilation

    5. AIR FOR COMBUSTION AND VENTILATION This heater is equipped with multiple ventilation holes in and around the heater. The following MUST be adhered to when using this heater: 1) Adequate clearance MUST always be provided for the air opening around the heater. 2) Adequate air MUST be provided into the combustion chamber.
  • Page 8 Before lighting 1) Heater should be thoroughly inspected before each use and by a qualified service person at least annually. 2) If relighting a hot heater, always wait at least 5 minutes 3) Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas should be leak tested.

  • Page 9: Care And Maintenance

    Shut down 1) Turn control knob clockwise to START (normally, burner will make a slight popping sound when extinguished.) 2) To extinguish pilot, depress control knob and continue to turn it clockwise to OFF. 3) Turn cylinder valve clockwise to OFF and disconnect regulator when heater is not in use. After operation check: 1) Gas control is in OFF position.

  • Page 10: Cleaning The Cabinet

    CLEANING BURNER PILOT AIR INLET HOLE We recommend that you clean the unit every 2,500 hours of operation or every three months. We also recommend that you keep the burner tube and pilot assembly clean and free of dust and dirt. To clean these parts we recommend using compressed air no greater than 30 PSl.

  • Page 11: Troubleshooting

    8. TROUBLE SHOOTING WARNING: If you smell gas: 1) Open the window and door immediately. 2) Shut off gas supply. 3) Do not try to light any appliance. 4) Do not touch any electrical switch; do not use any phone in your building. 5) Immediately call your gas supplier from a neighbor’s phone.
  • Page 12 PROBLEM POSSIBLE CAUSE REMEDY When igniter button is pressed in 1. Igniter electrode is positioned 1. Replace igniter. there is no spark at ODS/pilot. wrong or broken. 2. Reconnect igniter cable. 2. Igniter electrode is not connected to 3. Free igniter cable if pinched by any igniter cable.
  • Page 13 burner orifice. Heater produces a 1. Metal is expanding while 1. This is common with most heaters. if clicking/ ticking noise heating or contracting while noise is excessive, contact qualified just after burner is lit cooling. service technician. or shut off. White powder residue 1.
  • Page 14 9. PARTS LIST (Model: RC9200IT)
  • Page 15 Code Description Main front protective screen Fastener 1 Scatter panel Igniting electrode Burner assembly Burner board Top cover Plastic seat igniter igniter assembly Knob Gas pipe nut Plastic seat Gas safety valve Rear back board Fastener Rear cover board Rear insulation board Front insulation board Tip over safety switch Universal wheel-1...
  • Page 16 Questions about installation, operation, or troubleshooting should be  directed to your installer.  If you have additional support questions please call    our customer service at 1‐877‐670‐8428 or visit www.thermablaster.com Annual Service Schedule:  Service Performed  Service Date                              Please send in the form below to our office listed below or register online at www.thermablaster.com  Reecon North America, L.L.C.  Thermablaster  1090 Freeport Road   Floor  Pittsburgh, PA 15238  ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Contact Information                                            Product Information ...
