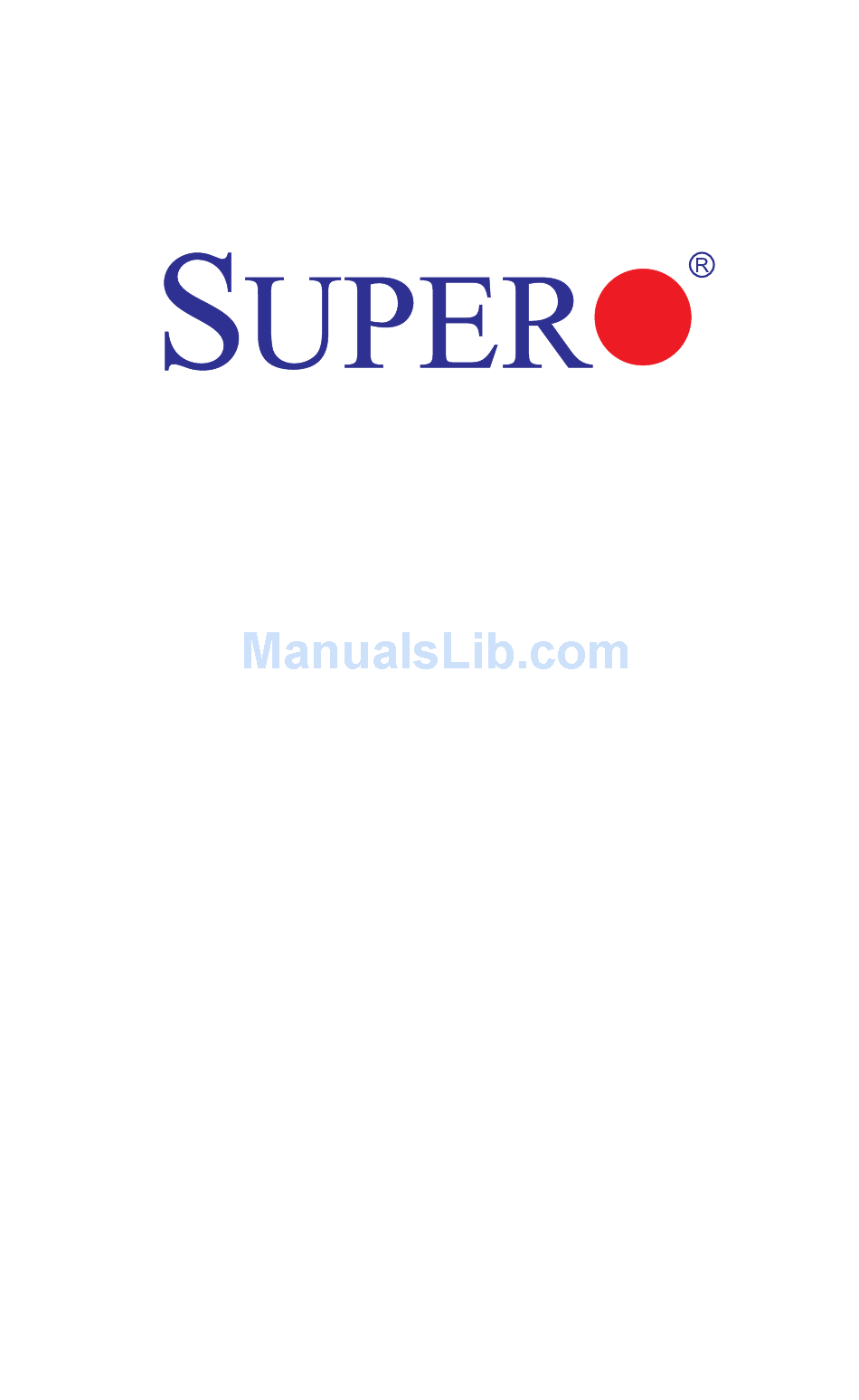

  • Page 1 X9DRFF-i+ X9DRFF-iT+ X9DRFF-7+ X9DRFF-7T+ USER’S MANUAL Revision 1.1...
  • Page 2 This product, including software and docu- mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: About This Motherboard

    ® Technology, Digital Media Interface (DMI), PCI-E Gen. 3.0 and up to 1866 MHz DDR3 memory. This motherboard was designed for SMC FatTwin server platforms. Please refer to our website (http://www.supermicro.com) for CPU and memory support updates. Manual Organization Chapter 1 describes the features, specifications and performance of the mother- board.

  • Page 4: Conventions Used In The Manual

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Conventions Used in the Manual Pay special attention to the following symbols for proper system installation and to prevent damage to the system or injury to yourself: Warning: Important information given to ensure proper system installation or to prevent damage to the components or injury to yourself.

  • Page 5: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 6: Table Of Contents

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Table of Contents Preface Chapter 1 Overview Overview ......................1-1 Processor and Chipset Overview..............1-11 Special Features ................... 1-12 PC Health Monitoring ..................1-12 ACPI Features ....................1-13 Power Supply ....................1-13 Super I/O ....................... 1-13 Advanced Power Management ..............1-14 Intel Intelligent Power Node Manager (IPNM) ..........
  • Page 7 Table of Contents Back Panel I/O Port Locations and Definitions ........... 2-18 Universal Serial Bus (USB) ..............2-19 Video Connection ..................2-19 Ethernet Ports ..................2-20 Serial Port ....................2-20 Power Switch .................... 2-21 Connecting Cables ..................2-22 Fan Headers ..................... 2-23 TPM Header/Port 80 ................
  • Page 8 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual 2-10 SATA/SAS Connections ................2-39 SATA/SAS Ports ..................2-39 Chapter 3 Troubleshooting Troubleshooting Procedures ................3-1 Technical Support Procedures ................ 3-4 Battery Removal and Installation ..............3-5 Frequently Asked Questions ................3-6 Returning Merchandise for Service..............3-7 Chapter 4 BIOS Introduction ......................

  • Page 9: Chapter 1 Overview

    Checklist Congratulations on purchasing your computer motherboard from an acknowledged leader in the industry. Supermicro boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. This motherboard was designed to be used in an SMC-proprietary system as a part of an integrated system platform.
  • Page 10 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Motherboard Image Note: All graphics shown in this manual were based upon the latest PCB Revision available at the time of publishing of the manual. The motherboard you've received may or may not look exactly the same as the graphics shown in this manual.

  • Page 11: Motherboard Layout

    Note 1: For the latest CPU/Memory updates, please refer to our website at http://www.supermicro.com/products/motherboard/ for details. Note 2: Changing BMC log-in information is recommended during initial system power-on. The default username is ADMIN and password is ADMIN. For BMC best practices, please refer to: http://www.supermicro. com/products/nfo/files/IPMI/Best_Practices_BMC_Security.pdf...
  • Page 12 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual X9DRFF-i+/iT+/7+/7T+ Quick Reference LAN2 LAN1 IPMI_LAN Intel JPL1 LAN CTRL X9DRFF-i(T)+_7(T)+ JPME1 Rev.1.02 JPME2 Nuvotun JNMI1 JWD1 JRST1 JI2C2 JI2C1 Intel PCH JBT1 BIOS TFM1 JITP1 HDD_FAULT LSI 2208 _LED1 SAS CTRL BBU1 (SAS #0-7) JPW3 JPW1 #4 #2 #4 #6 #0...
  • Page 13 Chapter 1: Overview X9DRFF-i+/iT+/7+/7T+ Jumpers Jumper Description Default Setting JBT1 Clear CMOS See Chapter 2 C1/JI SMB to PCI-E Slots Open (Disabled) JPB1 BMC Enable Pins 1-2 (Enabled) JPG1 VGA Enable Pins 1-2 (Enabled) JPL1 LAN1/LAN2 Enable Pins 1-2 (Enabled) JPME1 Management Engine (ME) Pins 1-2 (Normal)
  • Page 14 24-pin and the 8-pin power connectors to your power supply for adequate power delivery to your system. The 4-pin power connector is optional; however, Supermicro recommends that this connector also be plugged in for optimal power delivery.

  • Page 15: Motherboard Features

    240-pin 4-channel memory modules in 16 DIMM slots. Note 1: 1866 MHz memory speed is dependent on Intel E5-2600v2 CPUs. Note 2: For the latest memory updates, please refer to the Tested Memory List posted on our website (http://www.supermicro.com/products/ motherboard). • Chipset Intel® C602 Chipset •...

  • Page 16: Peripheral Devices

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual I/O Devices SATA Connections • SATA Ports Two (2) SATA 3.0 (I-SATA 0/1), Four (4) SATA 2.0 Ports from Intel AHCI (I-SATA 2-5), • RAID RAID 0, 1, 5, 10 (Windows OS and Latest Linux Latest Kernel) SAS Ports (X9DRFF-7+/7T+ Only) •...
  • Page 17 Note 2: For IPMI Configuration Instructions, please refer to the Embedded IPMI Configuration User's Guide available @ http://www.supermicro.com/ support/manuals/. Note 3: Changing BMC log-in information is recommended during initial system power-on. The default username is ADMIN and password is ADMIN. For BMC best practices, please refer to: http://www.supermicro. com/products/nfo/files/IPMI/Best_Practices_BMC_Security.pdf...

  • Page 18: System Block Diagram

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Gen3 x16 x16 Gen3 x8 CPU1 Rear (Fan Side) E5-2600(v2) Series Processor CPU0 Front (I/O Side) E5-2600(v2) Series Processor 3/1.5 SATA2 #5 3/1.5 SATA2 #4 3/1.5 SATA2 #3 RJ45 Gen3 x8 (0~7) X540 AT25321 3/1.5 SATA2 #2 I350 (2 ports) RJ45 6/3/1.5...

  • Page 19: Processor And Chipset Overview

    Chapter 1: Overview Processor and Chipset Overview Built upon the functionality and the capability of Intel E5-2600(v2) Series Pro- cessors (Socket R LGA 2011) and the C602 chipset, the X9DRFF-i+/iT+/7+/7T+ motherboard provides the performance and feature sets required for dual_pro- cessor-based Fat Twin server platforms.

  • Page 20: Special Features

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Special Features Recovery from AC Power Loss The Basic I/O System (BIOS) provides a setting that determines how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off (in which case you must press the power switch to turn it back on), or for it to automatically return to the power-on state.

  • Page 21: Acpi Features

    It is even more important for processors that have high CPU clock rates. The X9DRFF-i+/iT+/7+/7T+ motherboard was designed to be installed in Supermicro -Proprietary Fat Twin chassis as a integrated platform solution. Please refer to your server manual for power supply requirement.

  • Page 22: Advanced Power Management

    SMI or SCI function pin. It also features auto power management to reduce power consumption. Note 1: For more information on IPMI configuration, please refer to the IPMI User's Guide posted on our website at http://www.supermicro.com/ support/manuals/. Note 2: The term "IPMI controller" and the term "BMC controller" can be used interchangeably in this section.

  • Page 23: Wpcm450R Ddr2 Memory Interface

    Chapter 1: Overview virtualization via Keyboard/Video/Mouse Redirection (KVMR). The WPCM450R Controller is ideal for remote system management. The WPCM450R Controller interfaces with the host system via PCI connections to communicate with the graphics cores. It supports USB 2.0 and 1.1 for remote keyboard/mouse/virtual media emulation.
  • Page 24 • RMCP+ protocol supported Note 1: For more information on IPMI configuration, please refer to the IPMI User's Guide posted on our website at http://www.supermicro.com/ support/manuals/. Note 2: The term "IPMI controller" and the term "BMC controller" can be used interchangeably in this section.

  • Page 25: Chapter 2 Installation

    The following statements are industry-standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assis- tance. Only certified technicians should attempt to install or configure components.
  • Page 26 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta.

  • Page 27: Product Disposal

    Chapter 2: Installation Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要が あります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

  • Page 28: Static-Sensitive Devices

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual ‫القىانين واللىائح الىطنية‬ ‫جميع‬ ‫وفقا ل‬ ‫ينبغي التعامل معه‬ ‫هذا المنتج‬ ‫من‬ ‫التخلص النهائي‬ ‫عند‬ 경고! 이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다. Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen.

  • Page 29: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. Installing the LGA2011 Processor 1. There are two load levers on the LGA2011 socket. To open the socket cover, first press and release the load lever labeled 'Open 1st'.
  • Page 30 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual 2. Press the second load lever labeled 'Close 1st' to release the load plate that covers the CPU socket from its locking position. Pull lever away from Press down on Load the the socket Lever labeled 'Close 1st' Pin 1 3.
  • Page 31 Chapter 2: Installation 1. Using your thumb and the index finger, remove the 'WARNING' plastic cap from the socket. 2. Use your thumb and index finger to hold the CPU on its edges. Align the CPU keys, which are semi-circle cutouts, against the socket keys. Socket Keys CPU Keys 3.
  • Page 32 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual 4. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed. 5. Close the load plate with the CPU inside the socket. Lock the lever labeled 'Close 1st' first, and then lock the lever labeled 'Open 1st' second.

  • Page 33: Installing A Passive Cpu Heatsink

    Chapter 2: Installation Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the re- quired amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the motherboard's and the heatsink bracket underneath.

  • Page 34: Removing The Heatsink

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Removing the Heatsink Warning: We do not recommend that the CPU or the heatsink be removed. However, if you do need to uninstall the heatsink, please follow the instructions below to avoid damaging the CPU or the CPU socket. 1.

  • Page 35: Installing And Removing The Memory Modules

    Chapter 2: Installation Installing and Removing the Memory Modules Note: Check Supermicro's Website for recommended memory modules. CAUTION Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Installing & Removing DIMMs 1. Insert the desired number of DIMMs into the memory slots, starting with P1-DIMMA1.
  • Page 36 ECC/Non-ECC DDR3 800/1066/1333/1600/1866 MHz 240-pin 4-channel memory modules in 16 DIMM slots. Note: For the latest memory updates, please refer to the Tested Memory List posted on our website (http://www.supermicro.com/products/mother- board). Processor & Memory Module Population Configuration For memory to work properly, follow the tables below for memory installation.
  • Page 37 1600 1866 1866 Note: For detailed information on memory support and updates, please refer to the SMC Recommended Memory List posted on our website at http://www.supermicro.com/support/resources/mem.cfm. Populating RDIMM (ECC) Memory Modules Intel E5-2600(v2) Series Processor RDIMM Memory Support Ranks Memory Capacity...
  • Page 38 1333, 1333 1333 Note: For detailed information on memory support and updates, please refer to the SMC Recommended Memory List posted on our website at http://www.supermicro.com/support/resources/mem.cfm. Populating RDIMM (ECC) Memory Modules Intel E5-2600 Series Processor RDIMM Memory Support Ranks Memory Capacity...
  • Page 39 1066 1066 (QDP) Note: For detailed information on memory support and updates, please refer to the SMC Recommended Memory List posted on our website at http://www.supermicro.com/support/resources/mem.cfm. Intel E5-2600 Series Processor LRDIMM Memory Support Ranks Memory Speed (MT/s) and Voltage Validated by Slot per Channel (SPC) and DIMM Per...

  • Page 40: Motherboard Installation

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Motherboard Installation All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both motherboard and chassis match. Although a chassis may have both plastic and metal mounting fas- teners, metal ones are highly recommended because they ground the motherboard to the chassis.

  • Page 41: Installing The Motherboard

    Chapter 2: Installation Installing the Motherboard 1. Locate the mounting holes on the motherboard. 2. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis. 3. Install standoffs in the chassis as needed. 4.

  • Page 42: Control Panel Connectors And I/O Ports

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Control Panel Connectors and I/O Ports The I/O ports are color coded in conformance with the PC 99 specification. See the picture below for the colors and locations of the various I/O ports. Back Panel Connectors and I/O Ports LAN2 LAN1 IPMI_LAN...

  • Page 43: Universal Serial Bus (Usb)

    Chapter 2: Installation Universal Serial Bus (USB) Backplane USB 0/1 & FP USB 2 Two Universal Serial Bus ports (USB0, Pin Definitions USB1), located on the I/O backplane, Pin# Definition provide rear USB support. In addi- tion, USB2 (JUSB2), located next to the 4-pin JIPMB1 connector, provides front USB support.

  • Page 44: Ethernet Ports

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Ethernet Ports LAN Ports Pin Definition Two Ethernet ports (LAN1, LAN2) are Pin# Definition located on the I/O backplane. These P2V5SB SGND Ethernet ports support 10G LAN con- TD0+ Act LED nections on the X9DRFF-iT+/7T+, and TD0- P3V3SB 1G LAN connections on the X9DRFF- TD1+...

  • Page 45: Power Switch

    Chapter 2: Installation Power Switch A power switch (PWR_SW1) is located next to the VGA port on the motherboard. Refer to the layout below for the location. 1. Power Switch LAN2 LAN1 IPMI_LAN Intel JPL1 LAN CTRL X9DRFF-i(T)+_7(T)+ JPME1 Rev.1.02 JPME2 JNMI1 Nuvotun...

  • Page 46: Connecting Cables

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Connecting Cables 12V 8-pin PWR Two 8-pin power connectors (JPW1/JPW2) and a Pin Definitions 4-pin power connector (JPW3) are located on the Pins Definition motherboard. In addition, two 8-pin power connectors 1- 4 Ground (HDD_PWR1/2) are also located onboard to provide +12V power supply to hard disk drive devices.

  • Page 47: Fan Headers

    Chapter 2: Installation Fan Headers Fan Header Pin Definitions This motherboard has eight 4-pin Pin# Definition (Fan1~Fan8), and one 3-pin (Fan9) Ground system/CPU/cooling fan headers on the +12V motherboard. The 4-pin fan headers are Tachometer backward compatible with the traditional PWR Modulation 3-pin fans.

  • Page 48: Sata Dom Power Connector

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual SATA DOM Power Connector DOM PWR Pin Definitions A power connector for SATA DOM Pin# Definition (Disk_On_Module) devices is located at JSD1. Connect an appropriate cable here Ground to provide power support for your SATA Ground DOM devices. Chassis Intrusion Chassis Intrusion Pin Definitions...

  • Page 49: T-Sgpio 1/2 & 6-Sgpio 1/2 Headers

    Chapter 2: Installation T-SGPIO 1/2 & 6-SGPIO 1/2 Headers T-SGPIO/6-SGPIO Pin Definitions Four SGPIO (Serial-Link General Purpose Input/ Pin# Definition Definition Output) headers (T-SGPIO 1/2 & 6-SGPIO 1/2) are located on the motherboard. These headers Ground Data support onboard Serial_Link interface connections. Load Ground Note: T-SGPIO 1/2 support onboard SATA...

  • Page 50: Nmi Header

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual NMI Header NMI Button Pin Definitions (JF1) The non-maskable interrupt button header is Pin# Definition located at JNMI1. Refer to the table on the Control right for pin definitions. Ground LAN2 LAN1 A. JNMI1 IPMI_LAN Intel JPL1 LAN CTRL X9DRFF-i(T)+_7(T)+ JPME1 Rev.1.02...

  • Page 51: Unit Identifier Switch

    Chapter 2: Installation Unit Identifier Switch UID Switch A Unit Identifier switch (SW1) and a UID Pin# Definition LED Indicator are located on the mother- Ground board. The UID switch is located next to the Ground power switch on the backplane. The UID Button In LED (UID_LED1) is located next to the UID Ground...

  • Page 52: Battery Backup Unit (Bbu) Connector (X9Drf-7+/7T+ Only)

    An optional battery backup accessory kit is required for BBU support. Please contact our sales at Supermicro to purchase a Bat- tery Backup Accessory kit. Also, contact our tech support for installation instructions and possible component updates.

  • Page 53: Jumper Settings

    Chapter 2: Installation Jumper Settings Explanation of Jumpers Connector Pins To modify the operation of the mother- board, jumpers can be used to choose between optional settings. Jumpers create Jumper shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board.

  • Page 54: Cmos Clear

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual CMOS Clear JBT1 is used to clear CMOS. Instead of pins, this "jumper" consists of contact pads to prevent accidental clearing of CMOS. To clear CMOS, use a metal object such as a small screwdriver to touch both pads at the same time to short the connection. Always remove the AC power cord from the system before clearing CMOS.

  • Page 55: Vga Enable

    Chapter 2: Installation VGA Enable VGA Enable Jumper Settings Jumper JPG1 allows the user to en- Jumper Setting Definition able onboard VGA support. The default Enabled (Default) setting is on pins 1-2 to enable VGA Disabled support. See the table on the right for jumper settings.

  • Page 56: Management Engine (Me) Recovery

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Management Engine (ME) Recovery ME Recovery Jumper Settings Use Jumper JPME1 to select ME Firm- Jumper Setting Definition ware Recovery mode, which will limit Normal (Default) resource allocation for essential system ME Recovery operation only in order to maintain nor- mal power operation and management.

  • Page 57: System Reset

    Chapter 2: Installation System Reset System Reset Jumper Settings Close the pins of JRST1 to reset BMC Jumper Setting Definition settings. See the table on the right for Pins 1-2 BMC Reset jumper settings. Pins 2-3 Normal (Default) SAS Enable (For X9DRFF-7+/7T+) SAS Support Enable Jumper Settings Use Jumper JPS1 to enable onboard...
  • Page 58 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual C Bus to PCI-Exp. Slots C to PCI-Exp Jumper Settings Jumpers JI C1 and JI C2 allow you to con- Jumper Setting Definition nect the System Management Bus (I C) to Closed Enabled PCI-Express slots. The default setting is Open Disabled (Default) Open to disable the connection.

  • Page 59: Onboard Led Indicators

    Chapter 2: Installation Onboard LED Indicators Activity LED GLAN LEDs Link Speed LED There are two LAN ports (LAN1/2) on the Rear View (when facing the motherboard. Each Ethernet LAN port has rear side of the chassis) two LEDs. The Yellow LED on the right GLAN/TLAN Activity Indicator (Right) indicates connection and activity.

  • Page 60: Hdd Activity Led

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual HDD Activity LED HDD Activity LED Status An HDD Activity LED is located at Color or State Definition HDD_ACT LED1 on the motherboard. Green: Blinking HDD: Active When the HDD LED is blinking, an HDD HDD Disabled, or Failed device is active.

  • Page 61: Sas Heartbeat Led

    Chapter 2: Installation SAS Heartbeat LED SAS Heartbeat LED Status A SAS Heartbeat LED is located at Color/State Definition SAS_HB_LED1 on the motherboard. Green: Blinking SAS: Normal When LEDS2 is blinking, SAS is working Off or Red SAS: Disabled or Failed properly.

  • Page 62: Uid Led

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual UID LED Rear UID LED Status The Unit Identifier (UID) LED is located at Color/State Definition UID_LED1 on the motherboard. When this Blue: On Unit Identified LED is on, the unit that might be in need of service is identified.

  • Page 63: 2-10 Sata/Sas Connections

    RX_N Note: For more information on SATA HostRAID RX_P configuration, please refer to the Intel SATA and Ground LSI SAS HostRAID User's Guides posted on our website @ http://www.supermicro.com.. LAN2 LAN1 A. I-SATA0-5 B. L-SAS0-7 (X9DRFF-7+/7T+) IPMI_LAN Intel...
  • Page 64 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Notes 2-40...

  • Page 65: Chapter 3 Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter. Note: Always disconnect the power cord before adding, changing or install- ing any hardware components.

  • Page 66: When The System Becomes Unstable

    2. Memory support: Make sure that the memory modules are supported by test- ing the modules using memtest86 or a similar utility. Note: Refer to the product page on our website http:\\www.supermicro. com for memory and CPU support and updates.
  • Page 67 Chapter 3: Troubleshooting B. The system becomes unstable before or during the OS installation When the system becomes unstable before or during OS installation, check the following: 1. Source of installation: Make sure that the devices used for installation are working properly, including boot devices such as CD/DVD disc, CD/DVD- ROM.

  • Page 68: Technical Support Procedures

    Technical Support Procedures Before contacting Technical Support, please take the following steps. Also, please note that as a motherboard manufacturer, Supermicro also sells motherboards through its channels, so it is best to first check with your distributor or reseller for troubleshooting services.

  • Page 69: Battery Removal And Installation

    Chapter 3: Troubleshooting Battery Removal and Installation Battery Removal To remove the onboard battery, follow the steps below: 1. Power off your system and unplug your power cable. 2. Locate the onboard battery as shown below. 3. Using a tool such as a pen or a small screwdriver, push the battery lock out- wards to unlock it.

  • Page 70: Frequently Asked Questions

    Note : The SPI BIOS chip used on this motherboard cannot be removed. Send your motherboard back to our RMA Department at Supermicro for repair. For BIOS Recovery instructions, please refer to the AMI BIOS Recovery Instructions posted at http://www.supermicro.com.

  • Page 71: Returning Merchandise For Service

    Shipping and handling charges will be applied for all orders that must be mailed when service is complete. For faster service, you can also request a RMA authorization online (http://www.supermicro.com/RmaForm/). This warranty only covers normal consumer use and does not cover damages in- curred in shipping or from failure due to the alternation, misuse, abuse or improper maintenance of products.
  • Page 72 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Notes...

  • Page 73: Chapter 4 Bios

    Chapter 4: AMI BIOS Chapter 4 BIOS Introduction This chapter describes the AMI BIOS Setup utility for the X9DRFF-7/i. It also pro- vides the instructions on how to navigate the AMI BIOS Setup utility screens. The AMI ROM BIOS is stored in a Flash EEPROM and can be easily updated. Starting BIOS Setup Utility To enter the AMI BIOS Setup utility screens, press the <Del>...

  • Page 74: Main Setup

    <Delete> at the appropriate time during system boot. Note: For AMI UEFI BIOS Recovery, please refer to the UEFI BIOS Re- covery User Guide posted @http://www.supermicro.com/support/manuals/. Starting the Setup Utility Normally, the only visible Power-On Self-Test (POST) routine is the memory test.
  • Page 75 Day MM/DD/YY format. The time is entered in HH:MM:SS format. (Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00.). Supermicro X9DRFF-i/7 (T)+ Version This item displays the SMC version of the BIOS ROM used in this system.

  • Page 76: 4-3 Advanced Setup Configurations

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual 4-3 Advanced Setup Configurations Select the Advanced tab to access the following submenu items. Boot Feature Quiet Boot This feature allows the user to select bootup screen display between POST mes- sages and the OEM logo. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages.
  • Page 77 Chapter 4: AMI BIOS Interrupt 19 Capture Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Enabled, the ROM BIOS of the host adaptors will "capture" Interrupt 19 at bootup and allow the drives that are attached to these host adaptors to function as bootable disks.
  • Page 78 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual • CPU Signature • Microcode Patch • CPU Stepping • Maximum / Minimum CPU Speed • Processor Cores • Intel HT (Hyper-Threading) Technology • Intel VT-x Technology • Intel SMX Technology • L1 Data Cache / L1 Code Cache •...
  • Page 79 Chapter 4: AMI BIOS Active Processor Cores Set to Enabled to use a processor's second core and above. (Please refer to Intel's website for more information.) The options are All, 1, 2, 4, and 6. Limit CPUID Maximum This feature allows the user to set the maximum CPU ID value. Enable this function to boot the legacy operating systems that cannot support processors with extended CPUID functions.
  • Page 80 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Intel® Virtualization Technology (Available when supported by the CPU) Select Enabled to support Intel Virtualization Technology, which will allow one platform to run multiple operating systems and applications in independent parti- tions, creating multiple "virtual" systems in one physical computer. The options are Enabled and Disabled.
  • Page 81 Chapter 4: AMI BIOS CPU C6 Report (Available when Power Technology is set to Custom) Select Enabled to allow the BIOS to report the CPU C6 State (ACPI C3) to the operating system. During the CPU C6 State, the power to all cache is turned off.

  • Page 82: North Bridge

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Recommended Short Duration Power Limit This item displays the short duration power settings (in watts) recommended by the manufacturer. Short Duration Power Limit During Turbo Mode, the system may exceed the processors default power setting and exceed the Short Duration Power limit. By increasing this value, the proces- sor can provide better performance for short duration.
  • Page 83 Chapter 4: AMI BIOS i350/X540 Link Speed Select GEN1 to enable Generation 1 support for this port. Select GEN2 to enable Generation 2 support for this port. Select GEN3 to enable Generation 3 support. The options are GEN1, GEN2, and GEN3. IOU1_2-PCIe Port This feature allows the user to set the PCI-Exp bus speed between IOU3 and PCI-e port.
  • Page 84 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual IOU2_2-PCIe Port This feature allows the user to set the PCI-Exp bus speed between IOU3 and PCI-e port. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, and x16. CPU2 SXB1A Link Speed Select GEN1 to enable Generation 1 support for this port. Select GEN2 to enable Generation 2 support for this port.
  • Page 85 Chapter 4: AMI BIOS DIMM Configuration This section displays the following DIMM information. Current Memory Mode This item displays the current memory mode. Current Memory Speed This item displays the current memory speed. Mirroring This item displays if memory mirroring is supported by the motherboard. Memory mirroring creates a duplicate copy of the data stored in the memory to enhance data security.
  • Page 86 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Channel Interleaving This feature selects from the different channel interleaving methods. The options are Auto, 1 Way, 2 Way, 3, Way, and 4 Way. Rank Interleaving This feature allows the user to select a rank memory interleaving method. The options are Auto, 1 Way, 2 Way, 4, Way, and 8 Way.

  • Page 87: South Bridge

    Chapter 4: AMI BIOS South Bridge This feature allows the user to configure the settings for the Intel PCH chip. PCH Information This feature displays the following PCH information. Name: This item displays the name of the PCH chip. Stepping: This item displays the status of the PCH stepping. USB Devices: This item displays the USB devices detected by the BIOS.
  • Page 88 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual SATA Configuration When this submenu is selected, the AMI BIOS automatically detects the presence of IDE or SATA devices and displays the following items. SATA Port0~SATA Port5: The AMI BIOS displays the status of each SATA port as detected by the BIOS.
  • Page 89 Chapter 4: AMI BIOS RAID Mode The following items are displayed when RAID Mode is selected: SATA RAID Option ROM/UEFI Driver Use this feature to enable the onboard SATA Option ROM or EFI driver. The options are Disabled and Enabled.. Port 0~5 Hot Plug Select Enabled to enable hot-plug support for the particular port.
  • Page 90 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual SERR# Generation Select Enabled to allow a PCI device to generate an SERR number for a PCI Bus Signal Error Event. The options are Enabled and Disabled. Maximum Payload Select Auto to allow the system BIOS to automatically set the maximum payload value for a PCI-E device to enhance system performance.
  • Page 91 Chapter 4: AMI BIOS VGA Priority This feature allows the user to select the graphics adapter to be used as the primary boot device. The options are Onboard, and Offboard. Network Stack Select Enabled enable PXE (Preboot Execution Environment) or UEFI (Unified Extensible Firmware Interface) for network stack support.

  • Page 92: Serial Port Console Redirection

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual SOL Configuration Serial Port Select Enabled to enable the SOL serial port. The options are Enabled and Dis- abled. Device Settings This item displays the settings of the SOL serial port. SOL Change Settings This option specifies the base I/O port address and the Interrupt Request address of the SOL Port.
  • Page 93 Chapter 4: AMI BIOS acter Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI. Bits Per second Use this feature to set the transmission speed for a serial port used in Console Redirection.

  • Page 94: Console Redirection Settings (For Ems)

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Resolution 100x31 Select Enabled for extended-terminal resolution support. The options are Dis- abled and Enabled. Legacy OS Redirection Resolution Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25. Putty KeyPad This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS.

  • Page 95: Acpi Settings

    Chapter 4: AMI BIOS acter set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, and VT-UTF8, and ANSI. Bits Per Second This item sets the transmission speed for a serial port used in Console Redirec- tion.

  • Page 96: Event Logs

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual ME Subsystem This feature displays the following ME Subsystem Configuration settings. • ME BIOS Interface Version • ME Version Event Logs Select the Event Logs tab to access the following submenu items. Change SMBIOS Event Log Settings ...
  • Page 97 Chapter 4: AMI BIOS Memory Correctable Error Threshold This feature allows the user to enter the threshold value for correctable memory errors. The default setting is 10. PCI Error Logging Support Select Enabled to support error event logging for PCI slots. The options are Enabled and Disabled.

  • Page 98: Ipmi

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual IPMI Select the IPMI (Intelligent Platform Management Interface) tab to access the fol- lowing submenu items. IPMI Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status This item indicates the status of the IPMI firmware installed in your system. System Event Log ...
  • Page 99 Chapter 4: AMI BIOS When SEL is Full This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately. BMC Network Configuration ...

  • Page 100: Boot

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Boot This submenu allows the user to configure the following boot settings for the system. Set Boot Priority 1st Boot Device, 2nd Boot Device, etc. Use this feature to specify the sequence of boot device priority. ...

  • Page 101: Security

    Chapter 4: AMI BIOS Security This menu allows the user to configure the following security settings for the system. Password Check Use this feature to determine when a password entry is required. Select Setup to require the password only when entering setup. Select Always to require the pass- word when entering setup and on each boot.

  • Page 102: Save & Exit

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Save & Exit This submenu allows the user to configure the Save and Exit settings for the system. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer. Select Discard Changes and Exit, and press <Enter>.
  • Page 103 Chapter 4: AMI BIOS Discard Changes Select this feature and press <Enter> to discard all the changes and return to the BIOS setup. When the dialog box appears, asking you if you want to load previ- ous values, select Yes to load the values previous saved, or select No to keep the changes you've made so far.
  • Page 104 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Notes 4-32...

  • Page 105: Appendix A Bios Error Beep Codes

    Appendix A: BIOS POST Error Codes Appendix A BIOS Error Beep Codes BIOS Error Beep Codes are not available for this motherboard.
  • Page 106 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Notes...

  • Page 107: Appendix B Software Installation Instructions

    To install these programs, click the icons to the right of these items. Note: To install the Windows OS, please refer to the instructions posted on our Website at http://www.supermicro.com/support/manuals/. Driver/Tool Installation Display Screen Note 1: Click the icons showing a hand writing on the paper to view the readme files for each item.

  • Page 108: Configuring Superdoctor Iii (For Window Os Only)

    X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Note 3: Changing BMC log-in information is recommended during initial system power-on. The default username is ADMIN and password is ADMIN. For BMC best practices, please refer to: http://www.supermicro. com/products/nfo/files/IPMI/Best_Practices_BMC_Security.pdf B-2 Configuring SuperDoctor III (For Window OS Only) The SuperDoctor® III program is a Web-based management tool that supports remote management capability.
  • Page 109 Appendix B: Software Installation Instructions SuperDoctor® III Interface Display Screen-II (Remote Control) The SDIII utility and the user guide can be downloaded from our web- site at: http://www.supermicro.com/products/accessories/software/ SuperDoctorIII.cfm. For Linux, we will still recommend that you use SuperDoctor II.
  • Page 110 X9DRFF-i+/iT+/7+/7T+ Motherboard User’s Manual Notes...
  • Page 111 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
