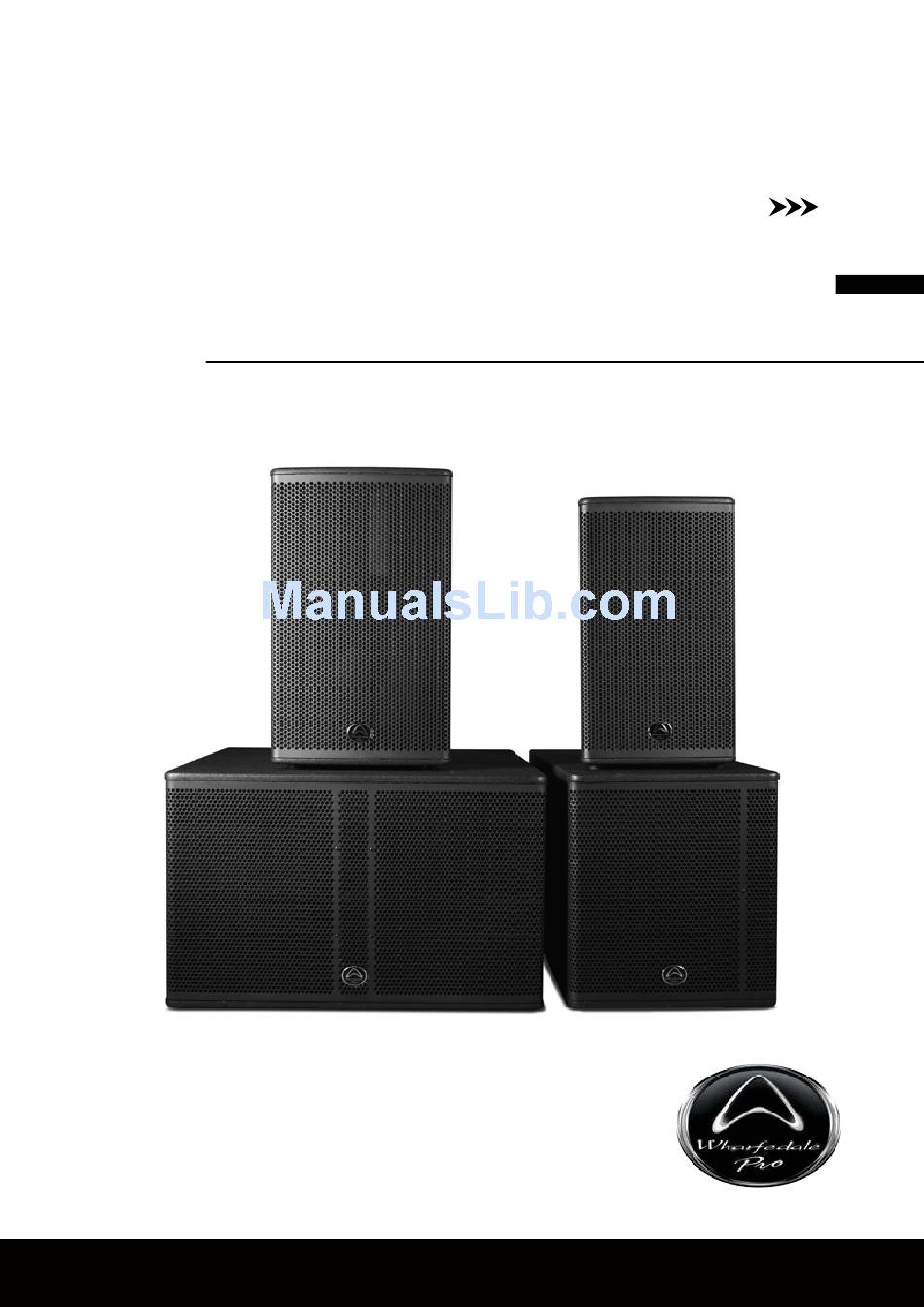

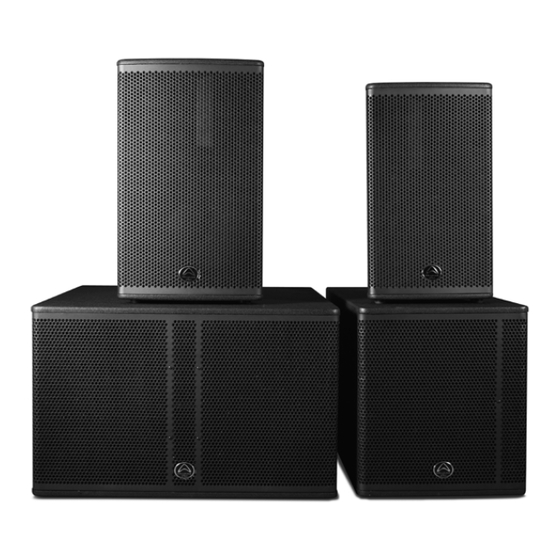

  • Page 1 PROFESSIONAL SOUND SYSTEMS FOCUS eries OPERATING MANUAL AND USER GUIDE FOCUS-12 FOCUS-15 FOCUS-18S FOCUS-218S www.wharfedalepro.com...

  • Page 2: Table Of Contents

    3. FOCUS SERIES OVERVIEW ..............2 4. INSTALLATION ..................3 5. FOCUS HANGING INSTALLATION INSTRUCTIONS ....... 3 6. FOCUS-12/15 BLOCK DIAGRAM .............. 5 7. FOCUS-18S/218S BLOCK DIAGRAM ............6 8. FOCUS-12/15 BI-AMP WIRING ..............7 9. FOCUS-12/15 FULLRANGE WIRING ............8 10.

  • Page 3: Important Warnings & Safety Instructions

    IMPORTANT WARNINGS & SAFETY INSTRUCTIONS 1. READ ALL INSTRUCTIONS – Carefully and become familiar with the features and functions of these products before operating them. 2. RETAIN THESE INSTRUCTIONS – For future reference. 3. COMPLY WITH ALL WARNINGS – Non compliance may void warranty of the product. 4.

  • Page 4: Introduction

    INTRODUCTION Wharfedale Pro Focus Series loudspeakers are the result of many years of experience in the use, design and manufacture of professional loudspeaker products. We take great pride in engineering and building every Wharfedale Pro loudspeaker and would like to thank you for entrusting us with your sound solutions.

  • Page 5: Installation

    Improper installation may result in damage, injury or death. Working Load Limit The working load limit (WLL) of any FOCUS-12, FOCUS-15 suspendable loudspeaker will be maintained as long as no more than 136kg (300 lb) is suspended by minimum of Two (2) PRIMARY SUSPENSION ponints (Track Suspension), or 46kg (100 lb) is suspended by TWO (2) of the SECONDARY SUSPENSION POINTS (M10 Forged Shoulder Eyebolts).
  • Page 6 Suspension in Fixed Installations (Secondary Suspension) For fixed installations of Focus-12, focus-15 models using M10, forged-shoulder eyebolts. WARNING Suspension of FOCUS-12/15 speaker must employ both top attachment points. When 'bridling' the FOCUS-12/15. Two (2) legs of equal length must be used. The rear attachment points is a pull-back point and is intended only for use in adjusting the down-angle of the speaker enclosure.

  • Page 7: Focus-12/15 Block Diagram

    FOCUS-12 Block Diagram FOCUS-15 Block Diagram...

  • Page 8: Focus-18S/218S Block Diagram

    FOCUS-18S Block Diagram 8 ohm PARALLEL MODE FOCUS-218S Block Diagram PARALLEL MODE PARALLEL PARALLEL LF/LF 1+,1- UNUSED 2+,2- DISCRETE DISCRETE MODE DISCRETE PARALLEL 8 ohm 8 ohm...

  • Page 9: Focus-12/15 Bi-Amp Wiring

    FOCUS-12/15 BI-AMP WIRING SPEAKON CONNECTOR FROM LF AMPLIFIER FROM HF AMPLIFIER...

  • Page 10: Focus-12/15 Fullrange Wiring

    FOCUS-12/15 FULLRANGE WIRING SWITCH IN DWON POSITION FOR PASIVE MODE...

  • Page 11: Focus-12/15 Polar Graphs

    FOCUS-12 HORIZONTAL POLAR GRAPHS 125Hz 250Hz 125Hz -120 -120 -150 -150 500Hz 500Hz 1000Hz -120 -120 -150 -150 4000Hz 2000Hz 2000Hz 4000Hz 2000Hz -120 -120 -150 -150 16000Hz 8000Hz 8000Hz -120 -120 -150 -150...
  • Page 12 FOCUS-12 VERTICAL POLAR GRAPHS 125Hz 250Hz -120 -120 -150 -150 500Hz 1000Hz -120 -120 -150 -150 4000Hz 2000Hz -120 -120 -150 -150 8000Hz 8000Hz 16000Hz 8000Hz -120 -120 -150 -150...
  • Page 13 FOCUS-15 HORIZONTAL POLAR GRAPHS 125Hz 250Hz 125Hz 250Hz -120 -120 -150 -150 500Hz 1000Hz -120 -120 -150 -150 2000Hz 4000Hz -120 -120 -150 -150 8000Hz 1600Hz -120 -120 -150 -150...
  • Page 14 FOCUS-15 VERTICAL POLAR GRAPHS 250Hz 125Hz -120 -120 -150 -150 500Hz 1000Hz -120 -120 -150 -150 4000Hz 2000Hz -120 -120 -150 -150 16000Hz 8000Hz -120 -120 -150 -150...

  • Page 15: Specifications

    SPECIFICATIONS Model Name FOCUS-12 FOCUS-15 FOCUS-18S FOCUS-218S System Type 12" 2 way 15" 2 way 18" Subwoofer Dual 18" Subwoofer Frequency Response (+/- 3dB) 60-20kHz 50-20kHz 35-800Hz 30-800Hz Frequency Range (-10dB) 55-20kHz 45-20kHz 30-800Hz 25-800Hz Parallel: 2000W/4000W/8000W Continuous/Programme/Peak 500W/1000W/2000W 700W/1400W/2800W...

  • Page 16: Warranty
