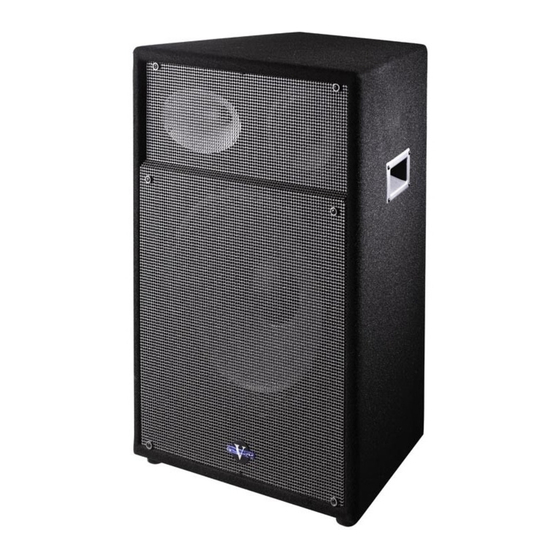

- Page 1 PROFESSIONAL SOUND SYSTEMS V Series OPERATING MANUAL AND USER GUIDE V 10 V 12 V 12M V 15 V 153 V 15B V 18B www.wharfedalepro.com...
- Page 2 OPERATING MANUAL AND USER GUIDE IMPORTANT WARNINGS & SAFETY INSTRUCTIONS 1. READ ALL INSTRUCTIONS – carefully and become familiar with the features and functions of these products before operating them. 2. RETAIN THESE INSTRUCTIONS – for future reference. 3. COMPLY WITH ALL WARNINGS – All warnings and instructions for this product should be adhered to. 4.
-
Page 3: Table Of Contents
V Series TABLE OF CONTENTS Important Warnings and Safety Instructions…………………………..….… W h a t a b o u t t h e V S e r i e s ……………………………………………………… Introduction / Overview……………………………………………………..….… F e a t u r e s ……………………… . …………………………………… . …………… ..Setting up / Speaker Placement…………………………….……….... - Page 4 We take great pride in engineering and building every Wharfedale Pro loudspeaker and wish to thank you for entrusting us with your sound. From the time Gilbert Briggs built his first loudspeaker in 1932, to the present, Wharfedale Loudspeakers have maintained the same standard of quality in components, workmanship and performance.
-
Page 5: E A T U R E S
V Series FEATURES ♦ 2-way trapezoidal + multifaceted reflex systems ♦ Passive Subwoofers ♦ 1.0 inch (25.4 mm) Phenolic diaphragm HF driver ♦ Low distortion, high power, steel frame woofers ♦ 90° x 60° High Frequency Eliptical Wave Guide (EWG) ♦... -
Page 6: Setting Up/ Speaker Placement
OPERATING MANUAL AND USER GUIDE SETTING UP/ SPEAKER PLACEMENT The uniform dispersion of the V Series Series makes it easy to position the speakers where you need them, rather than trying to rearrange the room to accommodate the sound system. And the trapezoidal shaped cabinet with heavy duty handles makes transporting the speakers that much easier. - Page 7 V Series V SERIES FULL RANGE AND SUBWOOFER CONNECTION PANEL The V-10, V-12, V-12M,V-15 and V-153 feature two 1/4” phone jack socket connectors and are paralleled. This means that these cabinets can be linked together with other cabinets of the same impedance and design or with a subwoofer speaker.
-
Page 8: Connection Diagram
OPERATING MANUAL AND USER GUIDE CONNECTION DIAGRAM MONO MAIN SYSTEM WITH TWO MONITORS connecting multiple v series speakers together in a mono-main and stage monitor configuration using a single, dual channel amplifier. NOTE: This configuration represents a 4 ohm load to each output channel of the amplifier. V15B and V18B System Set-ups V15B and V18B Stereo Sub with Passive Satellites This is example shows a system with a single power ampliyer connecting the subs and satellites in stereo. - Page 9 V Series V-10/12/15/153 FULL-RANGE SYSTEM Impedance Considerations When connecting speakers in parallel be sure to check the rated load impedance of the power amplifier. Most power amplifiers are capable of safely driving speakerswith minimum impedance of 8 ohms or 4 ohms. A pair of parallel-connected 8-ohm speakers have a to talimpedance of 4 ohms.
-
Page 10: P E C I F I C A T I O N S
OPERATING MANUAL AND USER GUIDE SPECIFICATIONS Model name V12M System Type Reflex Trapezoid 10" Reflex Trapezoid 12" Reflex 12" Reflex Trapezoid 15" 2-way 2-way 2-way monitor 2-way Frequency Response (+/- 10dB) 65 - 20kHz 55 – 20kHz 55 – 20kHz 45 - 20kHz Sensitivity (dB) 1w@1m Nominal Dispersion (H X V°) - Page 11 V Series SPECIFICATIONS Model name V153 V15B V18B System Type Reflex Trapezoid Reflex Rectangle 15" Reflex Rectangle 18" 3 Way compact subwoofer compact subwoofer Frequency Response (+/- 10dB) 45 - 20kHz 45 – 300Hz 35 - 250Hz Sensitivity (dB) 1w@1m Nominal Dispersion (H X V°) 90 x 60 Peak SPL (dB) 1w@1m...
- Page 12 OPERATING MANUAL AND USER GUIDE DIMENSIONAL V-10 V-12...
- Page 13 V Series DIMENSIONAL V-12M V-15...
- Page 14 OPERATING MANUAL AND USER GUIDE V-153 V-15B...
-
Page 15: Warranty
V-18B WHARFEDALE PRO LIMITED WARRANTY Wharfedale Pro Series products are warranted of manufacturing or material defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorized Wharfedale Pro dealer or distributor for information. - Page 16 IAG HOUSE, Sovereign Court, Ermine Business Park Huntingdon, Cambs, PE29 6XU, England www.wharfedalepro.com Wharfedale Professional reserves the right to alter or improve specifications without notice. All rights reserved © 2008 Wharfedale Pro. Wharfedale Pro is a member of the International Audio Group (IAG).
