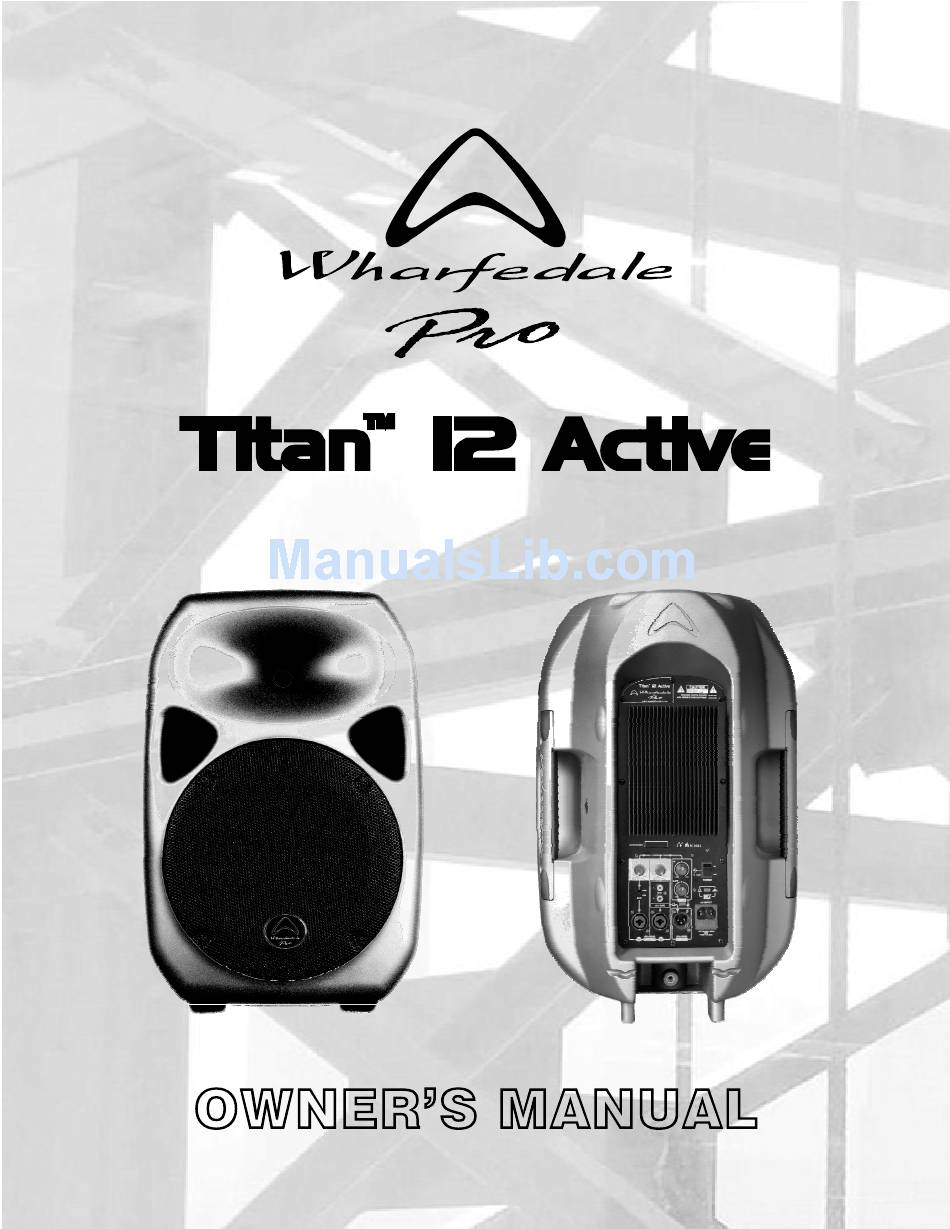

- Page 1 PROFESSIONAL ACTIVE SPEAKER SYSTEM...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page 1……………………………………………… 2……………………………………………… 3……………………………………………… 4……………………………………………… 5……………………………………………... 6……………………………………………... 7……………………………………………... 8……………………………………………... 9……………………………………………... 10………………………………………….….. 11……………………………………….…….. 12……………………………………….…….. 13……………………………………………... 14……………………………………….…….. 15……………………………………….…….. 16……………………………………….…….. Unpacking - Warnings and Safety Introduction Warranty Feature Set Description Description (continued) Optional Accessories Enclosure Features Front Panel Features Rear Panel Layout Rear Panel Features Operating Instructions Connection diagram #1... - Page 3 UNPACKING All Wharfedale Pro products are fully checked before leaving the factory. After unpacking, inspect the contents for any physical damage. Retain the shipping carton and internal packing material. Check as soon as possible that the unit is functioning properly. In the event of any shipping damage, please contact your dealer and the shipper immediately to make a claim.
-
Page 4: Introduction
In keeping with Gilbert Brigg’s original vision, all of our transducer components are engineered, tooled, and manufactured in our 1,500,000 square foot facility. In fact Wharfedale is one of only a handful of manufacturers who still build all of their own transducers. -
Page 5: Warranty
WHARFEDALE PRO LIMITED WARRANTY Wharfedale Pro Titan™ 12 ACTIVE loudspeakers systems are warranted to be clear of manufacturing or material defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorized Wharfedale Pro dealer or distributor for information. -
Page 6: Feature Set
Titan™ 12 Active Feature Set -2-way, active bi-amplified speaker system -State-of-the-art, high efficiency switch mode power supply with a class D low frequency power amplifier and a class A/B high frequency amplifier -Low frequency power (Class D) 250W RMS, 500W PEAK -High frequency power (Class A/B) 50W RMS, 100W PEAK -Active signal limiting system with LED indicator on rear panel -Power ‘ON’... -
Page 7: Description
Titan™ 12 ACTIVE DESCRIPTION TRANSDUCERS The Titan™ 12 ACTIVE features a custom designed, heavy-duty 12” low frequency driver precisely matched to a high frequency 2” Titanium compression driver with integral bi-amplification. Both drivers are designed for maximum output, wide dispersion and precise audio signal reproduction. AMPLIFIER The Titan™... - Page 8 Titan™ 12 ACTIVE DESCRIPTION (cont.) A top stacking feature is provided for multi-loudspeaker applications and the Titan™ 12 ACTIVE also can be used on its side as a stage monitor. The speaker stand receptacle features a locking screw to ensure stability and rubber-padded carry handles make the job of transporting the enclosure easier than ever.
-
Page 9: Front Panel Features
Titan™ 12 ACTIVE - Front Panel Features 1. High frequency driver and power on indicator The high frequency driver is a custom designed 2" titanium compression driver. A circular blue power ‘ON’ indicator is embedded in the throat of the horn. (There is an additional power ‘ON’... -
Page 10: Rear Panel Layout
Titan™ 12 ACTIVE REAR PANEL LAYOUT HI / LOW EQ (equalization) controls VOLUME controls A & B RCA INPUT L & R (Left and Right) MIC / LINE switch XLR /¼” combo jacks for INPUT A & B -10dB +10dB HIGH -10dB +10dB... -
Page 11: Rear Panel Features
Titan™ 12 ACTIVE Rear Panel Features 1. Heat Sink: The heat sink allows for dissipation of heat build up from the amplifier via air cooling at the rear of the enclosure. 2. HI and LOW EQ (equalization) controls: These knobs control the equalization of the overall output signal providing +/- 10dB in each frequency range. -
Page 12: Operating Instructions
Titan™ 12 ACTIVE Operating Instructions The Titan™ 12 ACTIVE is nearly as easy to use as it is to move around. The steps below should be followed to help you get the best out of your speaker system. -Place the Titan™ 12 Active on a speaker stand, set it upright or place it on its side (if being used as a floor monitor) and connect the power cable. -
Page 13: Connection Diagram #1
CONNECTION DIAGRAM #1 Basic microphone / playback hookup MP3 Player ∞ VOLUME HIGH GAIN (BALANCED) Microphone LIMIT ∞ -12dB -10dB +12dB +10dB VOLUME INPUT -12dB -10dB +12dB +10dB CD/TAPE LOOP AC220-240V~60Hz AC220-240V~50Hz FUSE T4AL 250V (BALANCED) INPUT OUTPUT INPUT INPUT POWER BASS RESPONSE OPTIMIZER... -
Page 14: Connection Diagram #2
CONNECTION DIAGRAM #2 Connecting two Titan 12 ACTIVE speakers together Input 1 from a microphone or the output of a mixer (Be aware of MIC/LINE switch setting!) ∞ ∞ -10dB VOLUME VOLUME HIGH INPUT -12dB -10dB GAIN CD/TAPE LOOP (BALANCED) -
Page 16: Specifications
SPECIFICATIONS Model Name System Type Frequency Response (+/-3dB) Low Frequency Transducer Size (mm / inches) Coil Size (mm / inches) Impedance High Frequency Transducer Type Coil Size (mm / inches) Exit Size (mm / inches) Diaphragm Material Impedance High Frequency Coverage (H x V) Amplifiers Low-Frequency Power Amplifier (Class D) High- Frequency Power Amplifier (Class A/B) -
Page 17: Dimensions
SPECIFICATIONS (cont.) Input B – type Input Sensitivity Maximum Input Level Input Connectors Line Output Line Output Connector Impedance Sensitivity AC Power details Power Supply AC Power Options Power On Indicator Rigging / Bracket / Mounting Options Enclosure Enclosure Material Colour Dimensions (mm / inches): W (Front / Back) - Page 19 Sovereign Court, Ermine Business Park, Huntingdon, Cambs, PE29 6XU, England www.wharfedalepro.com IAG Professional reserves the right to alter or improve specifications without notice. All rights reserved © 2007 Wharfedale Pro Wharfedale Pro is a member of the International Audio Group...
