Summary of Contents for York YM 09 V6 G

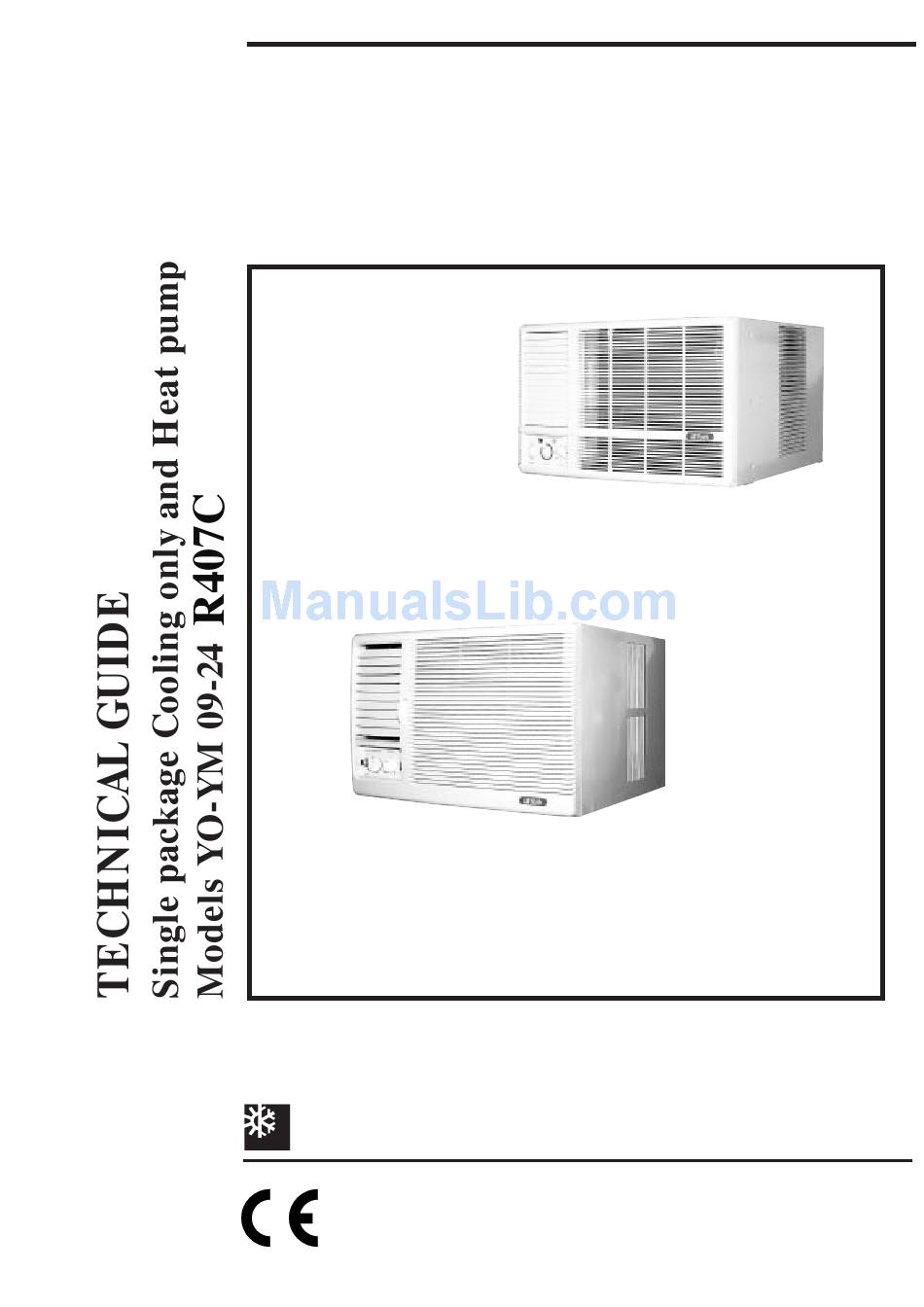

- Page 1 WINDOW YO 12-19-24 V6 G YO 12-19-24 V7 G YM 09 V6 G YM 09 V7 G YORK ®...
-
Page 2: Table Of Contents
.................................... 8 - Maintenance ..................................- Trouble-shooting guide ..............................Parts lists : (Contact York) Decommissioning, Dismantling and Disposal 1 - Safety Installation and maintenance of this air conditioning system ELECTRICAL CONNECTIONS should only be carried out by trained and qualified personnel. -
Page 3: Technical Specifications
3 - Technical specifications Type YM-YO Models Size Btu/h 9 150 12 000 18 500 24 000 Cooling V6 Capacities Btu/h 7 320 12 000 17 800 23 050 Heating V7 Compressor Type Rotary Reciprocating Refrigerant R407C Expansion device Capillary Power supply V/Ph/Hz 220-240 / 1 / 50... -
Page 4: Installation
5 - Installation Unit installation entails : Physical unit installation : - preparation of the masonry - Remove the filter from the unit. - physical unit installation - Remove the front panel. - connection of the unit to an earthed mains outlet. - Slide the unit out of its casing. -
Page 5: Condensate Drainage
6 - Condensat drainage The fan propeller on the outdoor side of the unit has a lip at its outer edge that projects condensates onto the condenser coil. Heat produced by the coil evaporates the water. This increases cooling and heating performances and eliminates the need to install a condensate evacuation line (operating limit : 85 to 90% humidity level). -
Page 6: Maintenance
8 - Maintenance The units are designed to operate for long periods of time with a minimum of maintenance. However, the following operations must be performed regularly. COMPONENT MAINTENANCE OPERATIONS RECOMMENDED FREQUENCY Air filter 1 - Clean with a vacuum cleaner or tap gently then Every month or more wash in warm water (40°C) with a mild detergent. -
Page 8: York International
4. After removal from position the unit parts may be disposed of according to local laws and regulations. E - TEC - W0301 YORK ® Europe YORK INTERNATIONAL Manufacturer reserves the right to change specifications without prior notice.
