Do not use solvents or aggressive detergent to clean the device. Use
a soft and clean cloth.
Do not modify the device or the connected power cord without
authorization.
Use appropriate safety-rope for safety.
Clean the machine regularly using water or smoke cleaning fluid
(160.670)
7. Connect with power supply - The ground wire must be
connected :
Use the plug to connect to the main power supply as following.
Wire Connection
Brown Live
Blue Neutral
Yellow /Green Earth
8. Quick Trouble Shooting :
If the unit is not functioning properly
8.1 Check if main power is on and fuse hasn't blown
8.2 The remote control is plugged in correctly in to the socket
8.3 Check there is fluid in the tank
8.4 Check that the pipe is pushed down to the bottom of the tank
8.5 Check the correct fluid has been used.
8.6 If there is a block use distilled water or smoke machine cleaning fluid.
160.457UK
International signal
L
N
6
User Manual – QTFX-2000
14. DMX controlling:
DMX channel DMX Scale
000 - 005
CH 1
006 - 255

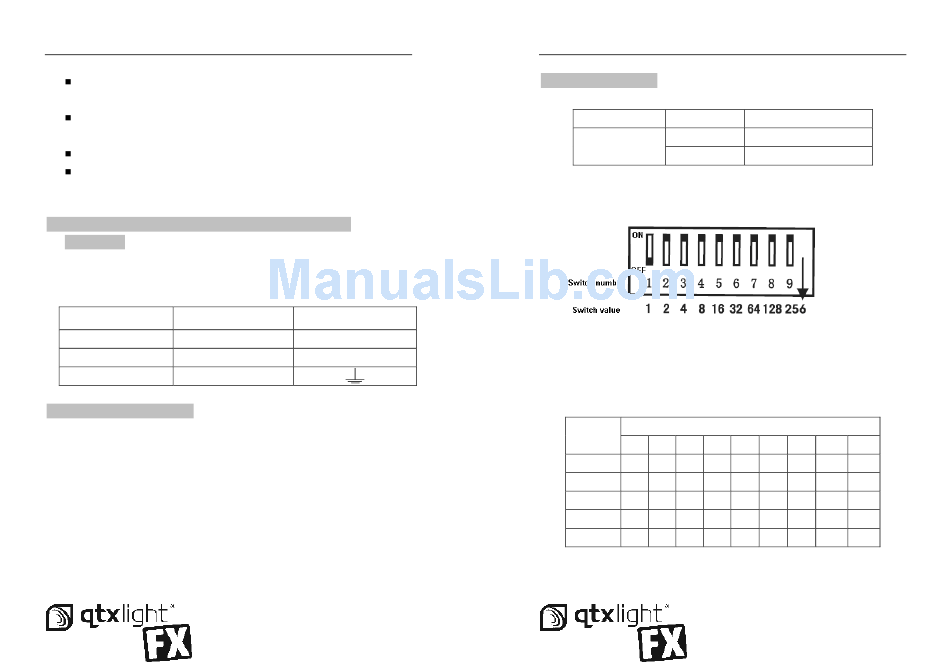

Dip Switch addressing
To set the DMX address please see the example table below and for more details
visit the QTX website www.qtxlight.com
(Note: 1 = On, 0 = Off)
DMX DIP Switches
Address
1 2 4 8
1 1 0 0 0
2 0 1 0 0
3 1 1 0 0
... .. .. .. ..
410 0 1 0 1
160.457UK
Detail function
0% Output
5% - 100% Output
16 32 64 128 256
0 0 0 0 0
0 0 0 0 0
0 0 0 0 0
.. .. .. .. ..
1 0 0 1 1
