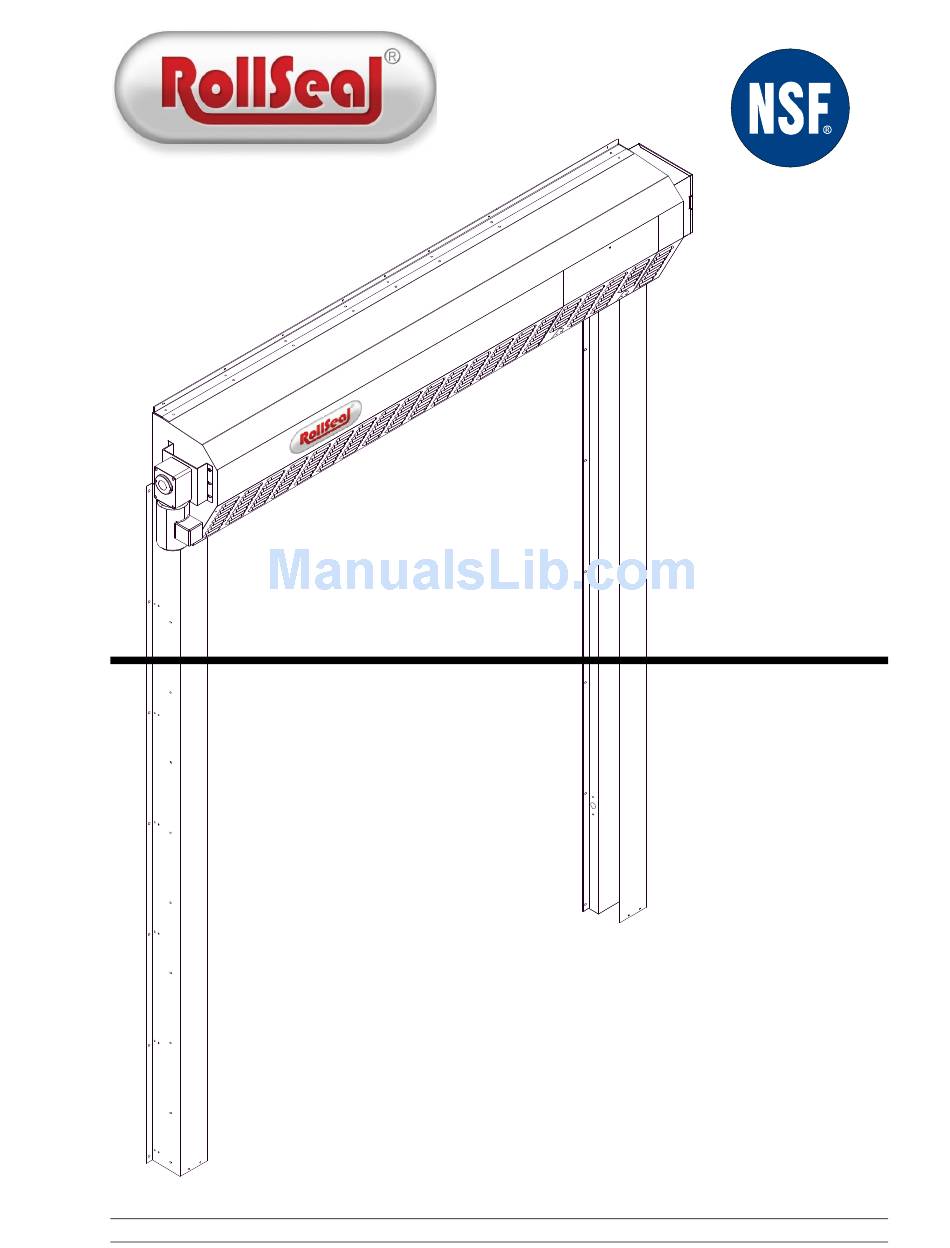

- Page 1 RS-500 Door Installation Manual RollSeal 1733 County Road 68 Bremen, Alabama 35033 256-287-7000 Part No. 4801-5166 Rev 10-2014 Owners Manual RS-500 Door...
-
Page 2: Table Of Contents
14 Door Panel Adjustments............................24 15 Removal of existing Panel/Curtain Material ......................25 16 Installation of Replacement Curtain ........................26 17 RS-500 Door Wiring Diagram ..........................27 Please Retain This Manual for Future Reference Refer to SC-325 Controller Manual 4801-5156 and D5/D6 Series Door Manual 4801-5154 for additional details. -
Page 3: Ratings And Specifications
Ratings and Specifications Motor Ratings: 240 VAC, Three Phase, 1/4 HP Door approved by the NSF (National Sanitation Foundation) Motor must be connected through Controller SC-325. See SC-325 Controller Manual (4801-5156). TABLE 1 RS 500 Door Standard Dimensions: WIDTH Related Dimensions HEIGHT Related Dimensions RS500... -
Page 4: Warnings (Avertissements)
Warnings (Avertissements) Warning! Disconnect All Power Sources Before Installing This Equipment. Failure To Disconnect Power Source Can Result In Property Damage, Serious Injury Or Death! Warning! Dangerous Rotating Machinery! Keep Hands, Clothing, Etc. Clear When Operating! Do Not Operate Without All Guards And Covers In Place! Warning! All Wiring Should Be In Accordance with National Electrical Codes Or Other Local Codes. -
Page 5: Important Installation Instructions
Danger! Only Qualified Electrical Personnel Familiar With The Construction And Operation Of This Equipment And The Hazards Involved Should Install, Adjust, And/Or Service This Equipment. Read And Understand This Manual In Its Entirety Before Proceeding. Failure To Observe This Precaution Could Result In Severe Bodily Injury Or Death! Warning! Item 4501-6312 (Warning Moving Door Label) -
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Warning! To Reduce The Risk Of Severe Injury Or Death: READ AND FOLLOW ALL INSTRUCTIONS! Never let children operate or play with door controls. Keep the remote control (where provided) away from children. Personnel should keep away from a door in motion and keep the moving door in sight until it is completely closed or opened. - Page 7 Avertissement! L'Installer est responsable pour conformer avec tout règlement pertinent, telles que règlement et règlement de prévention d'accident de montage sur fil de fer nationaux. Pl'attention articulaire doit être donnée pour les aires sectionnelles transversales de conducteurs, le choix d'elles fusées ou autre protection, et terre / prises de terre protecteur ! Avertissement! Les tensions dans le pouvoir câblent et certains parties de la promenade en voiture...
- Page 8 LES INSTRUCTIONS D'INSTALLATION IMPORTANTES AVERTISSEMENT! À réduire le risque de blessure sévère ou mort: 1. LU ET SUIVENT TOUTES INSTRUCTIONS D'INSTALLATION. 2. Ne liez pas l'opérateur de porte per la source de pouvoir jusqu'à instruit faire ainsi. 3. Localisez la station de commande: (a) en vue de la porte, (b) à un minimum la hauteur de 5 pieds ainsi petit enfants ne peuvent pas l'atteindre, et (c) loin de tous parties en mouvement de la porte.
-
Page 9: Limited Warranty
This warranty gives you specific legal rights and you may also have other rights that vary from area to area. Warrantor: RollSeal 1733 County Road 68 Bremen, Al 35055 256-287-7000 Part No 4801-5166 Rev 10-2014... -
Page 10: Physical Description/Drawing
Physical Description/Drawing Installation of a RollSeal RS-500 Automatic Door involves, at a minimum, connecting to the Smart Controller (SC- 325) that connects to the AC power, the door motor, the Up/Down button, and the safety beam. Other accessories can be added such as a remote IR sensor, remote radio link, and door movement indicators such as lights and bells. -
Page 11: Installation
This gives the required dimensions of the clear opening. If necessary, adjust the dimensions of the mounting posts or framing members to the height and width of your RS-500 Door System as shown in Diagram 6A. Refer to Section 6.4 (Page 12, Diagram 6B) for details of attaching door to framing members. -
Page 12: Attachment Points Of Door
6.4 Attachment Points of Door When sizing the clear opening for attachment of the door, pay close attention to the following guidelines. Door flanges have pre-drilled holes that serve as mounting points of door. Flange widths are shown in Diagram 6B. 1. -
Page 13: Assembly Of Parts
6.5 Assembly of Parts Arrange the horizontal member, left vertical member (left track), and right vertical member (right track) on the floor in front of the clear opening as shown in Diagram 6C. The curtain side of the horizontal member and each vertical member faces down. -
Page 14: Infrared Sensor Connectors
Door can be set to stop if beams are broken while closing, or to stop and reverse to the full open position. Refer to the RollSeal SC-325 Controller Manual for more information. - Page 15 Center door assembly on clear opening. Align the bottom of each vertical member with the respective framing board or posts of the clear opening. Note: The vertical members should be aligned so that their outer flanges will exactly overlap with the framing boards or posts when the door assembly is raised into position.
-
Page 16: Electrical Connections For Rs500 Cooler Door
Electrical Connections for RS500 Cooler Door The Cooler Setup is designed to enable door installers to completely install and test door operation. Electrician is still required to connect power to door, but all switch and interface connections are made to be pluggable for ease of installation. -
Page 17: Power Connection With Disconnect
Add conduit straps to conduit. Disconnect 7.5 Preparation for Operation Refer of the RollSeal SC-325 Controller Manual for more information on Controller Settings. Note: If you detect any problems, STOP. Disconnect electrical power. Contact your distributor for assistance. Insert fuse in Control. -
Page 18: Limit Switches
Limit Switches The controller keeps track of the "open" and "closed" positions of the door by means of a mechanical encoder wheel that is located in the control box. The controller electronically counts steps as the wheel turns to keep track of the door position. -
Page 19: Emergency Egress
10 Emergency Egress The Emergency Egress feature provides a simple and convenient means of exiting a RollSeal RS-500 Door from the inside of the structure should the door motor become inoperative due to a power failure or other conditions. 10.1 Installation Install the two Strap Retainers (1040-8400) to the left or right side outside of door jamb as shown below. -
Page 20: Resetting (Closing) The Door
10.3 Resetting (Closing) The Door After the RollSeal RS-500 Door is opened by using the Emergency Egress Strap, the door must be carefully re-set to ensure proper operation in the future. C A U T I O N ! When the Cam Buckle is released, the door will rapidly close unless tension is held on the strap. -
Page 21: Egress Strap Removal/Re-Installation
11 Egress Strap Removal/Re-Installation 11.1 Removal Locate the door controller and turn off the power switch on the left side of the controller. Remove the door’s head unit cover. Place the door in the JOG mode by holding the Up and down arrows on the controller at the same time until you see “JOG”... -
Page 22: Manual Operation Of Door
12 Manual Operation of Door Operating Instructions The RS-500 Door can be operated manually in the event of a power outage or if there is a motor malfunction. To operate the door manually, perform the following instructions. Warning! Disconnect All Electrical Power To Motor Before Attempting... -
Page 23: Adjustment Of Brake
13 Adjustment of Brake After extended operation of the brake lever, the brake may become worn. As the brake wears, some adjustment to the brake is required. Lettered diagrams below correspond to lettered instructions. Follow instructions to adjust brake: Close door curtain to fully lowered position. Tighten spider nut (C) snuggly against blower wheel. -
Page 24: Door Panel Adjustments
14 Door Panel Adjustments During normal operation, the tension pipes should run in close proximity of each other. The clearance between the tension pipes should normally be between 1/4 to 1/2 (6.35 mm - 12.7 mm). There are two situations pertaining to the tension pipes that may cause problems with door operation. -
Page 25: Removal Of Existing Panel/Curtain Material
15 Removal of existing Panel/Curtain Material Warning! The Curtain Is Released When Brake Lever Is Disengaged. Do Not Disengage Brake Until Door Opening Is Clear! Locate the door controller and turn off the power switch on the left side of the controller. Locate the brake on the motor. -
Page 26: Installation Of Replacement Curtain
16 Installation of Replacement Curtain Place the new panel in front of the door opening and make sure the part number label is on the left side. NOTE: If door is equipped with egress system yellow strap ensure that the strap is positioned to the front side of the back/inside panel to allow connection to the triangle piece of material with the quick-link connector. -
Page 27: Rs-500 Door Wiring Diagram
17 RS-500 Door Wiring Diagram WARNING! Head Unit Must Be Properly Grounded. Part No 4801-5166 Rev 10-2014 D5/6 Series Doors MFZ Page 27... - Page 28 NOTES: Page 28 D5/6 Series Doors MFZ Part No 4801-5166 Rev 10-2014...
