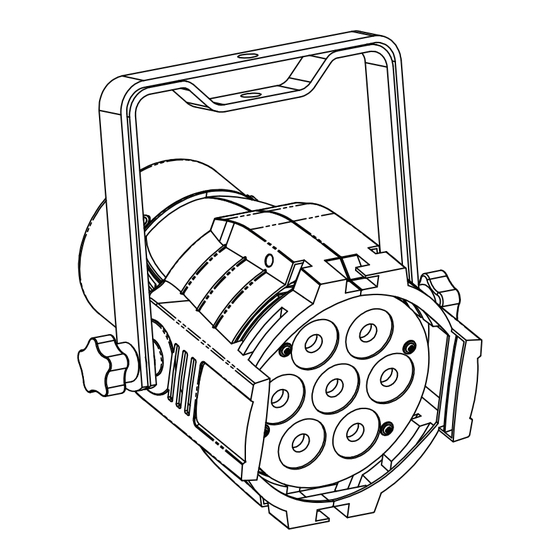

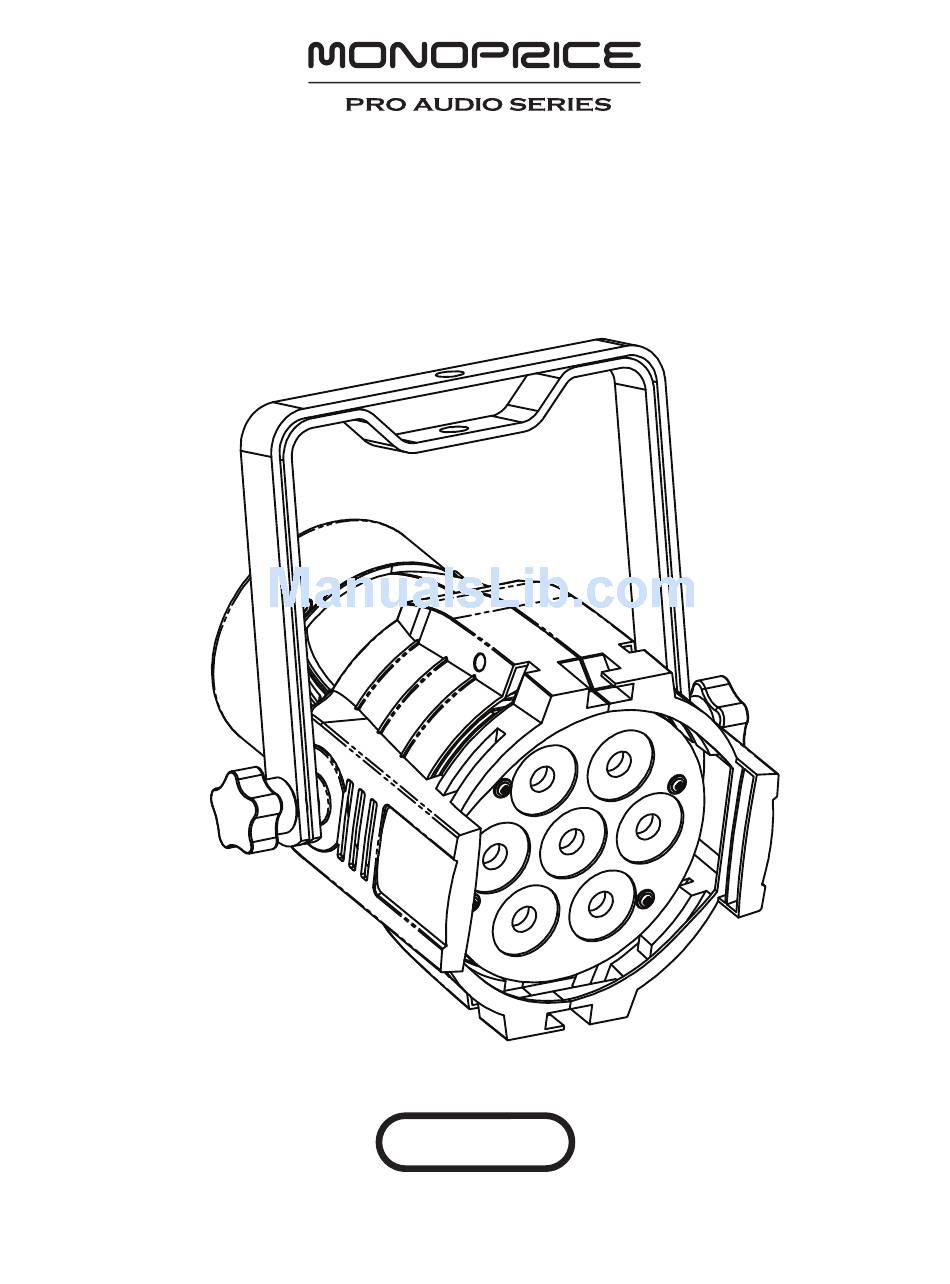

- Page 1 Bright, 8-Watt x 7 LED PAR-575 StageLight (RGBW) 612740 USER’S MANUAL...
-
Page 2: Package Contents
Introduction Thank you for purchasing this stage light from Monoprice! This light features an aluminum shell and seven 8-watt 4-in-1 LEDs, which are capable of producing Red, Green, Blue, and White light. Each LED can be independently dimmed, faded, and mixed. -
Page 3: Dmx Control
DMX Control This light is capable of operating with 3, 4, 5, 8, or 9 DMX channels. The more channels used, the more precise control options are available. The following terms are used in these tables: Chromaticity: Visible light, such as red, green, yellow, cyan, etc. Color Saturation: The proportion of color chromaticity present, with 100% saturation meaning that the color has reached its highest state of purity. - Page 4 8-Channel DMX Control Channel Control Function Notes Priority Value General Dimming 0-255 0-100% Red Dimming 0-255 0-100% Green Dimming 0-255 0-100% Blue Dimming 0-255 0-100% 0-255 White 0-100% 0-14 Dimming Disabled when Channel 7 is set 15-255 Strobe Speed to a value greater than 31 0-31 Invalid From Dark to...
- Page 5 9-Channel DMX Control Channel Control Function Notes Priority Value General Dimming 0-255 0-100% Red Dimming 0-255 0-100% Green Dimming 0-255 0-100% Blue Dimming 0-255 0-100% 0-255 White 0-100% 0-14 Dimming Disabled when Channel 7 is set 15-255 Strobe Speed to a value greater than 31 0-31 Invalid From Dark to...
-
Page 6: Menu Options
Controls The buttons on the control panel have the following functions: MENU: Pressing the MENU button opens the menu, if it is not already open. If the menu is already open, pressing the MENU button backs out to 4 DIGIT LED DISPLAY the previous menu level. -
Page 7: Menu Operation
The following table lists the function of each of the thirty built-in programs: Program Function Program Function Magenta Green Magenta Blue Turquoise Turquoise Yellow Green Magenta Blue White Yellow Turquoise Magenta Green White Green Turquoise Blue Dimmed White Blue White Fast Fade White-Turquoise-Magenta Strobe/Flash... -
Page 8: Master/Slave Operation
Master/Slave Operation Multiple lights can be daisy chained together, with one serving as the master and the others configured as slaves to perform whatever actions are performed by the master unit. The master light can be in any mode except DMX mode, while all the slaves must be set to SLAV mode to ensure they receive signals from the master unit. -
Page 9: Troubleshooting
If you experience other problems with this light and cannot solve them on your own, please contact Monoprice Technical Support for assistance. Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting or product recommendations. -
Page 10: Specifications
Specifications Input Voltage: 100~264 VAC, 47~63 Hz Output Voltage: 28 VDC Maximum Power Consumption: 56 watts Lamp Type: High Power 8-watt 4-in-1 LED x7 Refresh Rate: > 400 Hz Life Span: 50,000 ~ 100,000 hours Control Signal: DMX512, Sound Activated, Auto Run, Master/Slave Control Mode: Stand Alone, Sound Activated, Master/Slave DMX Channels: 3, 4, 5, 8, or 9 channels Beam Angle: 25°, 45°...
