3-Color LED Moving Head Light
PID 612800
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 612800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Monoprice 612800

Summary of Contents for Monoprice 612800

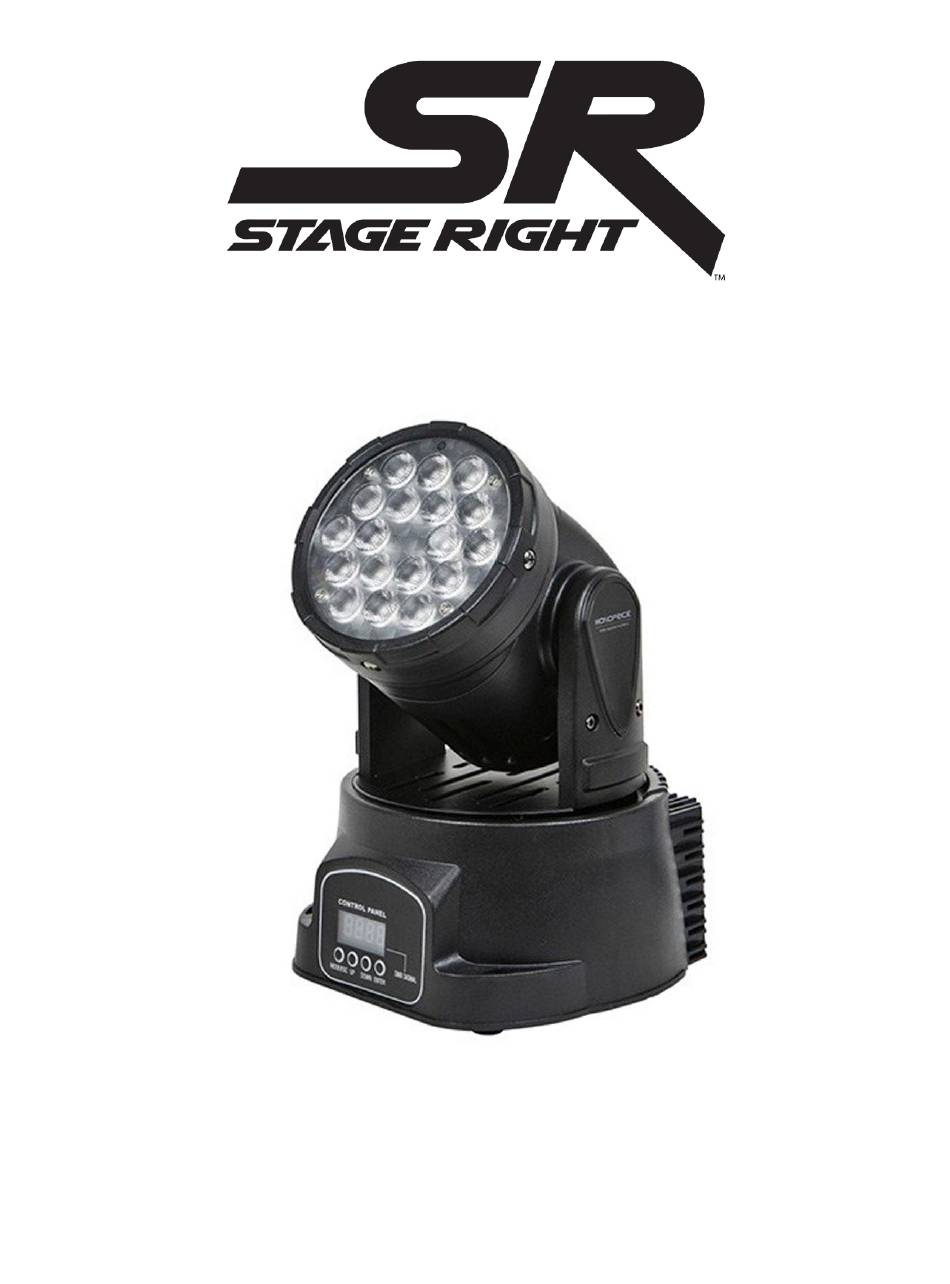

  • Page 1 3-Color LED Moving Head Light PID 612800 User's Manual...

  • Page 2: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES  Prior to operation, check the unit and power cord for physical damage. Do not use if physical damage has occurred.  Before plugging the unit into a power outlet, ensure that the outlet provides the same type and level of power required by the device.

  • Page 3: Customer Service

    If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com.

  • Page 4: Package Contents

    PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x 3-Color LED Moving Head Light 1x AC Power Cord...

  • Page 5: Dmx Setup

    DMX 13-CHANNEL SUMMARY Channel Function Pan Fine Tilt Tilt Fine Vector Speed (Pan/Tilt) Dimmer/Strobe Red Dimmer Green Dimmer Blue Dimmer Color Macros Vector Speed (Color) Movement Macros Reset DMX SETUP A DMX-512 controller is needed to run synchronized light shows using two or more lighting effects devices.

  • Page 6: Fuse Replacement

    If you are building your own DMX cables, use data-grade cabling with the following electrical characteristics:  2-conductor, shielded twisted-pair  Capacitance less than 30 pF/ft. between conductors  Capacitance less than 55 pF/ft. between each conductor and the shield ...
  • Page 7 CONFIGURATION Pan Inversion 1. Press the Mode button until the display shows PAn or rPAn. 2. Press the Up/Down buttons to select the desired setting. 3. Press the Enter button to confirm the selection. Tilt Inversion 1. Press the Mode button until the display shows tiL or rtiL. 2.

  • Page 8: Operation

    Set Maximum Pan Angle 1. Press the Mode button until the display shows PA54, PA36, or PA18. 2. Press the Up/Down buttons to select the desired setting. 3. Press the Enter button to confirm the selection. Set Maximum Tilt Angle 1.
  • Page 9 Master/Slave (Master Sound) Mode This mode allows you to link up to 32 devices together without the use of an external DMX controller. 1. Daisy chain the devices together using standard DMX cables. You may need to use a terminator on the output of the last device in the chain. 2.
  • Page 10 Green Dimmer 000-255 0% to 100% Blue Dimmer 000-255 0% to 100% Vector Speed 000-255 Fast to Slow (Pan/Tilt) 000-149 Null Reset 150-200 Reset 201-255 Null 13-Channel DMX Operation Channel Function Value Control 000-255 Pan Fine 000-255 Tilt 000-255 Tilt Fine 000-255 Vector Speed 000-255...
  • Page 11 022-035 036-049 Green 050-063 Blue 064-077 Cyan 078-091 Magenta 092-105 Yellow 106-119 Purple 120-133 Orange Color Macros 134-147 Chartreuse 148-161 Pink 162-175 Brown 176-189 Gold 190-203 Crimson 204-217 Violet 218-231 Grape 232-255 Color Changing Macro 1 Color Vector 000-255 Normal to Slow Speed 000-007 No Function...

  • Page 12: Technical Support

    Null TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates.

  • Page 13: Specifications

    SPECIFICATIONS 6x 3W Red LEDs Light Source 6x 3W Green LEDs 6x 3W Blue LEDs Beam Angle 25° Pan Range 540° Tilt Range 270° DMX Channels 8 or 13 Protocol DMX-512 USITT Input Power 120 VAC, 60 Hz OR 230 VAC, 50 Hz Fuse 1A 250V Power Consumption...
