MONOPRICE

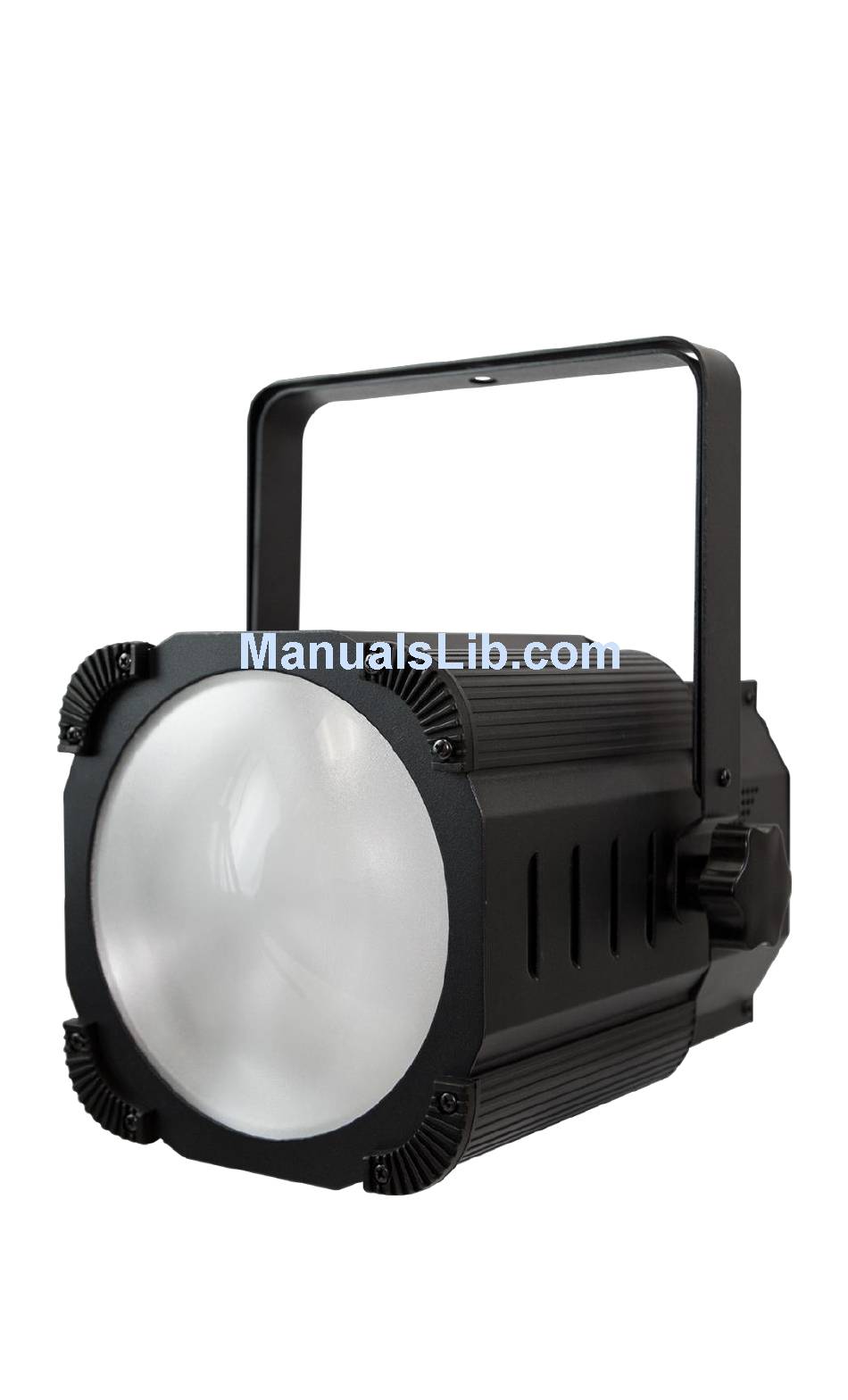

SoftStage™ 150-Watt COB LED Stage PAR (RGB)
P/N 612760
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 612760 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Monoprice 612760

Summary of Contents for Monoprice 612760

  • Page 1 MONOPRICE SoftStage™ 150-Watt COB LED Stage PAR (RGB) P/N 612760 User's Manual...

  • Page 2: Table Of Contents

    CONTENTS SAFETY WARNINGS AND GUIDELINES ....................3 FEATURES .................................. 5 CUSTOMER SERVICE ............................5 PACKAGE CONTENTS ............................5 DIMENSIONS DIAGRAM ..........................6 SAMPLE WIRING DIAGRAM ........................6 DMX TERMINATION ............................7 CONTROLS AND MENU DISPLAY ......................7 MENU MAP................................8 nodE FUNCTION ..............................9 PRESETS..................................9 MASTER/SLAVE MODE ...........................9...

  • Page 3: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ...
  • Page 4 Do not operate this device when the ambient temperature exceeds  +104°F (+40°C). Ensure that there is sufficient ventilation to allow the unit to cool. Do  not block any ventilation vents or slots and ensure that there are no flammable materials or adjacent surfaces within 20 inches of this device.

  • Page 5: Features

    Stand-alone, Master/Slave, and DMX modes  CUSTOMER SERVICE The Monoprice Customer Service department is dedicated to ensuring that your ordering, purchasing, and delivery experience is second to none. If you have any problem with your order, please give us an opportunity to make it right.

  • Page 6: Dimensions Diagram

    DIMENSIONS DIAGRAM SAMPLE WIRING DIAGRAM Following is a sample wiring diagram for a multiple fixture installation. Note that the final fixture must have a DMX Terminator plugged into the DMX Out connector.

  • Page 7: Dmx Termination

    DMX TERMINATION As with all DMX devices, the last unit in any chain must have a DMX terminator connected to the DMX Out connector If using just a single light, connect a DMX terminator to the DMX Out connector. A DMX terminator is a DMX plug with a 120-ohm, 1/4-watt resistor soldered between pins 2 and 3.

  • Page 8: Menu Map

    Once the desired value is displayed, press the ENTER button to set  that value for the displayed function or mode and allow for selection of another function or mode. If you want to discard any changes made to the value of the selected ...

  • Page 9: Node Function

    nodE FUNCTION The nodE function serves as a speed limiter for manual dims and fades. When set to nod0, any manual dims or fades will occur in real time, meaning that the light will dim or fade as fast as you move the slider. The other nodE values (1-4) are progressively slower than real time.

  • Page 10: Dmx Control

    chain must have a DMX terminator connected to the DMX Out connector. Note that you cannot use a DMX controller when connecting multiple lights in Master/Slave mode. DMX CONTROL When the light is set to a DMX address it will respond to signals from a DMX controller.

  • Page 11: 7/8Ch Mode

    000 - 014 Dimming 015 - 255 Strobe (fast-slow) 000 - 031 Not used 032 - 063 Dark-Bright fade Must use 064 - 095 Bright-Dark fade channels 1-4 to 096 - 127 Dark-Bright-Dark fade get light. Channel 5 is the 128 - 159 Multicolor gradient speed control.
  • Page 12 000 - 031 Not used Must use channels 1-4 to 032 - 063 Dark-Bright fade get light. 064 - 095 Bright-Dark fade Channel 5 is the 096 - 127 Dark-Bright-Dark fade speed control. 128 - 159 Multicolor gradient Channel 5 is the 160 - 191 Multicolor fade in-out speed control.
  • Page 13 P 50%+W 50% Channel 1 is 220 - 229 master dimmer. W 95%+Y 5% 230 - 249 Channels 2-4 W 100% 250 - 255 have no effect. 000 - 005 Uses the nodE setting 006 - 055 DIMMING 0 See Channel 8 056 - 105 DIMMING 1 note below...

  • Page 14: Troubleshooting

    Verify that the DMX controller is operating properly by using it with another DMX device. TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates.

  • Page 15: Specifications

    SPECIFICATIONS Model 612760 Light Source 1x 150-watt RGB 3-in-1 COB LED LED Lifespan 50,000 ~ 100,000 Input Power 100 ~ 260 VAC, 50/60 Hz Power Consumption 160 watts Beam Angle 18° 1.5 kHz, flicker-free for TV and camera Refresh Rate...

  • Page 16: Regulatory Compliance

    Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
