Monoprice 614305 User Manual

USER'S MANUAL

Table of Contents

Need help?

Do you have a question about the 614305 and is the answer not in the manual?

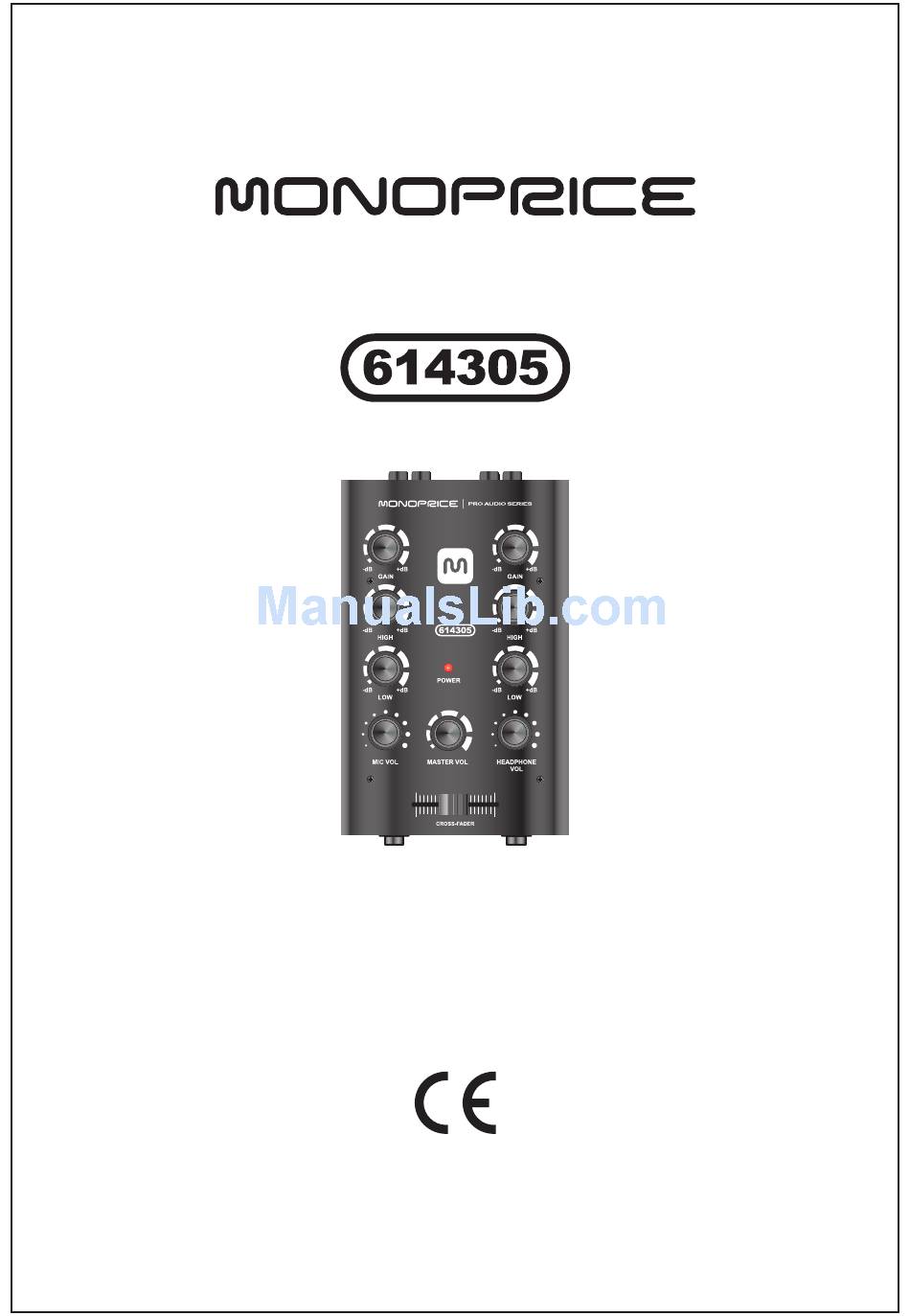

Page 1 USER'S MANUAL...
Page 2 CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliaces, such as radios and televisions, use shielded cables and connectors for connections The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage"...
Page 3: Top Panel
Top Panel 1. CHANNEL GAIN: Adjusts the corresponding channel’s pre-EQ gain level. GAIN GAIN 2. CHANNEL HIGH: Adjusts the high (treble) frequencies of the audio on the corresponding channel. HIGH HIGH 3. CHANNEL LOW: Adjusts the low bass frequencies of the audio on the corresponding channel.
Page 4: Rear Panel
Rear Panel 1. DC IN: Plug the included AC adapter into this jack. OUTPUT INPUT The adaptor uses a 12 V DC 500mA plug with positive polarity. DC IN 12V 500mA 2. MASTER OUTPUT (RCA): Use standard RCA cables to connect MASTER LINE 2 LINE 1...
