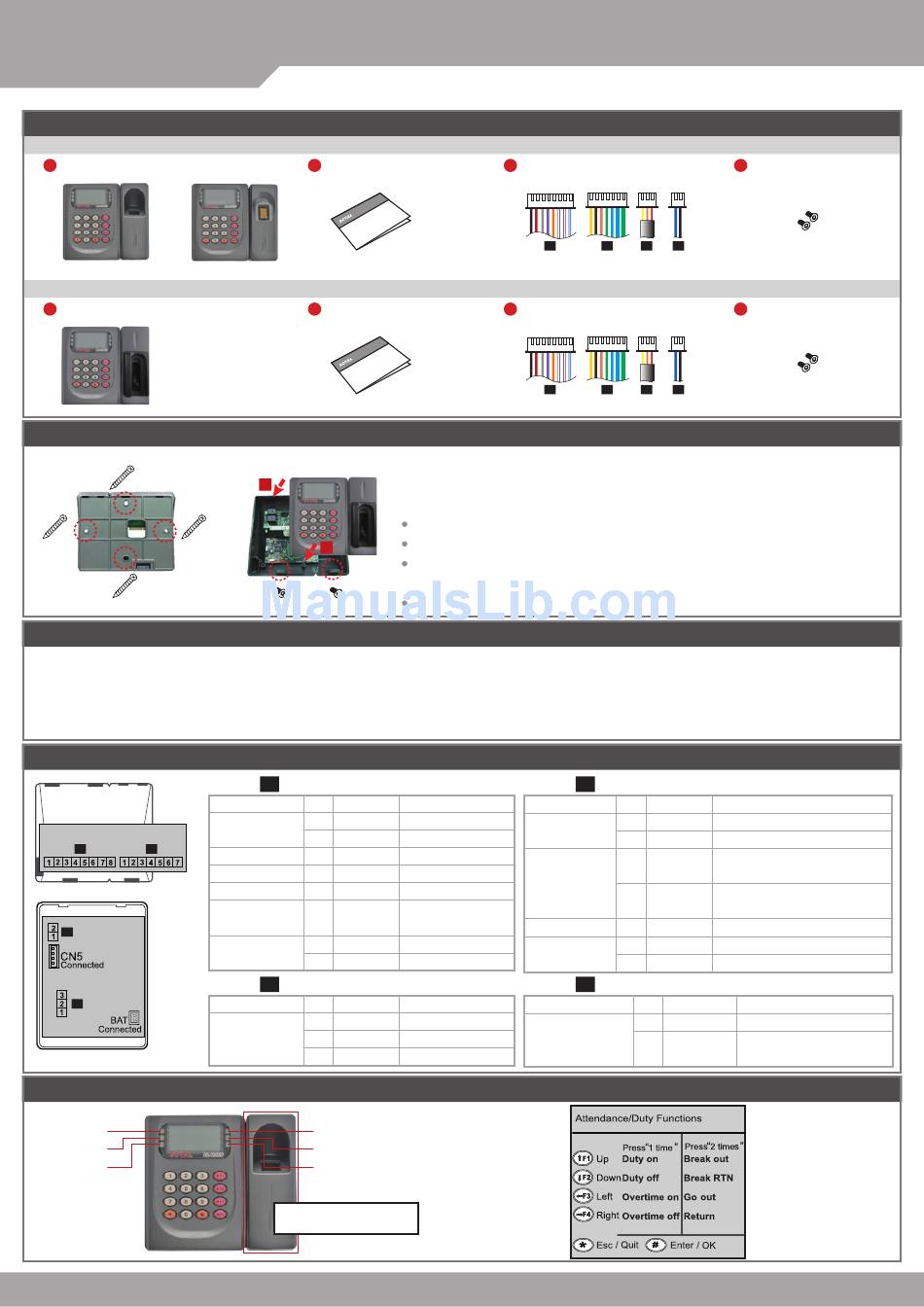

Soyal AR-821EF Quick Manual

SOYAL
ACCESS CONTROL SYSTEM
Contents
AR-821EF [Fingerprint]
1 Products
or
DO
AR-821EV [Finger Vein]
1 Products
Installation
A.
Notice
1.Tubing: The communication wires and power line should NOT be bound in the same conduit or tubing.
2.Wire selection: Use AWG 22-24 Shielded Twist Pair to avoid star wiring.
3.Power supply: Don't equip reader and lock with the same power supply. The power for reader may be unstable when the lock is activating, that may make the
reader malfunction.
The standard installation: Door relay and lock use the same power supply, and reader use independent power supply.
Connector Table
P1 P2
P4
P3
Front Panel & Indicator
Power
(Green)
Busy
(Red)
Alarm
(Red)
®
AR-821EF / AR-821EV
2 User Guide
MT
2 User Guide
B.
1
2
Cable: P1
Wire Color
Wire Application
Door Relay 1 Blue White
2 Purple White
Common-COM-Point 3 White
Door Sensor 4 Orange
Exit Switch 5 Purple
Alarm Relay 6 Gray
Power 7 Thick Red
8
Thick Black
Cable: P3
Wire Application Wire Color
Tamper Switch 1 Red
2 Orange
3 Yellow
Card Present/ Arming
OK
(Green)
Error
(Red)
Fingerprint or Finger-Vein
Scan Area
3 Terminal Cables
P1
3 Terminal Cables
P1
Use a screwdriver to screw the mounting plate to the wall.
Pull cables ends through the access hole in the mounting plate.
Attach AR-821EF or AR-821EV to the mounting plate and install screws (supplied) into the
holes at the bottom with the allen key.
Apply power. LED (green) will light up with one beep.
Cable: P2
Description
Wire Application
(N.O.)DC24V1Amp
Networking
(N.C.)DC24V1Amp
(COM)DC24V1Amp
Wiegand
Negative Trigger Input
Negative Trigger Input
N.O./N.C. Optional
(by jumper)
Buzzer
DC 12V
LED
DC 0V
Cable: P4
Description
Wire Application
N.C.
Serial Port
COM
N.O.
(Green)
4 Tools
P2 P3 P4
4 Tools
P2 P3 P4
Wire Color Description
1 Thick Green RS-485 (B-)
2 Thick Blue RS-485 (A+)
3 Blue WG DAT: 1 Input
ABA Clock Input
4 Green WG DAT: 0 Input
ABA Data Input
5 Pink Buzzer Output 5V/100mA, MAX
6 Brown LED Green Output 5V/20mA, MAX
7 Yellow LED Red Output 5V/20mA, MAX
Wire Color Description
1
Black Signal Ground
2 Blue TTL Serial Data Output in
4800, N, 8, 1
