Summary of Contents for peerless-AV Smartmount ST24D

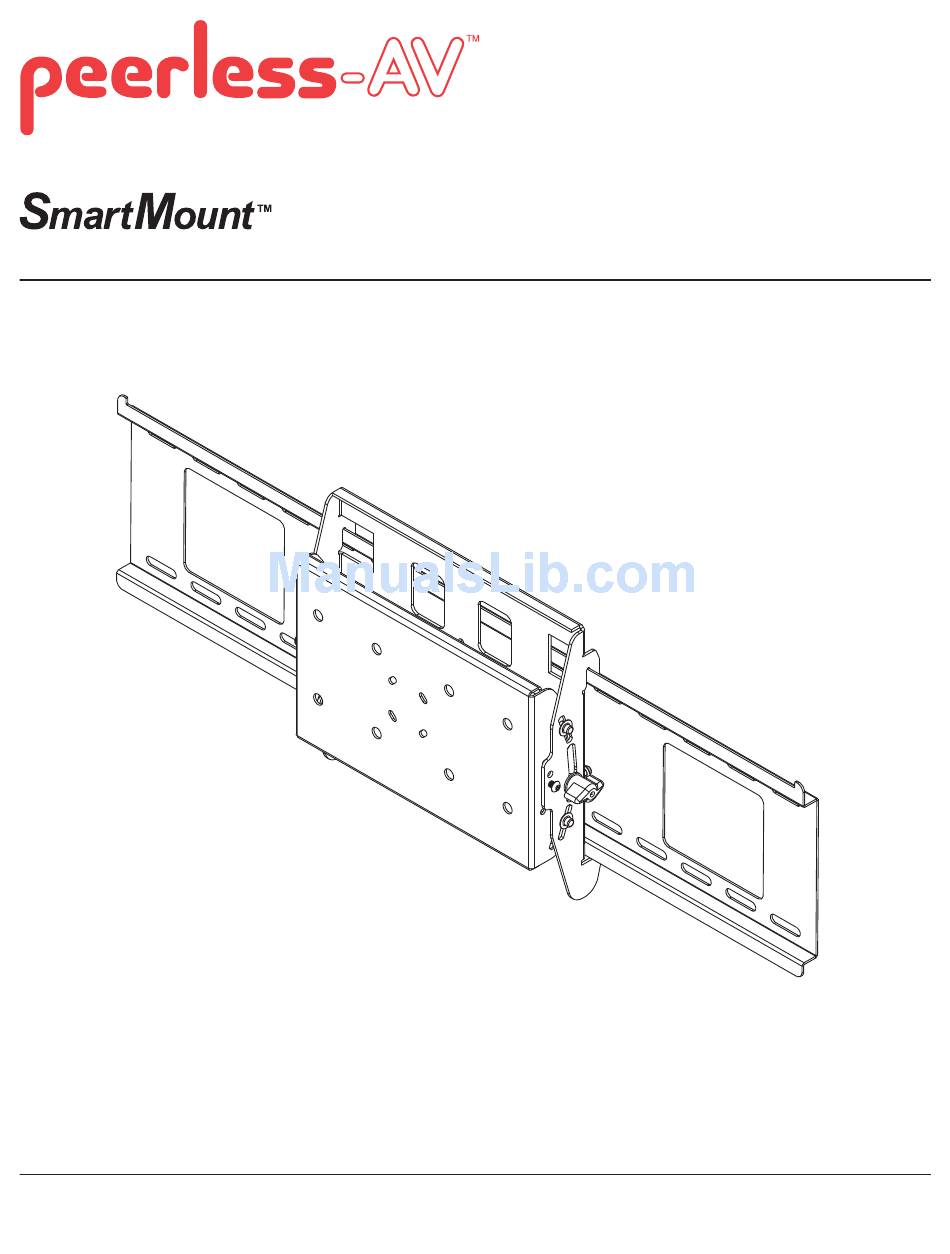

- Page 1 Installation and Assembly: Dedicated Tilt Wall Mount Model: ST24D Max Load Capacity: 200 lb (91 kg) 2300 White Oak Circle • Aurora, IL 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com ISSUED: 09-15-05 SHEET #: 202-9032-4 10-04-11...
-
Page 2: Table Of Contents
Note: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-865-2112. -
Page 3: Parts List
Parts List Description Part # AA wall plate 200-1796 BB tilt bracket assemby 200-0936 CC #14 x 2.5" wood screw 5S1-015-C03 DD Alligator® anchor concrete anchor 590-0097 590-0320 EE M10 x 15 mm socket head screw 520-9262 FF 4 mm security allen wrench 560-1146 3 of 9 ISSUED: 09-15-05 SHEET #: 202-9032-4 10-04-11... -
Page 4: Installation To Double Wood Stud Wall
Installation to Wood Stud Wall WARNING • Make sure that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. Using a stud finder, locate the edges of the wood studs used in mounting this product. Use of an edge-to-edge stud finder is highly recommended. -
Page 5: Installation To Solid Concrete Or Cinder Block
Installation to Solid Concrete and Cinder Block Wall WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"... -
Page 6: Attaching Plp Adapter Plate To Tilt Bracket Assembly
Note: Refer to accompanying instruction sheet for attachment of adapter plate to screen before proceeding with step 2. Attaching PLP Adapter Plate to Tilt Bracket Assembly Attach adapter bracket to interface bracket of tilt bracket assembly (BB) using four M10 screws (EE). Note: Full tilt bracket assembly not shown for clarity. -
Page 7: Attaching Lc Adapter Plate To Tilt Bracket Assembly
Note: Refer to accompanying instruction sheet for attachment of adapter plate to screen before proceeding with step 2. Attaching LC Adapter Plate to Tilt Bracket Assembly To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place screen face side down. -
Page 8: Mounting And Removing Flat Panel Screen
Mounting and Removing Flat Panel Screen Hook tilt bracket assembly (BB) onto wall plate (AA). Then slowly swing screen in as shown. To lock the screen down, tighten security screw to wall plate using security allen wrench (FF) as shown in detail 1. Screen can be adjusted horizontally if desired. -
Page 9: Adjusting The Tilt Angle Of The Flat Panel Screen
Adjusting the Tilt Angle of the Flat Panel Screen Adjust tension knob on right side of mount shown in detail 2 to desired tension to balance your screen size and weight. Push or pull from top or bottom of screen to adjust tilt as shown in figure 4.1.
