JAZZY
Elite 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jazzy Elite 6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pride Jazzy Elite 6

Summary of Contents for Pride Jazzy Elite 6

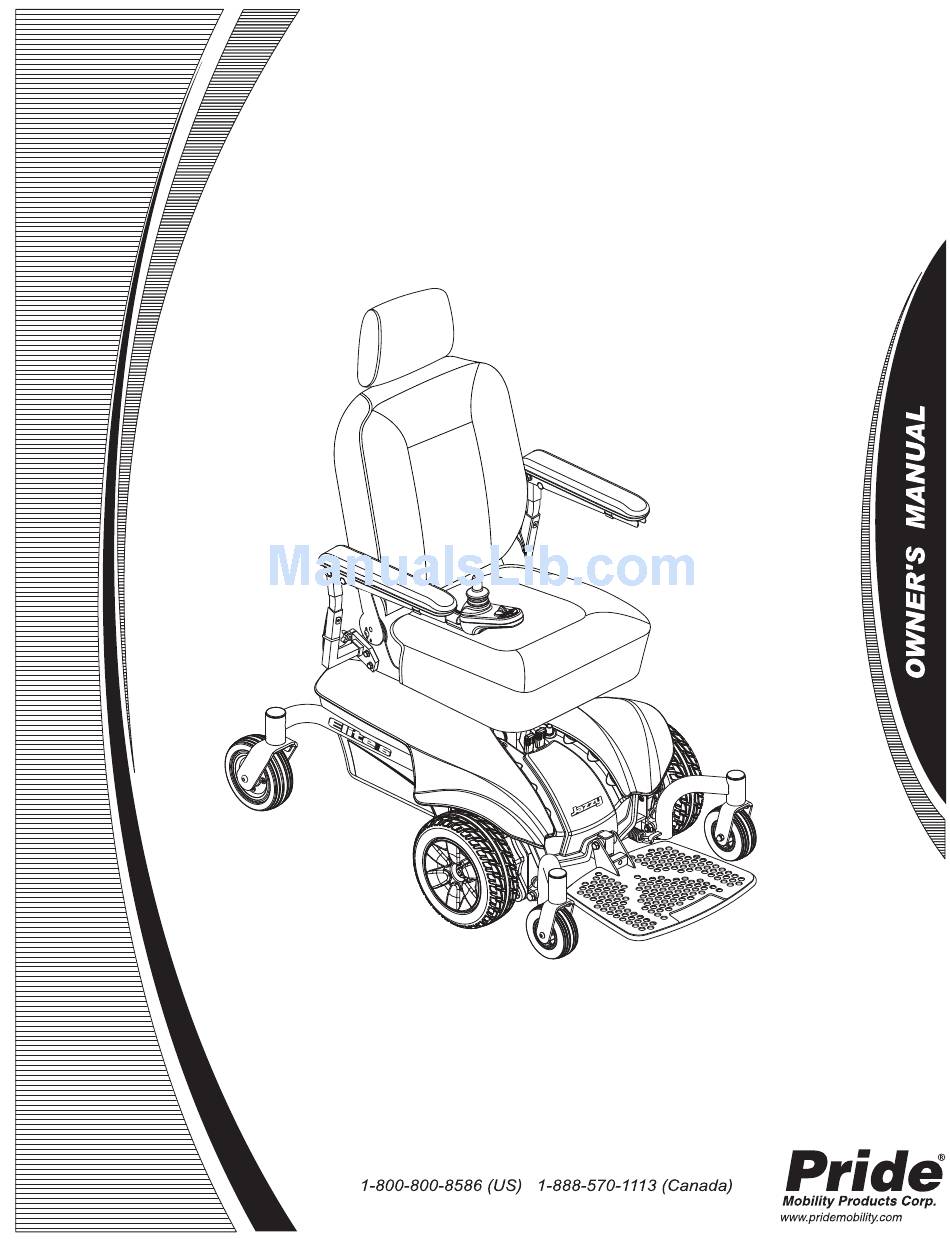

  • Page 1 JAZZY Elite 6...
  • Page 2 On the product, this icon is represented as a black symbol with a red circle and red slash. Intended Use The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated position that have the capability of operating a powered wheelchair. Quick Reference Information...

  • Page 3: Table Of Contents

    C O N T E N T S INTRODUCTION ..........................4 SAFETY ..............................5 III. YOUR POWER CHAIR ........................17 ASSEMBLY ............................21 COMFORT ADJUSTMENTS ......................22 BATTERIES AND CHARGING ....................28 VII. CARE AND MAINTENANCE ....................... 32 Jazzy Elite 6 www.pridemobility.com...

  • Page 4: Introduction

    Pride to enhance or preserve the safe use of this product.
  • Page 5 Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain and store in a clean and dry condition. Do not connect an extension cord to the AC/DC converter or the battery charger. Jazzy Elite 6 www.pridemobility.com...
  • Page 6 EMI/RFI—This product has been tested and passed at an immunity level of 20 V/m. Explosive conditions exist! Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions. Keep tools and other metal objects away from battery terminals. Contact with tools can cause electrical shock. www.pridemobility.com Jazzy Elite 6...
  • Page 7 Always replace both batteries at the same time. Pinch/Crush point. Battery charger for indoor use only. Disposal and recycling—Contact your authorized Pride Provider for information on proper disposal and recycling of your product and its packaging. Jazzy Elite 6...
  • Page 8 Do not place power chair in freewheel mode on a decline. Do not place power chair in freewheel mode on an incline. Corrosive chemicals contained in battery. Class II Equipment. Manufactured in Power chair information label www.pridemobility.com Jazzy Elite 6...

  • Page 9: General Guidelines

    Pride products. Pre-Ride Safety Check Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check before each use to make sure your power chair operates smoothly and safely.

  • Page 10: Your Power Chair

    MANDATORY! Stay within the specified weight capacity of your power chair. Exceeding the weight capacity voids your warranty. Pride will not be held responsible for injuries and/or property damage resulting from failure to observe weight limitations.
  • Page 11 Doing so could cause instability in your power chair. Pride recommends that the maximum slope of an incline you attempt to safely ascend or descend on your power chair does not exceed 6° (10.5%). See figure 1.
  • Page 12 Your power chair is designed to provide optimum stability under normal driving conditions—dry, level surfaces composed of concrete, blacktop, or asphalt. However, Pride recognizes that there will be times when you will encounter other surface types. For this reason, your power chair is designed to perform admirably on packed soil, grass, and gravel.

  • Page 13: Stairs And Escalators

    Motor Vehicle Transport Pride recommends that you do not remain seated in your power chair while traveling in a motor vehicle. The power chair should be stowed in the trunk of a car or in the back of a truck or van with batteries removed and/or properly secured.

  • Page 14: Positioning Belts

    Pride recommends that the power chair user determine his/her personal limitations and practice bending and reaching in the presence of a qualified healthcare professional.
  • Page 15 Always have an attendant or healthcare professional present while learning to prop- erly transfer yourself. To eliminate the possibility of injury, Pride recom- mends that you or a trained attendant perform the fol- lowing tasks before attempting a transfer: Turn off the power to the controller.
  • Page 16 NOTE: For further information on EMI/RFI, contact your authorized Pride Provider. If unintended motion or brake release occurs, turn your power chair off as soon as it is safe to do so. Contact your authorized Pride Provider to report the incident.

  • Page 17: Assembly

    THE JAZZY ELITE 6 POWER CHAIR The Jazzy Elite 6 Power Chair has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typically, the seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/brake assemblies, two drive wheels, four caster wheels, two batteries, and wiring harnesses.
  • Page 18 I I I . Y O U R P O W E R C H A I R SEAT POST MAIN SHROUD CONTROLLER HARNESS CASTER WHEEL CASTER FRONT COVER WHEELS Figure 6. The Jazzy Elite 6 Power Base www.pridemobility.com Jazzy Elite 6...
  • Page 19 Next, push in the circuit breaker button, turn on the controller, and continue normal operation. If the main circuit breaker continues to trip repeatedly, contact your authorized Pride Provider. Power Module: Provides connection between the controller and the motors and batteries.
  • Page 20 WARNING! Do not use the freewheel lever handles as tie-down points to secure this product. FREEWHEEL LEVERS FREEWHEEL LEVERS Figure 8. Drive Mode (Drive Engaged) Figure 9. Freewheel Mode (Drive Disengaged) www.pridemobility.com Jazzy Elite 6...

  • Page 21: Initial Assembly

    Nylon insert lock nuts should not be reused as it may cause damage to the nylon insert, resulting in a less secure fit. Replacement nylon insert lock nuts are available at local hardware stores or by contacting your authorized Pride Provider. Seat Installation...

  • Page 22: Comfort Adjustments

    WARNING! The center of gravity of your power chair was factory set to a position that meets the needs of the demographic majority of users. Your authorized Pride Provider has evaluated your power chair and made any necessary adjustments to suit your specific requirements. Do not change your seating configuration without first contacting Pride Mobility Products or your authorized Pride Provider.
  • Page 23 WARNING! Changing the position of the seat can cause instability. Do not change your seating configuration without first contacting Pride Mobility Products or your authorized Pride SEAT PLATE Provider. WARNING! After any adjustments,...

  • Page 24: Armrest Width Adjustment

    Armrest Height Adjustment To change the armrest height: 1. Loosen the setscrew on the armrest. See figure 14 or 15. 2. Raise or lower the armrest to the desired height. 3. Tighten the setscrew to secure the armrest. www.pridemobility.com Jazzy Elite 6...

  • Page 25: Controller Position

    Figure 17. Foot Platform Angle Adjustment 2. Move the foot platform to the desired height. 3. Reinstall the hardware that secures the foot platform to the foot platform bracket and tighten. Jazzy Elite 6 www.pridemobility.com...
  • Page 26 1. Remove the two adjustment screws from the side of each leg rest extension. 2. Slide the leg rest up or down to the desired length. 3. Reinstall the two adjustment screws. Figure 19. Elevating Leg Rests www.pridemobility.com Jazzy Elite 6...
  • Page 27 MANDATORY! Inspect the positioning belt for loose or damaged parts before each use of the power chair. If you discover problem, contact your authorized Pride Provider maintenance and repair. Jazzy Elite 6 www.pridemobility.com...

  • Page 28: Batteries And Charging

    PROHIBITED! Do not allow unsupervised children to play near the power chair while the batteries are charging. Pride recommends that you do not charge the batteries while the power chair is occupied.
  • Page 29 We do not recommend using other types of chargers (e.g., an automotive battery charger). NOTE: Your power chair’s charger will not operate after the batteries have been discharged to nearly zero voltage. If this happens, contact your authorized Pride Provider for assistance. How often must I charge the batteries? Many factors come into play when deciding how often to charge the batteries.
  • Page 30 More importantly, it will take a few “charging cycles” (a partial drain—then a full recharge) to establish the critical chemical balance that is essential to the battery’s peak performance and long life. It will be well worth it to take the time to break in your battery properly. www.pridemobility.com Jazzy Elite 6...
  • Page 31 What about shipping? If you wish to use a freight company to ship your power chair to your final destination, repack your power chair in the original shipping container and ship the batteries in separate boxes. Jazzy Elite 6 www.pridemobility.com...

  • Page 32: Care And Maintenance

    V I I . C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your Jazzy Elite 6 is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from an authorized service represen- tative.

  • Page 33: Daily Checks

    Check the rubber boot around the base of the joystick for damage. Visually inspect the boot. Do not handle or try to repair it. See your authorized Pride Provider if there is a problem.

  • Page 34: Cleaning And Disinfection

    V I I . C A R E A N D M A I N T E N A N C E Yearly Checks Take your power chair to your authorized Pride Provider for yearly maintenance, especially if you use your power chair on a daily basis. This helps ensure that your power chair is functioning properly and helps prevent future complications.

  • Page 35: Battery Replacement

    Figure 22. Jazzy Elite 6 Drive Wheel Removal 8. Reinstall the drive wheel nut and washer onto the axle and tighten. See figure 22. WARNING! Make sure both the nut and the washer are reinstalled and tightened properly.
  • Page 36 V I I . C A R E A N D M A I N T E N A N C E CORRECT CONNECTION MAIN SHROUD INCORRECT REAR CONNECTION BATTERY FRONT BATTERY FRONT COVER Figure 23. Battery Installation (Seat Removed for Clarity) www.pridemobility.com Jazzy Elite 6...
  • Page 37 When to Contact Your Authorized Pride Provider for Service The following symptoms could indicate a serious problem with your power chair. If necessary, contact your authorized Pride Provider. When calling, have the model number, serial number, nature of the problem, and the error code if available.

  • Page 38: Corrective Maintenance

    Disconnect both batteries before load testing and follow the directions that come with the load tester. If either one of the batteries fails the load test, replace both of them. If your power chair still does not power up, contact your authorized Pride Provider. www.pridemobility.com...
  • Page 40 Quality Control – Jazzy Elite 6 Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Date Inspected Inspector *INFMANU4242* Product Serial # Jazzy Elite 6 www.pridemobility.com...
