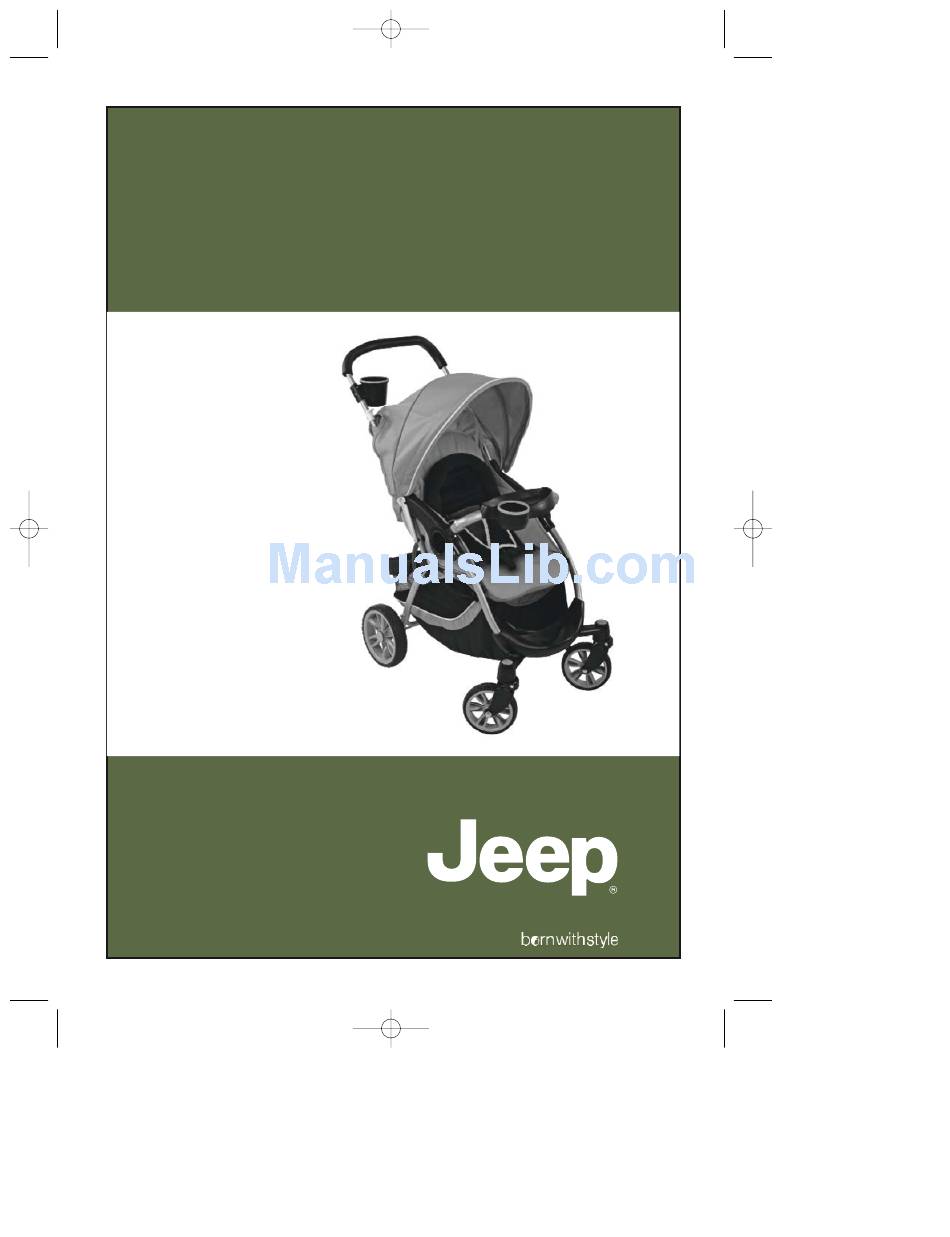

- Page 1 S67-R1.qxd 1/17/2006 11:30 AM Page 1 Jeep Baby Traveller ® 4-Wheel Stroller Instructions...
- Page 2 WARNING Avoid serious injury from falling or sliding out. Always use Restraint System. Your child’s safety depends on you. Proper stroller use cannot be assured unless you follow these instructions. DO NOT USE STROLLER UNTIL YOU READ AND UNDERSTAND THESE INSTRUCTIONS.
-
Page 4: Parts List
S67-R1.qxd 1/17/2006 11:30 AM Page 4 Parts List Front Tray C up Holder Stroller Frame Front Wheel (select models) Assembly (2) Rear Wheels (2) Rear Axle Assembly Washers (2) C otter Pins (2) Hub C aps (2) How to Assemble Your Stroller To Open Stroller Remove any cardboard inserts or plastic ties used to protect the product during shipment. - Page 5 S67-R1.qxd 1/17/2006 11:30 AM Page 5 To Assemble Rear Wheels Turn stroller over as shown. Position rear axle assembly as shown, with red 1 & 2 brake levers pointing towards stroller handle. Push rear axle assembly onto rear leg tubes at the same time.
- Page 6 S67-R1.qxd 1/17/2006 11:30 AM Page 6 To Assemble Front Wheels Place stroller back on handle bars. Locate “ ” and “ ” underneath front wheel assembly. Align assembly with front axle and snap into place as shown. Right Left Repeat for other wheel. Tug rmly on each wheel assembly to be sure wheels are securely in place.
- Page 7 S67-R1.qxd 1/17/2006 11:30 AM Page 7 To Attach Cup Holder WARNING Do not place more than 1 lb (0.45 kg) in this cup holder to avoid tipping. Do not place hot liquids in this cup holder. Hot liquids can burn your child.
- Page 8 S67-R1.qxd 1/17/2006 11:30 AM Page 8 To Secure Child In Stroller WARNING Avoid serious injury from falling or sliding out. Always use restraint system. Lock foot brake to keep stroller from rolling. Place child in stroller. Hook shoulder straps to waist belt. To fasten restraint system buckles - push together.
- Page 9 S67-R1.qxd 1/17/2006 11:30 AM Page 9 To Adjust Shoulder Strap Height Lower Higher N O TE: For a secure t, straps should be at or below the child's shoulder. Adjust straps to higher position as your child grows. To readjust shoulder restraints, unbuckle back of seat and push buckle back through slot.
-
Page 10: To Fold Stroller
S67-R1.qxd 1/17/2006 11:30 AM Page 10 To Recline Seat WARNING To avoid nger entrapment or pinching, do not adjust the seat back while child is in the stroller. To avoid head entrapment, always fasten the canopy to the seat back when using the stroller in the reclined position. -
Page 11: Warranty
1/17/2006 11:30 AM Page 11 Care and Maintenance There are many ways to look after and protect your Jeep ® stroller. The most important is to clean up any spills or food, before it dries on the fabric. As the covers are not designed to be easily taken off for washing,... -
Page 12: Contact Details
This product meets and exceeds Australian Standard AS/NZS 2088:2000 Personal Record Card Born With Style recommends that you keep a record of important information about your Jeep stroller. Please complete the ® information in the space provided. Model Number:...
