Kenwood DVF-3200 Instruction Manual

Dvd/vcd/cd player.
Hide thumbs

Advertisement

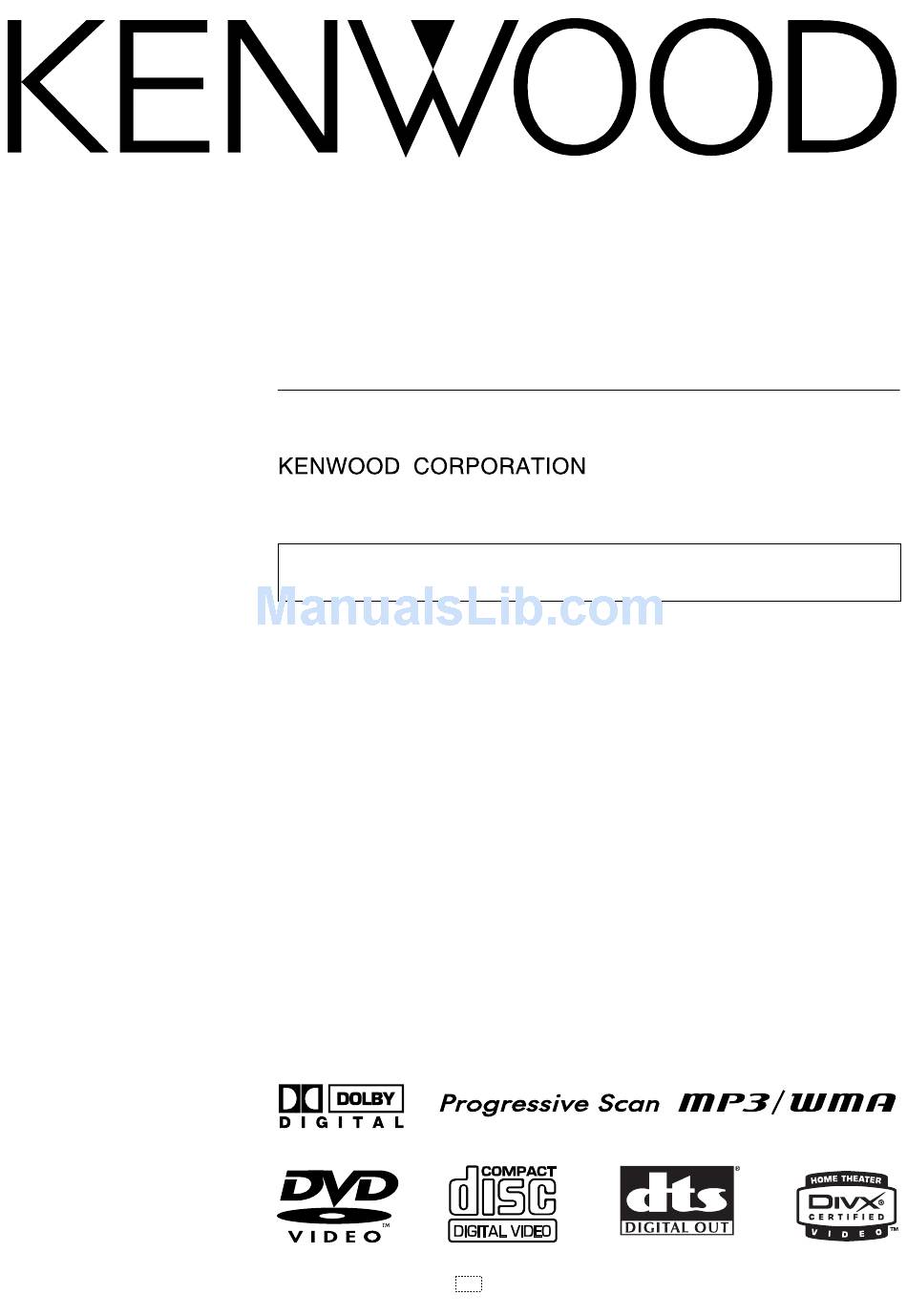

DVD/VCD/CD PLAYER
DVF-3200
DVF-3250
INSTRUCTION MANUAL
This instruction manual is for some models. Model availability and features
(functions) may differ depending on the country and sales area.
B60-5547-08 00 (K/E/X)
OC
04/10

Advertisement

Table of Contents

   Summary of Contents for Kenwood DVF-3200

  • Page 1 DVD/VCD/CD PLAYER DVF-3200 DVF-3250 INSTRUCTION MANUAL This instruction manual is for some models. Model availability and features (functions) may differ depending on the country and sales area. B60-5547-08 00 (K/E/X) 04/10...
  • Page 2: Introduction

    Caution : Read this page carefully to ensure safe operation. 240 V Caution : Read this page carefully to ensure safe operation. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVIC- ING TO QUALIFIED SERVICE PERSONNEL. DVF-3200/DVF-3250 (EN/K,E,X)
  • Page 3: Screen Saver

    If any accessories are missing, or if the unit is damaged or fails to operate, notify your dealer immediately. If the unit was shipped to you directly, notify your shipper immediately. Kenwood recommends that you retain the original carton and packing materials in case you need to move or ship the unit in the future.
  • Page 4: Table Of Contents

    To rotate picture ... 31 To hide the menu bar ... 31 Slide show ... 31 To listen to music watching picture ... 31 In case of difficulty ... 32 Specifications ... 35 DVF-3200/DVF-3250 (EN/K,E,X) carefully to ensure safe operation. Operations Knowledge...
  • Page 5: Discs Information

    CDV discs (Only the audio part can be reproduced.) CD-G/CD-EG/CD-EXTRA discs (Only the audio can be reproduced.) Photo CD discs (Never attempt to play them.) Description DVF-3200/DVF-3250 (EN/K,E,X) VCD (SVCD*) 12cm One side only One side only One side only Max.
  • Page 6: Region Codes

    Please be sure to read the instructions provided with each disc. When an inhibition icon is displayed on the TV screen connected to the player, it indicates that the disc being played is under the restriction as described above. DVF-3200/DVF-3250 (EN/K,E,X) Inhibition icon...
  • Page 7: Playable Files With This Unit

    : 3072 x 2048 (Max.) 24bit True color ® ® ® ® 5, DivX 4, DivX 3, and DivX VOD video content (in compliance with DVF-3200/DVF-3250 (EN/K,E,X) (Audio) Media CD-ROM Mpeg1 Layer1 & 2 CD-R Mpeg1 Layer1 & 2 CD-RW WAV, MP3, WMA DVD-ROM...
  • Page 8 ÷ In case of a multisession disc, some time may be required until playback begins. ÷ There are cases where playback is not possible when DivX/MP3/WMA/JPEG files (CD-ROM) and music CD infomation (CD- DA) are saved on the same media. Example for a hierarchical structure Playable files with this unit DVF-3200/DVF-3250 (EN/K,E,X)
  • Page 9: Video Formats

    2 MODE 2 :Suitable for playing film based content or video based material recorded by the progressive scan method. 3 MODE 3 : Suitable for playing video based content with comparatively little motion. DVF-3200/DVF-3250 (EN/K,E,X) Major Countries & Areas Japan, Taiwan, Korea, USA, Canada, NTSC Mexico, Philippines, Chile, etc.
  • Page 10: Important Items

    Be specially cautious against condensation in the following circum- stances: When this unit is carried from one place to another across a large difference in temperature, when the humidity in the room where this unit is installed increases, etc. DVF-3200/DVF-3250 (EN/K,E,X)
  • Page 11: System Connections

    Connecting to a TV with SCART input terminal (For Europe) INPUT SCART SCART cable (Commercially available) Make sure the DVD player is connected directly to the TV and not to a VCR, otherwise the DVD image could be distorted by the Note Note copy protection system.
  • Page 12 Amplifier equipped with 2-channel analog stereo or Dolby Pro Logic II / Pro Logic: Connect the left and right AUDIO OUT jacks on the DVD player to the audio left and right IN jacks on your amplifier, receiver, or stereo system, using the audio cables.
  • Page 13: Controls And Indicators

    Elapsed time of the track (or file) being played ÷ At the time of audio CD stop mode: Total time display of the disc 3 (Play) key $%™ ™ 7 (Stop) key ™ 8 (Pause) key £ DVF-3200/DVF-3250 (EN/K,E,X) ™ £ %£...
  • Page 14: Operation Of Remote Control Unit

    AUDIO key SUBTITLE key REPEAT key A-B (A-B repeat) key ¢ 2 Insert batteries. ÷ Insert two R03 (“AAA”-size) batteries following the polarity indications. DVF-3200/DVF-3250 (EN/K,E,X) MARKER key ™ (MARKER) SEARCH key (0)OPEN/CLOSE key ™ MENU key ON SCREEN key 9¡º...
  • Page 15: Set Up Functions

    4 Use the Cursor up/down (5/∞) keys on the remote to select the desired setting, then press ENTER key to confirm your selection. Some items require additional steps. 5 Press SETUP key or PLAY key to exit the Setup menu. Set Up functions DVF-3200/DVF-3250 (EN/K,E,X)
  • Page 16: Language

    Set the player's TV Output Select options according to the TV connection type. RGB: When your TV is connected with the SCART jack. Y Cb Cr: When your TV is connected with the COMPO- NENT VIDEO jacks on the DVD player. Set Up functions DVF-3200/DVF-3250 (EN/K,E,X)
  • Page 17: Lock (parental Control)

    Vocal Set to on only when a multi-channel karaoke DVD is playing. The karaoke channels on the disc mix into nor- mal stereo sound. DVF-3200/DVF-3250 (EN/K,E,X) LOCK (Parental Control) Rating Some movies contain scenes that may not be suitable for children to view. Many of these discs contain paren- tal control information that applies to the complete disc or to certain scenes on the disc.
  • Page 18: Others

    To select the black level of playback pictures. Set your preference and monitor’s ability. On: Expanded grey scale. (0 IRE cut off) Off: Standard grey scale. (7.5 IRE cut off) The B.L.E. function works NTSC system only. Note Note Set Up functions DVF-3200/DVF-3250 (EN/K,E,X)
  • Page 19: Hierarchical Structure Of Vcd Menus (p.b.c. Function)

    Rental Expired (Done) Returning Each time the RETURN key is pressed, return is made to the next higher menu. Set Up functions DVF-3200/DVF-3250 (EN/K,E,X) • Display the authorization error. Authorization Error This player is not authorized to play this video. (Done)
  • Page 20: Dvd Menu Language Code List

    Oman Israel Pakistan Italy Panama Jamaica Paraguay Japan Philippines Kenya Poland Kuwait Portugal Libya Romania Luxembourg Russian Federation Set Up functions DVF-3200/DVF-3250 (EN/K,E,X) Language Code 7678 Singhalese 7684 Slovak 7775 Slovenian 7771 Somali 7783 Spanish 7776 Sudanese 7784 Swahili 7773...
  • Page 21: Basic Playback Of Disc

    If you don't want to use the Last Scene Memory, press the STOP key during stop. This player does not memorize the scene of a disc if you switch off the player before commencing to play the disc. Note Note DVF-3200/DVF-3250 (EN/K,E,X,) On-Screen Display during playing DivX Track Number Time search...
  • Page 22: Basic Play

    ÷ If you are in a file list on the MP3/WMA menu and want Notas Notas Basic playback of disc DVF-3200/DVF-3250 (EN/K,E,X,) Label side Example of JPEG menu Preview window to return to the folder list, use Cursor up/down (5/∞) keys on the remote to highlight and press ENTER key.
  • Page 23: Disc Playback Features

    2 FF 4 X (¢ key) or FR 4 X (4 key) 3 FF 8 X (¢ key) or FR 8 X (4key) ÷ Press the 3 key at any time to resume normal playback. Basic playback of disc DVF-3200/DVF-3250 (EN/K,E,X,) 4,¢...
  • Page 24: Repeat Play

    "A" and the end "B" of the segment you want to replay. Repeat icon Basic playback of disc DVF-3200/DVF-3250 (EN/K,E,X,) Press the A-B key on the remote when you want to choose a scene (sound) as the beginning point.
  • Page 25: Program Play

    The complete program for the disc is deleted. ÷ The programs are also cleared when the disc is re- moved. P.B.C. on mode of VCD, the Progam play function Note Note does not work. Basic playback of disc DVF-3200/DVF-3250 (EN/K,E,X,)
  • Page 26: Movie Disc Playback Features

    Notes Notes tion may not work. The Chapter feature won't work if the disc isn't for- Note Note matted with separate chapters. DVF-3200/DVF-3250 (EN/K,E,X,) ON SCREEN Numeric keys key) or SR 1/16 ( key) key) or SR 1/8 ( key)
  • Page 27: Select Audio Language

    Notes 2. When you chose an audio language by the AUDIO key, you only override the audio language setting in the DVD Player's main menu (in the Language Pref- erences menu within Setup menu) temporarily. Select the Audio channel You can choose to play back only the right or the left channel of audio recorded on the disc, or you can select stereo playback.
  • Page 28: Select Camera Angle

    ÷ When playing a DVD, the Random mode does not work. ÷ P.B.C. on mode of VCD, the RANDOM mode does not work. Movie disc playback features DVF-3200/DVF-3250 (EN/K,E,X,) random play would be on and off. selects another track and resumes random playback.
  • Page 29: Zoom Function

    "3D SUR". ÷ To turn off the 3D Surround effect, select "Normal". Movie disc playback features DVF-3200/DVF-3250 (EN/K,E,X,) Time Search To start playing at any chosen time on the disc. During playback, press the ON SCREEN key on the remote.
  • Page 30: Music Disc Playback Features

    To repeat random play (repeat play ¢ ) During random playback, press the REPEAT key on the remote. Sound icon Each press the key switches the mode. Note Note DVF-3200/DVF-3250 (EN/K,E,X,) Each press the key switches the mode. Title Artist Comment the display.
  • Page 31: Photo Files Playback Features (jpeg Files Only)

    Press Cursor right (3) key on the remote to se- lect the ÷ Playback starts. The playback will continue until 7 (STOP) key is pressed. DVF-3200/DVF-3250 (EN/K,E,X,) >>> : Fast >> : Normal >...
  • Page 32: In Case Of Difficulty

    ÷ You are attempting to switch the angle in a DVD section where more than one angle is not recorded. DVF-3200/DVF-3250 (EN/K,E,X) Remedy ÷ Load a disc and press the 3 key. ÷ Turn the disc over and properly place it on the disc tray.
  • Page 33: Remote Control Unit

    Cause ÷ Playback is restricted intentionally by the software producer. In case of difficulty DVF-3200/DVF-3250 (EN/K,E,X) Remedy ÷ Check the viewing restriction level (PA- RENTAL) setting. ÷ Set the initial setup to the factory setup with the following procedure.
  • Page 34 OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525P AND 625P DVD PLAYER, PLEASE CONTACT OUR CUS- TOMER SERVICE CENTER. DVF-3200/DVF-3250 (EN/K,E,X) Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
  • Page 35: Specifications

    Wow and flutter ... Below measurable limit Analog output level/impedance ... 2 V / 550 Ω Digital output level/impedance COAXIAL ... 0.5 Vp-p / 75 Ω KENWOOD follows a policy of continuous advancements in development. For this reason specifications may Notes Notes be changed without notice.
  • Page 36 For your records Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your dealer for information or service on this product.
