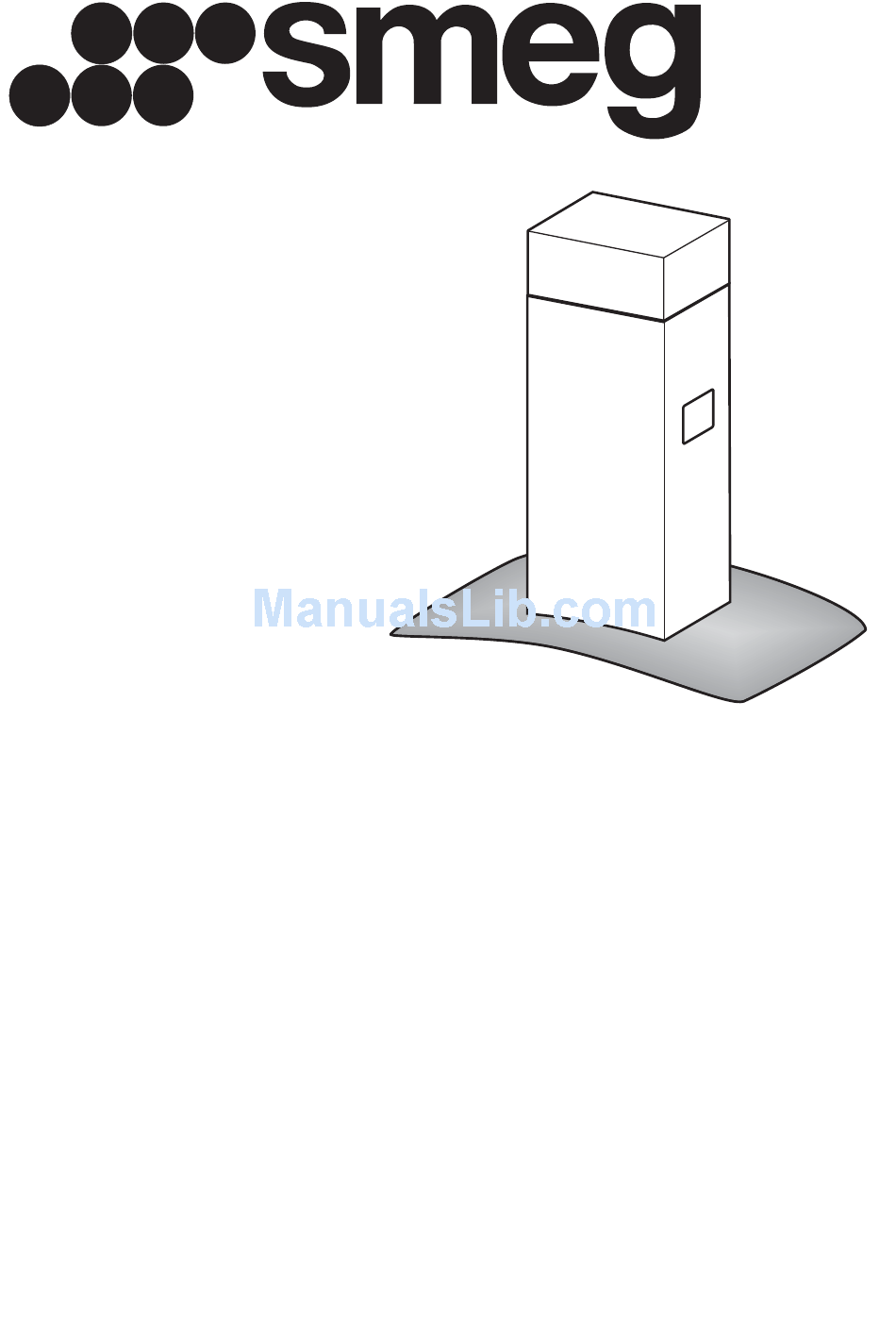

- Page 1 Instructions Manual Manual de instrucciones Manual de Instruções KIV90XT-1...
-
Page 2: Table Of Contents
INDEX RECOMMENDATIONS AND SUGGESTIONS ........................3 CHARACTERISTICS ................................4 INSTALLATION..................................6 USE ...................................... 10 MAINTENANCE ................................... 11 ÍNDICE CONSEJOS Y SUGERENCIAS............................13 CARACTERÍSTICAS ................................14 INSTALACIÓN ..................................16 USO...................................... 20 MANTENIMIENTO ................................21 ÍNDICE CONSELHOS E SUGESTÕES............................23 CARACTERÍSTICAS ................................24 INSTALAÇÃO.................................. -
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or im- proper installation. -
Page 4: Characteristics
CHARACTERISTICS Dimensions Min. Min. 500mm 650mm... - Page 5 Components Ref. Q.ty Product Components Hood Canopy complete with: Controls, Lights, Filters Telescopic chimney made up of: Upper chimney Lower chimney 7.1a Telescopic frame complete with Suction fan, made up 7.1a Upper frame 7.1b Lower frame 14.1 Rh Air Outlet Directional Grille Lh Air Outlet Directional Grille 7.1b Reduction flange ø...
-
Page 6: Installation
INSTALLATION Drilling the Ceiling/shelf and fixing the frame DRILLING THE CEILING/SHELF • Use a plumb line to mark the centre of the hob on the ceiling/support shelf. • Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob. - Page 7 Fixing the frame • Loosen the two screws fastening the lower chimney and re- move this from the lower frame. • Loosen the two screws fastening the upper chimney and re- move this from the upper frame. If you wish to adjust the height of the frame, proceed as follows: •...
- Page 8 RECIRCULATION VERSION AIR OUTLET • Assemble the two halves of the hood body extension piece 14 (if necessary). 14.1 • Push fit the assembled hood body extension piece 14 onto the air outlet (if necessary). • Push fit connection 15 onto the hood body extension piece 14 or directly onto the hood body.
- Page 9 ELECTRICAL CONNECTION • Connect the Hood to the Mains power sup- ply, inserting a two-pole Switch with a con- tact aperture of at least 3 mm. • Remove the Metal grease filters (see par. on “Maintenance”) and make sure that the power supply Cable is properly inserted in the Suction fan socket.
-
Page 10: Use
Control panel Function Turns the lighting system on and off. Press and hold for approx. 2 seconds to turn the lighting system on and off at reduced intensity. Turn the suction motor on and off at speed one. Press and hold the button for approximately 2 seconds, After 100 working hours all the with all the loads turned off (Motor and Lights), to reset LEDs (L1-L2-L3-L4) will light up... -
Page 11: Maintenance
MAINTENANCE Metal grease filters These can also be washed in the dishwasher, and need to be cleaned when all the command LEDs light up in a continuous manner or at least once every 2 months use, or more frequently if use is particularly intensive. - Page 12 Activated Charcoal Filter (Recirculation Version) • This cannot be washed or regenerated, and must be changed when all the command LEDs start to flash, or at least once every 4 months. Activating the alarm signal • In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.
