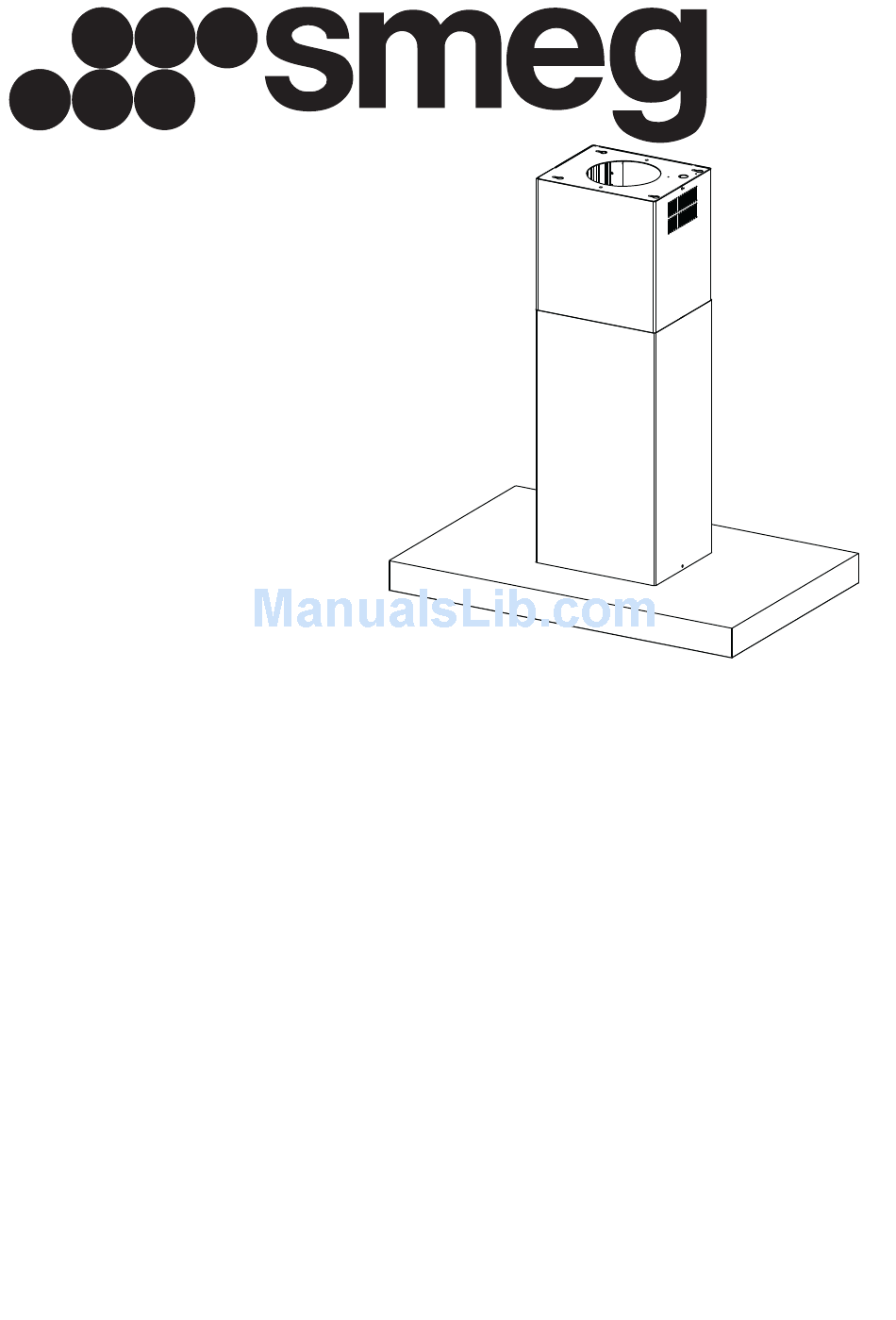

- Page 1 Libretto di Istruzioni Instructions Manual Manuel d’Instructions Bedienungsanleitung Gebruiksaanwijzing Manual de instrucciones Manual de Instruções Руководство по эксплуатации Bruksanvisning Brugsvejledning KI90X...
- Page 2 INDICE CONSIGLI E SUGGERIMENTI.............................. 4 CARATTERISTICHE................................5 INSTALLAZIONE ................................... 7 USO...................................... 11 MANUTENZIONE ................................12 INDEX RECOMMENDATIONS AND SUGGESTIONS ........................13 CHARACTERISTICS ................................14 INSTALLATION..................................16 USE ...................................... 20 MAINTENANCE ................................... 21 SOMMAIRE CONSEILS ET SUGGESTIONS............................22 CARACTERISTIQUES................................. 23 INSTALLATION..................................25 UTILISATION ..................................
- Page 3 ÍNDICE CONSELHOS E SUGESTÕES............................58 CARACTERÍSTICAS ................................59 INSTALAÇÃO..................................61 UTILIZAÇÃO ..................................65 MANUTENÇÃO..................................66 УКАЗАТЕЛЬ СОВЕТЫ И РЕКОМЕНДАЦИИ ............................67 ХАРАКТЕРИСТИКИ................................68 УСТАНОВКА..................................70 ЭКСПЛУАТАЦИЯ................................74 УХОД....................................75 INNEHÅLL REKOMMENDATIONER OCH TIPS ........................... 76 EGENSKAPER..................................77 INSTALLATION..................................79 ANVÄNDING..................................83 UNDERHÅLL..................................
-
Page 4: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or im- proper installation. - Page 5 CHARACTERISTICS Components Ref. Q.ty Product Components Hood Canopy complete with: Controls, Light, Filters Telescopic chimney, made up of: Upper chimney Lower chimney Telescopic panel, made up of: Upper panel Lower panel Reduction flange ø 150-120 mm Dumper ø 150 14.1 Air Outlet Connector Extension Air Outlet Connector Novastick tape...
- Page 6 Dimensions 1 15...
-
Page 7: Installation
INSTALLATION Drilling the Ceiling/shelf and fixing the frame DRILLING THE CEILING/SHELF • Use a plumb line to mark the centre of the hob on the ceiling/support shelf. • Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob. - Page 8 Fixing the Frame/Chimney Should it be necessary to adjust the height of the frame, proceed as follows: • Unfasten the metric screws joining the two opposite parts that can be seen from the front; • Adjust the height of the frame as required, then replace the screws removed as above, making sure that you insert 2 of them close to the panel lock;...
- Page 9 Air outlet – Recirculation Version • Insert the Connector extensions 14.1 into the side of the Con- nector 15. • Insert the Connector 15 into the Support bracket 7.3 and fix it with the screws. • Fasten the Support bracket 7.3, fixing it to the upper part with the Screws.
-
Page 10: Electrical Connection
Fitting the Panel and Fixing the Hood Canopy Before fixing the Hood Canopy to the Frame: • Remove the Grease filters from the Hood Canopy; • Remove any Activated charcoal filters. • Working from below, fix the Hood canopy to the Frame provided, using the 4 screws 12f (M6 x 10) provided. -
Page 11: Control Panel
Control panel BUTTON FUNCTIONS T1 Speed Turns the Motor on at Speed one. Turns the Motor off. T2 Speed Turns the Motor on at Speed two. T3 Speed Fixed When pressed briefly, turns the Motor on at Speed three. Flashing Pressed for 2 Seconds. -
Page 12: Maintenance
MAINTENANCE Grease filters CLEANING METAL SELF- SUPPORTING GREASE FILTERS • The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. • Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
