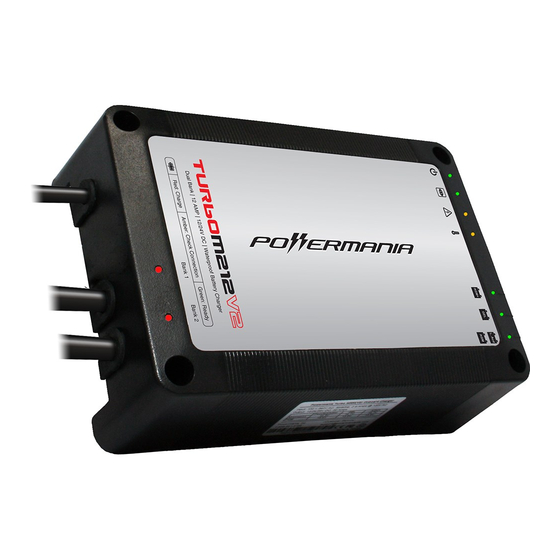

Turbo MV2 series battery charger
Operation Manual
Model
Turbo M212V2
Turbo M220V2
Turbo M320V2
Turbo M230V2
Turbo M330V2
Turbo M430V2
Turbo M240V2
Turbo M340V2
Turbo M440V2
# 12V Output
2
2
3
2
3
4
2
3
4
R
Max. Output
12 Amps
20 Amps
20 Amps
30 Amps
30 Amps
30 Amps
40 Amps
40 Amps
40 Amps
Battery System (DC)
12V
24V
36V
48V
Advertisement
Table of Contents
Related Manuals for Powermania Turbo M212V2
Summary of Contents for Powermania Turbo M212V2
- Page 1 Turbo MV2 series battery charger Operation Manual Battery System (DC) Model # 12V Output Max. Output Turbo M212V2 12 Amps Turbo M220V2 20 Amps Turbo M320V2 20 Amps Turbo M230V2 30 Amps Turbo M330V2 30 Amps Turbo M430V2 30 Amps...
- Page 2 Important Notice This manual contains important safety, operation, and installation instructions. Please read all instructions before using your Powermania Turbo MV2 onboard battery charger. WARNING: CHECK BATTERY TYPE This charger is designed to charge only Lead Acid type 12V DC batteries; Flooded Lead-Acid, AGM (Absorbent Glass Mat), and GEL (Gelled Electrolyte Lead-Acid).
-
Page 3: Table Of Contents
Contents Introduction ........................3 Personal safety precautions ...................3 Precautions prior to charge battery ................3 Box contents ........................4 Specifications .........................5 Feature Highlights ......................8 Installing the charger ....................10 Select battery type ....................... 11 Connect the DC cables ....................12 Operating the charger ....................17 LED indicator descriptions ................... -
Page 4: Introduction
Introduction INTRODUCTION Thank you and congratulations on your new purchase of the Powermania Turbo MV2 series onboard battery charger. This charger is waterproof, corrosion-resistant and shock-resistant— ideal for recharging and maintaining 12V DC batteries in various marine applications and other harsh environments. -
Page 5: Box Contents
Safety Precautions grounded negative terminal from the battery first. • Be sure to have enough open space around the battery for good ventilation during charge. Gas fumes can be vented amd blown away by using a piece of cardboard or other non- metallic material as a fan. -
Page 6: Specifications
Specifications SPECIFICATIONS M212V2 M220V2 M320V2 M230V2 Manufacturer’s P/N 58201 58203 58204 58205 Max. Input 3.0 Amps 4.7 Amps 4.7 Amps 7.0 Amps Current (@120V AC) # 12V Output (Prewired) Maximum 12 Amps 20 Amps 20 Amps 30 Amps Output Output Voltage 12/24V DC 12/24V DC 12/24/36V DC... - Page 7 M330V2 M430V2 M240V2 M340V2 M440V2 58206 58207 58208 58209 58210 7.0 Amps 7.0 Amps 9.3 Amps 9.3 Amps 9.3 Amps 30 Amps 30 Amps 40 Amps 40 Amps 40 Amps 12/24/36/48V 12/24/36/48V 12/24/36V DC 12/24V DC 12/24/36V DC 13.5 lb. 14.0 lb.
- Page 8 Specification (All models) SPECIFICATIONS (All models) Nominal input voltage: 120/240V AC Nominal input frequency: 50/60Hz Nominal output voltage/bank: 12V DC Battery type setting: 1. Flooded (Lead-Acid) / AGM 2. GEL 3. AGM+ Max. Absorption time: 4 hours Output cable length: 6 feet / 182 cm Power cord length: 6 feet / 182 cm...
-
Page 9: Feature Highlights
Feature Highlights FEATURE HIGHLIGHT: Adaptive Loading USER Fully charges all connected batteries in BENEFIT: the shortest time. 10 % 50 % 50 % 90 % The Adaptive Loading feature adjusts the charger’s output level dynamically on each output bank. This allows more charging power to automatically go to the more depleted battery and less power goes to the battery that is closer to a full charge. - Page 10 Feature Highlights FEATURE HIGHLIGHT: 3-Stage Smart Charge USER Maximizes battery potential and pro- BENEFIT: longs battery life. Turbo MV2 charges a battery in three sequential stages: Bulk, Absorption, and Float. This method is proven to bring a battery to its fullest charge, as well as maintain a fully charged bat- tery’s from self discharge.
-
Page 11: Installing The Charger
Installation INSTALLING THE CHARGER The Powermania Turbo MV2 series charger is designed to be mounted onboard a vehicle or watercraft. The chart below shows the proper orientation of the mounting position. The top row LED lights line up horizontally at the top and the output cables at the bottom of the charger. -
Page 12: Select Battery Type
Select Battery Type SELECT BATTERY TYPE The Battery Selector’s tip point can be switched in three positions: Refer to the illustration below. From left to right, the first position (factory setting) is for charging Flooded Lead-Acid type and AGM type batteries. The middle position is for charging GEL (Gel Cell) type battery, and the right position (AGM+) is for charging high-performance AGM type battery (Odyssey and Optima brands AGM). -
Page 13: Connect The Dc Cables
TO PREVENT SPARKS. CONNECT THE DC CABLES The following pages demonstrate proper DC wiring configurations for Powermania Turbo MV2 series chargers. When making DC connections, make sure each set of output cables (one positive and one negative) is connected to the same battery set of terminals. The red wires are positive (shown as grey color on the diagrams) and the black ones are negative. - Page 14 DC wiring connections Connecting a dual output charger to one 12V battery Connect both sets of DC outputs to the same battery’s terminal. Connecting a 12V output to two 6V batteries linked in series If a 12V system is composed of two 6V batteries, connect the output’s postive terminal ring to battery #1’s positive terminal and the same...
- Page 15 DC wiring connections Connecting a dual output charger to two serial-connected 12V batteries (24V system) Connect one set of output to each 12V battery. The jumper can be left connected between the two batter- ies during charging. Connecting a dual output charger to two parallel-connected 12V batteries Connect one set of output to each 12V battery.
- Page 16 DC wiring connections Combining two chargers to a single bank Combine multiple Turbo MV2 chargers to form a more powerful charging system by connecting both chargers’ outputs to the same battery bank. Connecting a 12V output to parallel-linked batteries Two or more parallel-linked 12V bat- teries may be connected to a single output.
- Page 17 DC wiring connections Connecting a triple output charger to three 12V batteries The batteries could be indepen- dent, serial-connected or parallel- connected. Connecting a quad output charger to four 12V batteries The batteries could be independent, serial-connected, parallel-connect- ed, or mix-and-matched. www.powermaniausa.com...
-
Page 18: Operating The Charger
Operating instructions OPERATING THE CHARGER Install the charger and make appropriate DC wiring connections as per the wiring dia- grams. Choose an appropriate setting on the Battery Selector (page 11). Plug in AC power cord to properly grounded outlet. The Power indicator LED will display green, indicating the presence of AC power. The charger will go through a brief test cycle if all the DC outputs are properly connected to a 12V bank. -
Page 19: Troubleshooting
Troubleshooting ALWAYS DISCONNECT AC POWER CORD PRIOR DANGER: TO MAKING ANY DC WIRING CONNECTION CHANGE OR WHEN CHECKING FUSES. TROUBLESHOOTING Problem Possible Cause Solution Check AC input connection. Make sure AC No AC input. power is present. Power indicator is Check and correct battery wiring connection not on. -
Page 20: Fuse Replacement Instruction
Other Information FUSE REPLACEMENT INSTRUCTION • Make sure the charger’s AC power cord is unpluged, and all the DC outputs are discon- nected from batteries. • For cylinder style fuse holders used in 12 Amp and 20 Amp models, use a towel or clothe to enhance grip to pull open the fuse holder. -
Page 21: Maintaining The Charger
Damage caused by accidents, misuse, or alteration of the product including cutting or splicing AC/DC cables. You may contact Powermania directly for service or warranty inquiry. Please note that cus- tomer is responsible for paying the cost of shipping the defective product to Powermania. - Page 22 Memo www.powermaniausa.com...
- Page 25 RWV2-1404 Rev A...
