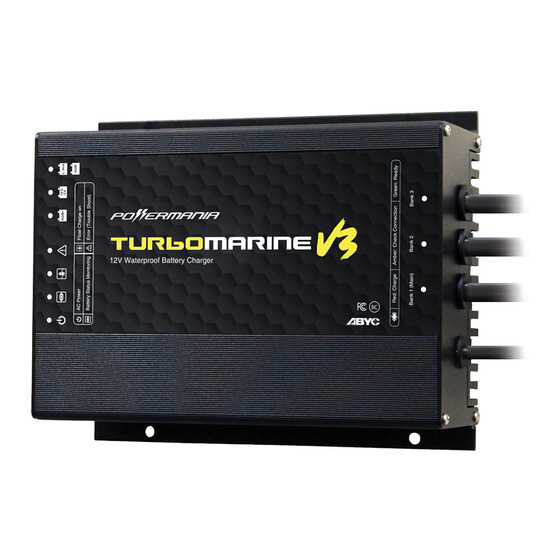

Turbo MV3 series battery charger
Operation Manual
Manufacturer's P/N
58301
58303
58304
58305
58306
58307
58308
58309
58310
R
Model
Turbo M212V3
Turbo M220V3
Turbo M320V3
Turbo M230V3
Turbo M330V3
Turbo M430V3
Turbo M240V3
Turbo M340V3
Turbo M440V3
# 12V Output
2
2
3
2
3
4
2
3
4
Total Output
12 Amps
20 Amps
20 Amps
30 Amps
30 Amps
30 Amps
40 Amps
40 Amps
40 Amps
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Powermania Turbo MV3 Series
Summary of Contents for Powermania Turbo MV3 Series
- Page 1 Turbo MV3 series battery charger Operation Manual Manufacturer’s P/N Model # 12V Output Total Output 58301 Turbo M212V3 12 Amps 58303 Turbo M220V3 20 Amps 58304 Turbo M320V3 20 Amps 58305 Turbo M230V3 30 Amps 58306 Turbo M330V3 30 Amps...
- Page 2 Important Notice This manual contains important safety, operation, and installation instructions. Please read all the instructions before using your Powermania Turbo MV3 onboard battery charger. WARNING: CHECK BATTERY TYPE This charger is designed to charge only certain types 12V DC batteries; Flooded Lead-Acid, AGM (Absorbent Glass Mat), and some LiFEPO4 (Lithium Iron Phosphate).
-
Page 3: Table Of Contents
Contents Introduction ........................3 Personal safety precautions ...................3 Precautions before charge battery.................3 Box contents ........................4 Specifications .........................5 Feature Highlights ......................8 Installing the charger ....................10 Installation illustration ....................11 Select battery type ....................... 12 Connect the DC cables ....................13 Operating the charger .................... -
Page 4: Introduction
Introduction INTRODUCTION Thank you and congratulations on your new purchase of the Powermania Turbo MV3 series onboard battery charger. This charger is waterproof, corrosion-resistant and shock-resistant— ideal for recharging and maintaining 12V DC batteries in various marine applications and other harsh environments. -
Page 5: Box Contents
Do not bend the AC power cord or extension cord repetitively, especially in the same area. • Make sure the AC power outlet you are connecting to the charger is GFCI (Ground Fault Circuit Interrupt) protected. BOX CONTENTS • Turbo MV3 series battery charger • Operation manual / Registration card • Mounting screws www.powermaniausa.com... -
Page 6: Specifications
Specifications SPECIFICATIONS M212V3 M220V3 M320V3 M230V3 Manufacturer’s P/N 58301 58303 58304 58305 Max. Input 2.2 Amps 2.7 Amps 2.7 Amps 5.9 Amps Current (@120V AC) # 12V Output / 2 output / 2 output / 3 output / 2 output / Total Maximum Amp 12 Amp 20 Amp... - Page 7 M330V3 M430V3 M240V3 M340V3 M440V3 58306 58307 58308 58309 58310 5.9 Amps 5.9 Amps 7.2 Amps 7.2 Amps 7.2 Amps 3 output / 4 output / 2 output / 3 output / 4 output / 30 Amp 30 Amp 40 Amp 40 Amp 40 Amp 16 AWG (AC) /...
- Page 8 Specification (All models) SPECIFICATIONS (All models) Input voltage: 120/240V AC Input frequency: 50/60Hz Oututput voltage: 13.4V ~ 14.8V DC Battery type setting: 1. Flooded (Lead-Acid) / AGM 2. 14.6 CV (Constant Voltage) 3. AGM+ Max. Absorption time: 3 hours Output cable length: 6 feet / 182 cm Power cord length: 6 feet / 182 cm...
-
Page 9: Feature Highlights
Feature Highlights FEATURE HIGHLIGHT: Adaptive Loading USER Fully charges all connected batteries in BENEFIT: the shortest time. The Adaptive Loading feature adjusts the charger’s output level automatically and dynamically on each output bank. This function allows more charging power goes to the more depleted bat- tery, and less power goes to the battery that is closer to full charge. - Page 10 Feature Highlights FEATURE HIGHLIGHT: 3-Stage Smart Charge USER Maximizes battery potential and pro- BENEFIT: longs battery life. Turbo MV3 charges a battery in three sequential stages: Bulk, Absorption, and Monitor / Float. This method is proven to bring a battery to its fullest charge, as well as maintain a fully charged battery’s from self-discharge.
-
Page 11: Installing The Charger
Installation INSTALLING THE CHARGER The Powermania Turbo MV3 series charger is designed to be mounted onboard a vehicle or watercraft. Please refer to the illustration on the next page for the optimal mounting orientation. The top row LED lights should line up horizontally at the top and the output cables at the bottom of the charger. -
Page 12: Installation Illustration
Installation INSTALLATION ILLUSTRATION 8 inch clearance 8 inch 8 inch clearance clearance 8 inch clearance DIMENSIONS AND MOUNTING MEASUREMENT ” ” ” ” ” ” ” ” www.powermaniausa.com... -
Page 13: Select Battery Type
Secure the screws back to the battery selector. CAUTION: RISK OF PERSONAL INJURY Do NOT use any other screws that are not provided by Powermania to tighten the selector cap. Using unauthorized screws could damage the charger and result in serious personal injury. www.powermaniausa.com... -
Page 14: Connect The Dc Cables
PROPER OPERATION. CONNECT THE DC CABLES The following pages demonstrate proper DC wiring configurations for Powermania Turbo MV3 series chargers. When making DC connections, make sure connecting the same set of positive and negative connectors to the same 12V battery. The red wires are positive (shown as grey color on the diagrams), and the black ones are negative. - Page 15 DC wiring connections Connecting a dual output charger to a single 12V battery Connect both sets of DC outputs to the same battery’s terminal. DO NOT LEAVE ANY SPARE OUTPUT UNCONNECTED. Connecting a 12V output to two 6V batteries If a 12V system is composed of two 6V batteries, connect the output’s positive terminal ring to battery #1’s positive terminal and the same...
- Page 16 DC wiring connections Connecting a dual output charger to two serial-connected 12V batteries (24V system) Connect each set of output to each 12V battery. The jumper can be left connected between the two batter- ies during charging. Connecting a dual output charger to two parallel-connected 12V batteries Connect one set of output to each 12V battery.
- Page 17 DC wiring connections Connecting a triple output charger to three 12V batteries The batteries could be independent, serial-connected or parallel-con- nected. If connecting a quad output charger to three 12V batteries, connect the spare output to any one of the three (preferably the weakest) batteries.
-
Page 18: Operating The Charger
Operating instructions OPERATING THE CHARGER Install the charger and make appropriate DC wiring connections according to the diagrams. Choose an appropriate setting on the Battery Selector (page 12). Plug in AC power cord to a properly grounded outlet. Avoid repeatedly bending a section of the power cord. -
Page 19: Troubleshooting
Troubleshooting ALWAYS DISCONNECT AC POWER CORD PRIOR DANGER: TO MAKING ANY DC WIRING CONNECTION CHANGE OR WHEN CHECKING FUSES. TROUBLESHOOTING Problem Possible Cause Solution Check AC input connection. Try with a dif- No LED On No AC input ferent AC outlet to make sure AC power is present. -
Page 20: Troubleshooting - Battery Isolation Test
If the charger performs full, completed charging cycles in both tests, it may be a connec- tion error from the previous set up. If the charger returns error LED in both tests, contact Powermania to check for warranty coverage. MAINTAINING THE CHARGER The Powermania Turbo MV3 charger requires no specific maintenance. -
Page 21: Fuse Replacement Instruction
Other Information FUSE REPLACEMENT INSTRUCTION • Make sure the charger’s AC power cord is unplugged. Disconnect all the DC outputs from batteries. • For models using cylinder (AGC-1) style fuse, pull the fuse holder straight apart. Do not bend the fuse holder as it will break the fuse inside. If necessary, use a hairdryer to warm up the fuse holder and adding grip could ease pulling it apart. -
Page 22: Warranty And Service Information
Other Information WARRANTY AND SERVICE INFORMATION Powermania, at its discretion, provides a 2-year limited warranty on Turbo MV3 chargers against defects in material or workmanship under normal use. The warranty coverage period is calcu- lated as follows: • If the customer provides a valid purchase receipt, the two-years coverage begins from the date of purchase. - Page 25 RW1909A...
