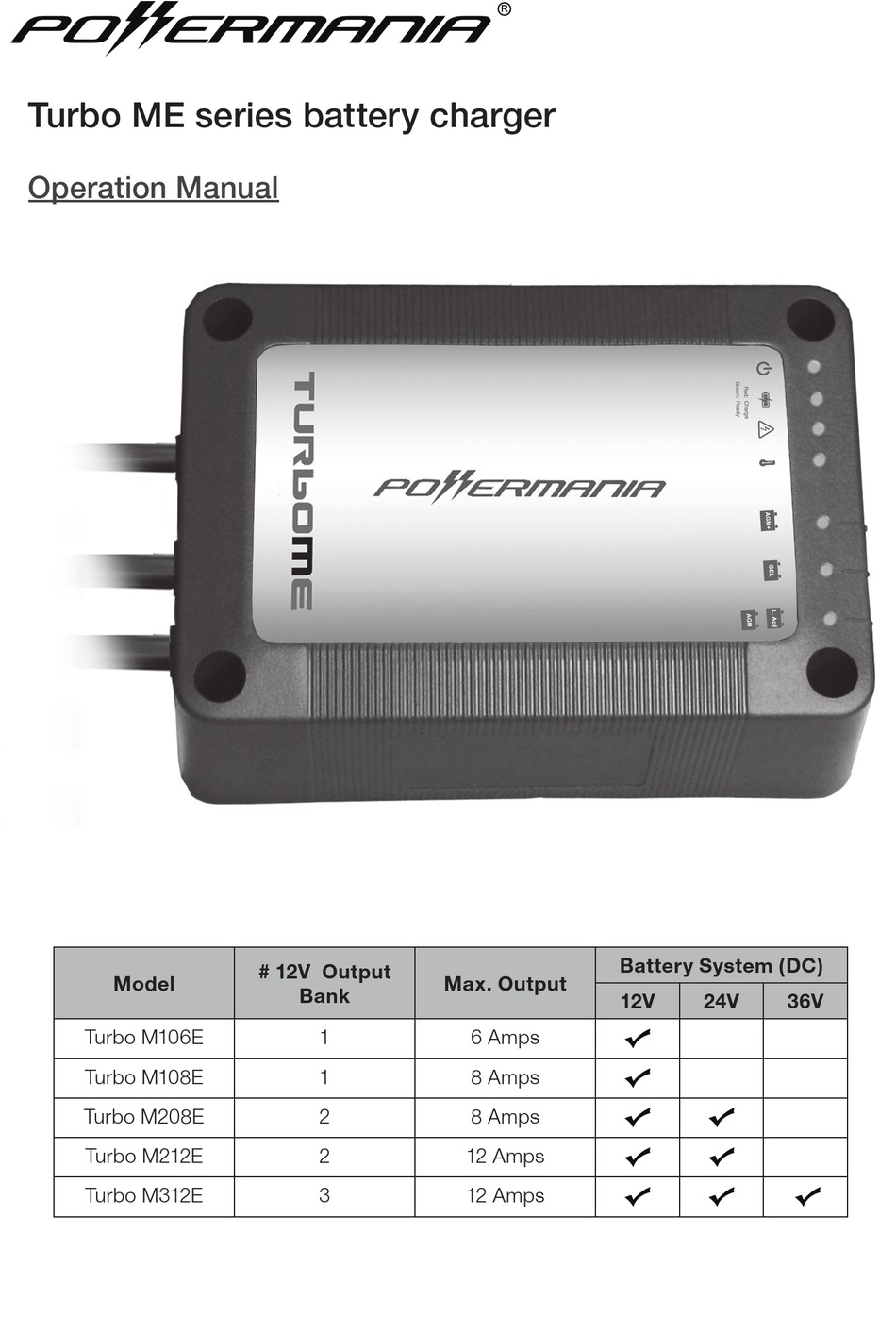

- Page 1 Turbo ME series battery charger Operation Manual Battery System (DC) # 12V Output Model Max. Output Bank Turbo M106E 6 Amps Turbo M108E 8 Amps Turbo M208E 8 Amps Turbo M212E 12 Amps Turbo M312E 12 Amps...
- Page 2 Important Notice This manual contains important safety, operation, and installation instructions. Please read the entire instructions before using your Powermania Turbo ME onboard battery charger. WARNING: CHECK BATTERY TYPE. This charger should be used to charge only Lead Acid type of 12V DC batteries; Flooded Lead- Acid, AGM (Absorbent Glass Mat), and GEL (Gelled Electrolyte Lead-Acid).
-
Page 3: Table Of Contents
Contents Introduction ........................3 Personal safety precautions ..................3 Precautions prior to charge battery................3 Box contents ........................4 Specifications ......................5 Special features ......................7 Installing the charger ....................9 Select battery type ....................10 DC connection and charts ..................11 Operating the charger ....................17 LED indicator descriptions .................. -
Page 4: Introduction

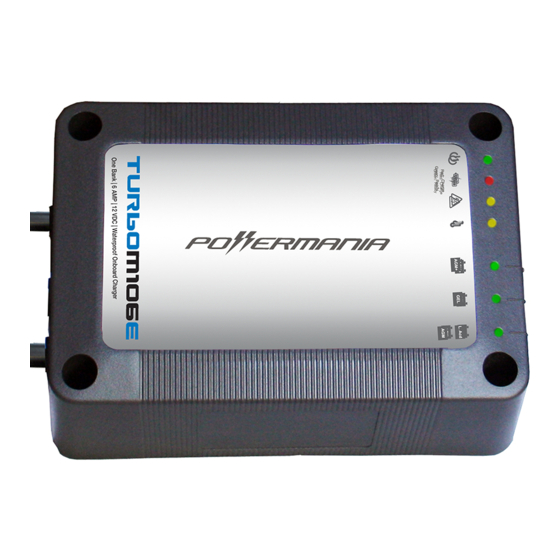

Introduction INTRODUCTION Thank you and congratulations on your new purchase of the Powermania Turbo ME series onboard battery charger. This charger is waterproof, corrosion-resistant and shock-resistant—ideal for recharging and maintaining 12V DC batteries in marine applications and other harsh environments. -
Page 5: Box Contents
Safety Precautions grounded negative terminal from the battery first. • Be sure to have enough open space around the battery for good ventilation during charge. Gas can be forcefully blown away using a piece of cardboard or other non-metallic material as a fan. -
Page 6: Specifications
Specifications SPECIFICATIONS * All connected batteries combined www.powermaniausa.com... - Page 7 Specifications SPECIFICATIONS (All models) Nominal input voltage: 100V~120V AC Nominal input frequency: 50~60Hz Nominal output voltage/bank: 12V DC Battery type setting: 1. Flooded (Lead-Acid) / AGM 2. GEL 3. AGM+ Max. Absorption time: 4 hours Operational temperature: -4°F ~ 122°F Storage temperature: -40°F ~185°F Output cable length:...
-
Page 8: Special Features
Special features SPECIAL FEATURE: Adaptive Loading (not applicable to M106E/M108E) USER Fully charges all connected batteries in the BENEFIT: shortest time. 10 % 50 % 50 % 90 % The Adaptive Loading feature dynamically adjusts the charger’s output level on each output bank. More charging power is allocated to battery that is low in charge, and less charging power to battery that is closer to being fully charged. - Page 9 Special features discharge. At the first stage (Bulk), the charger provides its maximum constant current to fast charge the battery. The battery’s voltage rises as it absorbs the charge. When the battery voltage reaches 14.6V (Flooded mode*), it is about 80% recharged. The charger then moves to the second stage. At the second stage (Absorption), the charger continues to charge the battery at 14.6V (Flooded mode).
-
Page 10: Installing The Charger
Installation INSTALLING THE CHARGER The Powermania Turbo ME series charger is designed to be mounted onboard. The chart below shows the proper orientation of the mounting position. The LED lights line up horizontally at the top and the output cables at the bottom. This orientation optimises air ventilation during operation. -
Page 11: Select Battery Type
Select battery type SELECT BATTERY TYPE The Battery Selector’s tip point can be switched among three positions as follows. From left to right, the first position (factory default) is for charging Flooded Lead-Acid type and AGM type battery. The middle position is for charging GEL (Gel Cell) type battery, and the right position is for charging High Power AGM type battery. -
Page 12: Dc Connection And Charts
SAFETY REASONS. MAKING DC CONNECTION The following pages (p.12 - p.16) demonstrate proper DC wiring configurations for Powermania Turbo ME series chargers. When making DC connections, make sure each set of output cables (one positive and one negative) is connected to the same battery set of terminals. The red wires are positive (shown as grey color on the charts) and the black ones are negative. - Page 13 DC wiring connections CONNECT EVERY DC OUTPUT CABLE TO BATTERY TERMINAL FOR SAFETY REASONS. Connection 1A: Connecting 1-bank charger (M106E/M108E) to one independent 12V battery. www.powermaniausa.com...
- Page 14 DC wiring connections CONNECT EVERY DC OUTPUT CABLE TO BATTERY TERMINAL FOR SAFETY REASONS. Connection 1B: Connecting 1-bank charger (M106E/M108E) to two serial-connected 6V batteries. www.powermaniausa.com...
- Page 15 DC wiring connections CONNECT EVERY DC OUTPUT CABLE TO BATTERY TERMINAL FOR SAFETY REASONS. Connection 1C: Connecting two 1-bank chargers (M106E/M108E) to one independent 12V battery (Parallel charging - to increase charging power). www.powermaniausa.com...
- Page 16 DC wiring connections CONNECT EVERY DC OUTPUT CABLE TO BATTERY TERMINAL FOR SAFETY REASONS. Connection 2A: Connection 2A: Connecting 2-bank charger (M208E/M212E) to one independent 12V battery. www.powermaniausa.com...
- Page 17 DC wiring connections CONNECT EVERY DC OUTPUT CABLE TO BATTERY TERMINAL FOR SAFETY REASONS. Connection 2B: Connection 2B: Connecting 2-bank charger (M208E/M212E) to two 12V batteries. Note that each output bank is designed to be connected to one 12V battery directly. The batteries can be connected in series (24/36V), or parallel (to increase Ah capacity).
-
Page 18: Operating The Charger
Operating instructions OPERATING THE CHARGER Install the charger and make appropriate DC wiring connections. Choose appropriate setting on the Battery Selector. Plug in AC power cord to properly grounded outlet. The Power indicator LED will display green, indicating the presence of AC power. The charger will automatically start a new charge cycle. - Page 19 Operating instructions LED INDICATOR DESCRIPTION Icon Indicator Description OVER-VOLTAGE ORANGE: Voltage exceeds range WARNING OVERHEAT WARNING ORANGE: Temperature exceeds range. AGM+ AGM+ CHARGE MODE GREEN: Charging in AGM+ mode GEL CHARGE MODE GREEN: Charging in GEL mode L. Acd FLOODED(LEAD-ACID) / GREEN: Charging in Flooded (Lead-Acid)/ AGM CHARGE MODE AGM Mode...
-
Page 20: Troubleshooting
* When replacing blown fuses, please replace with fuses of the same rating and size. Please contact Powermania for more information on the fuse ratings for each model. ** The operational ambient temperate range is -4°F~122°F (-20°C~50°C). -
Page 21: Maintaining The Charger
Damage caused by accidents, misuse, or alteration of the product including cutting or splicing AC/DC cables. You may contact Powermania directly for service or warranty inquiry. Pllease note that Customer is responsible for paying the cost of shipping the defective product to Powermania. CONTACT INFORMATION Powermania, Inc. - Page 22 Memo...
- Page 24 Memo...
- Page 25 RWME1210 Rev A...
