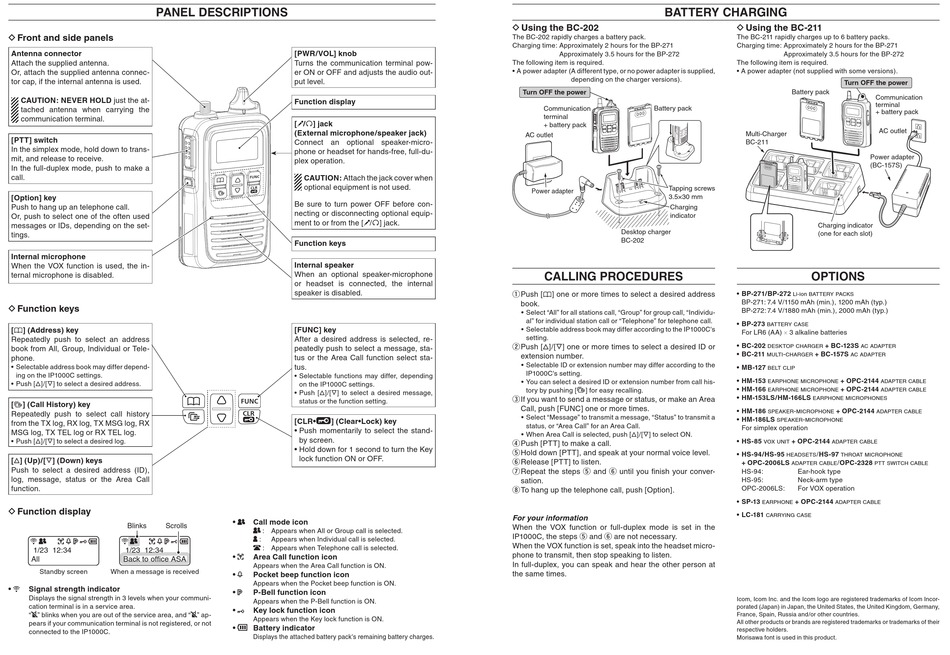

PANEL DESCRIPTIONS

D Front and side panels
Antenna connector
Attach the supplied antenna.
Or, attach the supplied antenna connec-
tor cap, if the internal antenna is used.
CAUTION: NEVER HOLD just the at-
tached antenna when carrying the
communication terminal.
[PTT] switch
In the simplex mode, hold down to trans-
mit, and release to receive.
In the full-duplex mode, push to make a
call.
[Option] key
Push to hang up an telephone call.
Or, push to select one of the often used
messages or IDs, depending on the set-
tings.
Internal microphone
When the VOX function is used, the in-
ternal microphone is disabled.
D Function keys
[ ] (Address) key
Repeatedly push to select an address
book from All, Group, Individual or Tele-
phone.
• Selectable address book may differ depend-
ing on the IP1000C settings.
• Push [ J]/[K] to select a desired address.
[ ] (Call History) key
Repeatedly push to select call history
from the TX log, RX log, TX MSG log, RX
MSG log, TX TEL log or RX TEL log.
• Push [ J]/[K] to select a desired log.
[J] (Up)/[K] (Down) keys
Push to select a desired address (ID),
log, message, status or the Area Call
function.
D Function display
Blinks Scrolls
1/23 12:34 1/23 12:34
All Back to office ASA
Standby screen When a message is received
• Signal strength indicator
Displays the signal strength in 3 levels when your communi-
cation terminal is in a service area.
" " blinks when you are out of the service area, and " " ap-
pears if your communication terminal is not registered, or not
connected to the IP1000C.
[PWR/VOL] knob
Turns the communication terminal pow-
er ON or OFF and adjusts the audio out-
put level.
Function display
[ / ] jack
(External microphone/speaker jack)
Connect an optional speaker-micro-
phone or headset for hands-free, full-du-
plex operation.
CAUTION: Attach the jack cover when
optional equipment is not used.
Be sure to turn power OFF before con-
necting or disconnecting optional equip-
ment to or from the [ / ] jack.
Function keys
Internal speaker
When an optional speaker-microphone
or headset is connected, the internal
speaker is disabled.
[FUNC] key
After a desired address is selected, re-
peatedly push to select a message, sta-
tus or the Area Call function select sta-
tus.
• Selectable functions may differ, depending
on the IP1000C settings.
• Push [ J]/[K] to select a desired message,
status or the function setting.
[CLR• ] (Clear•Lock) key
• Push momentarily to select the stand-
by screen.
• Hold down for 1 second to turn the Key
lock function ON or OFF.
• Call mode icon
: Appears when All or Group call is selected.
: Appears when Individual call is selected.
: Appears when Telephone call is selected.
• Area Call function icon
Appears when the Area Call function is ON.
• Pocket beep function icon
Appears when the Pocket beep function is ON.
• P-Bell function icon
Appears when the P-Bell function is ON.
• Key lock function icon
Appears when the Key lock function is ON.
• Battery indicator
Displays the attached battery pack's remaining battery charges.

BATTERY CHARGING

D Using the BC-202
The BC-202 rapidly charges a battery pack.
Charging time: Approximately 2 hours for the BP-271
Approximately 3.5 hours for the BP-272
The following item is required.
• A power adapter (A different type, or no power adapter is supplied,
depending on the charger versions).
Turn OFF the power
Communication Battery pack
terminal
+ battery pack
AC outlet
Tapping screws
Power adapter
3.5×30 mm
Charging
indicator
Desktop charger
BC-202
CALLING PROCEDURES
Push [ ] one or more times to select a desired address
q
book.
• Select "All" for all stations call, "Group" for group call, "Individu-
al" for individual station call or "Telephone" for telephone call.
• Selectable address book may differ according to the IP1000C's
setting.
w Push [ J]/[K] one or more times to select a desired ID or
extension number.
• Selectable ID or extension number may differ according to the
IP1000C's setting.
• You can select a desired ID or extension number from call his-
tory by pushing [ ] for easy recalling.
If you want to send a message or status, or make an Area
e
Call, push [FUNC] one or more times.
• Select "Message" to transmit a message, "Status" to transmit a
status, or "Area Call" for an Area Call.
• When Area Call is selected, push [ J]/[K] to select ON.
r Push [PTT] to make a call.
t Hold down [PTT], and speak at your normal voice level.
Release [PTT] to listen.
y
u Repeat the steps t and y until you finish your conver-
sation.
To hang up the telephone call, push [Option].
i
For your information
When the VOX function or full-duplex mode is set in the
IP1000C, the steps t and y are not necessary.
When the VOX function is set, speak into the headset micro-
phone to transmit, then stop speaking to listen.
In full-duplex, you can speak and hear the other person at
the same times.
D Using the BC-211
The BC-211 rapidly charges up to 6 battery packs.
Charging time: Approximately 2 hours for the BP-271
Approximately 3.5 hours for the BP-272
The following item is required.
• A power adapter (not supplied with some versions).
Turn OFF the power
Battery pack
Communication
terminal
+ battery pack
AC outlet
Multi-Charger
BC-211
Power adapter
(BC-157S)
Charging indicator
(one for each slot)
OPTIONS
• BP-271/BP-272
Li-ion battery packs
BP-271: 7.4 V/1150 mAh (min.), 1200 mAh (typ.)
BP-272: 7.4 V/1880 mAh (min.), 2000 mAh (typ.)
• BP-273
battery case
For LR6 (AA) × 3 alkaline batteries
• BC-202 + BC-123S
desktop charger ac adapter
• BC-211 + BC-157S
-
multi charger ac adapter
• MB-127
belt clip
• HM-153 + OPC-2144
earphone microphone adapter cable
• HM-166 + OPC-2144
earphone microphone adapter cable
• HM-153LS/HM-166LS
earphone microphones
• HM-186 + OPC-2144
-
speaker microphone adapter cable
• HM-186LS -
speaker microphone
For simplex operation
• HS-85 + OPC-2144
vox unit adapter cable
• HS-94/HS-95 /HS-97
headsets throat microphone
+ OPC-2006LS
/OPC-2328
adapter cable ptt switch cable
HS-94: Ear-hook type
HS-95: Neck-arm type
OPC-2006LS: For VOX operation
• SP-13 + OPC-2144
earphone adapter cable
• LC-181
carrying case
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor-
porated (Japan) in Japan, the United States, the United Kingdom, Germany,
France, Spain, Russia and/or other countries.
All other products or brands are registered trademarks or trademarks of their
respective holders.
Morisawa font is used in this product.
