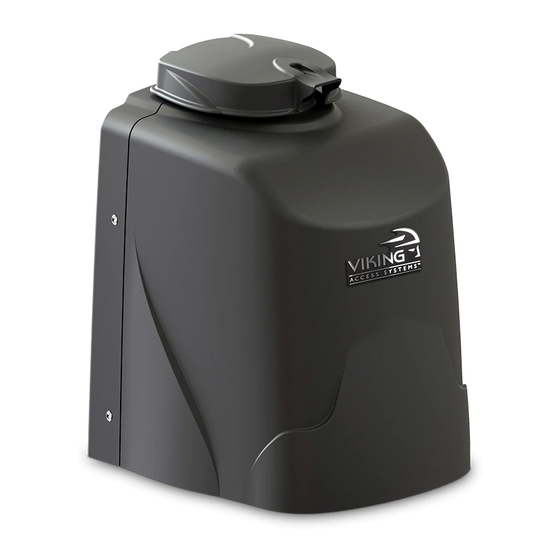

Viking F-1 Installation Instructions Manual

Commercial and residential vehicular swing gate operator
Hide thumbs Also See for F-1:
Table of Contents

Advertisement

Quick Links

See also: Technical Data Manual
INSTALLATION
INSTRUCTIONS
AND SAFETY INFORMATION
F O R T H E V I K I N G F -1 G AT E O P E R ATO R
C L A S S I , I I , I I I A N D I V
C L A S S I , I I , I I I A N D I V
Commercial and Residential
Commercial and Residential
Vehicular Swing Gate Operator
