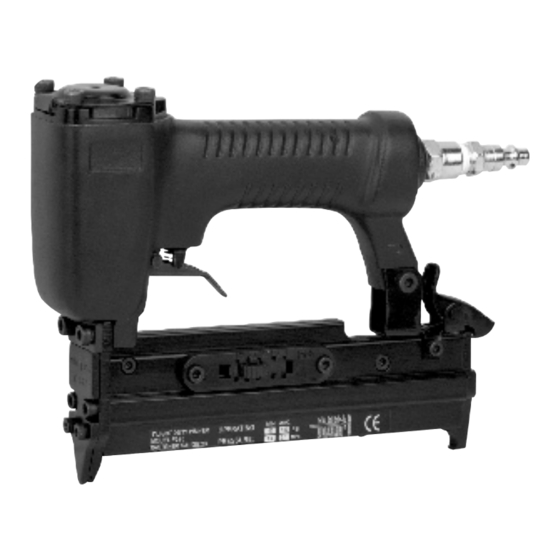

THREE-PIECE AIR NAILER KIT
SET uP ANd OPERATINg INSTRuCTIONS
ITEm 97524
distributed exclusively by Harbor Freight Tools
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS mANuAL.
©
Copyright
2008 by Harbor Freight Tools
herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. Diagrams
within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly
from the product described herein. Tools required for assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
ITEm 97520
3491 Mission Oaks Blvd., Camarillo, CA 93011
®
. All rights reserved. No portion of this manual or any artwork contained
98464
ITEm 97526
®
.
Advertisement
Table of Contents
Related Manuals for Central Pneumatic Contractor 98464
Summary of Contents for Central Pneumatic Contractor 98464
- Page 1 THREE-PIECE AIR NAILER KIT 98464 SET uP ANd OPERATINg INSTRuCTIONS ITEm 97526 ITEm 97524 ITEm 97520 ® distributed exclusively by Harbor Freight Tools 3491 Mission Oaks Blvd., Camarillo, CA 93011 Visit our website at: http://www.harborfreight.com Read this material before using this product. Failure to do so can result in serious injury.
-
Page 2: Safety Alert Symbol And Signal Words
SAVE THIS mANuAL NOTICE is used to address practices Keep this manual for the safety warn- not related to personal injury. ings and precautions, assembly, operat- CAuTION, without ing, inspection, maintenance and cleaning the safety alert procedures. Write the product’s serial symbol, is used to address number in the back of the manual near the practices not related to... -
Page 3: Personal Safety
sure to high intensity noise is able to Personal safety cause hearing loss. Stay alert. Watch what you are do- ing and use common sense when Tool use and care operating the tool. Do not use the Use clamps or another practical tool while tired or under the influ- way to secure and support the ence of drugs, alcohol, or medica-... -
Page 4: Symbols And Specific Safety Instructions
Check for misalignment or bind- Never use oxygen, carbon dioxide, ing of moving parts, breakage of combustible gases or any bottled parts, and any other condition that gas as an air source for the tool. affects the tool’s operation. If dam- Such gases are capable of explosion aged, have the tool serviced before and serious injury to persons. -
Page 5: Specific Safety Instructions
cal known to the State of California Symbol Definitions to cause birth defects (or other repro- Symbol Property or statement ductive harm). (California Health & Safety code § 25249.5, et seq.) WARNING marking concerning Risk of Explosion. Only use with accessories rated to handle the forces exerted by this tool WARNING marking concerning Risk during operation. - Page 6 toxic. When stapling or nailing these Do not smoke during use. Nico- materials extra care should be taken tine reduces the blood supply to the to avoid inhalation and minimize skin hands and fingers, increasing the risk contact. of vibration-related injury. Hold Nailer away from head and Wear suitable gloves to reduce the body.
-
Page 7: Functional Description
FuNCTIONAL dESCRIPTION INITIAL TOOL SET uP/ ASSEmBLY Specifications for 97526 Air Pin Read the ENTIRE ImPORTANT Nailer SAFETY INFORmATION section at the beginning of this Air Pressure Range 60-100 PSI manual including all text under Maximum Air Pressure 120 PSI subheadings therein before set Air Inlet 1/4”... - Page 8 operate accidentally after the air supply is disconnected. Note: Air flow, and therefore tool perfor- mance, can be hindered by under- sized air supply components. The air hose must be long enough to reach the work area with enough extra length to allow free movement while working.
-
Page 9: Tool Set Up
discharge the tool in a safe fashion Testing The Single Sequential after disconnecting to ensure that the Safety Trip mechanism tool is disconnected and unpowered. E v e n t h o u g h Read the ENTIRE ImPORTANT the nailer should SAFETY INFORmATION be empty during this procedure, section at the beginning of this... - Page 10 Release the trigger and squeeze it Loading the 97520 Air Brad Nailer again. The tool must cycle (fire) once only. With the Trigger held, carefully lift the nailer and press it against the workpiece again. The ALWAYS wear tool must not cycle (fire). If it fails to ANSI-approved impact safety gog- act in the manner explained in bold, gles when reloading or doing any...
- Page 11 Insert the brad nails into the Magazine, achieve the desired penetration, letting the pointed end ride on the rail adjust the air pressure to a higher of Magazine B (61A). If loading staples, setting until desired penetration is fit the crown of the staples so they fit achieved.
-
Page 12: Cleaning, Maintenance, And Lubrication
TO PREVENT Exhaust Cover (2) SERIOuS INjuRY FROm ACCIdENTAL 97520 Nailer OPERATION: Release trigger, detach the air supply, and safely discharge any residual air pressure in the tool before performing any inspection, maintenance, or Trigger (36) cleaning procedures. TO PREVENT SERIOuS INjuRY FROm TOOL FAILuRE: do not use damaged... - Page 13 TO PREVENT SERIOuS nected and is incapable of firing any INjuRY FROm TOOL Brads. FAILuRE: With the Driver Guide Cover (52A) do not use damaged facing away from you, push the Lock equipment. If abnormal noise, Spring (92) and remove Driver Guide vibration, or any leakage is Cover.
- Page 14 away from you and any other people technician. or fragile objects - see Figure 1. Lightly oil the Driver (17A) and replace the Driver Cover (57) with FIguRE 1 the tab in the Cover facing the Driver Guide (58). Replace the Safety Cover (54), being careful to line up the bolt holes and fit the Safety (52) into the slot.
- Page 15 TO PREVENT Clearing jams for 97526 Pin Nailer SERIOuS INjuRY FROm ACCIdENTAL OPERATION: Release trigger, detach the air ALWAYS wear supply, and safely discharge ANSI-approved impact safety any residual air pressure in goggles when clearing jams. the tool before performing any inspection, maintenance, or In case of a fastener jam, take your cleaning procedures.
- Page 16 maintenance (For All Nailers) Store Nailer in a clean, dry, safe loca- tion out of reach of children. Daily - Air Supply Maintenance: Every day, perform maintenance on the air supply according to the com- If you detect any ponent manufacturers’ instructions. air leaks, power The lubricator’s oil level needs to be loss, the Nailer/Stapler skips driv-...
-
Page 17: Troubleshooting Guide
Troubleshooting guide Stop using the Nailer/Stapler immediately if any of the following problems occur. Repairs and part replacements must be done only by a qualified technician. All procedures in bold on this chart are to be attempted only be a qualified technician. Problem Likely Cause Solution... - Page 18 PARTS LIST FOR 97526 AIR PIN NAILER Part description Q’ty Part description Q’ty Hex Bolt Spring Holder Deflector Spring Seal Side Cover Spring Rear Plate Head cap Hex Bolt O-RIng Hex Bolt O-RIng Hex Bolt Head Valve Piston Spacer O-Ring Bracket O-Ring Hex Bolt...
- Page 19 ASSEmBLY dIAgRAm FOR 97526 AIR PIN NAILER SKU 98464 For technical questions, please call 1-800-444-3353. Page 19...
- Page 20 PARTS LIST FOR 97520 AIR BRAd NAILER SKU 98464 For technical questions, please call 1-800-444-3353. Page 20...
- Page 21 ASSEmBLY dIAgRAm FOR 97520 AIR BRAd NAILER SKU 98464 For technical questions, please call 1-800-444-3353. Page 21...
-
Page 22: Part Description
PARTS LIST FOR 97524 AIR NAILER/STAPLER Part description Part description Exhaust Deflector Magazine B Hex. Bolt Steel Bar Head Cap Pusher Unit Seal Spring Holder Internal Lining Spring O-Ring Magazine A Compression Spring Stopper Gasket Hex. Bolt O-Ring Hex. Bolt Head Valve Piston Nail Positioner O-Ring... - Page 23 ASSEmBLY dIAgRAm FOR 97524 AIR NAILER/STAPLER SKU 98464 For technical questions, please call 1-800-444-3353. Page 23...
- Page 24 LImITEd 1 YEAR WARRANTY Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of one year from the date of purchase (90 days if used by a professional contractor or if used as rental equip- ment).
