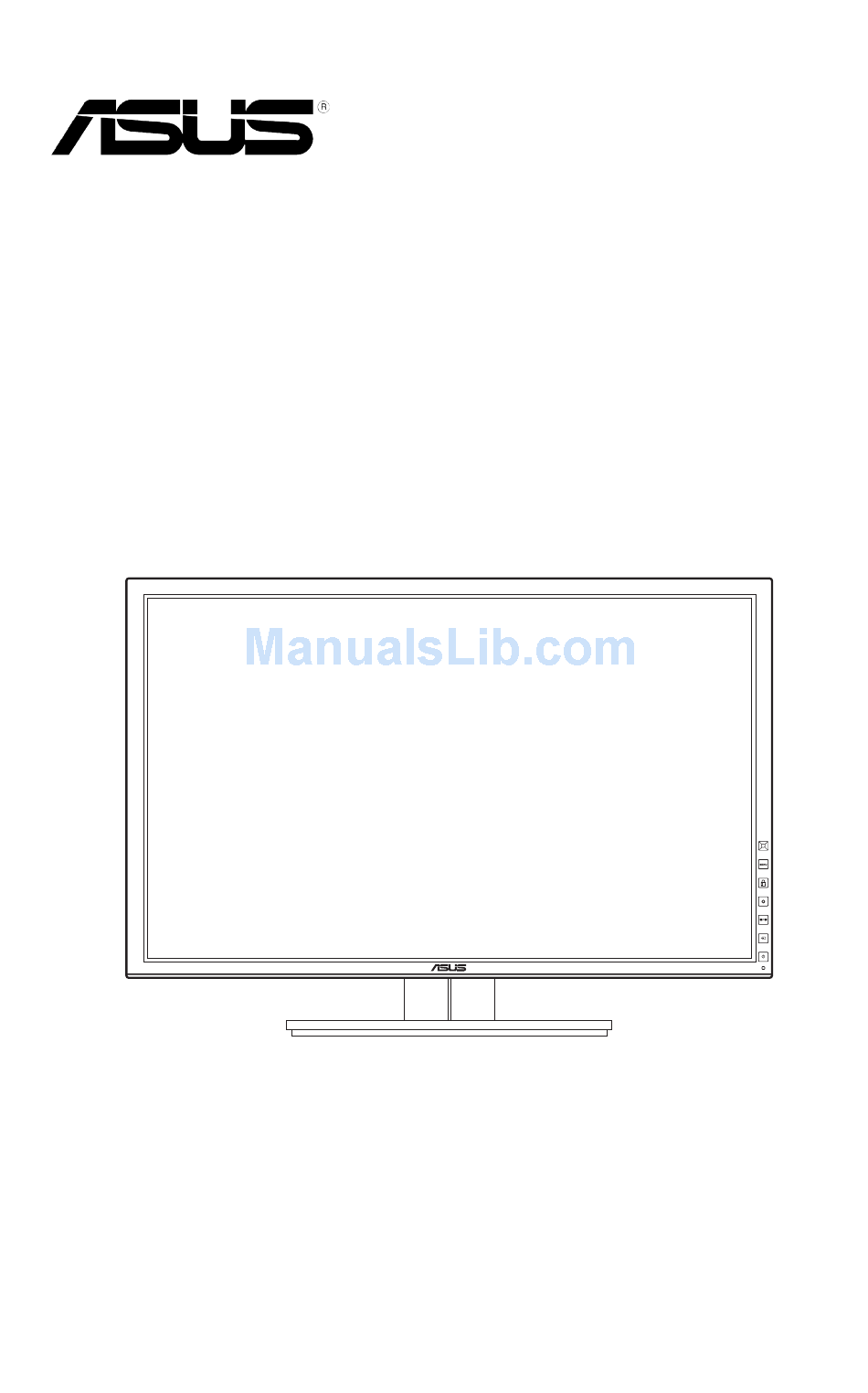

- Page 1 HA2402 Series LCD Monitor User Guide...
- Page 2 INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
-
Page 3: Table Of Contents
Contents Contents....................... iii Notices......................iv Safety.information..................v Intended.use.of.the.system............... vii Maintenance....................vii Care.&.Cleaning..................vii Takeback.Services..................viii Contact.Information..................ix Chapter.1:..Product.introduction 1.1. Welcome!..................1-1 1.2. Package.contents................1-1 1.3. Monitor.introduction..............1-2 1.3.1 Front view ............... 1-2 1.3.2 Back view ................ -
Page 4: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 5: Safety.information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. - Page 6 • This system comply with following EMC/EMI standards: EN 60601-1-2:2007+AC:2010: Electromagnetic Compatibility Emission: CISPR 11:2009+A1:2010, Class B AS/NZS CISPR 11:2011 EN 61000-3-2:2006+A1:2009+A2:2009 and EN 61000-3-3:2008 Immunity: IEC 61000-4-2:2008, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004 •...
-
Page 7: Intended.use.of.the.system
This symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment, and mercury-containing button cell battery) should not be placed in municipal waste. Please check local regulations for disposal of electronic products. Intended use of the system The intended use of the model is to serve as an LCD monitor for integration with the hospital system. -
Page 8: Takeback.services
These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. -
Page 9: Contact.information
• ASUSTeK Computer Inc. • Technical Support Address 800 Corporate Way, Telephone +1-812-282-2787 (English Only) Fremont, CA 94539, USA +1-905-370-2787 (French Only) +1-150-608-4555 Online Support http://support.asus.com/ Website http://usa.asus.com/ • ASUSTeK Computer Inc. • Technical Support Address Harkortstr. 21-23, Telephone +49-1805-010923... -
Page 11: Welcome
Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 12: Monitor.introduction
Monitor introduction 1.3.1. Front.view 5-way button: • Enacts the selected OSD menu item. • Increases/Decreases values or moves your selection up/down/left/right. MENU button: • Turns on the OSD menu. • Exits the OSD menu or goes back to the previous menu when the OSD menu is active. -
Page 13: Back View
Power.switch. Press the switch to turn on/off power. AC-IN.port. This port connects the power cord. DisplayPort. This port is for connection for a DisplayPort compatible device. HDMI.port. This port is for connection with an HDMI compatible device. ASUS HA2402 Series LCD Monitor... - Page 14 DVI.port. This 24-pin port is for PC (Personal Computer) DVI-D digital signal connection. VGA.port. This 15-pin port is for PC VGA connection. Earphone.jack. USB.3.0.upstream.port. This port is for connection with a USB upstream cable. The connection enables the USB ports on the monitor. Kensington.lock.slot.
- Page 15 ASUS HA2402 Series LCD Monitor...
- Page 16 Chapter 1: Product introduction...
-
Page 17: Detaching.the.arm/Base
Use a screwdriver to remove the four screws on the arm (Figure 1), and then detach the arm/base from the monitor (Figure 2). (Figure 2) (Figure 1) We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. ASUS HA2402 Series LCD Monitor... -
Page 18: Adjusting.the.monitor
Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling when you change its angle. •... -
Page 19: Connecting.the.cables
AC input port. 2.4 Turning on the monitor Press the power button . See page 1-2 for the location of the power button. The power indicator lights up in white to show that the monitor is ON. ASUS HA2402 Series LCD Monitor... - Page 20 Chapter 2: Setup...
-
Page 21: Osd.(On-Screen.display).Menu
DICOM.BL.Mode: best choice for blue base medical image checking. •. DICOM.CL.Mode: best choice for clear base medical image checking. •. Standard.Mode: More items are adjustable in the Color menu. •. Light.Box.Mode: best choice for physical X-ray film checking. ASUS HA2402 Series LCD Monitor... - Page 22 DICOM DICOM DICOM Standard Light Box Function Mode CL Mode BL Mode Mode Mode Brightness Contrast Saturation Color Temperature Gamma Color. Set a desired color setting from this menu. •. Brightness: the adjusting range is from 0 to 100. •. Contrast: the adjusting range is from 0 to 100.
- Page 23 Clock (pixel frequency) controls the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the image is not proportional. Input Select In this function, you can select your desired input source. ASUS HA2402 Series LCD Monitor...
- Page 24 System.Setup Allows you to adjust the system. •. OSD.Setup: Adjusts the horizontal position (H-Position)/the vertical position (V-Position) of the OSD from 0 to 100. Adjusts the OSD timeout from 10 to 120 seconds. Enables or disables the DDC/CI function. Adjusts the OSD background from opaque to transparent. Adjusts the OSD rotation.
-
Page 25: Specifications.summary
DVI cable, Power cord, Quick start guide, Warranty card, Cable tie Regulation approvals VCCl , RoHS, IEC/EN 60601-1 3rd ED, UL60601-1 3rd ED, FCC, PSE, BSMI, CE, WHQL for Windows 7 and Windows 8 *Specifications are subject to change without notice. ASUS HA2402 Series LCD Monitor... -
Page 26: Troubleshooting.(Faq)
Troubleshooting (FAQ) Problem Possible.Solution Power LED is not ON • Press the button to check if the monitor is in the ON mode. • Check if the power cord is properly connected to the monitor and the power outlet. • Check if the power switch is ON. The power LED lights amber and there is •... -
Page 27: Supported.operating.modes
1280x1024 63.98(P) 60.02(P) 1366x768 47.712(P) 59.79(P) 85.5 1440x900 55.94(N) 59.89(P) 106.5 1600x1200 75.00(P) 60.00(P) 1680x1050 65.29(N) 60.00(P) 146.25 1920x1080 67.5(P) 60.00(P) 148.5 1920x1200 74.038(P) 59.95(N) (Reduced Blanking) *.. M odes.not.listed.in.the.table.may.not.be.supported..For.optimal.resolution,.we.recommend.that. you.choose.a.mode.listed.in.the.table.above. *.. T his.monitor.supports.full.HD.(480p,.576p,.720p,.1080i/p).video.content.from.game.consoles,.DVD. players.and.other.consumer.video.devices.via.HDMI.or.DisplayPort. ASUS HA2402 Series LCD Monitor... - Page 28 Chapter 3: OSD (On-Screen Display) menu...
