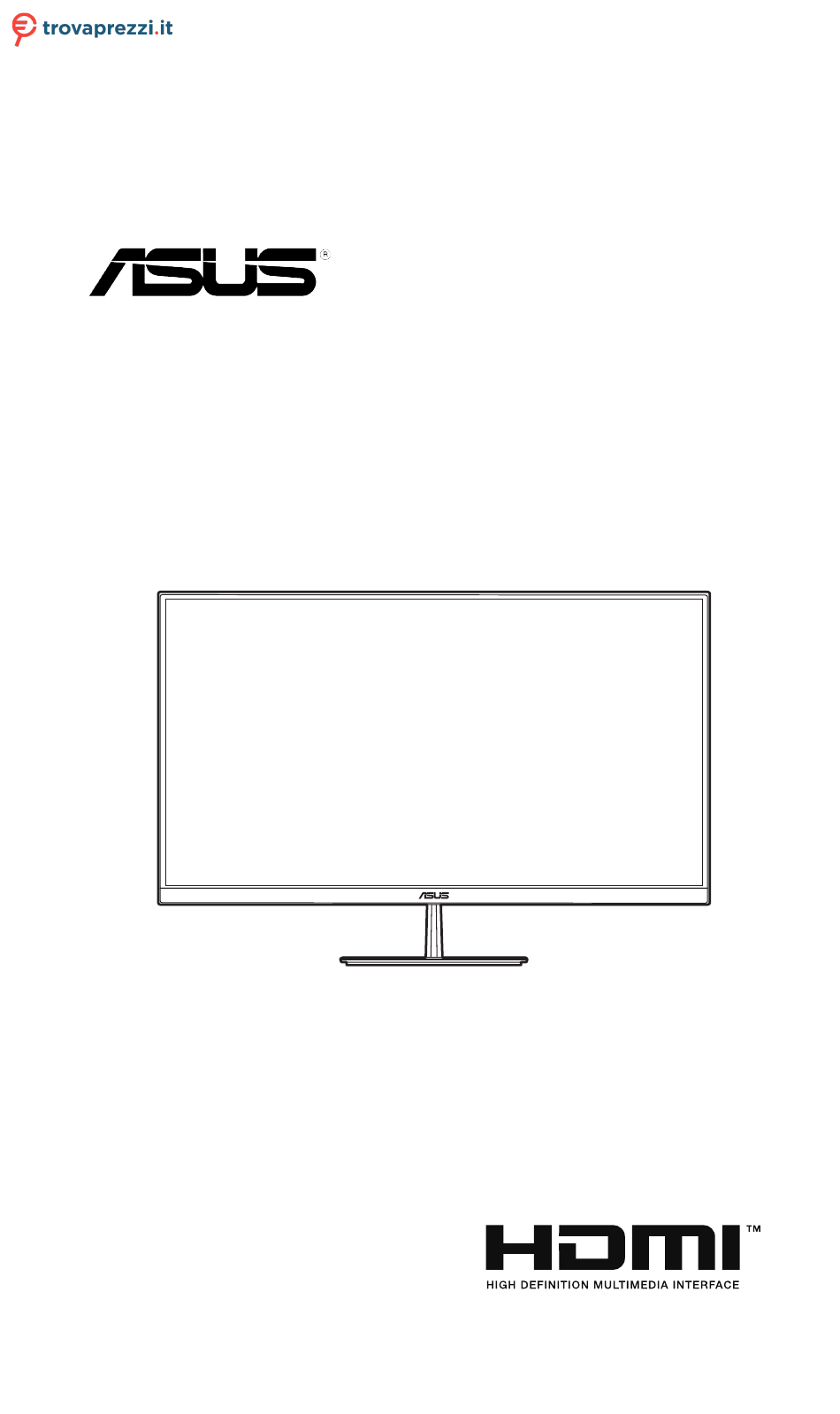

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Asus VL279HE cerca il tuo prodotto tra le migliori offerte di Monitor LCD VL279 Series LCD Monitor User Guide...
- Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
-
Page 3: Table Of Contents
Contents Contents....................... iii Notices......................iv Safety.information..................vi Care.&.Cleaning..................vii Takeback.Services..................viii Chapter.1:..Product.introduction 1.1. Welcome!..................1-1 1.2. Package.contents................1-1 1.3. Monitor.introduction..............1-2 1.3.1 Front view ............... 1-2 1.3.2 Back view ................ 1-3 Chapter.2:..Setup 2.1. Assembling.the.monitor.arm/base..........2-1 2.2. -
Page 4: Notices
Notices Federal.Communications.Commission.Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. - Page 5 Congratulations! This product is TCO Certified for Sustainable IT TCO Certified is an international third party sustainability certification for IT products. TCO Certified ensures that the manufacture, use and recycling of IT products reflect environmental, social and economic responsibility. Every TCO Certified product model is verified by an accredited independent test laboratory.
-
Page 6: Safety.information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. -
Page 7: Care.&.Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. -
Page 8: Takeback.services
These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. -
Page 9: Welcome
Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 10: Monitor.introduction
Monitor introduction 1.3.1. Front.view Main Menu Exit Power Off Main Menu Exit Input Select Power Off Input Select Blue Light Filter Blue Light Filter Power button/5-way button (on the back of the monitor) • Turns the monitor on. Power indicator •... -
Page 11: Back View
DVI.port. This 24-pin port is for PC (Personal Computer) DVI-D digital signal connection. VGA.port. This 15-pin port is for PC VGA connection. Audio-in.port. This port connects PC audio source by the bundled audio cable. Kensington.lock.slot. Rating label is stuck on the bottom of the LCD monitor. ASUS VL279 Series LCD Monitor... - Page 12 Chapter 1: Product introduction...
-
Page 13: Assembling.the.monitor.arm/Base
• Hold the stand to prevent the monitor from falling when you change its angle. • The recommended adjusting angle is +21.5 to -8.5˚. -8.5° ~ +21.5° ASUS VL279 Series LCD Monitor... -
Page 14: Detaching.the.arm.(For.wall.mount)
Detaching the arm (for wall mount) The detachable arm/base of this monitor is specially designed for wall mount. To detach the arm/base: Have the front of the monitor face down on a table. Remove the back cover from the monitor. (Figure 1) Use a screwdriver to remove the screws on the hinge (Figure 2), then remove the stand. -
Page 15: Connecting.the.cables
Input Select item in the OSD menu. Turning on the monitor Press the power button . See page 1-2 for the location of the power button. The power indicator lights up in white to show that the monitor is ON. ASUS VL279 Series LCD Monitor... - Page 16 Chapter 2: Setup...
-
Page 17: Osd.(On-Screen.display).Menu
Da r k r o o m M o d e M O V E /E N T E R B A C K /E X I T •. Scenery.Mode:.Best choice for scenery photo display with SplendidPlus Video Enhancement. ASUS VL279 Series LCD Monitor... - Page 18 In the Reading mode, the following function(s) are not user-configurable: Contrast, Saturation, Color Temp., Skin Tone, Sharpness, ASCR. Blue.Light.Filter In this function, you can adjust the blue light filter level. ASUS VL279 Blue Light Filter Standard Mode HDMI 1920 x 1080 @ 60Hz L e v e l 0...
- Page 19 Contrast: The adjusting range is from 0 to 100. •. Saturation: The adjusting range is from 0 to 100. •. Color.Temp.: Contains 4 modes including Cool, Normal, Warm and User Mode. •. Skin.Tone: contains three color modes including Reddish, Natural, and Yellowish. ASUS VL279 Series LCD Monitor...
- Page 20 VividPixel: Enhances the outline of the displayed picture and generates high-quality images on screen. •. ASCR: Turns on/off the ASCR (ASUS Smart Contrast Ratio) function. •. Position.(Only.available.for.VGA.input): adjusts the horizontal position (H-Position) and the vertical position (V-Position) of the image. The adjusting range is from 0 to 100.
- Page 21 M o r e M O V E /E N T E R B A C K /E X I T •. Splendid.Demo.Mode: Splits the screen into two for Splendid modes comparison. (Scenery mode only) ASUS VL279 Series LCD Monitor...
- Page 22 •. GamePlus: The GamePlus function provides a toolkit and creates a better gaming environment for users when playing different types of games. The crosshair overlay with different crosshair options lets you choose the one that best suits the game you’re playing. There’s also an onscreen timer you can position on the left of the display so you can keep track of the elapsed gaming time.
- Page 23 Amsler Grid: While focusing at the center point, check that all the lines are straight. Photo size: Provides photographers and other users to accurately view and edit their photos in real size on the screen. ASUS VL279 Series LCD Monitor...
- Page 24 •. ECO.Mode: Reduces power consumption. •. OSD.Setup: • Adjusts the OSD timeout from 10 to 120 seconds. • Enables or disables the DDC/CI function. • Adjusts the OSD background from opaque to transparent. •. Language: There are 21 languages for your selection, including English, French, German, Italian, Spanish, Dutch, Portuguese, Russian, Czech, Croatian, Polish, Romanian, Hungarian, Turkish, Simplified Chinese, Traditional Chinese, Japanese, Korean, Thai, Indonesian, Persian.
-
Page 25: Specifications.summary
614.0 x 437.7 x 46.0 mm stand Dimension. (W. x. H. x. D). with. 614.0 x 437.7 x 208.4 mm (machine), stand 684 x 508 x 167 mm (package) Weight.(Esti.) 5.3 kg (Net); 7.0 kg (Gross) ASUS VL279 Series LCD Monitor... - Page 26 Multi-languages 21 languages (English, French, German, Italian, Spanish, Dutch, Portuguese, Russian, Czech, Croatian, Polish, Romanian, Hungarian, Turkish, Simplified Chinese, Traditional Chinese, Japanese, Korean, Thai, Indonesian, Persian) Accessories. Power cord, Power adapter, DisplayPort cable (optional), HDMI cable (optional), DVI cable (optional), VGA cable, Audio cable (optional), Quick start guide, Warranty card Compliance.and.Standards Energy Star, TCO 7.0, EAC, CB, CE, CU, CCC,...
-
Page 27: Outline.dimensions
Outline dimensions 336,15(13.23) 3,5(0.14) 8,95(0.35) 8,04(0.32) 71,83(2.83) 20,66(0.81) 365,89(14.4) 437,72(17.23) 58,41(2.3) 65,2(2.57) 100(3.94) ASUS VL279 Series LCD Monitor 3-11... - Page 28 Troubleshooting (FAQ) Problem Possible.Solution Power LED is not ON • Press the button to check if the monitor is in the ON mode. • Check if the power cord is properly connected to the monitor and the power outlet. • Check if the power switch is ON. The power LED lights amber and there is •...
- Page 29 1280x800 60.00(N) 49.7(P) 1280x960 60.00(N) 60.00(P) 1280x1024 60.02(P) 63.98(P) 1280x1024 75.02(P) 79.98(P) 1360x768 59.79(P) 47.712(P) 1366x768 59.79(P) 47.712(P) 1440x900 59.89(P) 55.94(N) 1600x1200 60.00(P) 75.00(P) 1680x1050 60.00(P) 65.29(N) 1920x1080 60.00(P) 67.5(P) 1920x1080* 75.00((N) 83.9(P) *Supported.only.when.the.HDMI/DisplayPort.port.is.in.use. ASUS VL279 Series LCD Monitor 3-13...
- Page 30 When.the.monitor.is.operating.in.the.video.mode.(i.e.,.not.displaying.data),.the.following.high. definition.modes.shall.be.supported.in.addition.to.standard.definition.video. Preset Timing. Pixel.Format Horizontal. Vertical. Pixel.Rate. OSD. Name Frequency. Frequency. (MHz) Display (kHz) (Hz) 480p 720 x 480 31.469 480p-60Hz 720p60 1280 x 720 74.25 720p-60Hz 576p 720 x 576 31.25 576p-50Hz 720p50 1280 x 720 37.5 74.25 720p-50Hz 1080p60 1920 x 1080...
