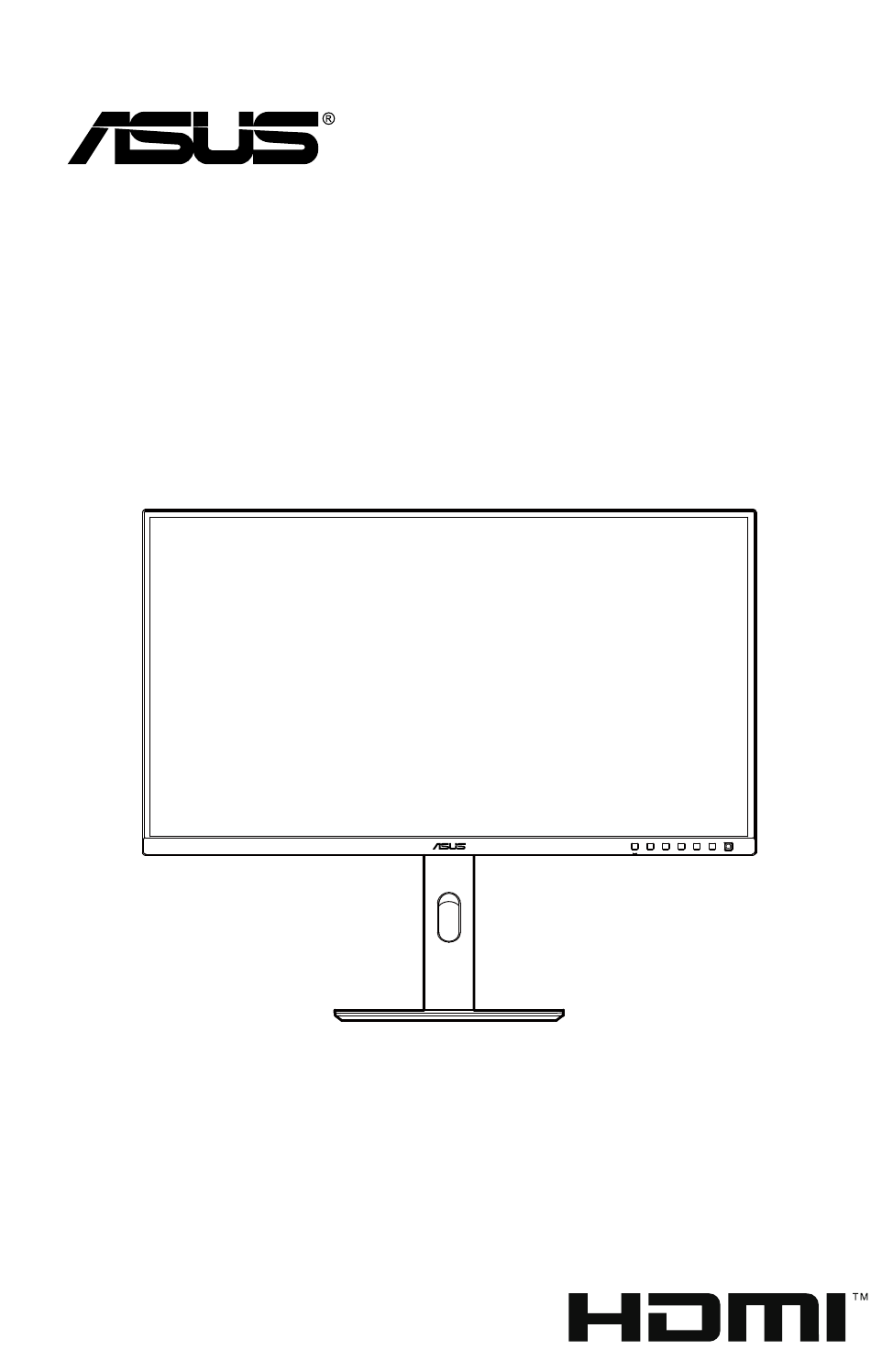

HA2441A / HA2741A
Series LCD Monitor
User Guide
HIGH-DEFINITION MULTIMEDIA INTERFACE

Advertisement

loading
Need help?

Need help?

Do you have a question about the HA2441A Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Asus HA2441A Series

Summary of Contents for Asus HA2441A Series

  • Page 1 HA2441A / HA2741A Series LCD Monitor User Guide HIGH-DEFINITION MULTIMEDIA INTERFACE...
  • Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
  • Page 3 Contents Contents ...................... iii Notices ......................iv Safety information ..................v Care & Cleaning ..................vi Takeback Services ..................vii Product information for EU energy label ..........vii Chapter 1: Product introduction Welcome! ..................1-1 Package contents ................. 1-1 Monitor introduction ..............1-2 1.3.1 Front view ...............
  • Page 4 U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices. All ASUS products with the ENERGY STAR ® logo comply with the ENERGY STAR ®...
  • Page 5 NOTE: ENERGY STAR ® is NOT supported on FreeDOS and Linux-based operating system. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
  • Page 6 Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.
  • Page 7 AEEE yönetmeliğine uygundur Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.
  • Page 8 These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.
  • Page 10 Thank you for purchasing the ASUS LCD Monitor! ® The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual experi-...
  • Page 11 Monitor introduction 1.3.1 Front view Ambient Light Sensor 1. Power button/power indicator • Turns the monitor on/off. Press and hold this button for 0.6 seconds will shut down the monitor. • Status Description White Amber Standby mode 2. DICOM button: •...
  • Page 12 Push the 5-way button down for over 5 seconds to toggle the Key Lock function between on and off. • Double-click this button to display the current source, then double-click again to switch to the next active input source (if available). ASUS HA2441A / HA2741A Series LCD Monitor...
  • Page 13 1.3.2 Back view Kensington lock slot. Power switch: Press the switch to turn on/off power. DC-IN port: This port connects the adaptor. Earphone jack: : This port is only available when an HDMI/DisplayPort/USB Type-C cable is connected. HDMI port : This port is for connection with an HDMI compatible device.
  • Page 14 This function is only available when Power Saving is Normal Level. If you set Power Saving to Deep Level, all the connected monitors will display the detection) when DP out cable is plugged. 2560 x 1440 @75Hz ASUS HA2441A / HA2741A Series LCD Monitor...
  • Page 15 Fix the base to the arm by fastening the bundled screw. We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. Base screw size: M6 x 16.2mm. ASUS HA2441A / HA2741A Series LCD Monitor...
  • Page 16 Detaching the arm/base (for VESA wall mount) The detachable arm/base of this monitor is specially designed for VESA wall mount. To detach the arm/base: Have the front of the monitor face down on a table. Press the release button, and then detach the arm/base from the monitor (Figure 1).
  • Page 17 +/ 130mm. -5° ~ +23° 30° 30° 0° (Tilt) (Swivel) (Tilt) (Swivel) 130mm (Height adjustment) (Pivot) (Height adjustment) (Pivot) It is normal that the monitor slightly shakes while you adjust the viewing angle. ASUS HA2441A / HA2741A Series LCD Monitor...
  • Page 18 USB device with the monitor's USB Type-A or Type-C jack. When these cables are connected, you can choose the desired signal from the Signal item in the OSD menu. If you need to replace the power cord or the connection cable(s), please contact ASUS customer service. Chapter 2: Setup...
  • Page 19 Turning on the monitor Press the power button . See page 1-2 for the location of the power button. The power indicator lights up in white to show that the monitor is ON. ASUS HA2441A / HA2741A Series LCD Monitor...
  • Page 20 Menu (5-way) button up/down to change the settings of the selected function. To exit and save the OSD menu, press the button or move the Menu (5-way) left repeatedly until the OSD menu disappears. To adjust other functions, repeat steps 1-4. ASUS HA2441A / HA2741A Series LCD Monitor...
  • Page 21 Chapter 3: General instructions 3.1.2 OSD function introduction Mode This function contains 8 sub-functions you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting. Mode Signal Brightness HA2741A Native Mode DisplayPort 2560 x 1440 _60Hz Native Mode Mode sRGB Mode...
  • Page 22 (Gray out) (2.2) (2.2) (2.2) (Gray out) (Gray out) (Gray out) Disable Disable Disable Light sensor Enable Enable Always On Enable (Gray out) (Gray out) (Gray out) (Default (Default (Default 0ff) 0ff) 0ff) ASUS HA2441A / HA2741A Series LCD Monitor...
  • Page 23 Image Set a desired color setting from this menu. Signal Brightness HA2741A Native Mode DisplayPort _60Hz Brightness Mode Contrast Color Temp. Image Gamma Sharpness Screen Uniformity RGB Color PIP/PBP Monochrome QuickFit Back Enter Exit • Brightness: The adjusting range is from 0 to 100. •...
  • Page 24 To activate this function, you need to do the following: turn off Adaptive- Sync and PBP. • Input Range: To map signal range with whole black to white presented range of display. • Pixel: Adjusts the Pixel to 3MP or 4MP. ASUS HA2441A / HA2741A Series LCD Monitor...
  • Page 25 PIP/PBP The PIP/PBP menu allows you to open up another sub-window connected from another video source (when input source is below 60Hz) besides the main-window from your original video source. To activate this function, you need to do the following: turn off AdativeSync and disable HDR on your device.
  • Page 26 Center Marker: Adjusts the Type 1, Type 2, Type 3. • Ruler: This pattern presents physical ruler on top and left side. • Customization: You can decide the frame size by moving the Menu (5-way) button up/down/left/right. ASUS HA2441A / HA2741A Series LCD Monitor...
  • Page 27 Eye Care Allows you to adjust settings related to eye care. Signal Brightness HA2741A Native Mode DisplayPort Blue Light Filter Eye Care Rest Reminder Color Augmentation Input Select Setting Shortcut Back Enter Exit • Blue Light Filter: In this function, you can adjust the blue light filter from 0 to max.
  • Page 28 Power Saving: Select Normal Level for power on hub during power saving. Select Deep Level for power off hub during power saving. To activate daisy chaining, you need to do the following: set Power Saving to when DP out cable is plugged. ASUS HA2441A / HA2741A Series LCD Monitor...
  • Page 29 • OSD Setup: Adjusts the Timeout from 10 to 120 seconds. Enables or disables the DDC/CI function. Adjusts the OSD background from Opaque to Transparent. Enables or disables the Auto Rotation function. To activate Auto Rotation, you need to do the following: turn off PIP/PBP. •...
  • Page 30 When a certain function is selected or activated, your shortcut key may not support. Available function choices for shortcut: Brightness, Aspect Control, Input select, Pixel, PIP/PBP Setting, Color Temp., Blue Light Filter,User Mode. 3-11 ASUS HA2441A / HA2741A Series LCD Monitor...
  • Page 31 HA2441A Panel Type TFT LCD Panel size 23.8” (16:9, 60.45cm) wide screen Max. Resolution 2560 x 1440 Pixel pitch 0.2058mm x 0.2058mm Brightness (Typ.) 300 cd/m Contrast Ratio (Typ.) 900:1 Viewing angle (H/V) 178˚/178˚ CR>10 Display colors 16.7 M Response time 5 ms (GTG) Preset selection 8 color preset modes...
  • Page 32 HA2741A Panel Type TFT LCD Panel size 27” (16:9, 68.46 cm) wide screen Max. Resolution 2560 x 1440 Pixel pitch 0.233mm x 0.233mm Brightness (Typ.) 350 cd/m Contrast Ratio (Typ.) 900:1 Viewing angle (H/V) 178˚/178˚ CR>10 Display colors 16.7 M Response time 5 ms (GTG) Preset selection...
  • Page 33 RoHs, CEC, Windows 10/11 WHQL, CCC, CEL, TÜV Flicker Free, TÜV Low Blue Light *Specifications are subject to change without notice. **Power consumption of On Mode as defined in Energy Star 8.0 version. 3-13 ASUS HA2441A / HA2741A Series LCD Monitor...
  • Page 34 Outline dimensions HA2441A 515.1 [20.28] 322 [12.68] 192.9 [7.59] 190 [7.48] 296.35 [11.67 12.5[0.49] 130 [5.12] 361.9 [14.25A] 382.35 [15.05] 385.1[15.16] 3-14 Chapter 3: OSD (On-Screen Display) menu...
  • Page 35 HA2741A 536.65 [21.13] 363.38 [14.31] 173.27 [6.82] 190 [7.48] 335.66 [13.21] 12.5[0.49] 130 [5.12] 361.9 [14.25A] 382.35 [15.05] 406.65 [16.01] 3-14 Chapter 3: OSD (On-Screen Display) menu...
  • Page 36 Type C cable is properly connected to the monitor and the computer. • Adjust the volume settings of both your monitor and HDMI/DisplayPort/USB Type C device. • Ensure that the computer sound card driver is properly installed and activated. 3-15 ASUS HA2741A Series LCD Monitor...
  • Page 37 Supported operating modes Horizontal Vertical Dot Clock Input Timing Resolution Frequency (KHz) Frequency (Hz) Frequency (MHz) 640x350 31.47(P) 70(N) 25.18 640x480 31.47(N) 59.94(N) 25.18 640x480 37.87(N) 72.82(N) 31.5 640x480 37.5(N) 75.00(N) 31.5 720x400 31.47(N) 70.08(P) 28.32 800x600 35.16(P) 56.25(P) 800x600 37.88(P) 60.32(P) 800x600...
  • Page 38 720 × 480p 59.94Hz 31.47 59.94Hz 60Hz 31.5 60Hz 640 × 480p(VGA) 59.94Hz 31.47 59.94Hz 60Hz 31.5 60Hz 720(1440) × 576i 50Hz 15.63 50Hz 720(1440) × 480i 59.94Hz 15.73 59.94Hz 60Hz 15.75 60Hz 3-17 ASUS HA2441A / HA2741A Series LCD Monitor...
