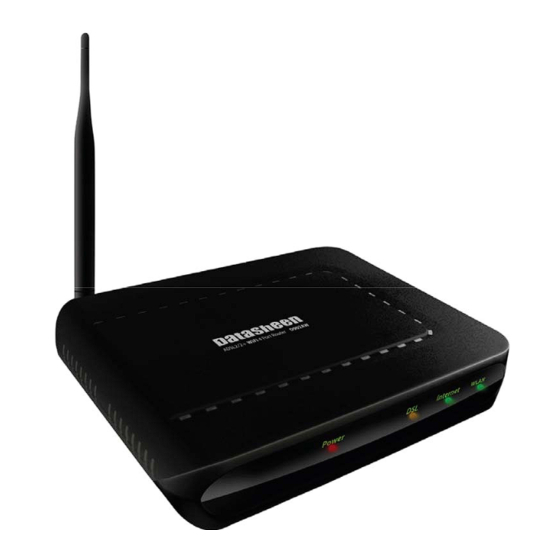

D902AW ADSL2/2+ WIFI Router

User Manual

V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D902AW and is the answer not in the manual?

Questions and answers

Related Manuals for Datasheen D902AW

Summary of Contents for Datasheen D902AW

  • Page 1: User Manual

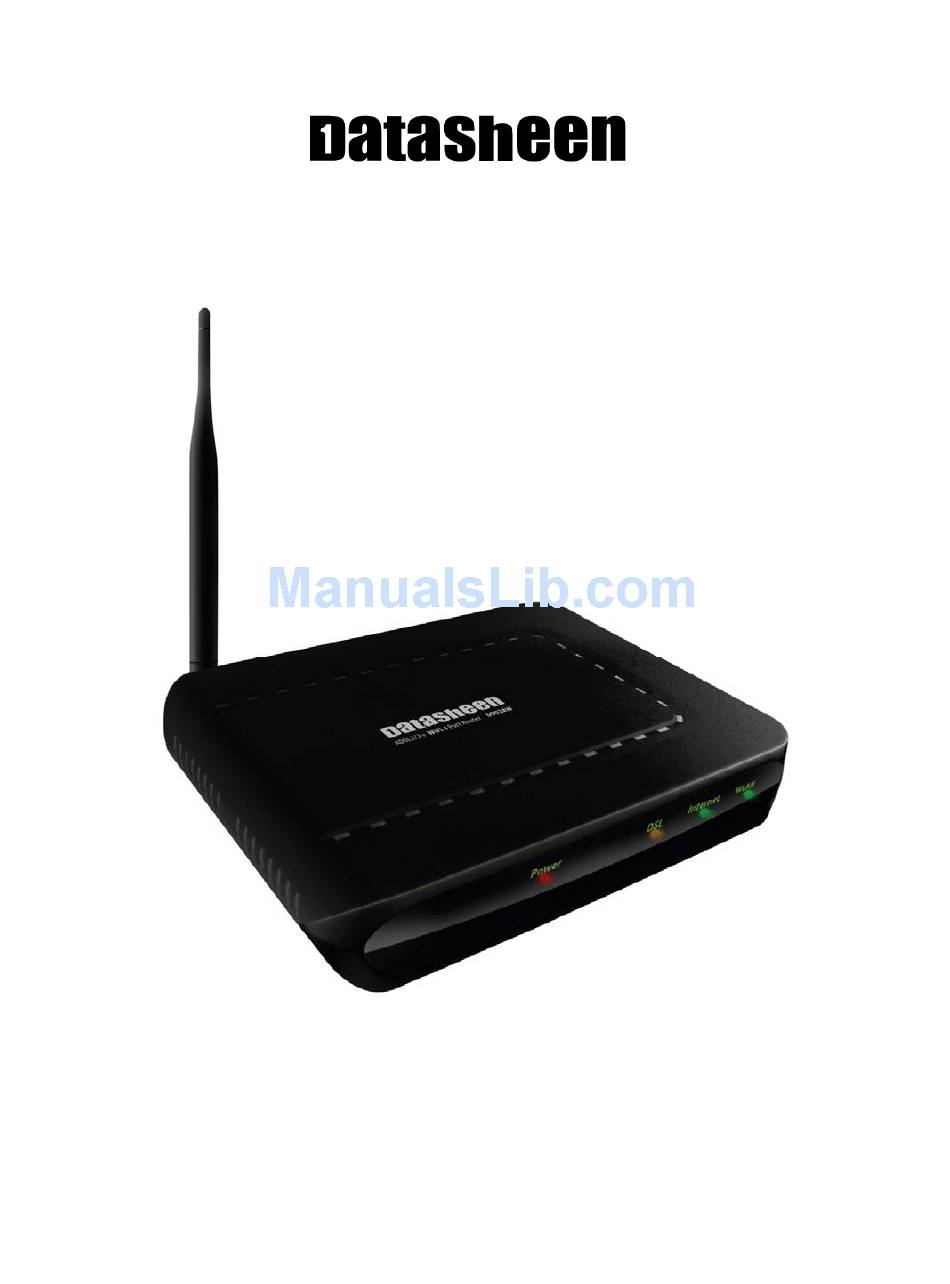

    D902AW ADSL2/2+ WIFI Router User Manual V1.1...

  • Page 2: Table Of Contents

    Datasheen D902AW User Manual CONTENTS 1.OVERVIEW ............................... 3 1.1 ABOUT ADSL ............................3 1.2 ABOUT ADSL2/2+ ..........................3 1.3 FEATURES ............................3 2 SPECIFICATION .............................. 4 2.1 INTERFACE INTRODUCTION ......................4 2.1.1 INDICATOR AND INTERFACE ....................4 2.1.2 SPLITTER SPEC ........................... 4 2.2 HARDWARE CONNECTION ......................

  • Page 3: Overview

    Datasheen D902AW User Manual 1.OVERVIEW 1.1 ABOUT ADSL An ADSL MODEM is a broadband Internet access device, which utilizes the high frequency segment of the phone line to transmit high-speed data without affecting the voice transmission. The frequency of the ADSL signal is higher than that of voice, so voice and ADSL signal can coexist in one line by using a splitter to insulate each from the other.

  • Page 4: Specification

    Datasheen D902AW User Manual 2 SPECIFICATION 2.1 INTERFACE INTRODUCTION 2.1.1 INDICATOR AND INTERFACE Table 2.1 ITEM Name State introduction POWER A steady red light means the power connection works properly Yellow, shows DSL line status. Indicator INTERNET Green, Flashing means the Modem is transmitting or receiving data...

  • Page 5: Hardware Connection

    Datasheen D902AW User Manual 2.2 HARDWARE CONNECTION Introduction： 1、 Use a telephone cord to connect the LINE port of the splitter with the RJ-11 port (the phone jack) on the wall. 2、 Use another telephone cord to connect the ADSL port of the splitter with the LINE port of the ADSL Modem.

  • Page 6: Configuration

    Datasheen D902AW User Manual 3. CONFIGURATION 3.1 DEFAULT CONFIGURATION ADSL MODEM has pre-configured with the VCI/VPI which is in common use. The default dial-up mode is bridge encapsulation. For bridge mode, no need to configure any more parameter. However, the third party dial-up software is needed for connection with the Internet.

  • Page 7: Wan Configuration

    Datasheen D902AW User Manual Note ： When you save the settings, the web page will be refreshed slowly, please wait it finished. After you save the settings, it will take effect until next reboot. Some settings only take effect after rebooting the router.
  • Page 8 Datasheen D902AW User Manual Figure 3.3  The value for VPI/VCI is assigned by your ISP. After inputting the PVC value, press “Next” into “connection type”. As Figure 3.4. Figure 3.4 The Modem supports five ADSL protocol modes. Choose the protocol which is appointed by ISP and PVC...

  • Page 9: Rfc1483 Bridge Configuration

    Datasheen D902AW User Manual encapsulation, click “Next” enter to the protocol configure. Below, we introduce the configuraion of the five protocol modes. • PPP over ATM (PPPoA) • PPP over Ethernet (PPPoE) • MAC Encapsulated Routing (MER) • IP over ATM (IPoA) •...
  • Page 10 Datasheen D902AW User Manual Figure 3.6 ： Note When you use bridge mode, please close “DHCP SERVER”, the result as Figure 3.7 Figure 3.7 Page 10 Total 19 Pages...

  • Page 11: Pppoe Configuration

    Datasheen D902AW User Manual 3.4.3 PPPOE CONFIGURATION PPPoE is also known as RFC 2516. It is a method of encapsulating PPP packets over Ethernet. PPPoA is also known as RFC2364 and named as Peer to Peer Protocol over ATM. As PPPoE, it also has all the features of PPP.

  • Page 12: Static Address

    Datasheen D902AW User Manual Press “Next step” when configuration is finished. The following operation is same with Figure 3.5. Notice that PPPoE mode does not work until the modem is reset. 3.4.4 STATIC ADDRESS In Figure3.4, select MAC Encapsulation Routing (MER), press “Next”, and the configuration can be queried from your ISP, the result as Figure3.9.

  • Page 13: Wireless Setup

    Datasheen D902AW User Manual 3.5.1 WIRELESS SETUP Click “Setup” on the left menu to setup basic wireless parameters. In default, check “Enable Ｗireless” box to launch wireless AP. SSID (Service Set Identifier): The mobile users cannot access WLAN until setting their SSID as the same ...

  • Page 14: Wireless Mac Filter

    Datasheen D902AW User Manual 802.1x Authentication  Select “802.1x” to enter 802.1x authentication page. The 802.1x authentication needs a Radius server in LAN. In this page, you can input Radius server IP address, port number and secret key. 3.5.3 WIRELESS MAC FILTER In fact, the Access List function is just like MAC address filtering and selected to permit or forbid access of wireless station with specified MAC address.
  • Page 15 Datasheen D902AW User Manual Notice: You only can select one of allow mode or deny mode. Page 15 Total 19 Pages...

  • Page 16: Other Configuration

    Datasheen D902AW User Manual 4 OTHER CONFIGURATION 4.1 LAN CONFIGURATION Configuration of Modem’s IP address and password 4.1.1 CONFIGURATION OF MODEM’S IP ADDRESS As a network device, ADSL Modem has its own IP address and MAC address. The factory sets the MODEM, at a default IP address of 192.168.1.1 and subnet mask of 255.255.255.0.

  • Page 17: Password Configuration

    Datasheen D902AW User Manual As Figure 4.2, open DHCP server, computer will set the IP Address of network card with one of the address 10.10.10.11 ～ 10.10.10.254. Figure 4.2 ： Note When you use the DHCP Server, please pay attention to having multi-DHCP Server in one LAN.

  • Page 18: Troubleshooting

    Datasheen D902AW User Manual 5. TROUBLESHOOTING 5.1 UNABLE TO ACCESS INTERNET 5.1.1 CHECK THE LINE AND THE DEVICE 1、 Check the indicator of power supply is on, if not, Make sure the connection of power supply is correct; Make sure the output of power supply is correct; Make sure the switch of power supply is turned on；...

  • Page 19: Annex：shipping List

    Datasheen D902AW User Manual subsequently popped up is the command line window. Note 3：The returned values of ping command in the following format show the standard of “reachable” Figure 5.1 6、 If ping of the modem is reachable but ping of the outer fixed IP is unreachable, attention should be concentrated upon device settings.
