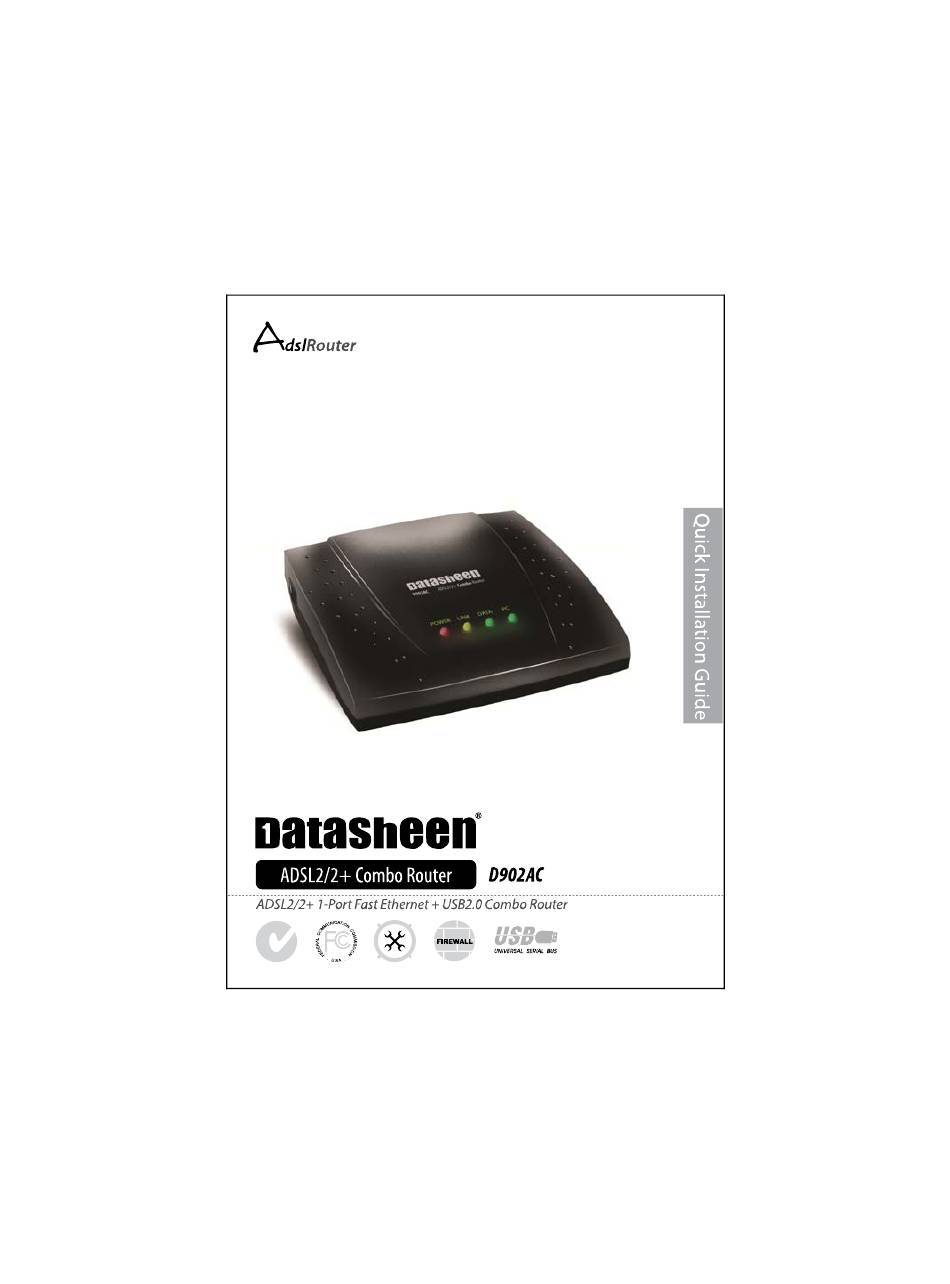

Summary of Contents for Datasheen D902AC
-
Page 2: Hardware Connection
FEATURES 1. Support ANSI T1.413 ISSUE 2, ITU G.992.1 (G.DMT), ITU G.992.2 (G.LITE), ITU G992.3, ITU G992.5 2. Web-based configuration and monitoring. 3. Support multiple PVCs. 4. Routing function. 5. NAPT, DHCP function. HARDWARE CONNECTION... - Page 3 INTRODUCTION 1. Use a telephone cord to connect the LINE port of the splitter with the RJ-11 port (the phone jack) on the wall. 2. Use another telephone cord to connect the ADSL port of the splitter with the LINE port of the ADSL Modem. 3.
-
Page 4: Led Status Indication
LED STATUS INDICATION Steady light Flashing Fast flashing POWER (red) Power on Power off The modem Connection not LINK (yellow) is in good handshaking set up connection status Transmitting Wan is Wan is not DATA (green) or receiving connected connected data Ethernet is Ethernet line... -
Page 5: Computer Configuration
COMPUTER CONFIGURATION The default IP address for ADSL MODEM is: 192.168.1.1; The Subnet Mask is：255.255.255.0. Users can configure ADSL MODEM through an Internet browser. ADSL MODEM can be used as gateway and DNS server; users need to set the computer’s TCP/IP protocol as follow: 1. -
Page 6: Save Setting
SAVE SETTING After getting through each page for parameters setting, click “Save” or “Save apply” to store the value in ADSL MODEM. Briefly, we named “Save”. Note: When you save the settings, the web page will be refreshed slowly, please wait it finished. After you save the settings, it will take effect until next reboot. -
Page 7: Password Configuration
PASSWORD CONFIGURATION When you configure ADSL MODEM through an Internet browser, the system requires user name and password to validate access permission. The factory sets the modem at a default username of “admin” and the password of “password”. The username is unchanged. You can enter the “password configuration”... -
Page 8: Driver Automatic Installation
4. Plug in the power cord, and turn on the power. 5. Connect USB port of the Gateway to USB port on your PC with the USB cable that comes with the Gateway. 6. System install the drivers automatically. © Datasheen Corporation. 2009. Taiwan...
