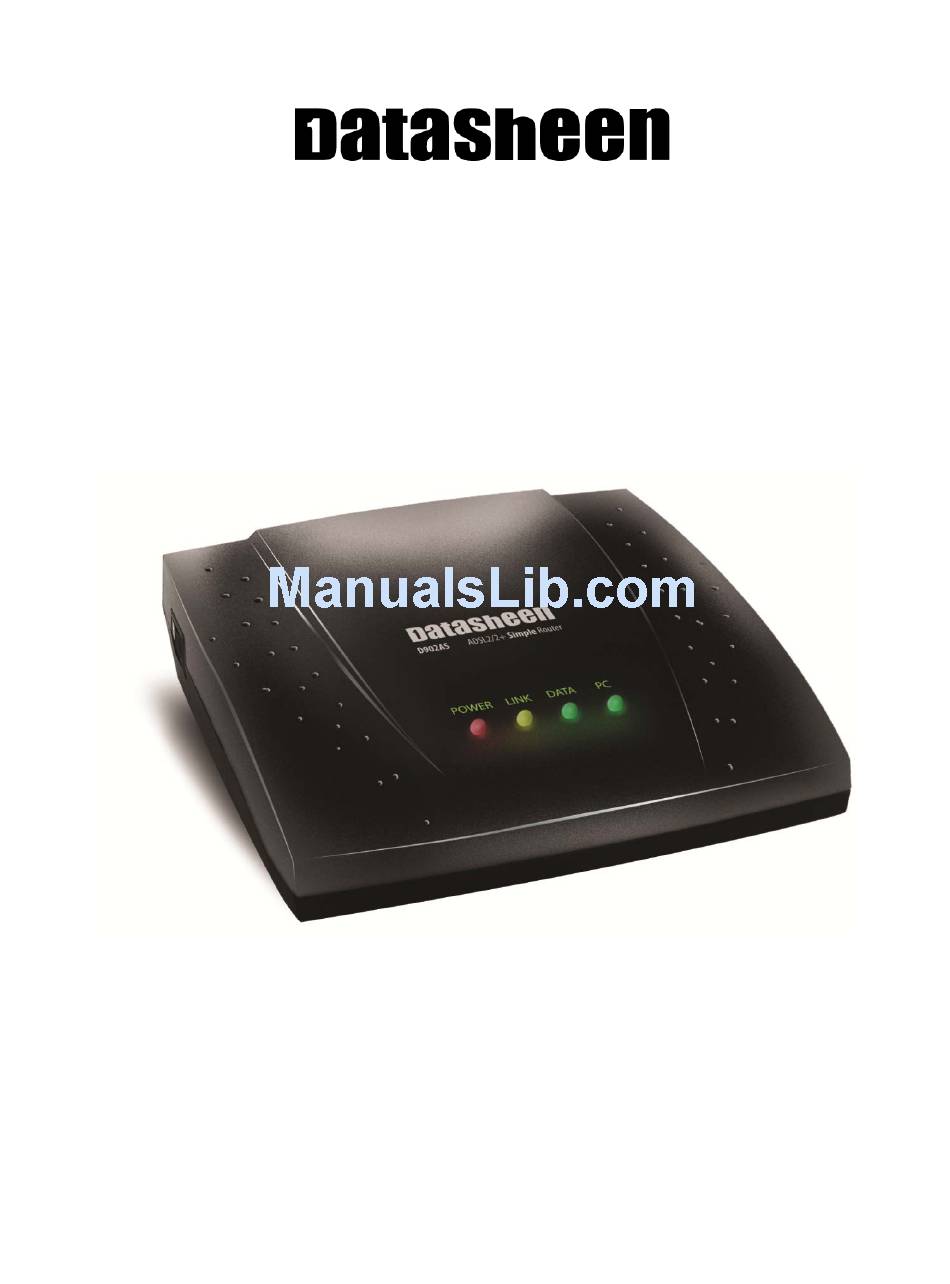

D902AS ADSL2/2+ Simple Router

User Manual

V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D902AS and is the answer not in the manual?

Questions and answers

Related Manuals for Datasheen D902AS

Summary of Contents for Datasheen D902AS

  • Page 1: User Manual

    D902AS ADSL2/2+ Simple Router User Manual V1.0...

  • Page 2: Table Of Contents

    Datasheen D902AS User Manual CONTENTS 1.OVERVIEW ............................... 3 1.1 ABOUT ADSL ............................3 1.2 ABOUT ADSL2/2+ ..........................3 1.3 FEATURES ............................3 2 SPECIFICATION .............................. 4 2.1 INTERFACE INTRODUCTION ......................4 2.1.1 INDICATOR AND INTERFACE ....................4 2.1.2 SPLITTER SPEC ........................... 4 2.2 HARDWARE CONNECTION ......................

  • Page 3: Overview

    Datasheen D902AS User Manual 1.OVERVIEW 1.1 ABOUT ADSL An ADSL MODEM is a broadband Internet access device，which utilizes the high frequency segment of the phone line to transmit high-speed data without affecting the voice transmission. The frequency of the ADSL signal is higher than that of voice, so voice and ADSL signal can coexist in one line by using a splitter to insulate each from the other.

  • Page 4: Specification

    Datasheen D902AS User Manual 2 SPECIFICATION 2.1 INTERFACE INTRODUCTION 2.1.1 NDICATOR AND INTERFACE Table 2.1 ITEM Name State introduction POWER A steady red light means the power connection works properly LINK Yellow, shows DSL line status. Indicator Green, Flashing means the Modem is transmitting or receiving...

  • Page 5: Led Status Indication

    Datasheen D902AS User Manual Introduction： 1、 Use a telephone cord to connect the LINE port of the splitter with the RJ-11 port (the phone jack) on the wall. 2、 Use another telephone cord to connect the ADSL port of the splitter with the LINE port of the ADSL Modem.

  • Page 6: Configuration

    Datasheen D902AS User Manual 3.CONFIGURATION 3.1 DEFAULT CONFIGURATION ADSL MODEM has pre-configured with the following VCI/VPI. The default dial-up mode is bridge encapsulation. For bridge mode, no need to configure any more parameter. However, the third party dial-up software is needed for connection with the Internet Tabel 3.1...

  • Page 7: Save Setting

    Datasheen D902AS User Manual SAVE SETTING 3.3.2 After getting through each page for parameters setting, click “Save” or “Save apply” to store the value in ADSL MODEM. Briefly, we named “Save”. Note ： ， When you save the settings the web page will be refreshed slowly, please wait it finished.
  • Page 8 Datasheen D902AS User Manual Click on the next connection which you want modify. Press “Edit” button, enter the configure guide, as Figure 3.3 Figure 3.3  The value for VPI/VCI is assigned by your ISP. After inputting the PVC value, press “Next” into “connection type”.

  • Page 9: Rfc1483 Bridge Configuration

    Datasheen D902AS User Manual The Modem supports five ADSL protocol modes. Choose the protocol which is appointed by ISP and PVC encapsulation, click “Next” enter to the protocol configure. Below, we introduce the configuraion of the five protocol modes. • PPP over ATM (PPPoA) •...
  • Page 10 Datasheen D902AS User Manual Figure 3.6 ： Note When you use bridge mode, please close “DHCP SERVER”, the result as Figure 3.7 Figure 3.7 Page 10 Total 16 Pages...

  • Page 11: Pppoe Configuration

    Datasheen D902AS User Manual 3.4.3 PPPOE CONFIGURATION PPPoE is also known as RFC 2516. It is a method of encapsulating PPP packets over Ethernet. PPPoA is also known as RFC2364 and named as Peer to Peer Protocol over ATM. As PPPoE, it also has all the features of PPP.

  • Page 12: Static Address

    Datasheen D902AS User Manual Press “Next step” when configuration is finished. The following operation is same with Figure 3.5. Notice that PPPoE mode does not work until the modem is reset. 3.4.4 STATIC ADDRESS In Figure3.4, select MAC Encapsulation Routing (MER)，press “Next”, and the configuration can be queried from your ISP, the result as Figure3.9.

  • Page 13: Other Configuration

    Datasheen D902AS User Manual 4 OTHER CONFIGURATION 4.1 LAN CONFIGURATION Configuration of Modem’s IP address and password 4.1.1 CONFIGURATION OF MODEM’S IP ADDRESS As a network device, ADSL Modem has its own IP address and MAC address. The factory sets the MODEM, at a default IP address of 192.168.1.1 and subnet mask of 255.255.255.0.

  • Page 14: Password Configuration

    Datasheen D902AS User Manual 192.168.1.2 to 192.168.1.254). • Input the value of lease (Measured by the second, 0 indicates permanently valid)。 As Figure 4.2，open DHCP server，computer will set the IP Address of network card with one of the address 10.10.10.11 ～ 10.10.10.254.

  • Page 15: Troubleshooting

    Datasheen D902AS User Manual 5. TROUBLESHOOTING 5.1 UNABLE TO ACCESS INTERNET 5.1.1 CHECK THE LINE AND THE DEVICE 1、 Check the indicator of power supply is on， if not， Make sure the connection of power supply is correct; Make sure the output of power supply is correct; Make sure the switch of power supply is turned on；...

  • Page 16: Annex：shipping List

    Datasheen D902AS User Manual subsequently popped up is the command line window. Note 3：The returned values of ping command in the following format show the standard of “reachable” 图 5.1 6、 If ping of the modem is reachable but ping of the outer fixed IP is unreachable, attention should be concentrated upon device settings.
