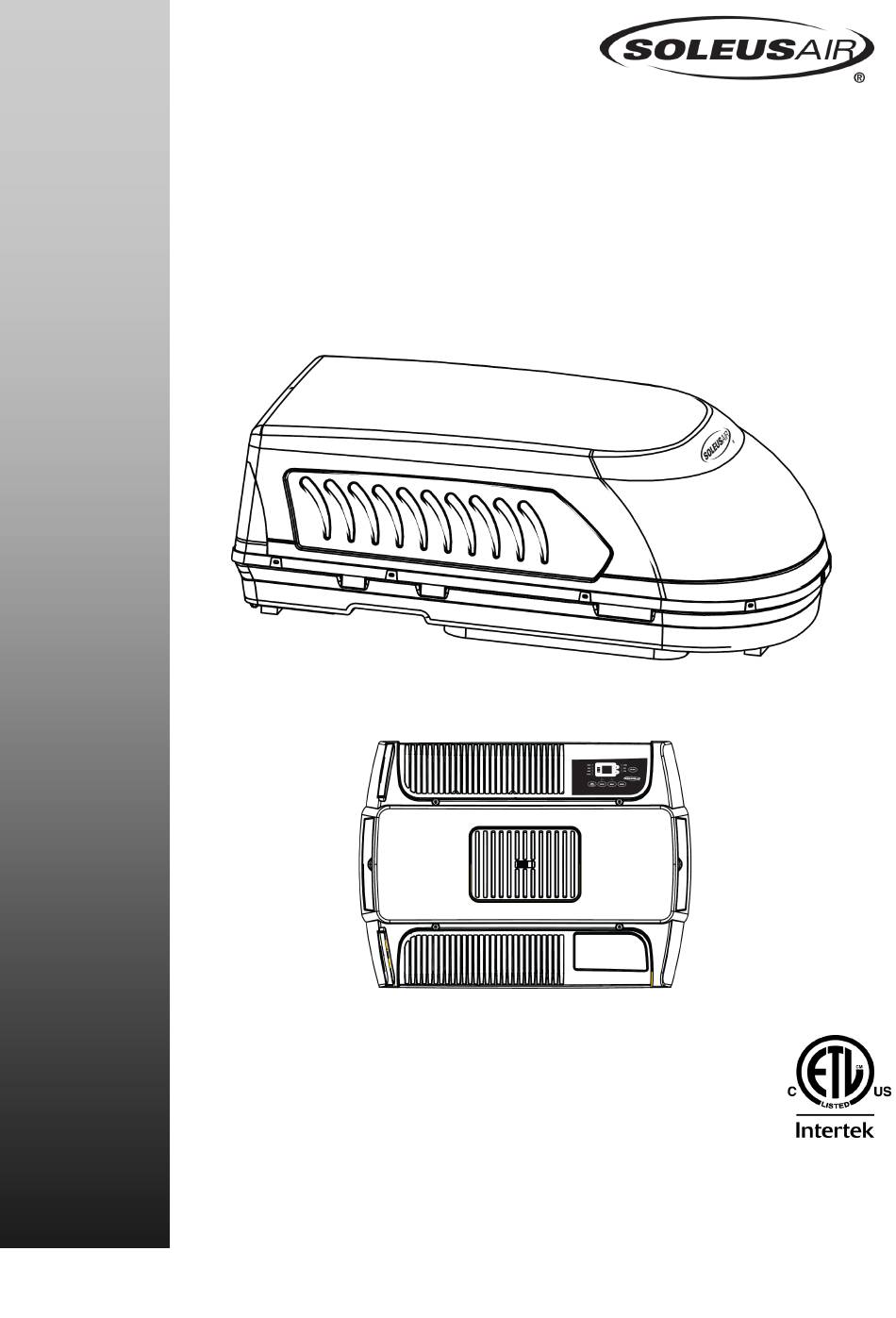

13500 BTU RV Air Conditioner
Installation and Operating Instructions
Model No.:HCB-R135-A-ID
3092402
HCB-R135-A-OD
V140804

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCB-R135-A-ID and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Soleus Air HCB-R135-A-ID

  • Page 1 13500 BTU RV Air Conditioner Installation and Operating Instructions Model No.:HCB-R135-A-ID 3092402 HCB-R135-A-OD V140804...
  • Page 2: Important Instructions

    Thank you for choosing a Soleus Air RV Air Conditioner. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Soleus Air RV Air Conditioner.
  • Page 3: Specifications

    SPECIFICATIONS MODEL NUMBER HCB-R135-A-ID HCB-R135-A-OD COOLING CAPACITY 13500 BTU/Hr DEHUMIDIFYING CAPACITY 132 pts per Day COOLING POWER USAGE Cooling 1290 Watts, 11.6 Amps 490/400/346 CFM AIR FLOW VOLUME(H/M/L) POWER SOURCE 115 V / 60 HZ Ceiling Assembly 50 dB(A) Ceiling Assembly 50 dB(A)
  • Page 4: Product Diagram

    PRODUCT DIAGRAM ROOF TOP ROOF TOP 1. Roof Top Air Conditioner (1) 2. Sponge Air Duct (1) 3. Sponge Pieces (2) 4. Sponge Slip (1) CEILING ASSEMBLY 1. Ceiling Grille (1) 2. Bolts (4) 3. Fabric Air Duct (1) 4. Air Vent Plates (2) 5.
  • Page 5 ELECTRIC DIAGRAM CEILING ASSEMBLY ROOF TOP CEILING ASSEMBLY...
  • Page 6 RVAC INSTALLATION INSTRUCTION 2. Mount the Roof Top Air Conditioner on top of where the opening was created. 3. Unscrew the screws and remove Ceiling Assembly Frame from Ceiling Grille. 5. Fasten the Ceiling Assembly Frame to the base of the Roof Top Air Conditioner with the 4 Bolts.
  • Page 7 6. Fasten each side of the Fabric Air Duct by secur- ing the Air Vent Plate to the Ceiling Assembly Frame with 4 Tapping Screws. Trim any excess fabric that may extend beyond edge of Air Vent Plate. 7. Use the provided power supply in Electric Box located on the side of the Ceiling Assembly Frame for electrical wiring (see P8 Figure 1,2).
  • Page 8: Electric Wiring

    ELECTRIC WIRING Make sure that all power supply to the unit is disconnected before starting any work on the unit to avoid the possibil- ity of shock or injury and/or damage to the equipment. After the interior ceiling assembly frame is properly secured to the Roof Top Air Conditioner, the following electrical connections must be performed.
  • Page 9 ELECTRIC WIRING (CONTINUED) Ceiling Roof Top Assembly 7. Connect the Ceiling Assembly and Roof Top connectors (see Figure 3, 4). (Roof Top) (Ceiling Assembly)
  • Page 10: Control Panel, Display, & Operating Instructions

    CONTROL PANEL, DISPLAY, & OPERATING INSTRUCTIONS CONTROL PANEL Increase Decrease Air Conditioner Temperature Temperature Mode Button Button Indicator Fan Speed Indicators Dehumidifier Mode Indicator POWER ON/OFF Button Fan Speed Button Fan Mode Indicator Filter Check Filter Check Timer Mode Selection Timer Button Indicator Button...
  • Page 11 OPERATING THE UNIT USING THE REMOTE CONTROL REMOTE CONTROL * Remote Colors may differ from the image above.
  • Page 12 REMOTE CONTROL OPERATING INSTRUCTIONS 1) Power On and Off - If the unit is already on, press the button on the remote while pointing the remote away from the unit. This will turn the remote on. If the unit is off, press the button once to manually turn the unit on.
  • Page 13 REMOTE CONTROL OPERATING INSTRUCTIONS(CONTINUED) 6) TIMER - To program the timer, first press the T-ON button. Once T-ON is pressed the auto-on timer will blink in the bottom right rectangle of the remote control display. Press the MIN and HOUR buttons to change the clock to the desired time for the unit to automatically turn on.
  • Page 14: Dehumidifier Mode

    OPERATING THE UNIT Air Conditioner Mode 1) Turn on the unit by pressing the button on remote control or ON/OFF button on control panel. 2) Press the MODE button until the air conditioner mode indicator lights up on the control panel display or press MODE button in remote control to select COOL mode.
  • Page 15 MAINTENANCE Clean or Replace Filter - When the unit operates over 250 total hours, the FILTER indicator will light up, the filter needs to be cleaned or replaced. If the air filter is blocked with dust, the airflow volume may reduce. It is recommended to clean the filter once every two weeks or as needed.
  • Page 16 SELF-DIAGNOSIS SYSTEM MALFUNCTION CODES SELF-DIAGNOSIS The appliance has a self diagnosis system to identify a number of malfunctions. Error messages are displayed on the appliance display. Problem Digital Display Room temperature sensor does not work Evaporator does not work Defrosting temperature sensor does not work...
  • Page 17 Warranty Soleus Home Comfort warrants the accompanying Soleus Air RV Air Conditioner to be free of defects in mate- rial and workmanship for the applications specified in its operation instruction for the period of parts specified below. 5 YEARS FOR COMPRESSOR 2 YEARS FOR OTHER COMPONENTS This warranty shall not apply to broken or marred cabinets, accessories, knobs, filters or routine maintenance.
