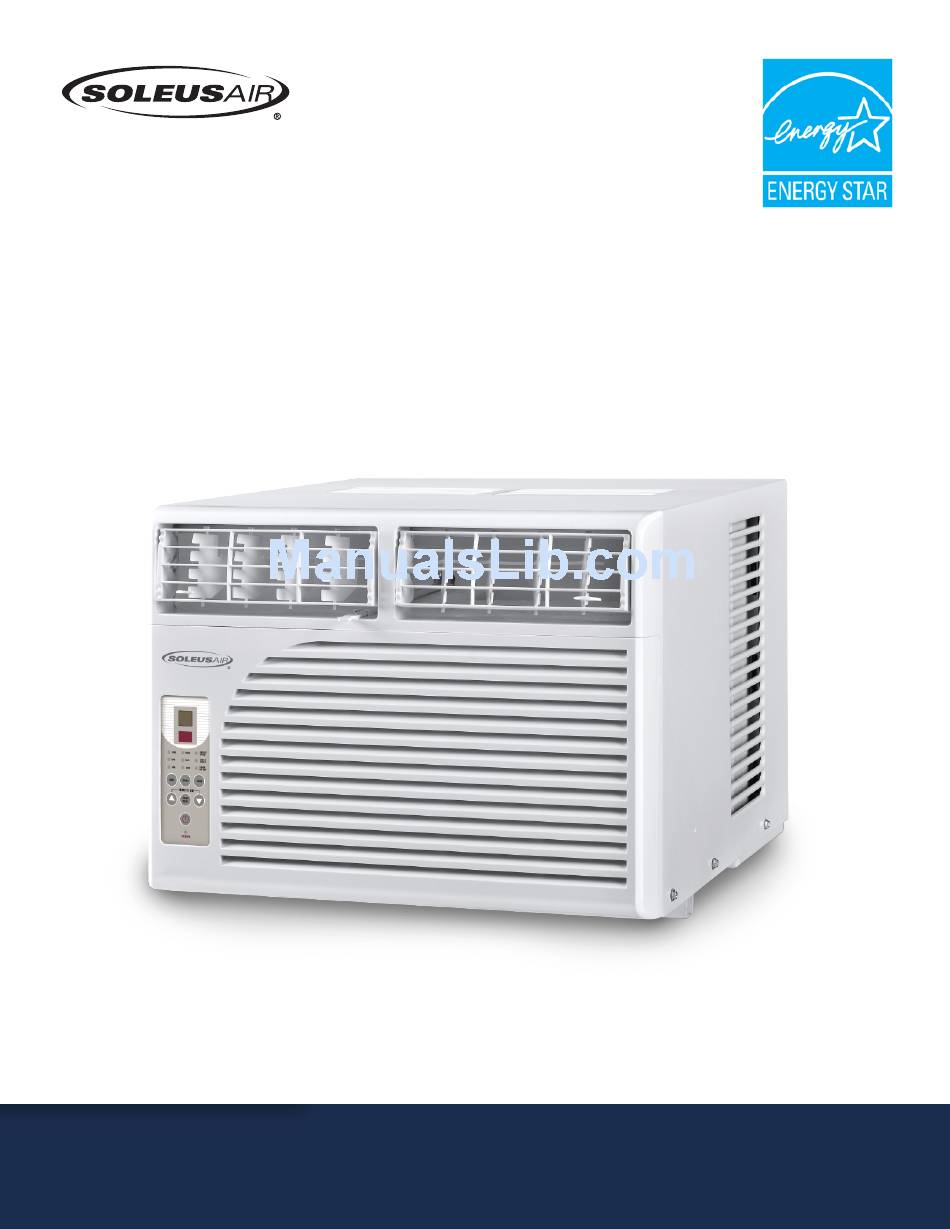

Model
HCC-W08ES-A1
HCC-W10ES-A1
Electronic Window Air Conditioner
Operating Instructions
V.140418

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCC-W08ES-A1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Soleus Air HCC-W08ES-A1

  • Page 1 Model HCC-W08ES-A1 HCC-W10ES-A1 Electronic Window Air Conditioner Operating Instructions V.140418...
  • Page 2: Important Safety Instructions

    Thank you for choosing a Soleus Air Air Conditioner. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new air conditioner.
  • Page 3: Lcdi Power Cord And Plug

    If test button is pressed and unit can still be turned on, current leakage has been detected. Do not use the air conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting recommendations.
  • Page 4: Packing List

    PACKING LIST Top Mounting Rail Air Conditioner Foam Seal Top Mounting Rail Insert Strip Accordion Panel Curtain Lock Long Screw Short Screw Sash Lock Packing List: • Sash Lock (2) • Window Air Conditioner (1) • Foam Seal (1) • Remote Control (1) •...
  • Page 5: Specifications

    Power consumption is measured when the fan runs at the highest speed setting. • These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. Model HCC-W08ES-A1 HCC-W10ES-A1 Power Supply (Ph/V/Hz) 1/115/60...
  • Page 6 INSTALLATION & ASSEMBLY INSTRUCTIONS Some assembly is required for your new air conditioner. Please read and follow these instructions carefully. 1. This air conditioner is designed to be installed in a standard double-hung window with a window width FIG. 1 between 23”...
  • Page 7: Top Rail Installation

    TOP RAIL INSTALLATION NOTE: Top Rail and the side Panels are offset to provide the proper pitch to the rear of (5/16”). This is necessary for proper condensation utilization and drainage. If you are not using the side panels, the rear pitch must still be maintained. Attach the top rail onto the top of the outer case using four Short Screws.
  • Page 8 ASSEMBLY & INSTALLATION (CONT.) Placing the Unit Inside a Normal Window Accordion Panel Installation 1. Place the air conditioner on the sill with the bottom Now that you have installed the top rail, you can now install mounting rail against its back edge. Center the air con- the accordion panels on each side.
  • Page 9 ASSEMBLY & INSTALLATION (CONT.) IF AC is Blocked by a Storm Window Removing the Air Conditioner from the Window A storm window frame will not allow the air conditioner to tilt properly which in turn will keep it from draining properly. 1.
  • Page 10: Using Your Air Conditioner

    USING YOUR AIR CONDITIONER 3. Temperature Set: Use these buttons on the con- Electronic Control Panel & Remote Control trol panel and remote to increase or decrease the Set Temperature (the desired room temperature) in cooling,energy saver and dry mode. NOTE: This display always shows the room temperature in Fan Mode except when setting the Set temperature or the Timer To switch between Celsius/Fahrenheit display,...
  • Page 11: Operating Your Air Conditioner

    OPERATING YOUR AIR CONDITIONER REMOTE CONTROL COOL - Press the COOL button to turn cooling mode on or off. 8. DRY - Press the DRY button to turn dehu- midifying mode on or off. Fan speed can only be set to low in this mode. 9.
  • Page 12 USING YOUR AIR CONDITIONER Freezing Conditions: This is a cooling only air • Fan Only Mode: Use Fan Only mode at Low, • conditioner. It is not designed for freezing outdoor Med, or High fan speed to provide air circulation conditions.
  • Page 13: Care And Cleaning

    CARE AND CLEANING Cabinet Cleaning To clean the air conditioner cabinet: Clean your air conditioner to keep it looking new and to minimize dust build up. Unplug the air conditioner to prevent shock or • a fire hazard. The cabinet and front panel of Air Filter Cleaning the air conditioner may be dusted with an oil- The air filter should be checked at least once...
  • Page 14: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS The Air Conditioner will not start The air conditioner is unplugged • Make sure the air conditioner is plug is pushed completely into the outlet • Check the house fuse/circuit The fuse is blown/circuit breaker is breaker box and replace the fuse tripped.
  • Page 15 TROUBLESHOOTING (CONT.) PROBLEM POSSIBLE CAUSES SOLUTIONS Water is dripping outside Hot and Humid weather. • This is normal Water is dripping inside the room The air conditioner is not correctly • For proper water drainage, make tilted outside. sure the air conditioner is slightly tilted downward from the front of the unit to the rear.
  • Page 16 Warranty Soleus Home Comfort warrants the accompanying Soleus Air Air Conditioner to be free of defects in mate- rial and workmanship for the applications specified in its operation instruction for the period of parts specified below. 5 YEARS FOR COMPRESSOR 1 YEAR FOR OTHER COMPONENTS This warranty shall not apply to broken or marred cabinets, accessories, knobs, filters or routine maintenance.

This manual is also suitable for:

Hcc-w10es-a1
