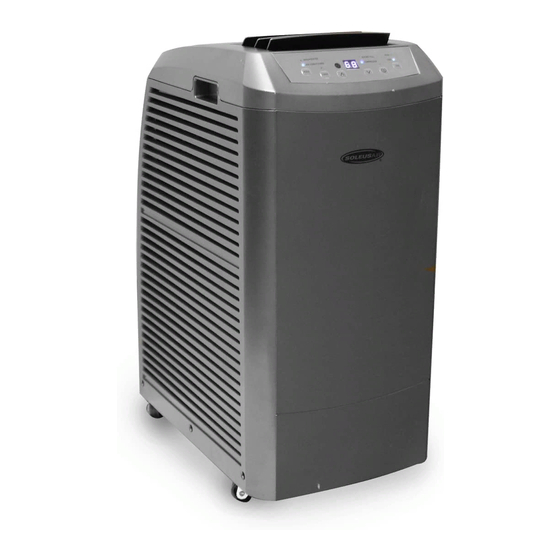

Soleus Air HCB-P11-A Operating Instructions Manual

 btu portable air conditioner with evaporative technology
Hide thumbs

Advertisement

Table of Contents

BTU Portable Air Conditioner
Evaporative Technology
Operating Instructions
3092402
Model No.: HCB-P11-A
Reference No.: BPA11
V.140204

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCB-P11-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Soleus Air HCB-P11-A

Summary of Contents for Soleus Air HCB-P11-A

  • Page 1 BTU Portable Air Conditioner Evaporative Technology Operating Instructions 3092402 Model No.: HCB-P11-A Reference No.: BPA11 V.140204...

  • Page 2: Important Instructions

    Thank you for choosing a Soleus Air Portable Air Conditioner. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Soleus Air Portable Air Conditioner.

  • Page 3: Package Contents

    If the ambient temperature is higher than the max operating temperature or lower than the minimum operating tem- perature, the air conditioner may not work properly. MODEL / REFERENCE NUMBER HCB-P11-A / BPA11 COOLING CAPACITY 11,000 Btu/Hr COOLING POWER CONSUMPTION...

  • Page 4: Lcdi Power Cord And Plug

    If test button is pressed and unit can still be turned on, current leakage has been detected. Do not use the air conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting recommendations.

  • Page 5: Product Diagram

    PRODUCT DIAGRAM Control Panel and LED display Louvers Carry Handle Air Filter Compartment and Air Intake Casters Remote Control Holder Power Air Filter Compartment Cord Wrap and Air Intake Exhaust Outlet Drain Plug Power Cord...

  • Page 6: Parts & Assembly

    PARTS & ASSEMBLY PARTS EXHAUST HOSE WINDOW KIT ASSEMBLY & INSTALLATION INSTALLATION When the unit is operating as an air conditioner, or dehumidifier, the unit draws in fresh outdoor air and exhausts hot air out of the room to complete the air exchange. NOTE: The supplied window kit can be installed in sliding windows and sliding glass doors from 14 inch up to 55.5 inch long.

  • Page 7: Window Kit Installation

    NOTE: The Portable Air Conditioner above may differ from the unit described in this manual. The above directions and images show general directions for Soleus Air hose portable air conditioners.

  • Page 8: Window Kit Assembly

    WINDOW KIT ASSEMBLY 1.Parts: A) 2 Track Screws B) 2 Wing Nuts C1 & C2) 2 Hose Panels, one Exhaust Hose Openings D) 1 Sliding Track Panel 5. Next, take the other Hose Panel (C2) and connect it to Hose Panel (C1) by placing the Sliding Track Panel (D) over the Track Screw (A) on Hose Panel (C2).

  • Page 9: Control Panel

    CONTROL PANEL, DISPLAY, & OPERATING INSTRUCTIONS CONTROL PANEL MODE TEMPERATURE POWER FAN SPEED TIMER AND TIMER INDICATOR TIMER/TEMP DECREASE TIMER/TEMP INCREASE OPERATING INSTRUCTIONS 1) Power On and Off - Press the POWER button once to manually turn the unit on. Press the POWER - Press the POWER button once to manually turn the unit on.

  • Page 10: Operating The Unit Using The Control Panel

    OPERATING THE UNIT USING THE CONTROL PANEL Air Conditioner Mode 1) Install the exhaust hose and window kit properly (see pages 7 & 8 ). 2) Plug the Power Cord into an electrical outlet. 3) Turn on the unit by pressing the POWER button on the control panel. 4) Press the Mode button until the led of AIR CONDITIONER light up on the control panel display.

  • Page 11: Condensate Evaporation

    CONDENSATE EVAPORATION Emergency Condensate Holding Tank When the room temperature is low and the indoor humidity is high, the air conditioner may not be able to evaporate some of the moisture fast enough. When this happens, the water will accumulate in an emergency condensate tank inside the unit.
  • Page 12 OPERATING THE UNIT USING THE REMOTE CONTROL SWING (not available on this model) °C/°F * Remote color may differ from the image above. REMOTE CONTROL OPERATING INSTRUCTIONS 1) Power On and Off - Press the ON/OFF button on the remote to turn the unit on or off.. 2) Mode Selection - Press the MODE Button repeatedly to cycle between the different modes: Air Condi- tioner and Dehumidifier.

  • Page 13: Maintenance

    MAINTENANCE Note: Make sure power is off and the power cord is not plugged into an electrical outlet prior to performing any maintenance on the unit. Clean or replace filter - If the air filter is blocked with a dust, the airflow volume may reduce. It is recommended to clean the filter once every two weeks or as needed.

  • Page 14: This Warranty Does Not Cover

    One Year Limited Warranty Soleus Home Comfort warrants the accompanying Soleus Air Portable air conditioner to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
