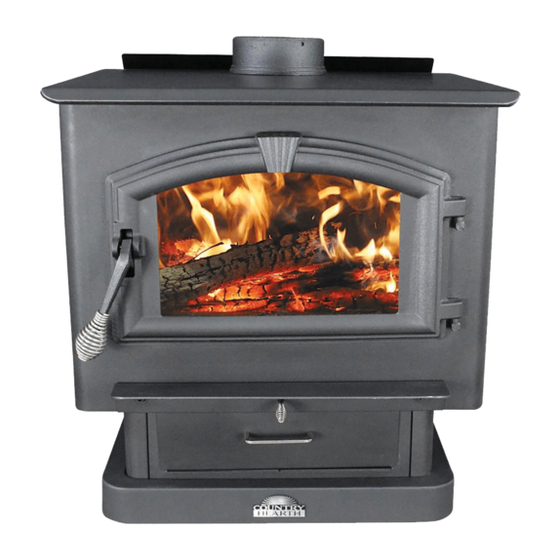

Country Hearth 2000 L Owner's Operation And Instruction Manual

Woodstove

Hide thumbs Also See for 2000 L:

Owner's operation and instruction manual (25 pages)

Owner's operation and instruction manual (13 pages)

Owner's operation and instruction manual (45 pages)

Table Of Contents

Table of Contents

Quick Links

Owner's Operation and Instruction Manual

MODELS: 2000(L)(LN), 2500(L)(LN)

US ENVIRONMENTAL PROTECTION AGENCY PHASE II CERTIFIED WOODSTOVE

CAUTION!

Please read this entire manual before you install or

use your new room heater.

tions may result in property damage, bodily injury,

or even death.

Improper Installation Could Void

Your Warranty!

THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU TO OR-

DER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.

French version is available for download from the U. S. Stove website: http://www.usstove.com/

SAFETY TESTED TO UL 1482 and ULC-S627

WASHINGTON STATE APPROVED

MOBILE HOME APPROVED (U.S. ONLY)

Failure to follow instruc-

SAVE THESE INSTRUCTIONS

United States Stove Company

227 Industrial Park Road

P.O. Box 151

South Pittsburg, TN 37380

SAFETY NOTICE:

If this heater is not properly installed, a house fi re may

result. For your safety, follow the installation instruc-

tions. Never use make-shift compromises during the

installation of this heater. Contact local building or

fi re offi cials about permits, restrictions and installa-

tion requirements in your area.

TESTED &

PORTLAND,

LISTED BY

OREGON, USA

2000 Report #: 215-S-29-2

2500 Report #: 215-S-23-2

851710 rev F

Table of Contents

Need help?

Do you have a question about the 2000 L and is the answer not in the manual?

Questions and answers

Summary of Contents for Country Hearth 2000 L

Page 1 Owner’s Operation and Instruction Manual MODELS: 2000(L)(LN), 2500(L)(LN) SAFETY TESTED TO UL 1482 and ULC-S627 US ENVIRONMENTAL PROTECTION AGENCY PHASE II CERTIFIED WOODSTOVE WASHINGTON STATE APPROVED MOBILE HOME APPROVED (U.S. ONLY) CAUTION! SAFETY NOTICE: SAFETY NOTICE: Please read this entire manual before you install or If this heater is not properly installed, a house fi re may If this heater is not properly installed, a house fi re may use your new room heater.
Page 2 CONGRATULATIONS! You’ve purchased a heater from North America’s oldest manufacturer of wood burning products. By heating with wood you’re helping to CONSERVE ENERGY! Wood is our only Renewable Energy Resource. Please do your part to preserve our wood supply. Plant at least one tree each year. Future generations will thank you.
Page 3 WARRANTY INFORMATION CARD Name__________________________________________ Telephone #: (_____)_____________ City____________________________________________ State_______ Zip_________________ Email Address __________________________________________________________________ Model # of Unit________________________________ Serial #___________________________ Fuel Type: Wood Coal Pellet Gas Other _________________________ Place of Purchase (Retailer)______________________________________________________ City____________________________________________ State_______ Zip_________________ If internet purchase, please list website address___________________________________ Date of Purchase _______________________________________________________________ Alternative Heat Main Heat Source...
Page 4   Fold Here Fold Here Fold Here PLACE STAMP HERE United States Stove Company P.O. Box 151 South Pittsburg, TN 37380 Ussc...
Page 5 Tools and Materials Needed For Installation You will need a drill with a 1/8” bit to install sheet metal screws into connector pipe. A 5/16” socket/wrench or screw driver to install pedestal trim, room air defl ector, and blower assembly described below. A 1/2” socket/wrench to install fl ue collar. A non-combustible fl oor protector as specifi ed in this manual.
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Blower Assembly THE BLOWER ASSEMBLY MUST BE DISCONNECTED FROM THE SOURCE OF ELECTRICAL SUPPLY BEFORE ATTEMPTING THE INSTALLATION. THE BLOWER ASSEMBLY IS INTENDED FOR USE ONLY WITH A STOVE THAT IS MARKED TO INDICATE SUCH USE. DO NOT ROUTE THE SUPPLY CORD NEAR OR ACROSS HOT SURFACES! Step 1.
Page 7: Installation
INSTALLATION SAFETY NOTICE • IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. • CONSULT YOUR MUNICIPAL BUILDING DEPARTMENT OR FIRE OFFICIALS ABOUT PERMITS, RESTRICTIONS AND INSTALLATIONS REQUIREMENTS IN YOUR AREA. •...
Page 8: Floor Protector
FLOOR PROTECTOR Your wood stove should be placed on a 1 inch, non-combustible surface with a k factor of 0.84. For multiple layers, add R-values of each layer to determine the overall R-value. Th e R value for the required board is 1.2. If there is a horizontal section of chimney connector, the fl oor protector should go under it and 2 inches beyond each side Convert specifi cation to R-value:...
Page 9: Clearances To Combustibles
CLEARANCES TO COMBUSTIBLES It is of utmost importance that the clearances to combustible materials be strictly adhered to during installation of the stove. Refer to the tables below : Single Wall Pipe (Double Wall Pipe) Model 2000 20(14) 22(20) 22.5(16.5) 32(30) 12(11) 22(21)
Page 10: Chimney Connector (Stove Pipe)
CHIMNEY CONNECTOR (STOVE PIPE) Your chimney connector and chimney must have the same diameter as the stove outlet (6”). If this is not the case, we recommend you contact your dealer in order to insure there will be no problem with the draft . Th e stove pipe must be made of aluminized or cold roll steel with a minimum thickness of 0.021”...
Page 11 CHIMNEY Your wood stove may be hooked up with a 6” factory built or masonry chimney. If you are using a factory built chimney, it must comply with UL 103 or CSA-B365 standard; therefore it must be a Type HT (2100°F). It is extremely important that it be installed according to the manufacturer’s specifi cations.
Page 12: Factory Built Chimney
FACTORY BUILT CHIMNEY : When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed. You must also purchase (from the same manufacturer) and install the ceiling support package or wall pass- through and “T” section package, fi restops (where needed), insulation shield, roof fl ashing, chimney cap, etc. Maintain proper clearance to the structure as recommended by the manufacturer.
Page 13: Masonry Chimney
MASONRY CHIMNEY : Ensure that a masonry chimney meets the minimum standards of the National Fire Protection Association (NFPA) by having it inspected by a professional. Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. Have the chimney cleaned before the stove is installed and operated. When con- necting the stove through a combustible wall to a masonry chimney, special methods are needed.
Page 14 Combustible Wall Chimney Connector Pass-Throughs Method A. 12” (304.8 mm) Clearance to Combustible Wall Member: Using a minimum thickness 3.5” (89 mm) brick and a 5/8” (15.9 mm) mini- mum wall thickness clay liner, construct a wall pass-through. Th e clay liner must conform to ASTM C315 (Standard Specifi cation for Clay Fire Linings) or its equivalent.
Page 15: Outside Combustion Air
OUTSIDE COMBUSTION AIR Your wood stove is approved to be installed with an outside air intake which is necessary for a mobile home. Th is type of installation is also required in air tight houses and houses with negative pressure problems. You can purchase this option through your heater dealer.
Page 16: Testing Your Wood
WOODSTOVE UTILIZATION Your heating unit was designed to burn wood only; no other materials should be burned. Waste and other fl ammable materials should not be burned in your stove. Any type of wood may be used in your stove, but specifi c varieties have better energy yields than others.
Page 17: The First Fires
THE FIRST FIRES Th e fresh paint on your stove needs to be cured to preserve its quality. Once the fuel charge is properly ignited, only burn small fi res in your stove for the fi rst four hours of operation. Never open the air control more than necessary to achieve a medium burn rate. Make sure that there’s enough air circulation while curing the stove.
Page 18 WARNINGS • NEVER OVERFIRE YOUR STOVE. IF ANY PART OF THE STOVE STARTS TO GLOW RED, OVER FIRING IS HAPPENING. READJUST THE AIR INTAKE CONTROL AT A LOWER SETTING. • THE INSTALLATION OF A LOG CRADLE or GRATES IS NOT RECOMMENDED IN YOUR WOOD STOVE.
Page 19: Ash Disposal
ASH DISPOSAL Ashes should be removed from the stove every few days or when ashes get to 2 to 3 inches deep. Always empty the stove when it is cold, such as in the morning. Ashes should be placed in a metal container with a tight fi tting lid.
Page 20: Repair Parts
REPAIR PARTS Feed Door Assembly Ussc...
Page 21 REPAIR PARTS 69516MB Feed Door Assy. 891414 Firebrick (2-1/4 x 9) 25080B Feed Door Latch 24103 Firebrick (4-1/2 x 4-1/2) 83508 5/16-18 x 3/4 Hex Head Bolt 891530 Firebrick (4-1/2 x 7-1/2 ) 83338 5/16-18 Lock Nut 40561 Ash Plug 891373 Door Hinge Pad 891777...
Page 22 NOTES Ussc...
Page 23 NOTES Ussc...
Page 24: How To Order Repair Parts
HOW TO ORDER REPAIR PARTS THIS MANUAL WILL HELP YOU OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM YOUR HEATER, AND ENABLE YOU TO ORDER REPAIR PARTS CORRECTLY. KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. WHEN WRITING, ALWAYS GIVE THE FULL MODEL NUMBER WHICH IS ON THE NAMEPLATE ATTACHED TO THE HEATER.

This manual is also suitable for:

2500 ln 2500 l 3000 3000 ln 2000 2500
