Owner's Operation and Instruction Manual
CAUTION!
Please read this entire manual before you install or
use your new room heater.
tions may result in property damage, bodily injury,
or even death.
Improper Installation Could Void
Your Warranty!
THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU TO OR-
DER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
French version is available for download from the United States Stove Company website: http://www.usstove.com/
La version française est disponible pour téléchargement à partir du site United States Stove Company: http://www.usstove.com/

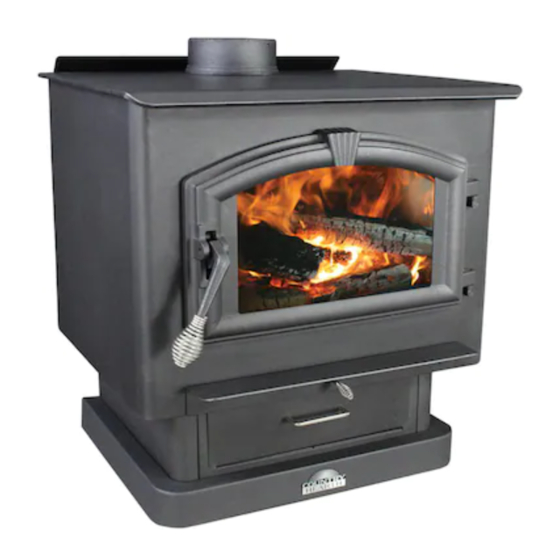

MODEL: 3000 (L), (LN)
CERTIFIED FOR USA and CANADA
SAFETY TESTED TO UL 1482-2010 and ULC-S627-2000
WASHINGTON STATE APPROVED
U.S. Environmental Protection Agency
Certified to comply with 2015 particulate emissions standards.
Failure to follow instruc-
SAVE THESE INSTRUCTIONS
United States Stove Company
227 Industrial Park Road
South Pittsburg, TN 37380
If this heater is not properly installed, a house fi re
may result. For your safety, follow the installation
instructions. Never use make-shift compromises
during the installation of this heater. Contact local
building or fi re offi cials about permits, restrictions
and installation requirements in your area.
P.O. Box 151
SAFETY NOTICE:
851879 E-1910E
Advertisement
Table of Contents
Related Manuals for Country Hearth 3000
Summary of Contents for Country Hearth 3000
- Page 1 Owner’s Operation and Instruction Manual MODEL: 3000 (L), (LN) CERTIFIED FOR USA and CANADA SAFETY TESTED TO UL 1482-2010 and ULC-S627-2000 WASHINGTON STATE APPROVED U.S. Environmental Protection Agency Certified to comply with 2015 particulate emissions standards. CAUTION! SAFETY NOTICE: Please read this entire manual before you install or If this heater is not properly installed, a house fi re use your new room heater.
- Page 2 Th e instructions pertaining to the installation of your wood stove comply with UL-1482 and ULC-S627 standards. Th is manual describes the installation and operation of the Country Hearth, 3000 wood heater. Th is heater meets the 2015 U.S. Environmental Protection Agency’s crib wood emission limits for wood heaters sold aft er May 15, 2015. Under specifi c test condi- tions this heater has been shown to deliver heat at rates ranging from 11,624 to 38,140 Btu/hr.
- Page 3 WARRANTY INFORMATION CARD Name__________________________________________ Telephone #: (_____)_____________ City____________________________________________ State_______ Zip_________________ Email Address __________________________________________________________________ Model # of Unit________________________________ Serial #___________________________ Fuel Type: Wood Coal Pellet Gas Other _________________________ Place of Purchase (Retailer)______________________________________________________ City____________________________________________ State_______ Zip_________________ If internet purchase, please list website address___________________________________ Date of Purchase _______________________________________________________________ Alternative Heat Main Heat Source...
- Page 4 Fold Here Fold Here Fold Here PLACE STAMP HERE United States Stove Company P.O. Box 151 South Pittsburg, TN 37380...
-
Page 5: Tools And Materials Needed For Installation
TOOLS AND MATERIALS NEEDED FOR INSTALLATION You will need a drill with a 1/8” bit to install sheet metal screws into connector pipe. A 5/16” socket/wrench or screw driver to install pedestal trim, room air defl ector, and blower assembly described below. A 1/2” socket/wrench to install fl ue collar. A non-combustible fl oor protector as specifi ed in this manual. -
Page 6: Leg Assembly
ASSEMBLY INSTRUCTIONS Blower Assembly Pedestal Trim Assembly Attach to the pedestal base at the location shown THE BLOWER ASSEMBLY MUST BE DISCONNECTED using the screws provided. FROM THE SOURCE OF ELECTRICAL SUPPLY BEFORE ATTEMPTING THE INSTALLATION. THE BLOWER ASSEMBLY IS INTENDED FOR USE ONLY WITH A STOVE THAT IS MARKED TO INDICATE SUCH USE. -
Page 7: Installation
INSTALLATION SAFETY NOTICE • IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. • THIS STOVE IS NOT APPROVED FOR INSTALLATION IN A MANUFACTURED OR MOBILE HOME. •... -
Page 8: Floor Protector
Total R = Rbrick + Rmineral = 0.8 + 0.431 = 1.231 Total R is greater than 1.2, the system is acceptable. Th e fl oor protector should exceed the stove as follows: Model Front Sides Rear 6” 3000 26” 8” (660mm) (203mm) (152mm) - Canadian installations require 8” (203mm) -
Page 9: Clearances To Combustibles
CLEARANCES TO COMBUSTIBLES It is of utmost importance that the clearances to combustible materials be strictly adhered to during installation of the stove. Refer to the tables below : Single Wall Pipe Model 3000 17.5 30.5 (358mm) (508mm) (445mm) (775mm) -
Page 10: Chimney Connector (Stove Pipe)
CHIMNEY CONNECTOR (STOVE PIPE) Your chimney connector and chimney must have the same diameter as the stove outlet (6”). If this is not the case, we recommend you contact your dealer in order to insure there will be no problem with the draft . Th e stove pipe must be made of aluminized or cold roll steel with a minimum thickness of 0.021”... - Page 11 CHIMNEY Your wood stove may be hooked up with a 6” factory built or masonry chimney. If you are using a factory built chimney, it must comply with UL 103 or CSA-B365 standard; therefore it must be a Type HT (2100°F). It is extremely important that it be installed according to the manufacturer’s specifi cations.
-
Page 12: Factory Built Chimney
FACTORY BUILT CHIMNEY When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed. You must also purchase (from the same manufacturer) and install the ceiling support package or wall pass-through and “T” section package, fi restops (where needed), insulation shield, roof fl ashing, chimney cap, etc. -
Page 13: Masonry Chimney
MASONRY CHIMNEY Ensure that a masonry chimney meets the minimum standards of the National Fire Protection Association (NFPA) by having it inspected by a professional. Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. Have the chimney cleaned before the stove is installed and operated. -
Page 14: Combustible Wall Chimney Connector Pass-Throughs
COMBUSTIBLE WALL CHIMNEY CONNECTOR PASS-THROUGHS Method A. 12” (304.8 mm) Clearance to Combustible Wall Member: Using a minimum thickness 3.5” (89 mm) brick and a 5/8” (15.9 mm) minimum wall thickness clay liner, construct a wall pass-through. Th e clay liner must conform to ASTM C315 (Standard Specifi cation for Clay Fire Linings) or its equivalent. -
Page 15: Outside Combustion Air
OUTSIDE COMBUSTION AIR Your wood stove is approved to be installed with an outside air intake which is necessary for a tightly constructed home and houses with a negative pressure problem. You can purchase this option through your heater dealer or your local hardware store. Using a Semi-Rigid 4”... -
Page 16: Woodstove Utilization
WOODSTOVE UTILIZATION Th is heater is designed to burn natural wood only. Higher effi ciencies and lower emissions generally result when burning air dried seasoned hardwoods, as compared to soft woods or to green or freshly cut hardwoods. DO NOT BURN: Garbage;... -
Page 17: Testing Your Wood
Once the updraft movement is initiated, you are ready to ignite the stove by lighting the paper and kindling wood inside the combustion chamber. When you have achieved a good bed of hot embers, we recommend the following burn procedures: 3000 Primary Air Settings Electric Blower Speed Setting... -
Page 18: To Prevent Creosote Build Up
WARNINGS • NEVER OVERFIRE YOUR STOVE. IF ANY PART OF THE STOVE STARTS TO GLOW RED, OVER FIRING IS HAPPENING. READJUST THE AIR INTAKE CONTROL AT A LOWER SETTING. • THE INSTALLATION OF A LOG CRADLE or GRATES IS NOT RECOMMENDED IN YOUR WOOD STOVE. -
Page 19: Operational Tips
OPERATIONAL TIPS Operational Tips for Good, Effi cient, and Clean Combustion • Get the appliance hot and establish a good coal bed before adjusting to a low burn rate (this may take 30 minutes or more depending on your wood) •... -
Page 20: Maintenance
MAINTENANCE Your wood stove is a high effi ciency stove and therefore requires little maintenance. It is important to perform a visual inspection of the stove every time it is emptied, in order to insure that no parts have been damaged, in which case repairs must be performed immediately. -
Page 21: Repair Parts
REPAIR PARTS 17 18 Feed Door Assembly... - Page 22 REPAIR PARTS 69516 Feed Door Assy. 891414 Firebrick (2-1/4 x 9) 25080B Feed Door Latch 24103 Firebrick (4-1/2 x 4-1/2) 83508 5/16-18 x 3/4 Hex Head Bolt 891783 Firebrick (3 x 4-1/2 ) 83338 5/16-18 Lock Nut 40561 Ash Plug 891373 Door Hinge Pad 25855...
- Page 23 NOTES...
-
Page 24: How To Order Repair Parts
HOW TO ORDER REPAIR PARTS THIS MANUAL WILL HELP YOU OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM YOUR HEATER, AND ENABLE YOU TO ORDER REPAIR PARTS CORRECTLY. KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. WHEN WRITING, ALWAYS GIVE THE FULL MODEL NUMBER WHICH IS ON THE NAMEPLATE ATTACHED TO THE HEATER.
