Summary of Contents for Planet ICA-3350V

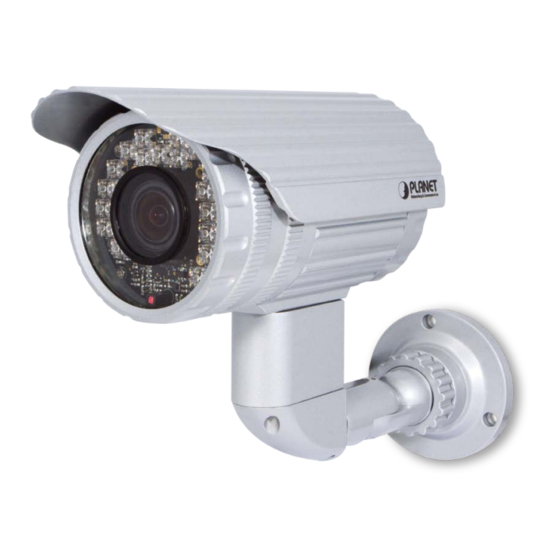

- Page 1 3 Mega-Pixel Vari-Focal IR / Fisheye IP Camera ICA-3350V / ICA-5350V / ICA-8350 Quick Installation Guide...
-
Page 2: Table Of Contents
1.1 Before Installation ................3 1.2 System Requirements ................3 Chapter 2. Physical Description and Installation ..........4 2.1 ICA-3350V 3 Mega-Pixel Vari-Focal Bullet IR IP Camera ......4 2.1.1 Package Content ................ 4 2.1.2 Physical Details ................4 2.1.3 Installation ................6 2.2 ICA-5350V 3 Mega-Pixel Vandal Proof IR IP Camera ....... -
Page 3: Chapter 1. Introduction
Chapter 1. Introduction Thank you for purchasing the PLANET 3 Mega-Pixel Vari-Focal IR / Fisheye IP Camera. It is versatile and high image solution of surveillance application for day and night. The PLANET IP Camera support Multi-Profile function can stands for simultaneously video streams. -
Page 4: Chapter 2. Physical Description And Installation
Chapter 2. Physical Description and Installation 2.1 ICA-3350V 3 Mega-Pixel Vari-Focal Bullet IR IP Camera 2.1.1 Package Content ICA-3350V x 1 Power Adapter x 1 Accessory Kit x 1 User’s Manual CD x 1 Quick Installation Guide x 1 If any of the above items are missing, please contact your dealer immediately. - Page 5 Interface Description Connects to your local area network by Ethernet cable. LAN LED (green color) RJ45 LAN This LED will be flashing while network accessing via Ethernet. socket Power LED (orange color) This LED is used to indicate whether DC power is on or not. DC power input, connect to AC power adapter.
-
Page 6: Installation
This button is used to restore the all factory default settings. Sometimes restarting the device will make the system back to a normal state. However, if the system still got problems after restart, user can restore the factory default settings and install it again. -
Page 7: Ica-5350V 3 Mega-Pixel Vandal Proof Ir Ip Camera
2.2 ICA-5350V 3 Mega-Pixel Vandal Proof IR IP Camera 2.2.1 Package Content ICA-5350V x 1 Power Adapter x 1 Accessory Kit x 1 User’s Manual CD x 1 Quick Installation Guide x 1 If any of the above items are missing, please contact your dealer immediately. - Page 8 Interface Description Connects to your local area network by Ethernet cable. LAN LED (green color) RJ45 LAN This LED will be flashing while network accessing via Ethernet. socket Power LED (orange color) This LED is used to indicate whether DC power is on or not. DC power input, connect to AC power adapter.
-
Page 9: Installation
This button is used to restore the all factory default settings. Sometimes restarting the device will make the system back to a normal state. However, if the system still got problems after restart, user can restore the factory default settings and install it again. -
Page 10: Ica-8350 3 Mega-Pixel Vandal Proof Fisheye Ip Camera
2.3 ICA-8350 3 Mega-Pixel Vandal Proof Fisheye IP Camera 2.3.1 Package Content ICA-8350 x 1 Power Adapter x 1 Accessory Kit x 1 User’s Manual CD x 1 Quick Installation Guide x 1 If any of the above items are missing, please contact your dealer immediately. - Page 11 Interface Description Connects to your local area network by Ethernet cable. LAN LED (green color) RJ45 LAN This LED will be flashing while network accessing via Ethernet. socket Power LED (orange color) This LED is used to indicate whether DC power is on or not. DC power input, connect to AC power adapter.
-
Page 12: Installation
This button is used to restore the all factory default settings. Sometimes restarting the device will make the system back to a normal state. However, if the system still got problems after restart, user can restore the factory default settings and install it again. -
Page 13: Chapter 3. Camera Windows Utility
IP Camera. The 3 Mega-Pixel Vari-Focal IR / Fisheye IP Camera is with the default settings. However to help you find the networked camera quickly the windows utility (PLANET IPWizard II) can search the IP cameras in the network that shall help you to configure some basic setting before you started advanced management and monitoring. - Page 14 View function: If PLANET IPWizard II finds network devices, View button will be available. Please select the device you want to view and click the View button. Furthermore you could double click the left button of mouse to link to the network device by browser.
- Page 15 After connected to networked device, the device will prompt for User name and Password. For the first time, please enter: admin/admin as username and password to continue Web Management. XXXXX Default User Name: admin Default Password: admin Default IP: 192.168.0.20 – if no DHCP existed in the network If difficulty is met, please refer to the following steps to establish the connection: - The networked device must be installed and powered ON.
-
Page 16: Further Information
Further Information This guide is used to help you startup your IP Camera settings. It is also recommended to check the user manual in CD disk for more details of the system and user configuration.
