First-Time Use

Unpacking

Inserting the
Battery Into the
Receiver
Open the receiver box and unpack the following items:
• Receiver
• Battery
• Universal AC adapter
• USB cable
• Hand strap
• Lanyard
• Stylus
Follow the instructions below:

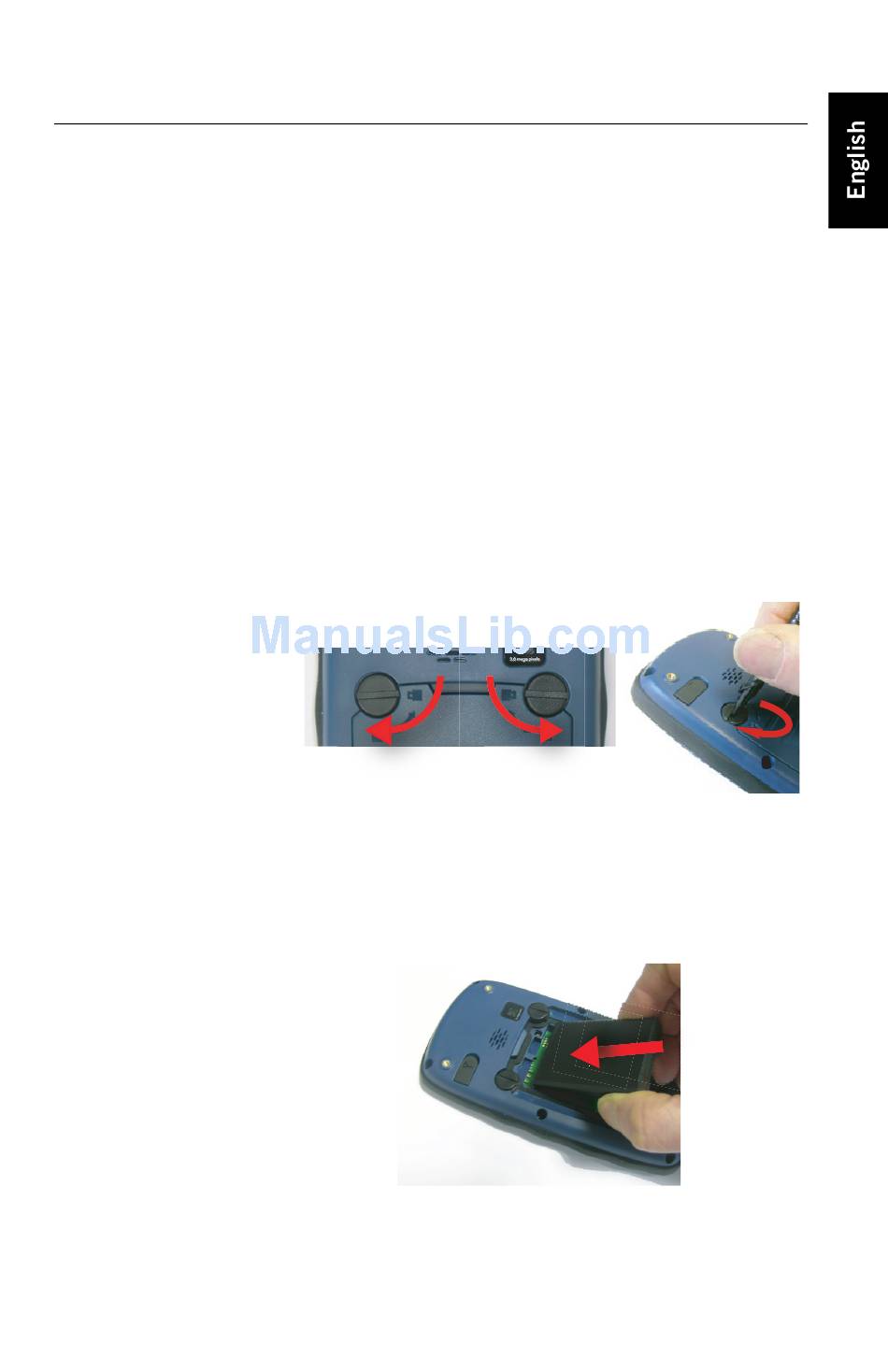

• Turn over the receiver.
• Using the top end of the stylus (or a coin), rotate the two
screws to open the trap door: turn the left-hand one
clockwise by a quarter turn, and the right-hand one
anticlockwise, also by a quarter turn.
• Pull the trap door open.
• Insert the battery as shown. Orientate the battery so that
its electric contacts can come into contact with those at
the bottom of the battery compartment. Insert the upper
part of the battery first, as shown, then push the battery
in.
