Samsung 630 series Quick Setup Manual page 82

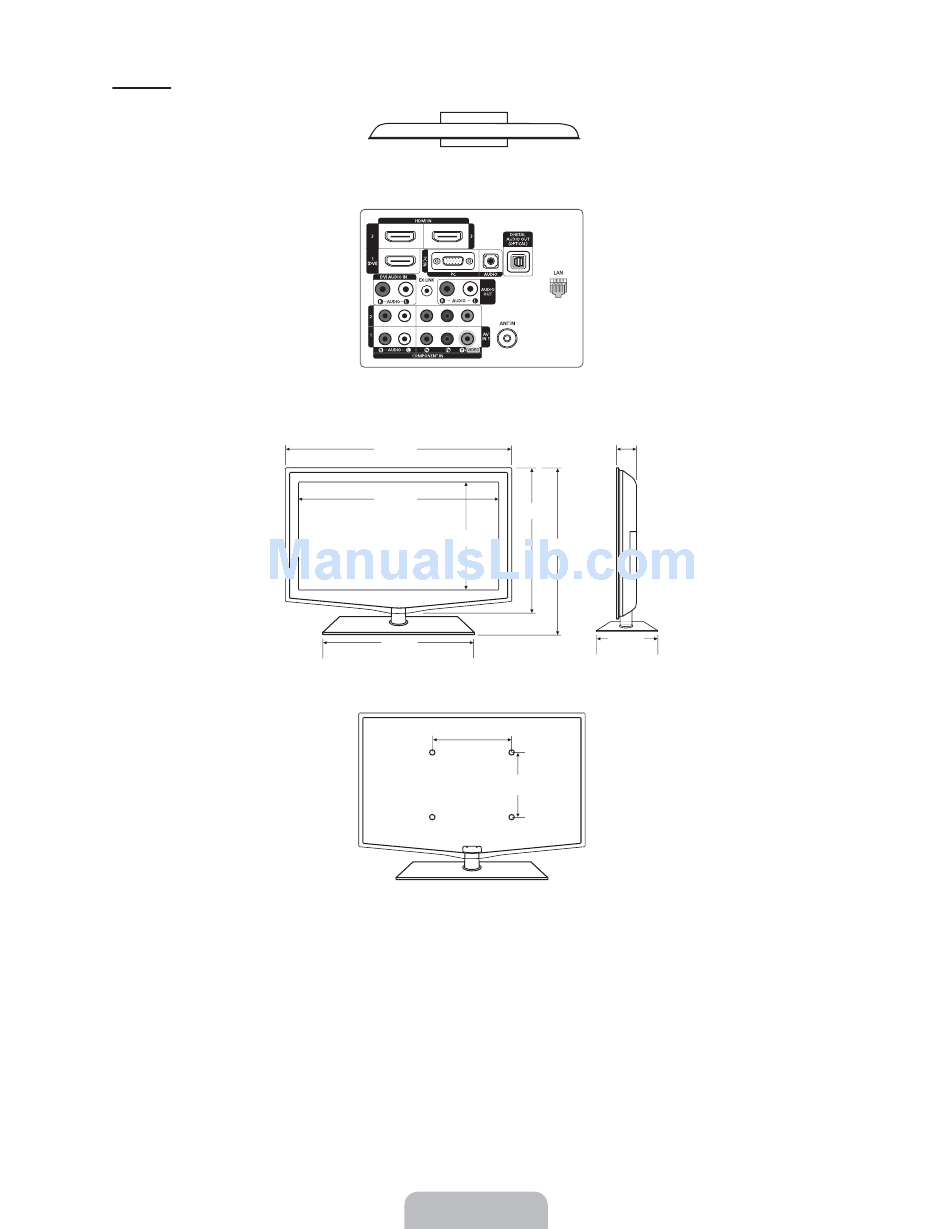

LN52B630
TOP VIEW
JACK PANEL DETAIL 5.2"H X 6.6"W
49.7
45.5
32.3
25.7
34.5
21.7
FRONT VIEW / SIDE VIEW
15.7 (400 mm)
15.7 (400 mm)
REAR VIEW
NOTE: All drawings are not necessarily to scale. Some
dimensions are subject to change without prior notice. Refer to
the dimensions prior to performing installation of your TV. Not
responsible for typographical or printed errors.
© 2009 Samsung Electronics America, Inc
English - 75
