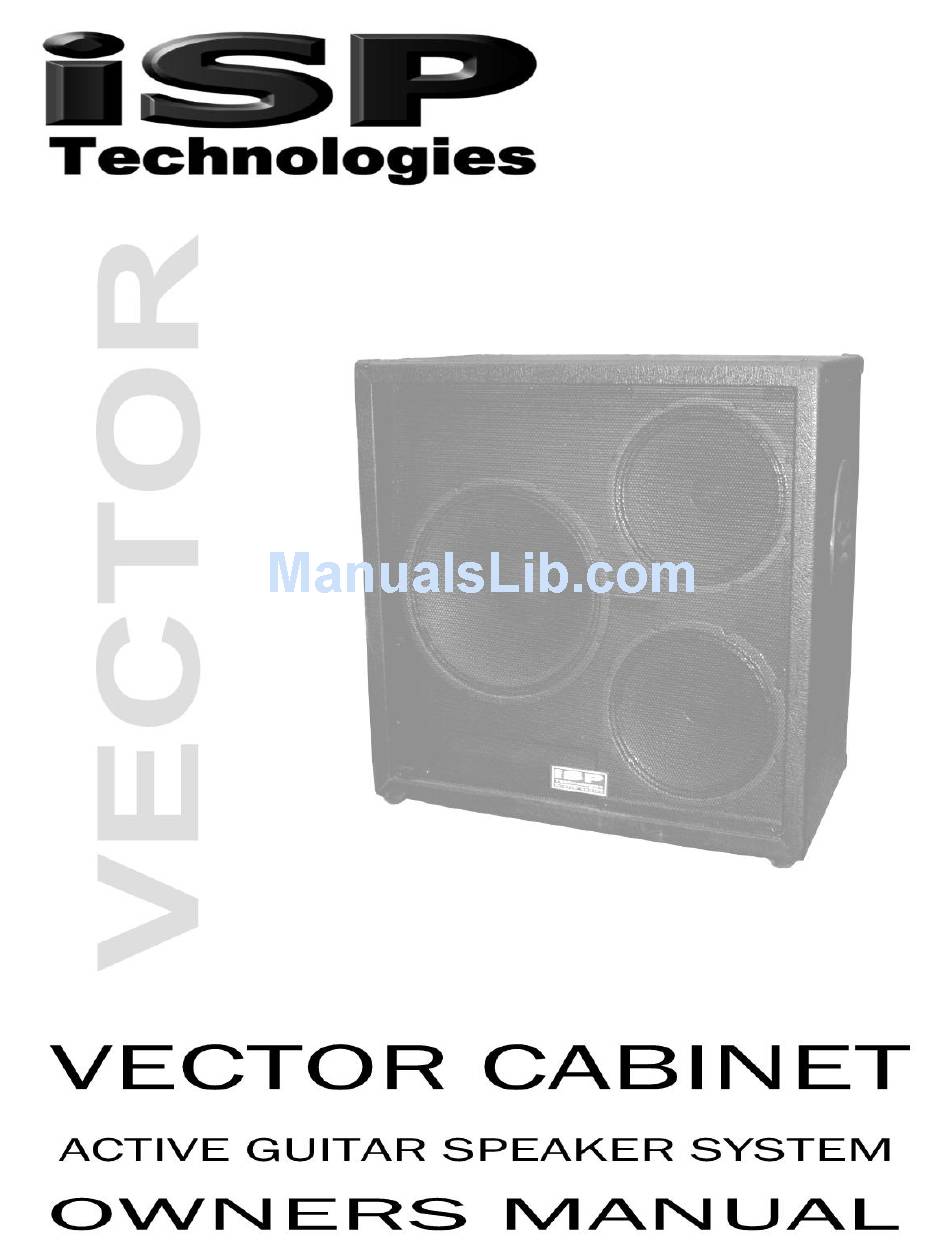

- Page 2 INTRODUCTION Congratulations on your purchase of the VECTOR CABINET. You are now the owner of the most innovative guitar speaker cabinet ever produced. The patent pending VECTOR ACTIVE GUITAR CABINET has bass on tap, designed as the perfect complement with maximum performance when used with the THETA HEAD.
- Page 3 The VECTOR was designed for ease of use, simply connect the speaker output of the THETA HEAD, or any other guitar amplifier, to the input of the VECTOR, as you would for any other speaker cabinet, and get ready to unleash the most unbelievable low-end punch and bass performance you have ever heard.
- Page 4 Connect the VECTOR cabinet as shown above. Connect the speaker output of the guitar amplifier to the input of the VECTOR cabinet using a speaker cable with a ¼-inch jack connectors. Connect the IEC power cord to a proper AC supply wall outlet using the power cable supplied with the VECTOR cabinet.
- Page 5 Once the amplifier cools, the Limit light will go out and the amplifier will become active. 2. POWER LED This red LED indicates that the amplifier is on and active. 3. SUB LEVEL The SUB LEVEL adjusts the output level of the VECTOR internal subwoofer.
- Page 6 4. INPUT JACK Connect the speaker output of your guitar amplifier to this input jack. The VECTOR will internally attenuate the speaker output and apply this signal to the input of the internal D-CAT amplifier to drive the subwoofer. 5. POWER SWITCH The power switch turns the VECTOR amplifier on and off.
- Page 7 The warranty will be voided if the serial number has been tampered with in any way. The warranty card must also be filled out and mailed back to ISP in order to validate the warranty.
